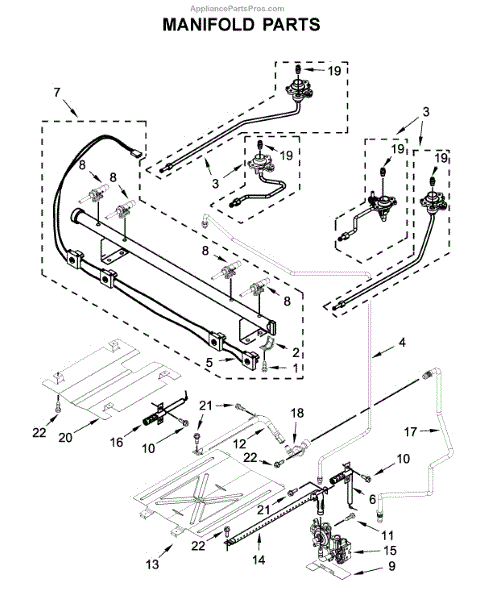

Parts for Ikea IGR660GS0: Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This is a replacement Holder for securing the ORF assembly in the appliance. It restores support and alignment to the ORF component so the assembly stays properly positioned and reduces movement or noise. What it does:

• Secures the ORF assembly to the appliance frame to maintain proper alignment
• Helps prevent rattling, shifting, or sagging of the attached component
• Restores stable operation of the ORF-related parts and improves fit
• Can address symptoms such as loose or misaligned parts and unusual noises

• One Holder

• Disconnect power to the appliance before starting any repair
• Follow the appliance service manual for exact removal and replacement steps
• Keep small fasteners and clips organized during disassembly

This wire harness routes power and signals between controls and components to restore correct electrical connections. It replaces a damaged or worn harness to help appliances regain reliable operation and reduce electrical faults. What it does:

• Connects control board, switches, and powered components so they can communicate and receive power
• Restores broken, burnt, or loose wiring paths that cause intermittent or lost function
• Helps resolve symptoms such as controls or indicators not responding, elements or motors not powering, or intermittent operation
• Maintains insulated, organized wiring to prevent shorts and improve safety

• Disconnect all power (unplug or shut off breaker) before starting any repair
• Compare connectors and wire lengths to the original harness before installing
• Route harness to avoid sharp edges and moving parts; secure with existing clips or ties

The Oven Igniter is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, providing the heat necessary for baking or broiling. This igniter is critical for the oven’s functionality, as it must heat up to a specific temperature to open the gas valve and begin the combustion process.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up despite the gas being turned on.
• A gas smell indicating that gas is being released without ignition.
• Intermittent heating, where the oven fails to maintain a consistent temperature.

Causes of a bad oven igniter can include aging and wear that reduce the igniter’s ability to reach the required temperature, electrical issues such as faulty wiring or connections, or a malfunctioning safety valve that doesn’t open properly.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Burner Valve (RR) is an OEM part for Whirlpool ranges. It controls the flow of gas to the rear-right burner, allowing for precise regulation of the flame during cooking. The valve ensures safe and efficient operation by opening and closing as needed to adjust the burner’s heat output.

Over time, burner valves can become faulty due to wear and tear, grease buildup, or internal damage. Exposure to high heat and repeated use may cause the valve to stick, leak, or fail to regulate gas properly. If the valve becomes obstructed or worn out, it can compromise cooking performance and safety.

Symptoms of a bad burner valve include:

• Inconsistent or weak flame
• Gas smell near the burner when turned off
• Difficulty igniting the burner
• The burner not shutting off completely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner valve is a direct-replacement valve that controls gas flow to a cooktop or range burner, restoring proper ignition and steady flame for safe cooking. What it does:

• Regulates gas flow to an individual burner for normal ignition and flame control
• Helps correct issues like burners that won't light or have weak/uneven flames
• Prevents continuous flow when the valve is in the off position (safety-related function)
• Works as the component between the appliance gas line/manifold and the burner port

• Always shut off the appliance gas supply and power before beginning service
• Check all connections for leaks after installation (soap-and-water test recommended) and follow local codes
• Do not test for leaks with an open flame; follow OEM instructions and safety precautions

This surface burner valve controls gas flow to an individual cooktop or range burner, enabling safe, precise flame adjustment. Replacing a worn valve restores reliable ignition, smooth flame control, and proper shutoff at the knob.

• Regulates gas supply to one surface burner as you turn the control knob
• Helps address a burner that won't ignite, erratic or unresponsive flame adjustment, or a stiff/stripped valve stem
• Provides positive shutoff when the knob is in the Off position
• Saddle-style mounting on the gas manifold

• Shut off gas supply and disconnect power; allow the appliance to cool
• Access the manifold and note knob orientation and tubing/orifice connections for reassembly
• Use an approved thread sealant only where specified by the manufacturer; do not overtighten fittings
• After installation, leak-check all joints with a soap-and-water solution and verify ignition and low-flame adjustment

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This broiler burner provides the gas flame for the oven's broil function, restoring high-heat cooking performance for searing and browning. Designed for direct-spark-ignition (DSI) ranges, it replaces a worn or damaged broil element. What it does:

• Produces the high, direct flame used for broiling food on the oven's top rack
• Replaces a cracked, rusted, or clogged burner that causes uneven or weak broiling
• Stops burner-related ignition issues when the burner tube or ports are damaged
• Helps restore proper heat distribution for faster browning and searing

• One broiler burner

• Disconnect electrical power and shut off the gas supply before starting work
• Handle gas connections and igniter areas carefully; inspect for leaks after installation
• Use basic hand tools; ensure the burner seats and aligns with the gas orifice and igniter

This flame spreader directs and evens the oven burner flame for more uniform heating and improved bake results. Replacement spreaders restore proper flame pattern and help reduce hot spots in the oven cavity. What it does:

• Distributes burner flame across the oven surface to promote even cooking and baking.
• Helps prevent concentrated hot spots that can cause unevenly cooked food.
• Can restore correct flame pattern when the existing baffle is warped, damaged, or missing.
• Supports stable burner operation by shielding and guiding the flame.

• Turn off power to the range and shut off the gas supply before servicing.
• Handle carefully to avoid bending or damaging the baffle; reinstall in the original orientation.
• Use appropriate hand tools and follow the oven's service manual for removal/installation steps.
• After installation, restore gas and power and check burner ignition and for any gas leaks per safety procedures.

This oven bake burner is designed for Direct Spark Ignition (DSI) ranges. It channels gas from the bake orifice and distributes an even flame under the oven floor for consistent baking performance and reliable light-off during the bake cycle.

• Distributes gas through burner ports to create an even bake flame
• Works with the DSI spark electrode to ignite the bake flame
• Can address uneven or weak flame patterns and delayed ignition in bake

• Disconnect power and shut off gas; allow the oven to cool completely
• Remove the oven bottom and flame spreader to access the burner
• Transfer any reusable mounting hardware or shields from the original burner
• After reassembly, restore gas/power and leak-test any disturbed gas connections per local code

This gas valve controls the flow of gas to a burner, enabling safe ignition and a stable flame. Replace a sticking or failed valve to restore dependable lighting and consistent heat output from your cooking appliance.

• Regulates and shuts off gas flow from the manifold to the burner
• Supports clean ignition and steady flame during operation
• Common symptoms: burner won't light even with spark/igniter present, flame won't adjust or is erratic, control stem is stiff or stripped
• Can help resolve intermittent flame-out or weak flame caused by internal valve wear

• Disconnect power and shut off the gas supply before servicing
• Note tubing/orifice orientation and transfer fittings as required
• Apply gas-rated thread sealant to tapered pipe threads only
• After installation, open gas and leak-test all joints with an approved solution; verify ignition and proper flame height

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This is a replacement fitting used to connect and secure a flexible hose or water line to the appliance, restoring a proper sealed connection and helping stop leaks at the joint. What it does:

• Provides a secure connection point for a flexible hose or water line
• Restores a sealed joint to prevent drips or slow leaks at the connection
• Helps maintain proper water flow to components that rely on a direct hose feed
• Replaces damaged, cracked or worn fittings that cause poor seals

• Shut off water supply and unplug the appliance before servicing
• Inspect mating hose and clamp for damage; replace clamp or hose if needed for a reliable seal
• Hand-start threads or push-fit connections to avoid cross-threading; tighten per OEM guidance

This orifice spud controls the flow of natural gas to a burner, helping maintain the correct flame size for safe, efficient cooking. It replaces a worn or damaged spud to restore proper burner performance. What it does:

• Meter gas to the burner for stable ignition and consistent flame
• Helps correct weak or uneven flames and poor burner heat
• Used when a spud is cracked, clogged, or physically damaged
• Works with the appliance's burner tube and valve assembly

• Turn off the appliance and shut off the gas supply before servicing
• Use appropriate wrenches; avoid overtightening the spud
• Inspect surrounding burner parts and clean any debris before reinstalling

This natural-gas orifice spud is sized for the 5K burner position on compatible gas cooktops and ranges. It meters gas to the burner to set proper flame height, helping restore consistent heat when the original orifice is clogged, damaged, or incorrect. What it does:

• Regulates gas flow for the designated burner; calibrated for the 5K position on natural gas systems
• Can help resolve weak or oversized flames, yellow/lazy flames, uneven heating, or intermittent ignition
• Required when converting back to natural gas on applicable units; not for LP gas
• Installs in the orifice holder/manifold beneath the burner head

• Shut off gas supply and power; allow the cooktop/range to cool completely
• Remove burner cap and head to access the orifice
• Use the correct nut driver; hand-start threads and tighten snugly—do not overtighten
• Reassemble, leak-check connections with soapy water, and verify flame quality per the service instructions

Precision-machined orifice spud that meters natural gas to a range or cooktop burner. The #9 size restores correct fuel flow and flame characteristics when replacing a clogged or damaged orifice or when installing the model's specified natural-gas orifice.

• Regulates gas flow to the burner for proper flame size with natural gas
• Replaces a worn, blocked, or stripped orifice to improve flame quality
• Used during fuel conversion when the model calls for a #9 NG orifice
• Helps with symptoms: small/weak flame, uneven flame pattern, or a burner that won't stay lit

• Disconnect power and shut off the gas supply; allow the appliance to cool
• Hand-start threads, then snug gently—do not overtighten; keep the orifice and holder free of debris
• Restore gas, check all connections for leaks with a soapy-water solution, and verify proper flame

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This LP conversion kit adapts select gas cooking appliances to operate on liquid propane. Use it when installing a natural-gas model on an LP supply to ensure proper ignition, flame characteristics, and safe performance. What it does

• Converts a natural-gas appliance for use with LP/propane per the model's installation instructions
• Provides correctly sized LP components to achieve proper flame size and combustion
• Helps prevent issues such as yellow flames, sooting, and poor simmer control caused by incorrect gas type
• Required when installing where only propane is available; model-specific kit

• One LP conversion kit

• Conversion must be performed by a qualified gas technician; follow all local codes
• Shut off gas and electrical power and allow all components to cool before servicing
• Replace the specified parts and set the pressure regulator for LP; adjust low flames/air shutters as directed in the service/installation manual
• Leak-test all connections and apply conversion labels after completion; verify flame quality

This LP bake orifice meters propane to the oven's bake burner to deliver the specified BTU output. It helps ensure a stable, blue flame and consistent baking performance after LP conversion or when replacing a damaged or missing spud.

• Meters LP gas to the bake burner for the intended BTU output
• Promotes correct flame size and color for efficient, even baking
• Useful after LP conversion or when the original orifice is clogged, damaged, or missing
• Symptoms can include weak or unstable bake flame, oven not reaching temperature, or yellow/sooty flame

• For LP use only; verify the correct orifice for your model and gas type
• Disconnect power and shut off gas; allow the oven to cool completely before service
• Access the bake burner orifice holder; start threads by hand to avoid cross-threading and tighten snugly—do not overtighten brass
• After reassembly, leak-check all gas connections and verify proper flame/air-shutter adjustment.

The LP Bake and Broil Kit is an OEM replacement part for Whirlpool ranges. It is a kit containing everything needed to convert the oven from Natural gas to LP.

Causes of a bad bake/broil system can include cracks, leaks, or corrosion in gas lines that produce unsafe flames over time. Pilot lights may fail to light consistently.

Symptoms of failures include:

• Inability to ignite bake/broil burners
• Erratic or intermittent baking temperatures
• Uneven cooking due to improper burner positioning
• Strong gas or chemical smells from the oven

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.
