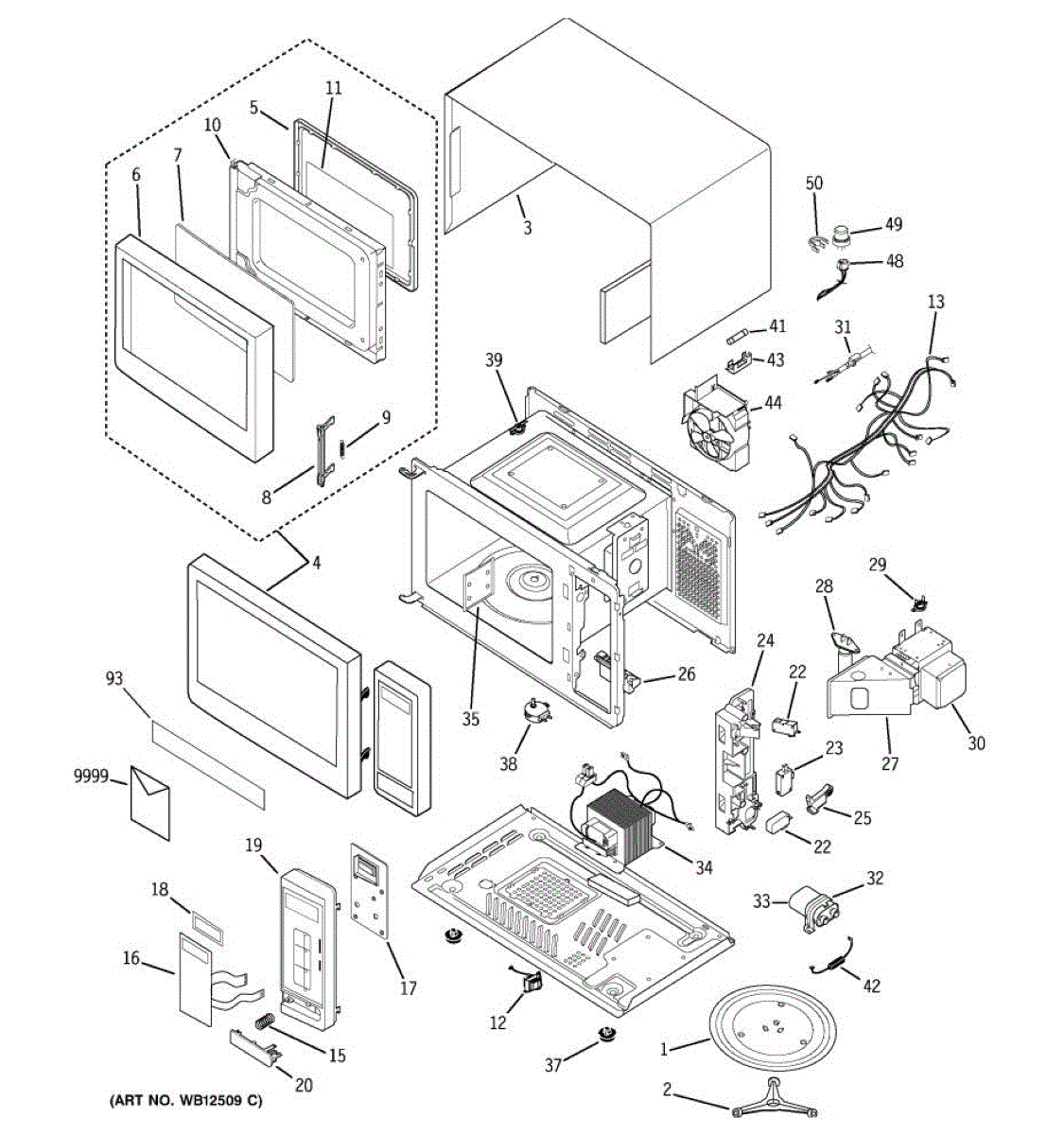

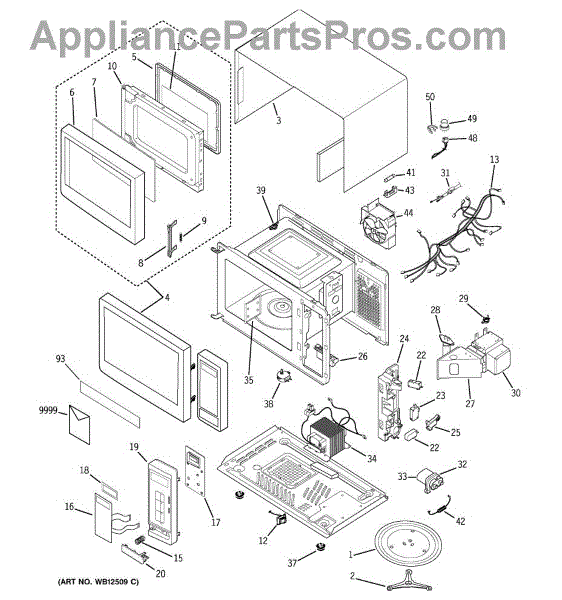

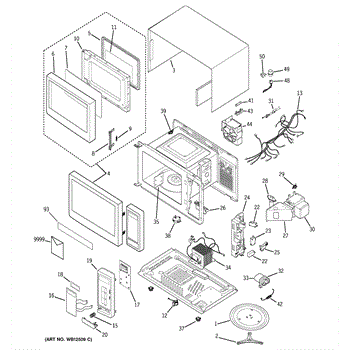

Parts for Ge JES1655CF002: 01 - Microwave Parts

This glass tray is a flat oven shelf that provides a smooth, easy-to-clean surface for baking and roasting. It restores a stable cooking surface and replaces cracked, chipped, or otherwise damaged oven glass trays. What it does:

• Supports bakeware and cookware for even heating on the oven floor or shelf area
• Replaces trays that are cracked, chipped, or shattered and may cause uneven cooking
• Provides a smooth, non-porous surface that's simple to wipe clean
• Helps prevent food drips from contacting the oven floor when used as intended

• One glass tray

• Handle carefully; glass can break and cause injury—wear cut-resistant gloves
• Allow the oven to cool completely before removing or installing the tray
• Inspect tray for chips or stress cracks before first use; do not use if damaged
• Follow the appliance manufacturer's instructions for placement and safe use

This outer oven door assembly replaces a damaged or worn oven front to restore proper closure and heat retention for safe, efficient cooking. It fits the oven's front and includes the full door structure needed for replacement. What it does:

• Replaces a cracked, dented, or non-closing oven door to help restore proper sealing and temperature control
• Supports normal door opening and closing; reduces heat loss and prevents heat from escaping into the kitchen
• Helps prevent further damage to internal oven components by restoring the door barrier
• Fits and mounts where the original door assembly installs; matches OEM mounting points and hinge interfaces

• One complete outer oven door assembly as shown

• Disconnect power to the appliance before beginning service to avoid electrical shock
• The door assembly can be heavy and awkward; use two people to remove and install to avoid injury or damage
• Handle glass surfaces carefully; inspect for shipping damage before installation and do not operate if glass is cracked
• Follow OEM service instructions for hinge alignment and torque specs; verify proper door closure and seal after installation

This OEM-style control panel provides the front-facing electronic interface for your range/oven, restoring touch/button control and display feedback so functions can be selected and monitored reliably. What it does:

• Houses the oven/range touchpad/buttons and display used to set temperature, timer, and cooking modes.
• Sends user commands to the range control board so the oven responds to bake, broil, timer, and self-clean selections.
• Replaces cracked, unresponsive, or worn buttons and improves display readability.
• Can resolve symptoms such as non-working keypad entries, missing display segments, or intermittent control response.

• One control panel assembly as shown.

• Disconnect power (unplug or shut off breaker) before starting; risk of electric shock or injury if power is left on.
• Basic installation typically requires removing range back/console trim and disconnecting/reconnecting ribbon or wire harnesses—handle connectors gently.
• Keep screws and small parts organized and do not force connectors; align ribbon and pins before seating.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This door lever is the user-access handle component that lets the appliance door open and latch reliably. It replaces a damaged or broken lever to restore normal door operation and safe access. What it does:

• Provides the handle/lever action needed to open and close the appliance door
• Restores a secure latch action when the original lever is cracked, worn, or broken
• Stops sticking or slipping that can prevent the door from opening smoothly
• Helps prevent further damage to the door assembly by replacing a compromised lever

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Basic hand tools typically required; access may require removing the door or inner panel
• Inspect surrounding trim and mounting points for damage; replace additional parts if worn

This magnetron assembly generates the microwave energy that heats food. Replace a weak or failed unit to restore proper cooking performance and resolve no-heat complaints when the microwave appears to run but no longer warms items. What it does:

• Converts high-voltage power into microwave energy to heat food inside the oven cavity
• Failure can cause: microwave runs but won't heat or takes much longer to heat
• Often accompanied by a loud humming/buzzing during cook
• May trip the internal fuse/breaker or shut off shortly after start
• Visible damage to the magnetron antenna cap or signs of arcing near the waveguide can point to failure

• 1 magnetron assembly

• Unplug the microwave and safely discharge the high-voltage capacitor before servicing
• Remove the outer cover to access the magnetron; note wire locations and orientation
• Transfer any required mounting hardware/shields from the old part; avoid touching or damaging the ceramic insulators or antenna cap
• Reassemble completely and test heating with a cup of water—never operate the unit empty

• No-heat issues can also be caused by a failed high-voltage diode, capacitor, transformer, or door switches; diagnose where safe before replacing

This H.V. bracket secures specific high-voltage or control assemblies to the appliance chassis, keeping components stable and properly aligned so wiring and parts stay protected during normal operation. Durable stamped metal design for reliable support. What it does:

• Holds and positions high-voltage/control assemblies or related components to the appliance frame
• Stabilizes wiring and connectors to reduce strain and prevent intermittent electrical contact
• Helps maintain correct clearance and alignment for safe, consistent operation
• Can address symptoms like loose components, rattling near the control area, or intermittent electrical connections when the bracket is damaged or missing

• One H.V. bracket

• Turn off power to the appliance before attempting any service to avoid risk of shock
• Install in the original mounting location using the factory screws or hardware; do not force into place
• Inspect related wires, connectors, and fasteners while replacing the bracket and replace any damaged items

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high-voltage rectifier diode is used in the microwave's high-voltage circuit. It converts AC to DC so the magnetron can produce heat. A failed diode can cause no heat, loud humming, or a blown fuse when starting. What it does:

• Rectifies high-voltage AC to DC to power the magnetron
• Blocks reverse voltage in the HV circuit
• Common failure symptoms can include: runs but doesn't heat; loud hum then shutdown; line fuse blows at startup

• 1 high-voltage diode

• Unplug the microwave and properly discharge the high-voltage capacitor before servicing—dangerous voltage can remain even when unplugged
• Match diode orientation/polarity to the original and ensure a solid chassis ground connection where used
• Route leads and reinstall any clamps/insulators exactly as found; keep wiring clear of sharp edges and hot components
• If the original diode failed, inspect the HV capacitor and transformer for related issues before reassembly

This gas flame sensor detects whether a burner's flame is present so the range/oven's gas valve and ignition control can operate safely. It helps restore reliable ignition and prevents the valve from staying open when no flame is detected. What it does:

• Senses the presence of a gas flame and signals the control to keep the valve open
• Helps prevent gas flow if a flame is not detected
• Can stop ignition or cause the oven/range not to heat when failing
• Commonly replaced when burners won't stay lit or control shows ignition-related errors

• One gas flame sensor

• Turn off electrical power and shut off the gas supply before servicing
• Handle the sensor and its connector carefully to avoid damage
• Reinstall in the exact position and orientation; loose connections can cause false faults
