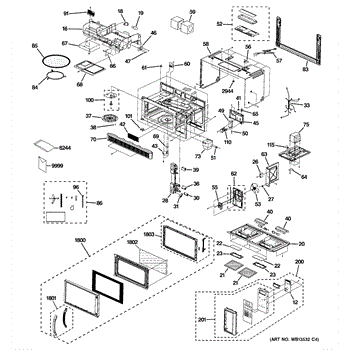

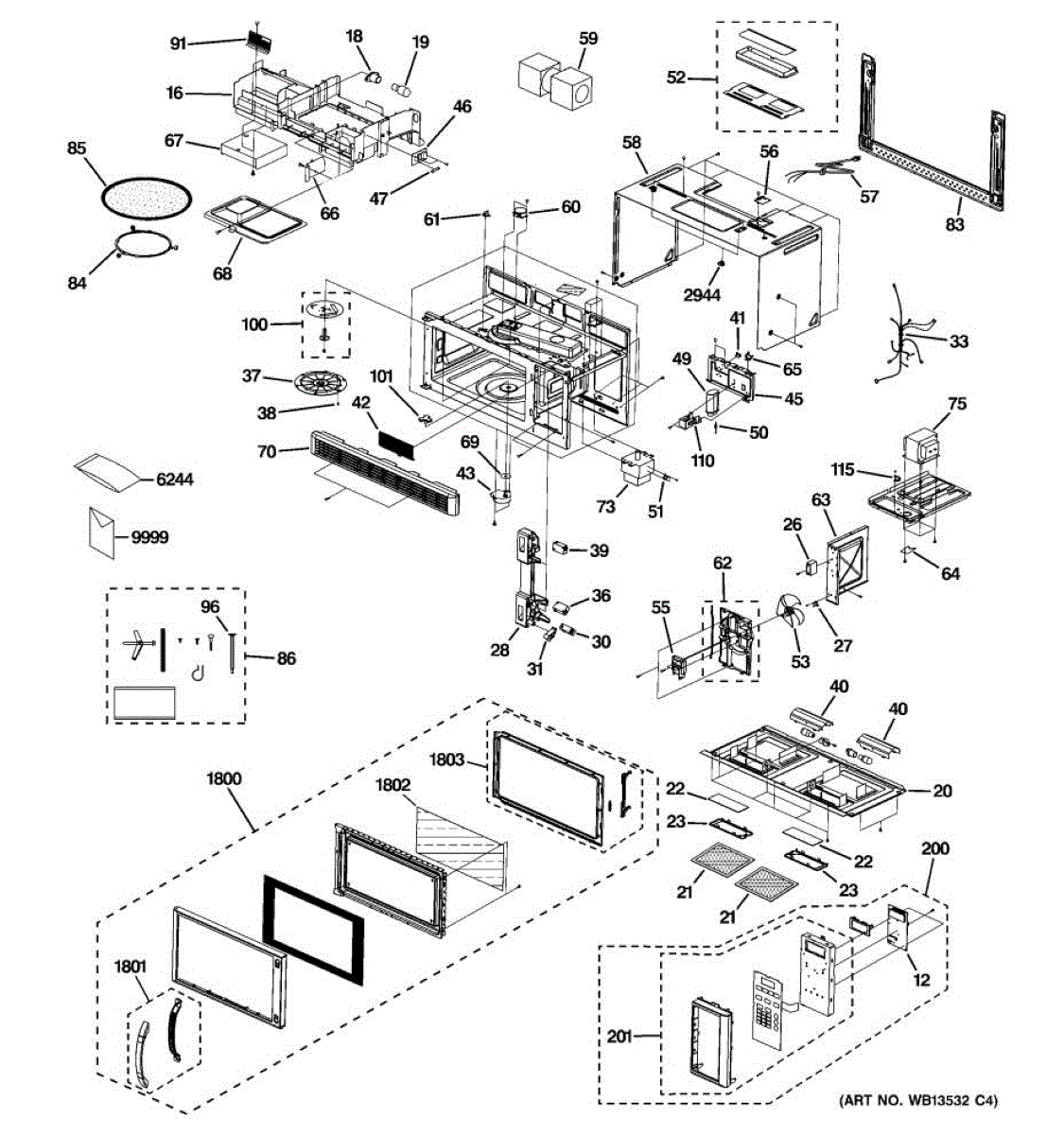

Parts for Ge JVM1630BK01: 01 - Microwave Parts

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Captures grease and airborne particles from cooking to maintain exhaust efficiency. Replace when discolored or clogged. Verify fit with your model number.

Microwave tripping the breaker or won't power on? This thermostat protects against overheating. Common fix when the unit is dead. Moderate DIY repair.

The Door Latch Board is an OEM part for GE microwaves. The latch board controls the door latching mechanism that secures the microwave door closed during operation. It works alongside the door interlock switch to initiate the removal of power to the magnetron when the door is opened, for safety during use.

Symptoms of a bad latch board include:

• The door not closing and latching properly
• The microwave operating with the door open
• Error codes or blinking lights related to the door interlock system
• Issues engaging or disengaging the door-locking mechanism

This replacement part is also compatible with Hotpoint and Profile microwaves.

The Micro Switch is an OEM part for GE microwaves. This part ensures the appliance operates only when the door is securely closed. It controls the electrical circuit, allowing the microwave to start heating food when the door latch engages the switch.

Causes of a bad micro switch can include wear and tear from frequent use, electrical issues, or physical damage from slamming the microwave door.

Symptoms of a bad micro switch include:

• The microwave not starting or stopping unexpectedly
• The microwave running even with the door open
• Intermittent power issues
• The door not latching or the microwave indicating the door is open

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Microwave tripping breaker when door opens or at startup? A failed monitor switch with welded contacts is the likely cause. 30-minute DIY repair.

This microswitch senses the microwave door position and controls the safety interlock circuits. Replacing a worn switch restores proper start/stop behavior so the oven only runs when the door is fully closed.

• Detects door open/closed status to enable or disable cooking
• Part of the safety interlock system that stops operation if the door opens mid-cycle
• Replace if the switch fails a continuity check or shows heat or terminal damage

• Disconnect power before service; microwave capacitors can retain a dangerous charge
• Note wire positions and move them to the same terminals on the new switch
• Ensure the door latch cleanly actuates the switch; test operation before reassembly

This power cord holder secures the appliance power cord to the appliance chassis so the cord stays routed and protected during use and transport. Helps prevent the cord from pulling loose or contacting hot or moving parts. What it does:

• Secures the power cord to the appliance frame so the cord stays in place
• Prevents the cord from being pinched, tugged, or contacting hot surfaces
• Helps reduce intermittent power issues caused by a loose or displaced cord
• Simple, durable clip that fits the OEM cord routing point

• Disconnect power before inspecting or replacing the holder
• Remove access panel or move cord to view the existing retainer location
• Slide or snap the cord into the new holder and fasten in the original mounting position
• If fasteners are present, reuse existing screws or clips; replace only with equivalent hardware

If your microwave turntable won't spin or makes grinding noises, the turntable motor likely failed. Simple fix with basic screwdriver work.

Microwave not heating? The high voltage diode converts power for the magnetron. DIY-friendly repair with proper safety precautions. Discharge capacitor first.

This outer case is the full exterior cabinet panel that restores the appliance's outer housing and protects internal components. It provides a clean finished appearance and replaces damaged or dented cabinetry panels. What it does:

• Covers and protects internal parts from dust, debris, and physical damage
• Restores the appliance's exterior appearance when the cabinet is dented, rusted, or bent
• Helps maintain proper alignment of doors, panels, and controls by providing structural support
• Reduces vibration noise caused by loose or damaged cabinet panels
• Matches OEM fit and mounting points for straightforward replacement

• One outer case

• Disconnect power (and gas, if applicable) before starting any repair
• Replacement may require removing trim, control panels, doors, or other panels to access fasteners
• Have a helper for handling and positioning the cabinet—part is large and may be awkward to manage alone
• Retain or transfer original mounting hardware if not purchasing separate fasteners; confirm included items before installation

Microwave won't power on after overheating? This thermal cutoff thermostat prevents damage by shutting down at unsafe temperatures. DIY repair.

This lead wire bracket secures and positions appliance wiring to prevent chafing and accidental contact with hot or moving components. It keeps wiring organized for safer operation and more reliable electrical connections. What it does:

• Holds oven/range wiring in place to prevent rubbing and abrasion
• Keeps leads away from heating elements and other hot surfaces
• Reduces strain on wire connections to help prevent intermittent contact
• Helps prevent wires from contacting moving parts or sharp edges

• One lead wire bracket

• Disconnect power to the appliance before starting any work
• Typically mounts with one screw; use basic hand tools
• Route wires through the bracket without pinching insulation
• After installation, restore power and verify normal operation

Replace your microwave's turntable support ring if cracked, broken, or worn. This rotating ring assembly sits beneath the glass tray on small rollers.

Mounting hardware kit for securing your microwave during installation. Includes brackets and fasteners needed when original components are missing or damaged.

Microwave tripping breaker or won't heat? This thermal cutoff thermostat monitors temperature to prevent overheating. Straightforward replacement.

Mounting nut secures your microwave to the wall bracket or cabinet. Replace if stripped, missing, or corroded to ensure proper installation stability.
