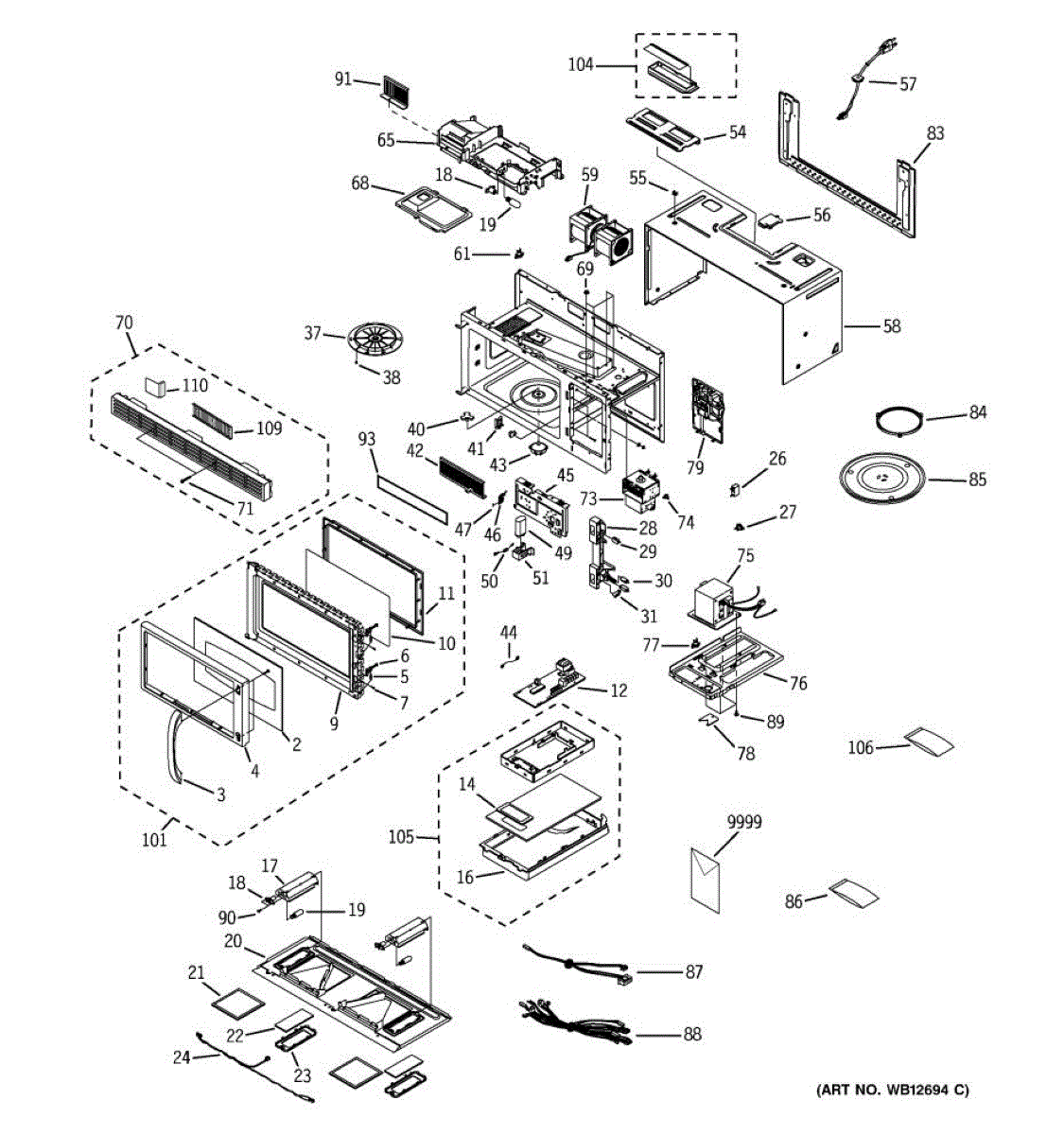

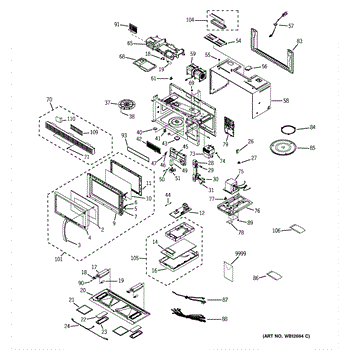

Parts for Ge JVM1630CD004: 01 - Microwave Parts

Color: Bisque. For black order WB15X10022. For white order WB15X10023.

Replacement spring for microwave control panel keys. Installs behind keypad buttons to provide tactile response. Order if your spring is broken or missing.

Replace your microwave's door hinge pin if the original is broken, bent, or missing. This small rod secures the door hinge assembly for smooth operation.

Replacement display window for microwave control panel. Covers and protects the digital display. Needed when original is cracked, scratched, or missing.

Holds the light bulb securely in your microwave for proper interior illumination. Replace if bulb won't stay in place, socket is burned or cracked.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Captures grease particles during cooking to maintain air quality and microwave efficiency. Replace when clogged or discolored. Verify fit with your model.

Replacement lens cover glass for your microwave's interior or cooktop light. Installs in the light frame under the unit. Needed when cracked or broken.

Fixes microwaves with motors that start slowly or make abnormal noise. This run capacitor stores electrical energy to help motors start and run smoothly.

Microwave won't stop running or starts when door closes? A faulty door switch is likely the cause. This safety switch is a 45-minute DIY fix.

Microwave won't start or heat but light works and timer counts down? A faulty monitor switch is often the cause. DIY repair typically under 30 minutes.

Replacement door latch lever bracket for microwaves. Installs behind the control panel to hold interlock switches. Needed when bracket is cracked or broken.

The Turntable Coupler is an OEM part for GE microwaves. It connects the microwave's turntable motor to the glass tray, enabling the tray to rotate during cooking. This rotation ensures even heating and cooking of food items placed on the tray.

Causes of a bad turntable coupler can include regular wear and tear, physical damage from heavy or improperly placed items, or overheating due to prolonged use.

Symptoms of a bad turntable coupler include:

• Turntable not rotating
• Uneven heating or cooking of food
• Grinding or clicking noises during operation
• The coupler being visibly damaged or worn

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secures and organizes internal wiring in your microwave. Replace if wires are loose, rattling, or damaged clip causes arcing. Verify fit with your model number.

Turntable stopped turning or making grinding noise? This motor rotates the glass plate for even cooking. Easy 5-10 minute DIY fix with basic tools.

Replacement wire lead for microwaves. Connects internal electrical components. Order a new lead if yours is damaged, frayed, burned, or corroded.

Secures the microwave air guide or duct in proper position. Replace if your bracket is cracked, broken, or missing to restore stable internal airflow.

Microwave won't turn on or is completely dead? A blown fuse is often the cause. This safety fuse protects against power surges. Easy 5-minute DIY fix.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

This mounting bracket secures the H.V.C. assembly or cover in place to keep high-voltage components stable and properly aligned. Replacing a damaged or bent bracket restores correct support and reduces movement-related issues. What it does:

• Secures the high-voltage cover/assembly to the appliance chassis to prevent shifting.
• Maintains correct clearance and alignment for high-voltage components.
• Helps reduce noise or arcing caused by a loose cover or bracket.
• Supports safe, reliable operation by keeping wiring and insulating parts in position.

• Disconnect power at the breaker or unplug the appliance before starting work.
• Handle high-voltage components and insulating parts carefully; avoid contact with charged parts.
• Use the OEM part number to fit and orientation before installation.

Secures microwave to wall cabinet mounting bracket. Replace if cracked, stripped, or missing to restore proper cabinet installation and stability.

Secures the power cord to your microwave's chassis. Replace this bracket if it's cracked, broken, or missing to properly mount and support the cord.

Microwave shuts down during use? This thermal cutoff thermostat prevents overheating by interrupting power when temperatures exceed safe limits.

Upper duct assembly for microwave ventilation systems. Mounts inside the cabinet to direct air flow. Replace if cracked, damaged, or missing components.

Flange nut for microwave magnetron mounting. Replace this hex nut if stripped, missing, or damaged during magnetron removal or appliance maintenance.

Microwave not heating? The magnetron generates microwave energy for cooking. Common repair when unit runs but won't heat food. Moderate DIY difficulty.

Replacement base plate for microwaves. Structural component that forms the bottom foundation of the cabinet. Needed when original is cracked or damaged.

Fix a microwave with no power or intermittent shutoffs. This thermostat monitors temperature and protects internal components. DIY repair in 20 minutes.

Microwave shuts off after a few minutes? A failed magnetron cooling fan causes overheating and thermal cutout trips. Moderate DIY repair restores function.

Supports and stabilizes the microwave turntable for smooth rotation. Replace if roller is worn, cracked, or causing uneven spinning. Includes roller and bracket.

Replace your cracked, broken, or missing microwave glass cooking tray. This rotating turntable supports food for even heating in your microwave cavity.

Washered screw secures panels, brackets, and internal microwave components. Replace if screw is missing, stripped, or damaged to restore proper fit.

Bisque

Controls exhaust airflow in over-the-range microwaves. Replaces bent, damaged, or missing damper assemblies for proper external venting installation.

Color: Bisque. For white order WB07X10534. For black order WB07X10531. Includes display and frame. Smartboard sold seperate.
