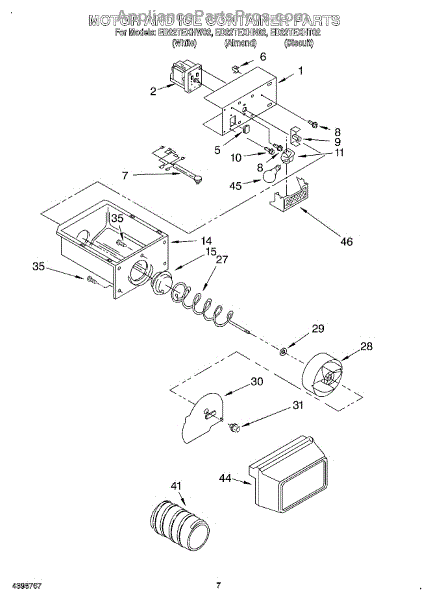

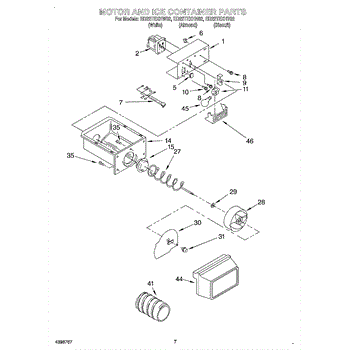

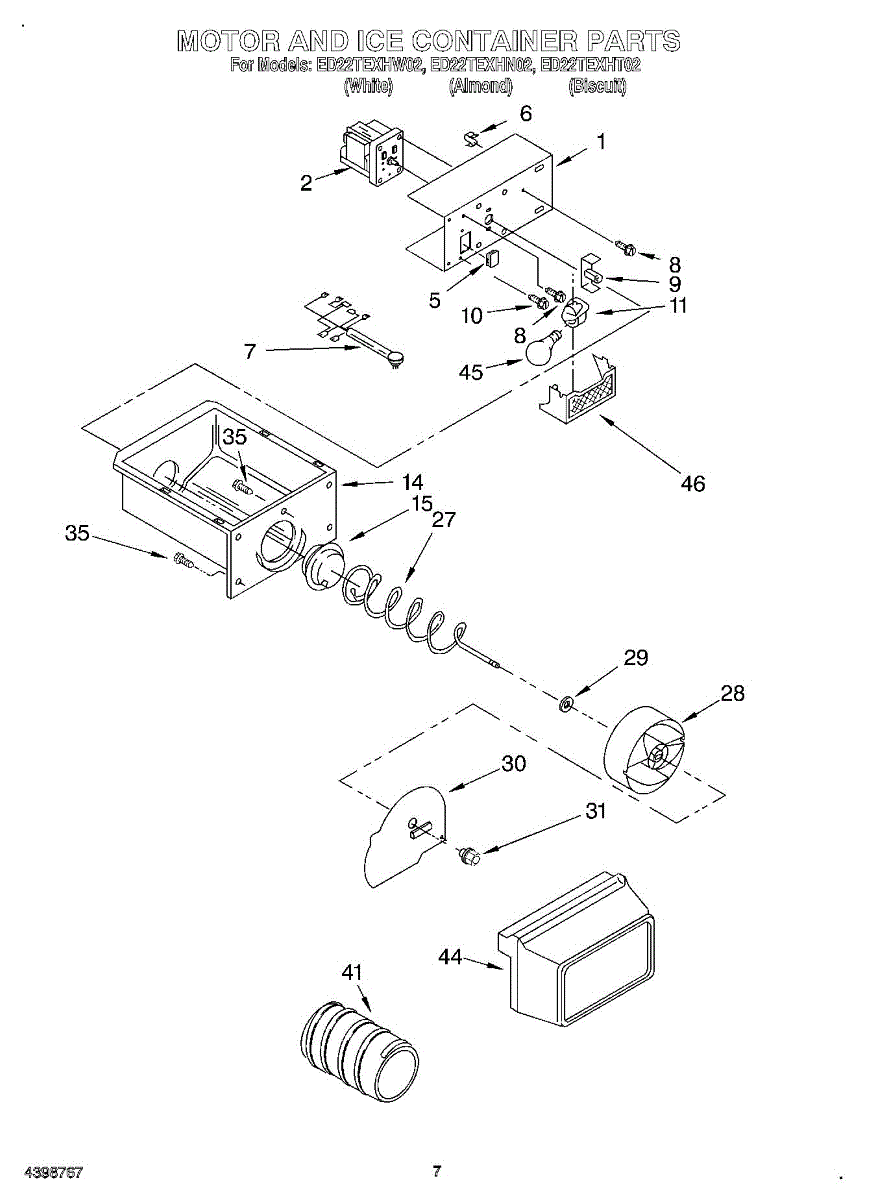

Parts for Whirlpool ED22TEXHT02: 05 - Motor And Ice Container Parts

Size: 8-32 x .312 inch.

The Motor Coupling is an OEM part for Whirlpool refrigerators. This coupling connects the ice dispenser motor to the ice dispensing mechanism, allowing the motor to drive the ice auger and dispense ice effectively.

Causes of a bad motor coupling can include wear and tear from regular use, overloading the ice dispenser, or mechanical failure of the dispenser motor.

Symptoms of a bad motor coupling include:

• The ice dispenser not functioning or dispensing ice intermittently
• Unusual noises such as grinding, clicking, or rattling during operation
• The ice auger not turning or dispensing ice properly
• Visible cracks, breaks, or wear on the coupling

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8 x 1/2 ab.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Container is an OEM part for Whirlpool refrigerators, specifically designed to offer a dedicated storage solution within the appliance. This container might typically be used for organizing items such as fruits, vegetables, meats, or any other food items that require separate storage to maintain freshness and prevent cross-contamination.

Causes of these symptoms often stem from overloading the container beyond its capacity, normal wear and tear over time, or damage from cleaning and handling.

Symptoms of a bad Container include:

• Cracks or breaks that compromise the container's ability to hold items securely
• Warping or damage that prevents the container from fitting properly in its designated space
• Difficulty in sliding or maneuvering the container, which could indicate a problem with its design or fit

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This coupling is the small connector that links a drive motor to its mating component, transferring rotation so the appliance operates smoothly. Replacing a cracked or stripped coupling restores reliable drive and helps prevent further wear.

• Connects the motor shaft to the driven part to transmit torque
• Maintains alignment to reduce wobble and slippage
• Failure signs can include no movement, intermittent operation, clicking/grinding, or visible cracks/rounding
• Restores consistent motion of the connected part once replaced

• Disconnect power (and shut off water/gas if applicable) before servicing
• Access the drive area and remove any covers/tray/drive components as needed
• Pull the old coupling straight off the keyed or D-shaped shaft; clean and inspect the shaft
• Align and press the new coupling fully onto the shaft, reassemble, and test

The Ice Dispenser Drum is an OEM replacement part for Whirlpool refrigerators. This drum is located in the ice maker assembly and is responsible for dispensing ice when activated. It rotates to push ice through the chute and into your glass or container.

Causes of a bad ice dispenser drum include wear and tear from regular use, damage from ice jams, or breakage due to accidental mishandling. Accumulation of ice and debris can also cause the drum to malfunction.

Symptoms of a bad ice dispenser drum include:

• Ice not dispensing properly
• Grinding or clicking noises during operation
• Inconsistent ice output
• The dispenser becoming jammed frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size; 8-18 x 1/2 inch.

Used to prevent over ice production in the ice dispensing bucket.

Replacement light lens for the dispenser assembly that protects the bulb and restores clear, even illumination around the dispenser. Use this lens to replace a cracked, cloudy or missing lens and improve dispenser visibility. What it does:

• Protects the dispenser light bulb and helps diffuse light for more even illumination.
• Replaces cracked, chipped or cloudy lenses that reduce visibility at the dispenser.
• Helps keep debris and moisture away from the bulb and housing.
• Restores the intended appearance and function of the dispenser lighting.

• Disconnect power to the appliance before starting any repairs to avoid electrical shock.
• Accessing the lens may require removing the dispenser bezel or housing; handle the lens carefully to avoid scratches.
• Use the exact OEM part number to ensure fit; do not force or modify the part.
