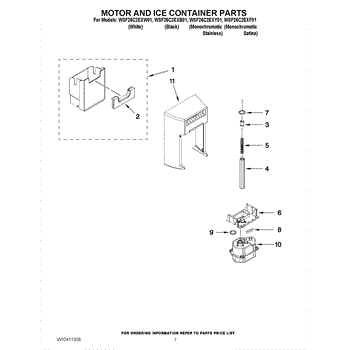

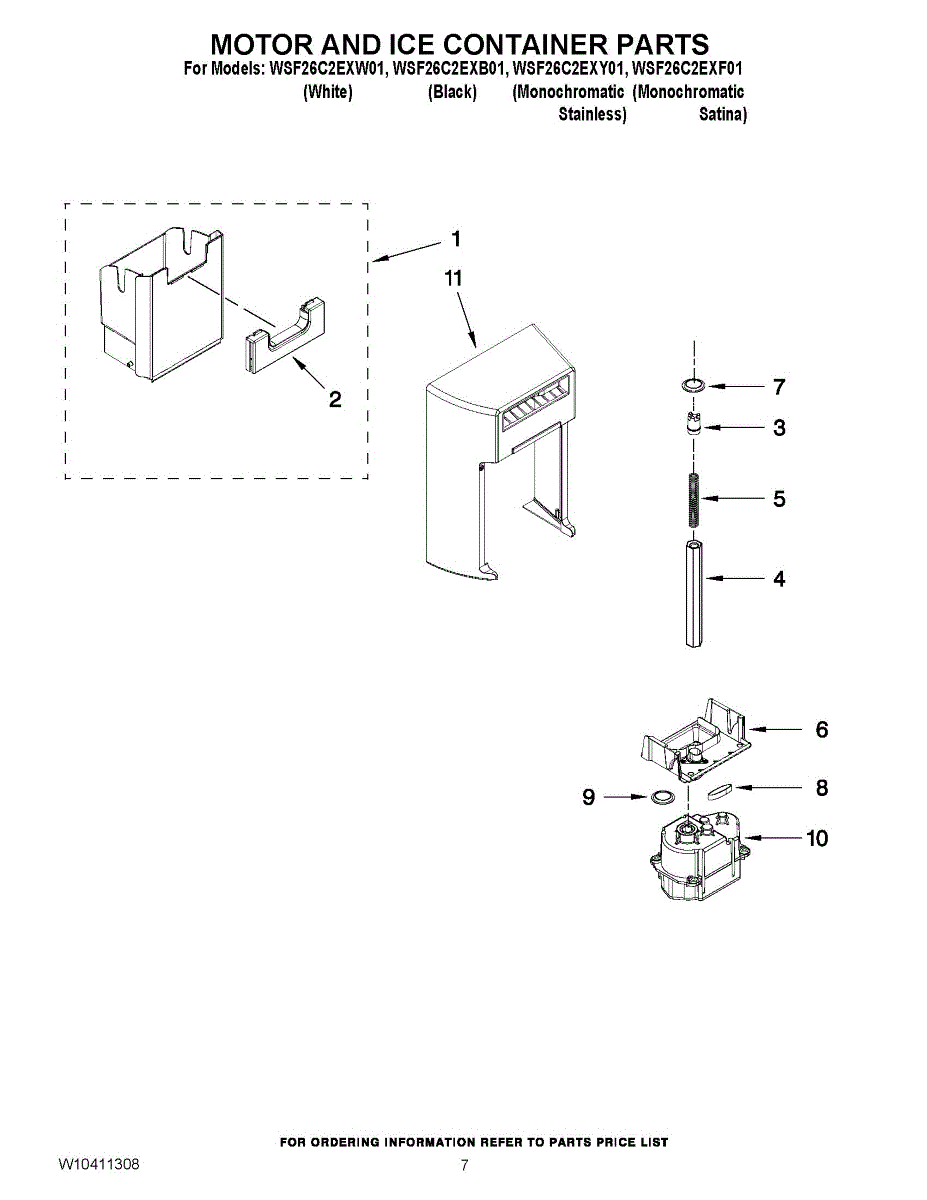

Parts for Whirlpool WSF26C2EXF01: 05 - Motor And Ice Container Parts

Purifies circulating air in your refrigerator to reduce odors. Replace every 6 months for optimal freshness. Verify fit with your model number.

Removes contaminants for clean, great-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit with your model number.

This ice container (ice bin) stores ice made by the icemaker and interfaces with the dispenser drive to deliver cubes or crushed ice. Replacing a cracked or worn bin restores dependable ice storage and dispensing performance.

• Holds finished ice and guides it to the dispenser chute
• Engages the drive to move ice out when the dispenser is activated
• A cracked, warped, or stripped bin can cause no/slow ice dispensing or jams
• Damage may prevent the bin from seating fully or allow ice to spill/frost up

• Unplug the refrigerator or switch off power at the breaker before servicing
• Remove the old bin, clear any clumped ice, and seat the new bin so the rear drive interface engages—do not force
• Restore power and allow the icemaker to produce ice before testing dispensing

Ice bucket won't stay in place or dispenser not working? This latch assembly secures the bin and aligns it with the auger. Snaps in by hand in minutes.

Fix ice not dispensing or auger not turning issues. This coupler connects the motor to the ice bin auger. DIY-friendly repair, about 20 minutes.

Ice won't dispense but you hear the door open? This hex drive shaft connects the motor to the auger. Simple 30-minute fix restores ice dispensing.

The Spring is an OEM part for Whirlpool refrigerators. It is a small but important internal part that applies pressure to dispense cubed or crushed ice from the refrigerator door. The spring is located within the ice dispenser mechanism and works with a lever to push ice out through the dispenser chute upon activation.

Causes of a bad spring can include wear and tear over time, putting undue pressure on the dispenser by jamming items into the chute, or damage from excessive force applied during dispensing.

Symptoms of a bad spring include:

• Ice cubes or crushed ice becoming jammed or failing to dispense properly
• The ice dispenser failing to push ice fully through the chute
• Excessive pressure needs to be applied to activate the dispenser
• Ice cubes are dispensed in irregular sizes or clumps rather than individual pieces

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures the removable ice chute opening above the storage bin in side-by-side refrigerators. Replace if bracket is cracked, broken, or worn from use.

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub remains watertight, protecting the mechanical components from water damage and corrosion.

Causes of a bad drive shaft seal include aging and deterioration of the material, excessive load sizes that strain the washer, and foreign objects caught between the seal and the shaft, which can lead to tears or breaks.

Symptoms of a bad Drive Shaft Seal include:

• Water leakage from the underside of the washing machine
• Unusual noises during the spin cycle
• A visible tear or damage to the seal itself
• Increased vibration and movement of the machine during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Fix frost buildup, condensation, or drips around your ice dispenser. This gasket seals the chute to keep warm air out. Easy DIY install with video guide.

The Coupling is an OEM replacement part for Whirlpool French door bottom-mount refrigerators equipped with an interior automatic icemaker. As an internal part, this coupling connects the auger motor to the ice mold assembly, allowing the motor to transmit rotational force during the ice harvest cycle.

Causes of a damaged coupling can include regular wear from years of exposure to changing temperatures inside the refrigerator. Mineral deposits accumulating on surfaces over many harvest seasons have the potential to deteriorate plastic material. Physical obstructions lodged in the icemaker mechanism could potentially bend or crack the coupling.

Symptoms of a failing coupling involve:

• Inability of the auger motor to engage fully and eject frozen cubes
• Grinding or knocking sounds emitting from the icemaker
• Restricted or incomplete ice harvest that leaves cubes in molds

This OEM replacement is compatible with some Kenmore Elite French door models.

Ice not dispensing from your refrigerator? The auger motor powers the mechanism that pushes ice through the chute. Moderate DIY repair with basic tools.

Front cover for refrigerator ice maker assembly. Mounts to inner door panel and conceals ice maker components. Replace if cracked, broken, or missing.

This ice container (ice bin) stores ice made by the icemaker and interfaces with the dispenser drive to deliver cubes or crushed ice. Replacing a cracked or worn bin restores dependable ice storage and dispensing performance.

• Holds finished ice and guides it to the dispenser chute
• Engages the drive to move ice out when the dispenser is activated
• A cracked, warped, or stripped bin can cause no/slow ice dispensing or jams
• Damage may prevent the bin from seating fully or allow ice to spill/frost up

• Unplug the refrigerator or switch off power at the breaker before servicing
• Remove the old bin, clear any clumped ice, and seat the new bin so the rear drive interface engages—do not force
• Restore power and allow the icemaker to produce ice before testing dispensing
