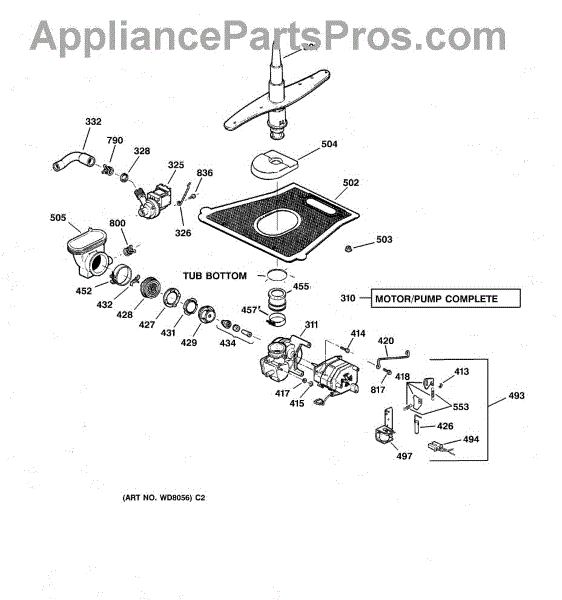

Parts for Ge GSD5320D01BB: 03 - Motor-Pump Mechanism Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Complete GE Pump and Motor Assembly is an OEM replacement part for GE dishwashers. This assembly is integral to the dishwasher’s functionality, as it combines both the pump and motor components that work together to circulate water during the wash and rinse cycles. The pump forces water through the spray arms, while the motor drives this process, ensuring thorough cleaning of the dishes.

Over time, the pump and motor assembly can wear out due to constant use and exposure to water and detergents. Additionally, debris or hard water buildup can clog the pump, causing strain on the motor and leading to failures. Electrical issues or damage from power surges can also impair the assembly's performance.

Symptoms of a bad pump and motor assembly include:

• The dishwasher not cleaning dishes properly
• Water not circulating or spraying during cycles
• Unusual noises, such as grinding or humming, coming from the dishwasher
• Water not draining properly from the tub
• The dishwasher not starting or completing cycles

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

The Check Valve Flapper is an OEM replacement part for GE dishwashers. It is a small but crucial component located within the water inlet valve assembly. The check valve flapper regulates water flow into the dishwasher, allowing water to enter during the fill cycles but preventing backflow when the water is drained.

Causes of a bad check valve flapper can include wear and tear over time, mineral buildup that causes sticking, or damage to the flapper itself. This prevents the flapper from opening and closing as intended.

Symptoms of a bad check valve flapper include:

• Slow or incomplete filling of water
• Dripping or leaking water from the inlet area
• Error codes related to water issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dishwasher models.

Includes 12 retainers.

This is a genuine replacement screw used to secure components and panels on compatible GE appliances. It restores proper fit and prevents rattling or loose parts for safe, reliable operation. What it does:

• Secures panels, brackets, or internal components to maintain proper alignment
• Stops rattling or vibration caused by loose fasteners
• Replaces missing, stripped, or damaged screws to restore safe operation
• Helps maintain seals and clearances by holding parts firmly in place

• Screw

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to components
• Keep removed fasteners organized to ensure correct reassembly

The Push-On Nut is an OEM part for GE appliances. This small component is typically used to secure various fittings and fastenings within appliances, ensuring they are tightly held and do not loosen over time. Its push-on design allows for easy installation, making it a straightforward solution for maintaining the structural integrity of your appliance components.

Symptoms of a failing Push-On Nut include:

• Loose components within the appliance
• Parts that seem to detach or move unexpectedly
• Unusual noises due to parts rattling or shaking
• Difficulty in securing components during repairs or maintenance

Causes of a bad push-on nut can include metal fatigue leading to loss of elasticity, corrosion from exposure to moisture, or general wear from repeated removal and installation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dishwasher Shaft Seal is an OEM part for GE dishwashers. This seal is located around the motor shaft and prevents water from leaking out of the dishwasher tub where the motor shaft enters.Seal for pump drain valve shaft. Instruction sheet included. Push-on nut may have to be cut off, order WR2X7054.

Over time, regular use can cause the seal to deteriorate, or debris and mineral deposits can lead to damage. A compromised shaft seal can result in water leaks, potentially causing damage to your kitchen floor and dishwasher components.

Symptoms of a bad dishwasher shaft seal include:

• Water leaking from the bottom of the dishwasher
• Puddles or water damage around the dishwasher area
• Unusual noises coming from the motor area due to water infiltration
• Visible wear or cracks on the seal

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This kit fits both D style and T style shafts.

The Solenoid Armature and Linkage is an OEM replacement part for GE dishwashers. It is responsible for controlling the dishwasher's draining process by operating the drain valve, which regulates the flow of water out of the dishwasher during the drain cycle.

Symptoms of a bad solenoid armature and linkage include:

• Dishwasher not filling with water or filling improperly
• Water leaks from the inlet valve area
• Dishwasher not advancing to the next cycle due to water flow issues
• Error codes or indicators related to water inlet problems

Causes of a bad solenoid armature and linkage can include mineral buildup or debris obstructing the valve, electrical malfunctions in the solenoid coil, or mechanical wear and tear of the linkage components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dishwasher models.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This sump clamp secures the dishwasher sump to the tub assembly, keeping the gasket compressed for a watertight seal. Replacing a weakened or corroded clamp helps stop leaks from the base and restores proper wash system sealing.

• Holds the sump firmly to maintain seal compression
• Helps prevent water leaking from the bottom of the dishwasher during operation
• Replace when the existing clamp is rusted, broken, stripped, or won't tighten

• Disconnect power at the breaker and shut off the water supply
• Remove the toe kick and, if needed, pull the dishwasher forward for access
• Position the clamp over the sump-to-tub joint and tighten evenly; do not overtighten
• Reseat the sump gasket and run a leak test after reassembly

This OEM Replacement Part is a rubber connector with female threads. It is designed to provide a secure connection between the spray arm and the pump in a dishwasher. The connector measures 2-3/4 inches in diameter and 2-1/8 inches in height. This part is crucial to ensuring the proper functioning and efficiency of your dishwasher's spray arm pump.

Over time, the pump connector can wear out or become damaged due to repeated exposure to water, detergent, and high temperatures. This wear and tear can lead to leaks or a decrease in the dishwasher’s performance.

Symptoms of a bad pump connector include:

• Water leaks under or around the dishwasher
• Reduced water pressure during the cleaning cycle
• The dishwasher not draining properly
• Unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This connector has female threads. For male threads use WD18X206.

A replacement clamp that secures hoses or wiring to keep lines routed and stable, helping prevent rubbing, leaks and noise. Restores a reliable hold for tubing and harnesses so the appliance runs quietly and safely. What it does:

• Holds hoses, tubing or wire harnesses in place to reduce movement and chafing.
• Helps prevent leaks and water line abrasion caused by loose fittings.
• Reduces rattling or vibration from unsecured lines or cables.
• Keeps routing organized so adjacent components aren't stressed or worn.

• Disconnect power before servicing the appliance; shut off water supply when working on water or drain lines.
• Remove the old clamp and position the replacement so it fully engages the hose or harness, avoiding twists.
• Use appropriate hand tools (pliers or screwdriver) and secure the clamp evenly; avoid overtightening.
• Inspect surrounding hoses and wiring for damage while installing; replace any components that show wear.

Note: This is the complete solenoid assembly kit. For armature & linkage assembly only, use WD1X1316.

The Solenoid Assembly is an OEM part for GE dishwashers. It plays a crucial role in controlling the flow of water into the dishwasher by activating or deactivating the drain valve. This assembly is essential for ensuring that the dishwasher fills and drains at the correct times during the wash cycle, which is pivotal for the overall efficiency and effectiveness of the appliance.

Common causes for a Solenoid Assembly to fail include wear and tear over time, mineral buildup from hard water, or electrical failures that prevent the solenoid from operating as intended.

Symptoms of a bad Solenoid Assembly include:

• Failure of the dishwasher to drain properly, leading to water accumulation at the bottom.
• The dishwasher not filling with water as it should, affecting the cleaning process.
• Unusual noises coming from the dishwasher, which may indicate the solenoid is failing to engage or disengage correctly.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Solenoid and Bracket Assembly is an OEM replacement part for GE dishwashers. This component plays a role in controlling the flow of water during the dishwashing cycles, allowing for proper water distribution and efficient cleaning.

Symptoms that may indicate the need to replace the solenoid and bracket assembly include:

• Issues with water not filling or draining properly
• Inconsistent or incomplete water circulation during cycles
• Visible leaks or water damage around the solenoid area

Causes of a faulty solenoid and bracket assembly can include normal wear and tear over time, electrical malfunctions, mineral buildup or debris obstructing the solenoid, or physical damage to the component.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dishwasher models.

2 wire insulator.

This replacement part is a lower arm spray, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. The lower arm sprays are an important part of the cleaning process in many dishwashers. This spray arm is situated underneath the top dish rack and projects water downward for more sufficient cleaning.A new lower spray arm might be needed if the user notices the current one is failing to spin or expel water. If dishes are coming out of the dishwasher and are only partially cleaned, then it might be time for a new arm spray. Be sure the water is completely turned off from the appliance before attempting to repair this part. Refer to the user guide for more specific directions on how to replace the lower arm spray. This lower arm spray is sold individually and is sourced directly from the manufacturer. This dispenser is a genuine OEM part.

The Filter & Gasket Assembly is an OEM part for GE dishwashers. This part traps food particles and debris during the wash cycle, preventing them from redepositing on dishes or clogging the drain system.

Causes of a bad Filter & Gasket Assembly can include wear and tear from regular use, accumulation of hard water minerals or detergents affecting the gasket's seal, and damage to the filter mesh that allows larger particles to pass through or clog the assembly.

Symptoms of a bad Filter & Gasket Assembly include:

• Poor cleaning performance, with food particles left on dishes after a cycle
• Water leakage around the dishwasher's base, indicating a compromised gasket
• Unpleasant odors from trapped food particles that are not properly filtered out

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pushnut fastener is a small push-on retainer used to secure shafts, rods, or trim where a threaded fastener isn't required. It provides a secure hold while allowing quick, tool-free installation for maintenance or repairs. What it does:

• Secures axles, shafts, or trim pieces by gripping the mating shaft with a one-way push-on design
• Keeps panels, knobs, or small components from sliding off during operation
• Helps stop rattles or loose parts caused by worn or missing retainers
• Simple, non-threaded solution where a reusable bolt or clip isn't needed

• One pushnut fastener

• Press onto clean, appropriately sized shaft until fully seated; do not hammer with excessive force
• Wear eye protection when installing small retainers to prevent injury from sudden release
• Replace with identical part number to ensure correct fit and retention
• Use appropriate pry tools or cutters to avoid damaging surrounding parts

This spring kit restores proper door tension so the appliance door opens and closes smoothly and stays in position. Use it to replace worn or broken springs that cause a sagging, loose, or hard-to-operate door. What it does:

• Replaces worn or damaged door tension springs to restore smooth opening and closing.
• Helps prevent the door from dropping, sagging, or not staying open.
• Reduces uneven or jerky door movement caused by lost spring tension.
• Matches OEM-design function for safe, reliable door operation when installed correctly.

• Disconnect power (and water, if applicable) before beginning any repair.
• Springs are under tension—use caution and proper tools to avoid injury.
• Follow the appliance's service manual or OEM instructions.

This hose clamp secures a washer or dryer hose connection to help prevent leaks and keep hoses firmly attached during operation. It's a simple replacement for worn or loose hose fasteners. What it does:

• Holds inlet or drain hose to the appliance fitting to reduce slipping and leaks
• Restores a tight seal at hose connection points that may be leaking or wobbling
• Keeps hoses positioned correctly during fill and drain cycles
• Useful when clamp is rusted, stretched, or no longer grips reliably

• One hose clamp

• Disconnect power and turn off the water supply before replacing the clamp
• Slide clamp onto hose, position over the fitting, then compress or tighten per clamp type (use pliers or screwdriver as required)
• Inspect the hose and fitting; replace the hose if cracked or damaged
• Test for leaks after restoring power and water

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection

The Screw is an OEM part for GE appliances, commonly used in washing machines, dryers, and other household appliances. This screw is designed to secure various components, ensuring they remain properly aligned and fastened during operation. Its precise design and durable construction are tailored to meet the specific requirements of GE appliances.

Over time, screws can become damaged or lost due to regular use, vibration, or during maintenance and repair activities. A missing or damaged screw can lead to loose parts, affecting the overall functionality and safety of the appliance.

Symptoms of a bad or missing screw include:

• Loose or rattling components
• Misalignment of parts
• Noise during operation
• Parts or panels not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
