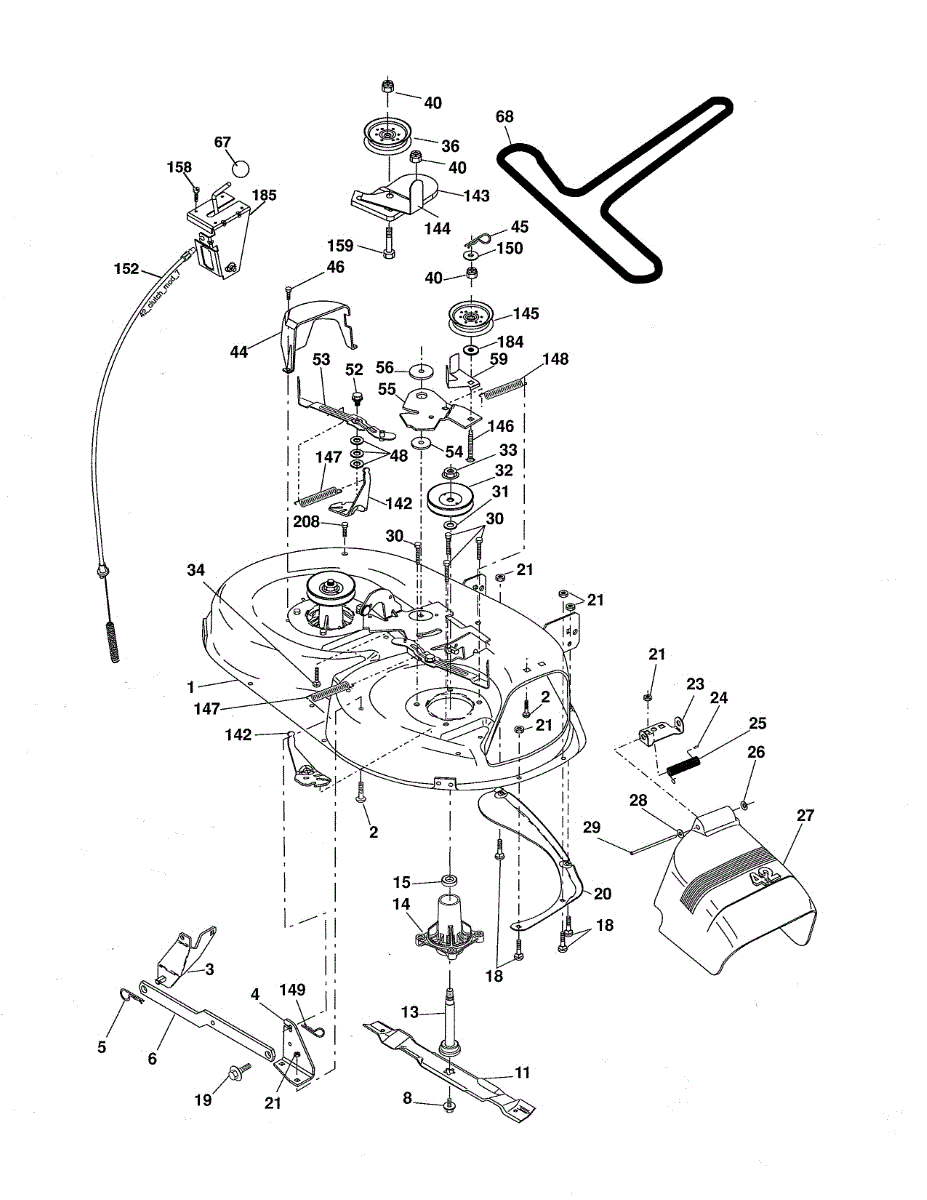

Parts for Ariens 96016002701: Mower Deck Parts

Deck spindle assembly that houses the blade mounting shaft on riding mowers. Bolts to the mower deck. Replace if housing is cracked, worn, or damaged.

Secures the mower blade to the spindle on riding mowers and tractors. Replace if bolt is stripped, washer is damaged, or hardware is missing.

Replace your worn, bent, or dull riding mower blade. This 21-inch high lift blade installs on the deck to cut grass and improve bagging performance.

Deck spindle assembly that houses the blade mounting shaft on riding mowers. Bolts to the mower deck. Replace if housing is cracked, worn, or damaged.

Deck spindle assembly that houses the blade mounting shaft on riding mowers. Bolts to the mower deck. Replace if housing is cracked, worn, or damaged.

Vortex baffle for riding mower deck. Replaces cracked, broken, or missing baffle that directs airflow under the mower deck for optimal grass cutting.

This replacement deflector shield is a genuine OEM part intended for use on lawn mowers and tractors. It attaches to the side of the mower and directs grass clippings away from the blade as it mows. This serves to keep grass from bunching up in the blade, which could cause it to stall out. The direction of the deflector shield also blows grass clippings behind the mower to keep any potentially hazardous debris from flying up at the mower. Deflector shields can become dried out and brittle over time and can snap off if the mower drives too close to a wall, tree, or other hard object. Deflector shields usually only need replacing if they break. This would cause grass clippings and debris to fly in all directions, which could be dangerous for the user. Replacing the deflector shield is an easy repair and only requires a socket wrench set. This part is compatible with a wide variety of Husqvarna and Craftsman lawn mowers and tractors and is sourced from the original manufacturer. This product ships individually.

This is the replacement washer head screw for a lawnmower or lawn tractor. It is black in color and is roughly 1.5 inches in length. With its hexagonal head and washer face, it is usually used as a fastener in outdoor power tools. It is self-tapping, meaning it can tap its own threads when screwed into either plastic, wood, or metal. When used with lawn tractors and lawnmowers, this screw is commonly employed for securing the mandrel housing to the mower deck. Replace the washer head screw if the old screw is damaged or missing. First, a pilot hole should be made that's slightly smaller than the diameter of this screw before driving it with a screwdriver. This is also a thread-forming type of self-tapping screw, and it does not have a pointed tip. It is compatible with specific products from major brands like Ariens, Craftsman, Husqvarna, Murray, Poulan, Ryobi, and Weed Eater. This part is sold individually and is a genuine OEM part sourced directly from the manufacturer.

Mandrel spacer washer for riding mowers and lawn tractors. Installs between drive pulleys to maintain proper alignment and spacing. Replace if worn or missing.

Replace a loose or missing flange nut that secures mower components. This top lock nut provides secure fastening for riding mower and tractor assemblies.

This genuine OEM part is a replacement brake arm assembly for a riding lawn mower or tractor. It is possible to disengage the blades on a riding mower or tractor so that the operator can continue driving without mowing any more grass. However, if left unchecked, the blades would continue to spin. To prevent this, manufacturers install a brake arm to apply pressure on the pulley system and keep the blades from turning. If an operator rides over something heavy enough to drag on the blades, the force could tear the brake arm and cause it to stop working. Should this happen, the blade may not start properly and could even be damaged. Be sure to check the other parts involved. To replace a broken arm brake assembly, use a set of sockets, screwdrivers, and a pair of pliers. This job is fairly straightforward although it does require lowering and removing the blade housing. This part is compatible with Ryobi, Husqvarna, Poulan, Jonsered, and Weed Eater mowers, and as a high-quality replacement part, it is sourced from its original manufacturer. This part does not include any additional hardware.

Hardened flat washer for lawn tractors and riding mowers. Used to secure components and attachments. Replace if worn, missing, or damaged.

Mower deck idler arm pivots the idler pulley to maintain proper belt tension. Replace if worn, bent, or causing belt slippage. Verify fit with your model.

A V-belt is responsible for transmitting energy. It is made from a thick and sturdy rubber material. It features grooves for improved traction and measures ½ x 95-1/2. A worn-down v-belt can lead to inefficient energy loss, and therefore poor performance. Installing this v-belt requires pliers and a wrench. First, the spark plug wire needs to be removed. Then, position the mower deck to the lowest possible level. Move the machine's blade engagement level to OFF. Remove the belt found from the engine pulley. Don't forget to take out the bow-tie pins and blade engagement cable as well. Remove the bolt from the pulley cover and loosen the nuts found at the idler pulley. Put the new belt and then tighten the nuts on the idler pulleys. The deck can now be re-assembled to its original position. This Husqvarna 532144959 V-Belt OEM Replacement can help keep a lawnmower in top condition. This genuine Husqvarna made V-belt is specifically for driving the blades on a lawnmower. It is compatible with Ariens, Craftsman, Poulan Pro, Dixon, and Husqvarna mowers. This V-belt is sold individually.

Idler pulley for front-engine lawn tractors. Guides and tensions the drive belt. Replace if cracked, worn, or wobbling to maintain proper belt operation.

Replacement mounting bolt for front-engine lawn tractors. Secures components in place. Order a new bolt if original is stripped, missing, or damaged.

This replacement extension spring is a vital part of the lawn tractor's blade system that helps to activate the blade break. This is useful when the operator wants to continue driving their lawn tractor but doesn't need the blade to continue rotating. Many lawn tractors include this as a safety precaution and require the operator to break the blade before they can drive in reverse. Extension springs are built to last a long time and very rarely break, but the coils may begin to separate from prolonged use. When this happens, the spring will no longer work as well and the operator will feel it start to give. Replacing the extension spring is fairly straightforward but will require you to remove the lower deck. Using a wrench to remove the spring can help but may not be necessary. This OEM extension spring is a high-quality replacement part sourced from its original manufacturer and is compatible with Ryobi, Jonsered, Husqvarna, Poulan, and Weed Eater lawn tractors. It ships individually.

Idler return spring for lawn tractor mower deck. Secures idler pulley to belt system. Replace if stretched, broken, or missing to restore proper tension.

This clutch cable kit includes the cable and associated hardware needed for blade engagement on a riding lawn mower or lawn tractor. The cable connects the blade engagement lever to the mower deck clutch, allowing the operator to start and stop blade rotation. Replace this cable if the blades won't engage, won't disengage, or if the cable is frayed, stretched, or broken.
