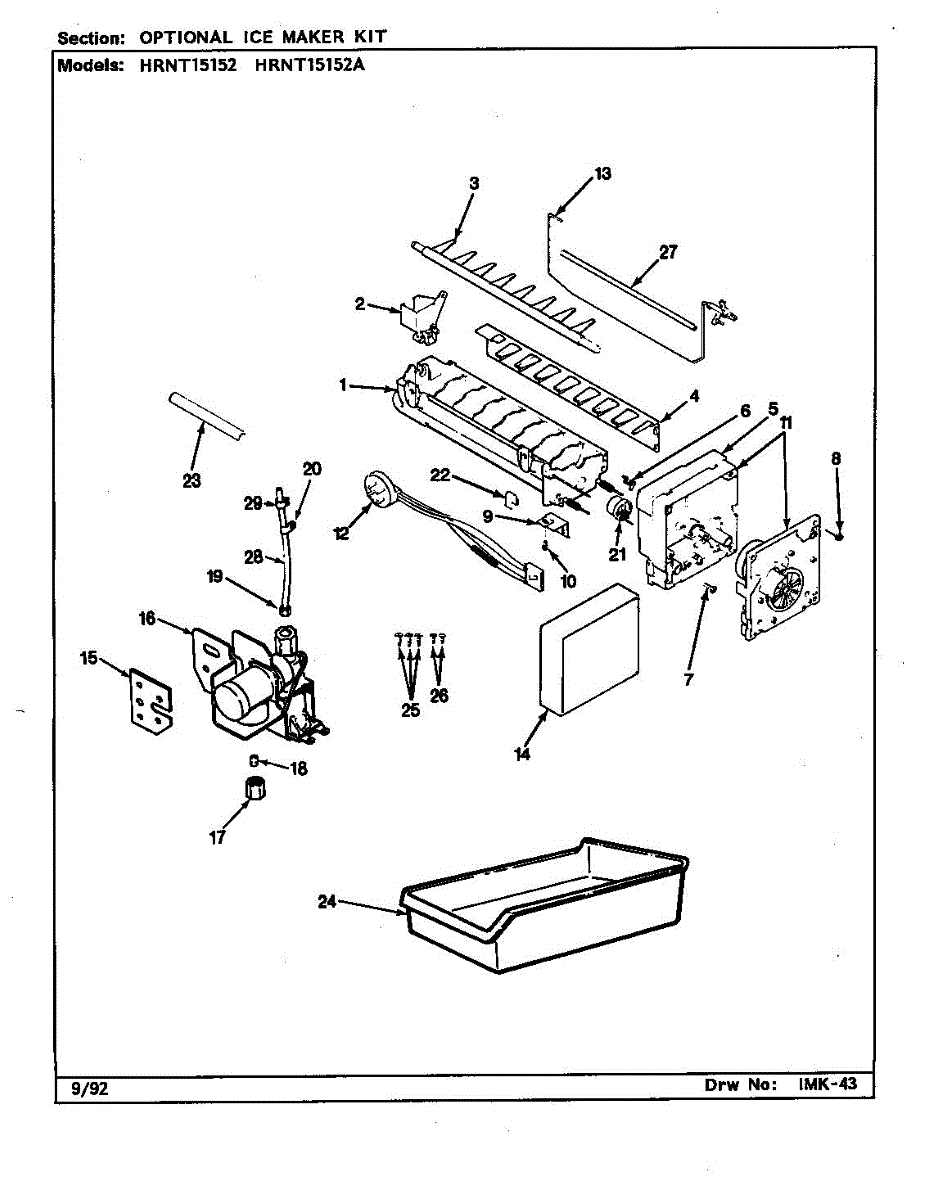

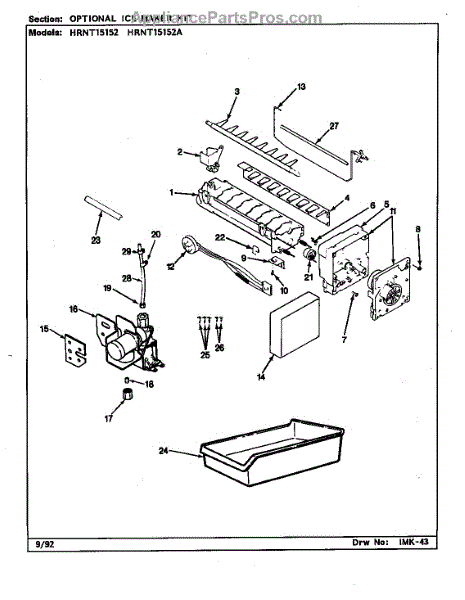

Parts for Maytag HRNT15152A/CF17A: Optional Ice Maker Kit (Hrnt15152 / Cf12a) (Hrnt15152 / Cf17a) (Hrnt15152a / Cf11a) (Hrnt15152a / Cf18a) Parts

This mold heater assembly warms the ice maker mold to help release ice and prevent ice buildup for consistent ice production. It replaces a faulty heater that can cause stuck cubes or irregular harvesting. What it does:

• Gently warms the ice mold so ice cubes release cleanly from the tray
• Helps prevent ice from sticking or freezing unevenly to the mold
• Supports regular ice harvesting cycles when heater has failed or is intermittent
• Works as the heater component inside the ice maker housing

• One mold heater assembly

• Disconnect power to the appliance before attempting any service
• Accessible from the ice maker module area; some models require removing the ice bin or access panel
• Handle the heater and surrounding components carefully to avoid damage to the ice maker

Silicone lubricant conditions rubber seals and O-rings in appliances. Apply during service to ease installation and prevent leaks. Confirm fit by model.

Ice maker leaking or shutoff arm broken? This fill cup and bearing assembly directs water into the mold and supports the arm. 15-minute DIY fix.

Ice cubes stuck in tray and won't eject? This ejector arm pushes ice from the mold into the bin. Simple snap-in install restores ice production.

Ice stripper removes ice cubes from the ice maker mold so the dispenser or storage bin fills properly. Replacing a worn or broken stripper helps the ice maker eject cubes cleanly and reduces ice jams or stuck cubes. What it does:

• Pushes or guides harvested cubes out of the ice mold into the bin during the ice maker's harvest cycle.
• Prevents cubes from sticking in the mold; a damaged stripper can cause incomplete ejection or leftover ice in the mold.
• Works with the ice maker's ejector mechanism to maintain consistent cube release and storage.
• A faulty or broken stripper may lead to noisy operation, partial fills, or visible ice build-up in the mold.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove the ice maker or access panel per the manufacturer's instructions to reach the stripper; keep small parts and screws organized.
• Inspect the ice mold and surrounding components for damage or ice build-up; clear ice before installing the new stripper.
• After installation, restore power and run a test harvest cycle to ensure proper cube ejection.

Mounts in the dispenser to secure the ice housing assembly. Keeps the chute and door aligned for smooth dispensing. Replace if cracked, broken, or worn.

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

Mounting screw for refrigerator ice maker assembly. Secures components to maintain structural integrity. Replace if lost, stripped, or corroded.

Ice maker shifting or loose? This mounting bracket secures your ice maker assembly in place to restore stable positioning and reliable ice production.

Screw: 8-16 x 3/8 inch.

Does not come with wiring harness.

Replacement hex nut secures panels, trim, and brackets in refrigerators. Needed when original nut is worn, missing, or stripped, causing loose components.

Fix intermittent water leaks or flow issues from your dispenser with a new ball sleeve. This guide supports the valve ball for a proper seal.

1/4 inch compression nut for securing plastic water lines in refrigerators and ice makers. Replace worn, cracked, or missing nuts to prevent leaks.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

Size: 8-32 x 1/2 inch.

Ice maker water line: 1/4x 8ft.

Speed clip slides over panel edges to create captive threads for mounting screws. Replace worn, missing, or broken clips to restore secure attachment.
