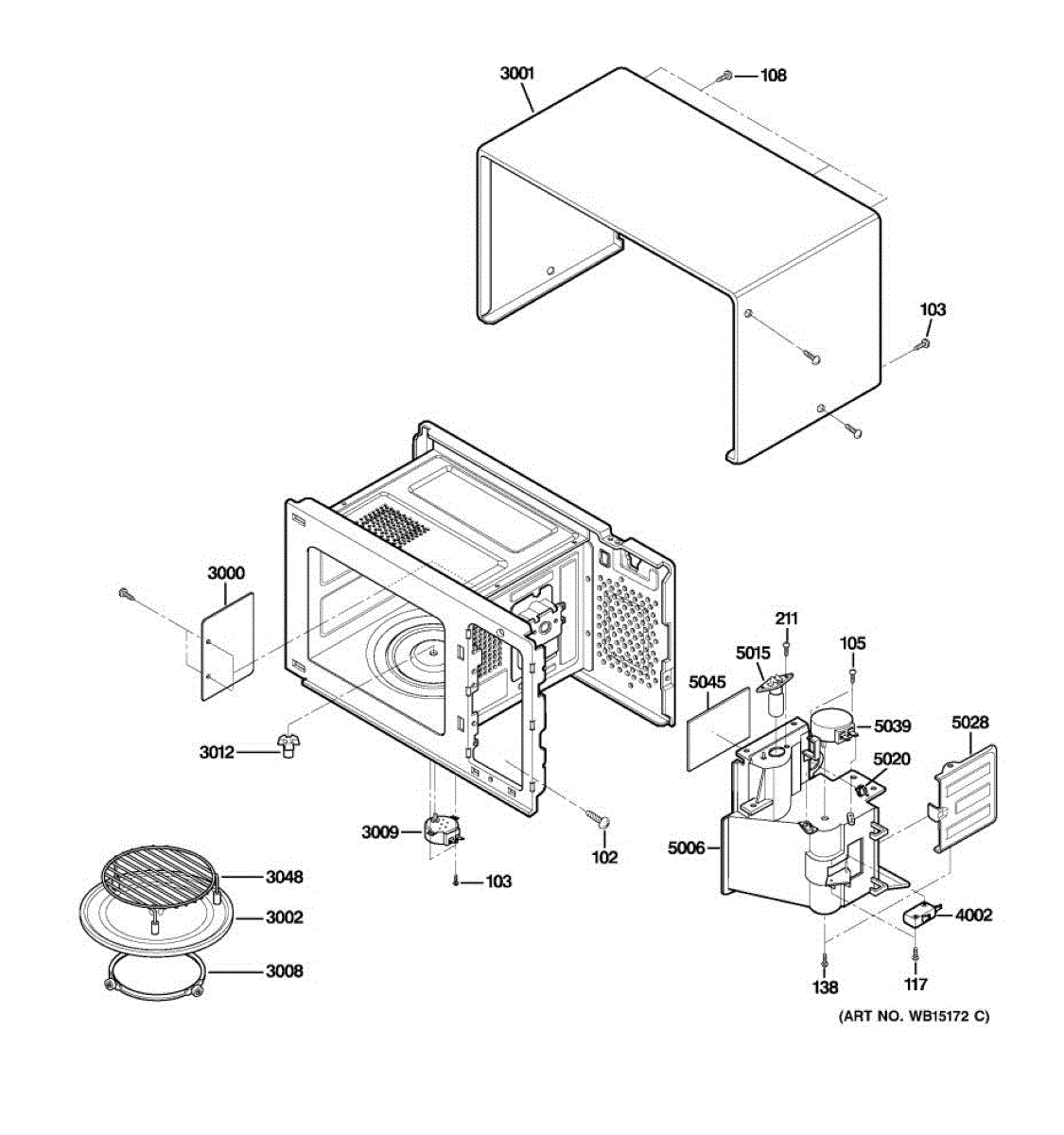

Parts for Ge CEB1590SS1SS: 03 - Oven Cavity Parts

This is an authentic OEM replacement waveguide sourced directly from the manufacturer. Waveguides are used in microwave ovens to help transmit the radiation throughout the microwave's inner cavity. The waveguide also protects the microwave's inner parts from damage due to steam or spattering food during operation. If the waveguide breaks or cracks, as can happen to plastic parts over time, it should be replaced to protect the mechanical workings of the microwave. Although the microwave can be used without the waveguide, it is not recommended.The waveguide is located inside the cooking area of the microwave over the control panel. It is a thin piece of material that may resemble cardboard. To start, disconnect the microwave from the wall outlet and use a screwdriver to remove the two screws holding the waveguide in place. Discard the broken waveguide and use the screws from the original waveguide to install the new one. Plug the microwave back into the outlet. This waveguide is made of durable plastic and is sold individually. This waveguide does not come with screws. It is designed for use in microwave ovens manufactured by General Electric.

The Cooking Tray is an OEM part for GE microwaves. This tray sits on the turntable in the microwave and holds the food items being heated or cooked, allowing for even rotation and uniform cooking.

Causes of a bad cooking tray can include cracks or breaks from heavy use, exposure to extreme temperatures, or accidental drops.

Symptoms of a bad cooking tray include:

• Cracks or chips on the tray
• Difficulty in rotating or the tray not rotating at all
• Unstable placement of food items
• Uneven cooking results

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Female D shaft

The Door Interlock Switch is an OEM part for GE microwaves. It ensures the safety of the microwave by preventing the appliance from operating while the door is open. This switch is part of a microwave's safety mechanism, which includes multiple interlock systems designed to stop the generation of microwaves immediately once the door is opened, thereby protecting users from exposure to microwave radiation.

Signs that it's time to replace your door interlock switch include the microwave not starting or stopping unexpectedly, the microwave continuing to operate with the door open, or a failure to heat food even though the appliance seems to be running.

Symptoms of a bad Door Interlock Switch include:

• Microwave does not start
• Microwave stops unexpectedly
• The microwave operates with the door open
• Microwave turns on but does not heat food

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replace a burned-out interior light with this cavity lamp. It restores clear illumination inside the cooking cavity so you can see food when the door opens and monitor progress during operation.

• Provides bright interior illumination for the cooking cavity
• Fixes no-light, dim, or flickering light conditions
• Restores visibility when the door opens and while the appliance runs
• Typical wear item that can fail over time from heat and use

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access varies by model and may require removing a grille, cover, or control area
• Handle the lamp carefully; avoid touching the glass and do not force it into place
• For microwaves: internal high-voltage components can retain a charge even when unplugged.

The Thermostat is an OEM part for GE ovens. This critical component functions as a temperature sensor and controller within the oven, ensuring that the oven heats to the set temperature and maintains it throughout the cooking process. The thermostat prevents the oven from overheating by cycling the heat on and off as needed.

Symptoms of a failing thermostat include:

• Oven not reaching the desired temperature
• Overheating beyond the set temperature
• Uneven cooking or baking results
• Oven temperature fluctuating more than usual

Causes of thermostat failure generally include age-related wear and tear, calibration issues, or exposure to extreme temperatures that can damage its internal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This AC synchronous motor drives timed or fixed-speed rotations in compatible appliances to restore reliable timing and rotation. Ideal when a worn motor prevents timers, clocks or small gear-driven functions from operating. What it does:

• Turns at a constant, AC-synchronous speed to drive timers, clocks or small mechanical linkages.
• Replaces a failed or noisy timer/clock motor to restore timed functions.
• Common symptoms: appliance clock or timer won't advance, no rotation of small mechanisms, or intermittent timer operation.
• Operates as a direct replacement for the listed part number when matched to the appliance's OEM specification.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Note or photograph original wire locations and mounting orientation to ensure correct reconnection.
• Use basic hand tools; some models require removing a control panel or control box to access the motor.
