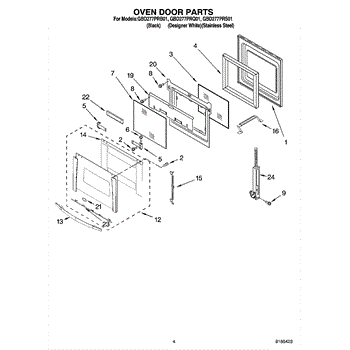

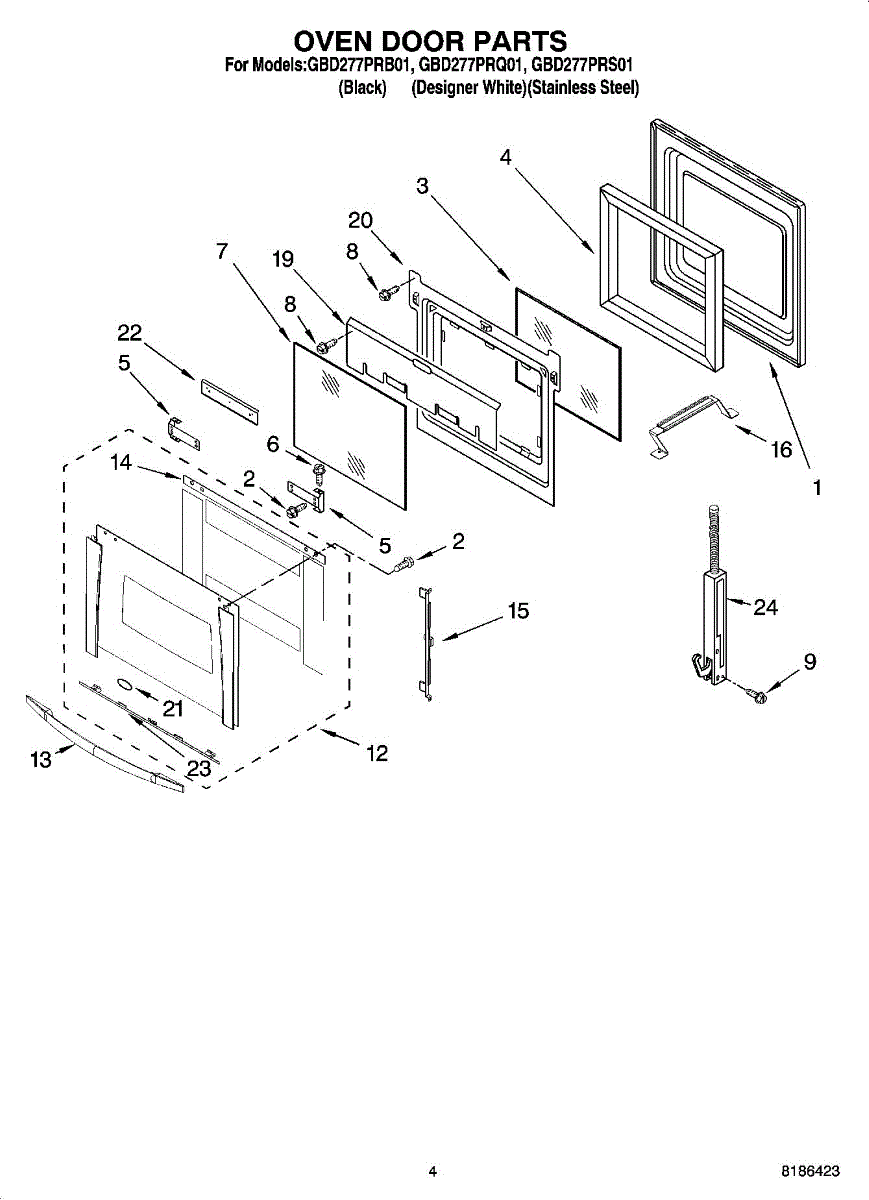

Parts for Whirlpool GBD277PRB01: 03 - Oven Door Parts

The Inner Oven Door Glass is an OEM part for Whirlpool ovens. It is a crucial component of the oven door assembly, providing an interior glass layer that helps to insulate the oven and keep the heat inside during cooking. The glass measures approximately 17 inches x 10 inches.

Over time, the inner oven door glass can become damaged due to exposure to high temperatures, impacts, or general wear and tear. Causes of a bad inner oven door glass include cracks or shattering from accidental impacts, thermal stress from frequent temperature changes, or degradation over time.

Symptoms of a bad inner oven door glass include:

• Visible cracks or shattered glass
• Heat escaping from the oven during use
• Difficulty maintaining the desired oven temperature
• Unusual odors from burnt food debris trapped between glass layers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Screw for side trim.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Color: Blk/Stainless

Color: Black

Color: Black

8302811 White

Color: White

Color: Black/Stainless

Color: Stainless

Color: White

Color: Black

Color: Black

Color: Black

Color: Black

Left hinge for Colored/Clear Doors.

Right hinge for Colored/Clear Doors.
