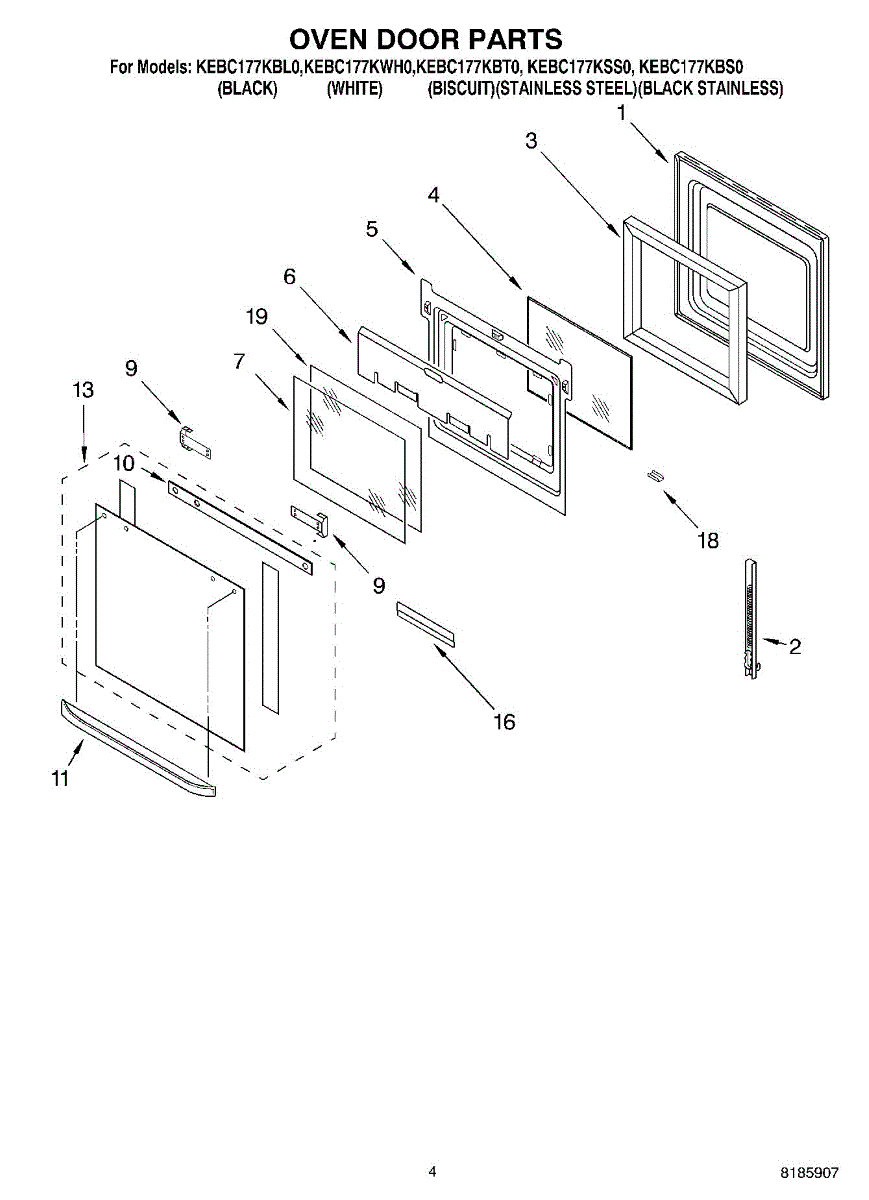

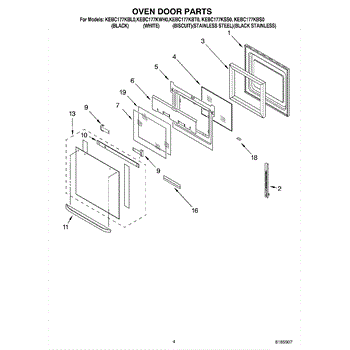

Parts for Kitchenaid KEBC177KBS0: 03 - Oven Door Parts

This left-hand oven door hinge assembly restores smooth, spring-assisted door movement and a tight seal. Replacing a worn or bent hinge helps the door close properly, reducing heat loss and improving cooking performance and safety.

• Supports and pivots the door; spring mechanism controls opening/closing tension
• Helps the door close fully and compress the gasket for a proper seal
• Corrects sagging, misalignment, or popping doors caused by hinge wear
• Common symptoms: door won't close or stay shut, drops open, uneven gaps, heat escaping, oven light stays on

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door per your model's instructions; support the door and release hinge locks before lifting off
• Left-hand specific: install on the left side when facing the appliance
• Hinge springs are under tension—use caution, and wear gloves and eye protection

This right-hand oven door hinge assembly supports and counterbalances the door so it opens smoothly and closes firmly against the gasket. Replacing a worn hinge restores proper alignment and heat retention for consistent cooking performance.

• Provides the pivot point and spring tension for the oven door
• Helps the door open smoothly and close completely for a tight seal
• Wear or damage can cause sagging, misalignment, or slamming/falling open
• Heat loss from a poor seal may lead to long preheat or temperature fluctuations

• Disconnect power and allow the oven to cool completely before servicing
• The hinge is spring-loaded—support the door and use care to avoid injury
• Remove the door per your model's instructions, then replace the right-side hinge
• After installation, adjust per service guidance if needed

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Left hinge for Colored/Clear Doors.

Right hinge for Colored/Clear Doors.

The Inner Oven Door Glass is an OEM part for Whirlpool ovens. It is a crucial component of the oven door assembly, providing an interior glass layer that helps to insulate the oven and keep the heat inside during cooking. The glass measures approximately 17 inches x 10 inches.

Over time, the inner oven door glass can become damaged due to exposure to high temperatures, impacts, or general wear and tear. Causes of a bad inner oven door glass include cracks or shattering from accidental impacts, thermal stress from frequent temperature changes, or degradation over time.

Symptoms of a bad inner oven door glass include:

• Visible cracks or shattered glass
• Heat escaping from the oven during use
• Difficulty maintaining the desired oven temperature
• Unusual odors from burnt food debris trapped between glass layers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

Approximate size: 19.3 x 12 inch.

This is the left side handle bracket. For right side use 4455803.

This is the right side handle bracket. For left side use 4455804.

Color: Biscuit. Other colors: For stainless steel use 9760540, for black use 9760541, for white use 9760542.

Color: Stainless

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

Color: Black

Color: White.

Screw for side trim.
