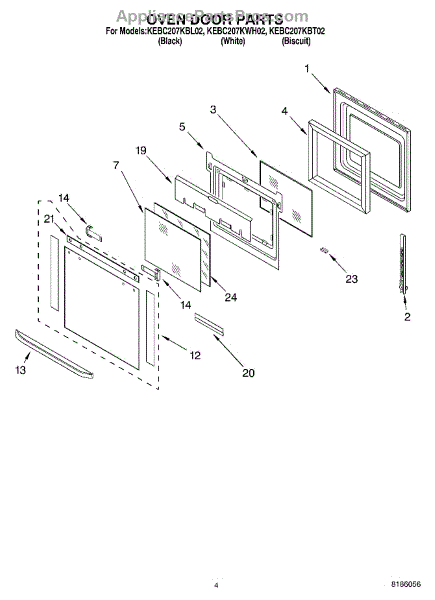

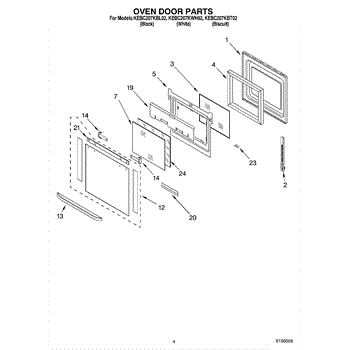

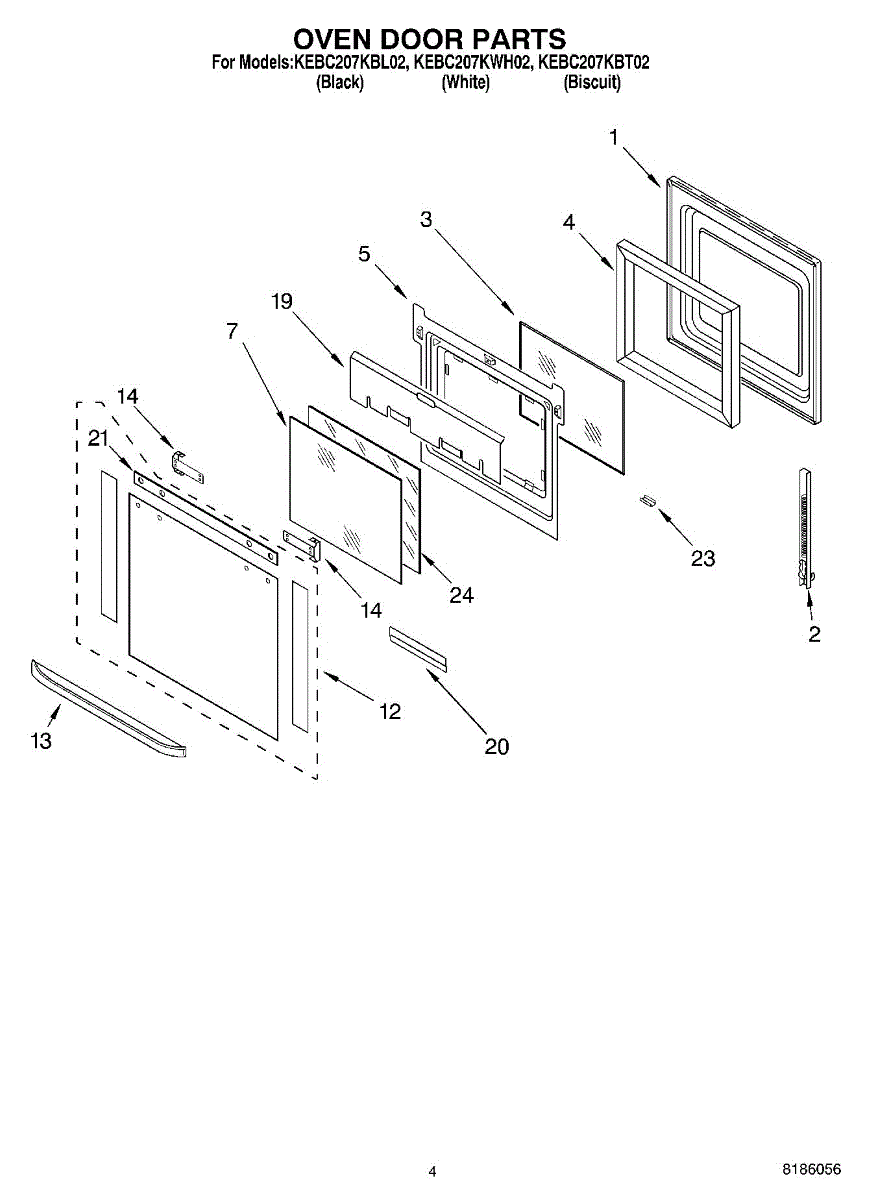

Parts for Kitchenaid KEBC207KBL02: 03 - Oven Door Parts

This is the 30-inch door panel for select ovens/ranges. It restores the door's appearance and provides the structural skin that supports the handle, glass, and trim for a solid, properly aligned door assembly. What it does:

• Forms the primary outer skin of the door assembly and supports handle/trim
• Provides a mounting surface for door glass and nameplate/emblems
• Helps maintain proper door alignment and a tight, rattle-free fit
• Common reasons to replace: dents, bends, scratches, discoloration, or stripped mounting holes

• 1 door panel

• Disconnect power and allow the appliance to cool completely before servicing
• Remove the door assembly and place it on a protected surface; wear cut-resistant gloves
• Transfer handle, screws, glass, and trim from the old panel to the new one; note screw lengths/locations
• Align carefully and avoid overtightening to prevent damaging threads or cracking glass

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Left hinge for Colored/Clear Doors.

Right hinge for Colored/Clear Doors.

The Rear Oven Door Glass is an OEM part for Whirlpool ovens. This glass panel is installed on the inside of the oven door and is essential for providing a heat-resistant viewing window, allowing users to monitor the cooking process without opening the door. Measuring about 20 inches by 10 inches, this quality glass keeps heat in the oven and provides a clear view for easy baking.

Symptoms of a bad Rear Oven Door Glass include:

• Cracks or chips in the glass,
• Visible streaks or fogging between glass layers that can't be cleaned,
• A loose fit that may cause heat to escape or the glass to rattle during oven use.

Causes of rear oven door glass damage typically include thermal stress from high heat, impact from closing the door too forcefully, or accidental bumps with pots or pans.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Insulation is an OEM part for Whirlpool ranges and wall ovens. This part provides thermal insulation for the oven door, helping to maintain the internal temperature and improve energy efficiency. It also protects the exterior surfaces of the oven door from becoming excessively hot during operation.

Causes of bad door insulation can include general wear and tear over time, degradation from repeated exposure to high temperatures, or physical damage.

Symptoms of bad door insulation include:

• Oven taking longer to heat up
• Heat escaping from the oven door
• Outer door surfaces becoming too hot to touch
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

Color: White

Color: Bisque

Color: Black

This is the left side handle bracket. For right side use 4455803.

This is the right side handle bracket. For left side use 4455804.

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

• Provides the specified 8-32 machine-thread fastening for OEM components
• Helps prevent looseness, vibration, or rattling from a missing/damaged screw
• Replaces screws with worn heads or stripped threads to enable proper tightening
• Supports correct reassembly during part replacement or service

• 1 screw

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original for thread and length before installing
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found

• Thread size: 8-32 (machine)

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This is the top seal for the door.

Color: Black

Color: White.
