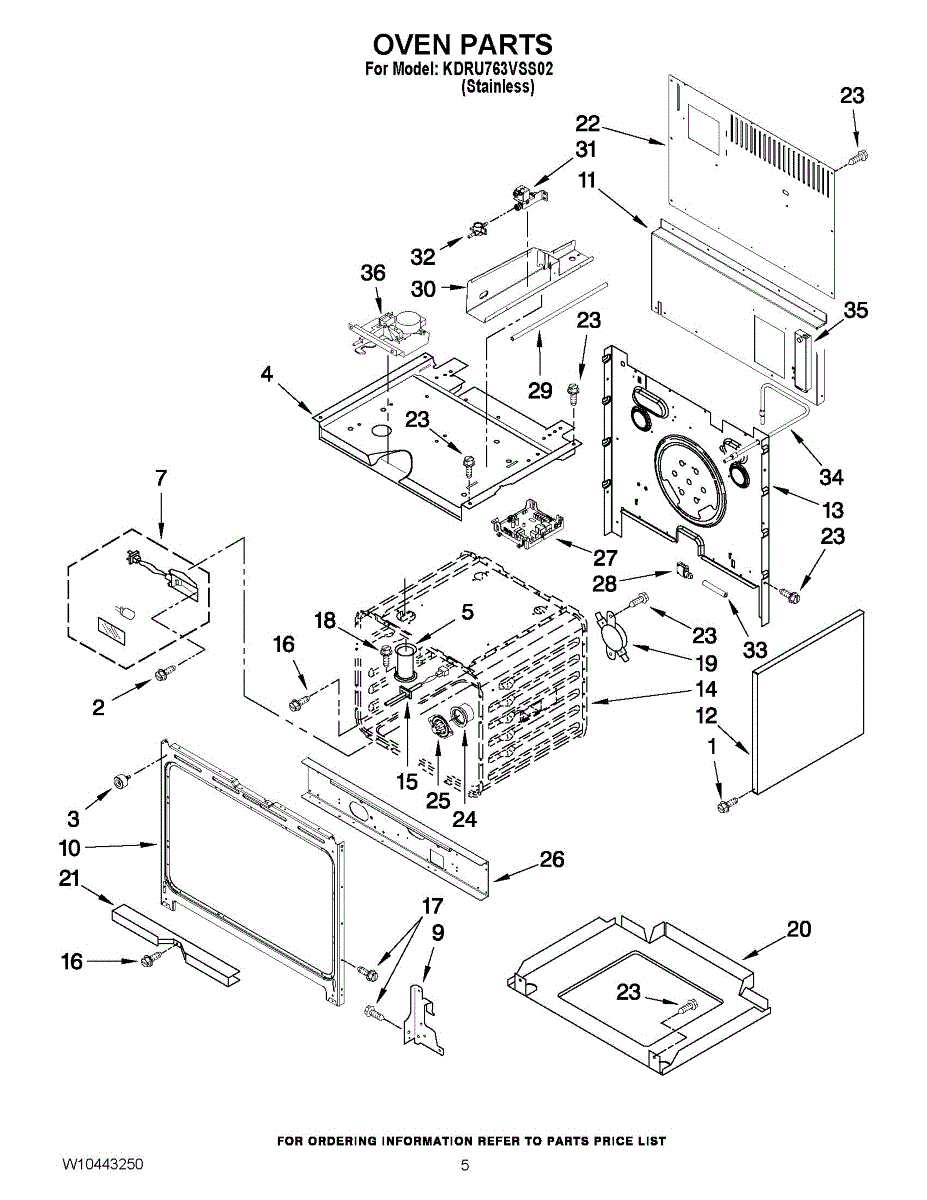

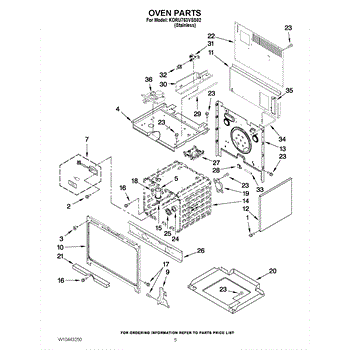

Parts for Kitchenaid KDRU763VSS02: 03 - Oven Parts

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

Replacement mounting screw for electric wall ovens and ranges. Secures panels, brackets, and trim pieces. Replaces lost, stripped, or damaged screws.

The screw and bumper assembly includes a small cushioning stopper and its mounting screw, designed to prevent hard contact between moving parts or doors and the appliance frame. These bumpers absorb impact and reduce noise when drawers, doors, or panels are opened and closed. Replace this set if you hear loud banging or rattling when operating your appliance or if the existing bumper is worn, torn, or missing.

Illuminates oven interior for monitoring food without opening door. Replace when bulb burns out or flickers. High-temperature rated. Verify compatibility.

Left side hinge receiver for door hinge. For right side hinge receiver use WP4455606.

Door hinge receiver for wall ovens. Mounts inside the oven frame to hold the door hinge in place. Replace if cracked, deformed, or causing door alignment issues.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Size: 8-18 x 3/8 inch.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The High Limit Thermostat is an OEM replacement part for Whirlpool ovens. It acts as a safety mechanism that monitors the oven's temperature to prevent overheating. When the oven exceeds a specific temperature, the high-limit thermostat interrupts the electrical flow to the heating element, ensuring the appliance remains within safe operating conditions.

Causes of a bad High Limit Thermostat can include a malfunction due to electrical issues or component failure. It may become unresponsive over time, failing to cut off the power to the heating element when the oven overheats.

Symptoms of a bad High Limit Thermostat include:

• The oven not heating up adequately or overheating
• Inconsistent oven temperatures leading to undercooked or overcooked food
• The thermostat being unresponsive or failing to regulate the oven’s temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This silicone transmission hose routes water between the washer transmission and tub, using flexible material to resist kinks and temperature. It restores proper drainage and transfer flow to help prevent leaks and poor washer performance. What it does:

• Replaces a worn or cracked hose that can cause water leaks under the washer
• Maintains a flexible, kink-resistant channel between the transmission and tub
• Helps prevent intermittent filling/draining issues caused by damaged hoses
• Resists typical washer temperatures and flexing where rubber hoses fail

• Disconnect power and shut off water supply before beginning any repair
• Drain remaining water from the washer and place towels to catch spills
• Remove and replace the hose clamps; inspect and replace corroded clamps
• Avoid sharp bends or pinching the hose during reassembly

This solenoid valve is the electrical valve assembly that opens and closes to control fluid flow in the appliance, restoring proper fill and shutoff behavior when the original valve fails. What it does:

• Electrically opens and closes to allow or stop fluid flow to the appliance
• Stops unintended flowing or leaking when the valve seals properly
• Commonly linked to symptoms such as no fill, continuous filling, intermittent fill, or leaks near the valve
• Works as the actuator controlled by the appliance's control board to meter fluid delivery

• Disconnect power and shut off the water supply before servicing.
• Handle valve connections and seals carefully; replace any damaged gaskets or hoses.
• Reconnect wiring to the correct terminals and secure all fittings to avoid leaks.
• Test appliance through a full cycle after install and check for leaks.

Oven won't heat or suddenly stops working? This thermal fuse cuts power when temperatures exceed safe limits. Moderate DIY repair in 30-45 minutes.

This boiler is the dishwasher water-heating assembly that provides the hot wash and rinse temperatures needed for effective cleaning. Replaces a failed boiler to restore normal heating during dishwasher cycles. What it does:

• Heats water used during wash and rinse cycles so detergent can clean effectively
• Helps maintain proper cycle temperatures for sanitizing performance
• Stops working when the element fails or the boiler leaks or overheats
• Often linked to no-heat cycles, prolonged wash times, or error codes related to water temperature

• Disconnect power and water supply before starting any repairs
• Inspect for leaks and damaged connectors; replace any worn mounting hardware or seals
• Handle electrical connections carefully and follow the appliance's service manual for wiring and testing

Oven won't heat or door won't stay closed? A faulty door latch prevents proper sealing and signals. This replacement restores secure closure and heating.
