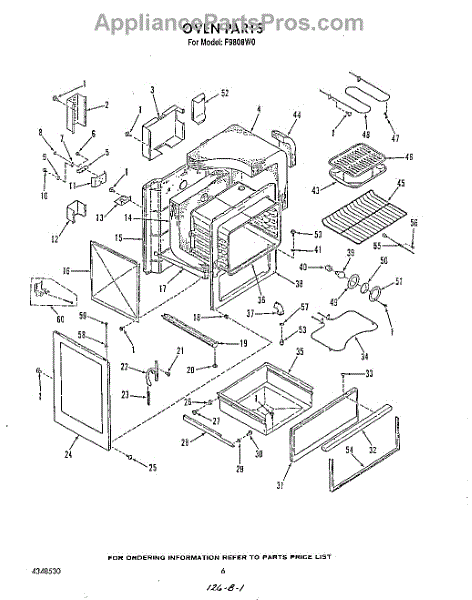

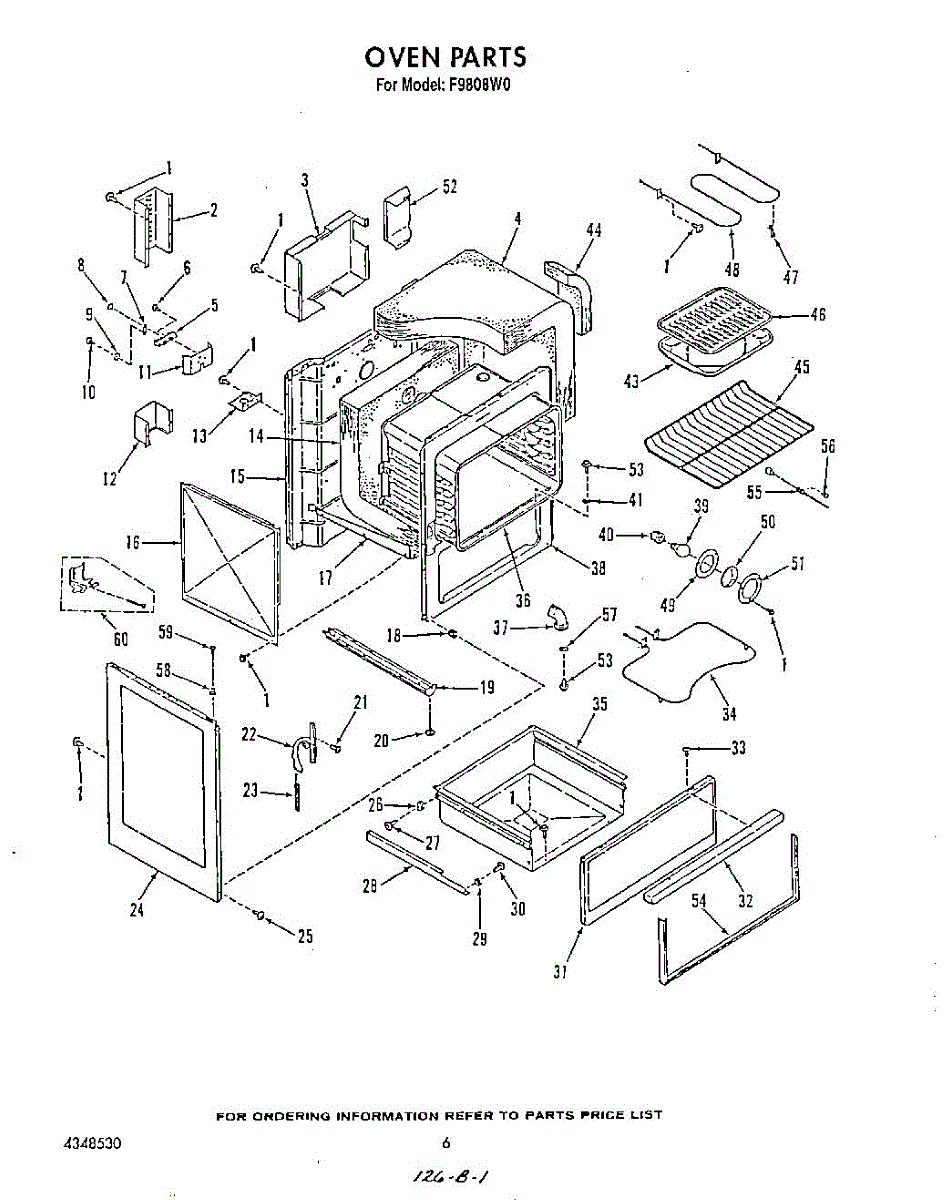

Parts for Whirlpool F9808B0: 05 - Oven Parts

ST10-16 X 7/16"

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

This flat-head 10-32 zinc screw secures panels and components on compatible appliances, providing a corrosion-resistant fastener for reliable mechanical fastening. Use when replacing stripped or missing panel screws to restore proper fit. What it does:

• Fastens control panels, trim, or small appliance components with a 10-32 thread size
• Zinc plating helps resist rust and wear in typical household environments
• Replaces missing, damaged, or stripped flat-head screws that prevent panels from seating correctly
• Fits applications that require a countersunk/flush head for a clean finish

• Use the correct 10-32 driver bit and moderate torque to avoid stripping the head or threads
• Ensure the screw is the correct length and head style for your application before tightening
• Disconnect power to the appliance and follow OEM safety instructions before servicing

The Hinge, Left Side is an OEM part for GE ovens. It provides support and allows for the smooth operation of the oven door, ensuring it opens and closes properly.

Causes of a bad hinge can include wear and tear over time, rust or corrosion due to exposure to heat and moisture, and damage from accidental impact or improper handling.

Symptoms of a bad hinge, left side include:

• Difficulty in opening or closing the oven door
• Oven door not staying securely closed
• Door misalignment
• Squeaking or creaking noises when moving the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Right Door Hinge is an OEM part for GE ovens and allows the oven door opens and closes smoothly and securely. The hinge facilitates easy access to the oven's interior, contributing to a user-friendly cooking experience.

Over time, the right door hinge can wear out or become damaged due to frequent use and the constant stress of holding the door's weight. Causes of a bad hinge include metal fatigue, rust, and physical impact.

Symptoms of a malfunctioning Right Door Hinge include:

• The oven door feels loose or wobbly when opened or closed.
• Difficulty in fully closing the oven door, which may affect the oven's ability to maintain temperature.
• A noticeable squeaking or grinding noise during the door's operation.
• Visible wear or damage to the hinge itself.

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw fastens panels, brackets, or trim inside your appliance. Swapping in a new screw restores a tight, secure fit and helps stop rattles, looseness, or misalignment caused by missing or damaged hardware.

• Secures panels, brackets, or trim to the appliance chassis
• Helps maintain proper alignment and spacing of components
• Replaces missing, rusted, or stripped hardware
• Helps resolve loose panels/handles, vibration, or rattling noises

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location; start threads by hand to avoid cross-threading
• Use the appropriate driver and tighten snugly without overtightening
• Inspect the mounting hole or clip for damage and address as needed before reassembly

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity

The Oven Bake Element is an OEM part for GE ovens. This element is located at the bottom of the oven and is primarily responsible for providing the heat necessary for baking. When the oven is turned on, electricity flows through the element, causing it to heat up and glow red-hot. This bake element has ¼” push-on wire terminals. If you are unable to use your old wire connectors, order TJMA02875-1.

Symptoms of a failing oven bake element include:

• Oven not heating up properly or taking longer to heat
• Uneven cooking or baking
• Element not glowing or only partially glowing during operation
• Visible signs of blistering, cracks, or holes on the element

Causes of oven bake element failure typically include general wear and tear from regular use, exposure to high temperatures which can weaken the element over time, or electrical issues such as short circuits.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This front frame assembly restores the oven's outer trim and support for the control area, returning a finished appearance and proper alignment. It's a direct-fit exterior trim component used when the front casing or bezel is dented, cracked, or warped. What it does

• Replaces damaged or bent front trim to improve the appliance's appearance and panel alignment
• Provides structural support for the control area and helps maintain a proper seal between the door and console
• Can stop rattling or misalignment caused by a warped or loose front frame
• Matches OEM fit and mounting points for a direct replacement where specified

• One front frame assembly as shown

• Basic removal of the oven/range front panel or trim is required; follow for specific disassembly steps
• Power off and disconnect the appliance before starting work to avoid electrical shock or injury
• Keep fasteners and small parts organized during disassembly to ensure proper reassembly
• If trim damage affected adjacent components (buttons, switches, or fascia), inspect and replace those parts separately as needed

This light socket holds the bulb and supplies power for reliable appliance lighting. Replace a cracked, heat-damaged, or loose socket to restore safe, consistent illumination inside the appliance.

• Secures the lamp and connects it to the appliance wiring
• Restores proper electrical contact to the bulb
• Replaces sockets showing arcing, discoloration, melting, or a loose fit
• Common symptoms: light won't turn on, flickers, works intermittently, or bulbs fail prematurely

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the appliance to cool completely before accessing the socket
• Use the bulb type and wattage specified for your model
• Transfer existing mounting screws/brackets and wiring connectors as needed; ensure tight, clean connections

Includes 12 washers.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Support Bracket is an OEM part for GE ovens, designed to provide stability and support for the broiling element. This bracket is essential for ensuring the broiling element is securely positioned at the top of the oven, allowing for even heat distribution and optimal cooking performance when broiling foods.

Causes of damage to the support bracket often involve high heat exposure, accidental impacts during cleaning or cooking, or general wear and tear over time.

Symptoms of a bad Support Bracket include:

• The broiling element hanging lower than usual or touching the oven cavity, which can affect cooking performance and potentially damage the oven's interior.
• Unstable or loose broiling element, leading to uneven cooking or broiling.
• Visible signs of wear, damage, or corrosion on the bracket itself, indicating it may no longer provide adequate support.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The broil element is the oven's upper heating element. It delivers intense radiant heat for broiling; replacing a failed element restores proper broil performance and more even browning.

• Provides top, direct radiant heat during the Broil cycle
• Symptoms of failure: no broil heat, uneven broiling, visible blistering/cracks or breaks in the element, sparking or tripping the breaker when Broil is selected
• Helps restore proper searing/finishing from the top of the oven

• Disconnect power at the breaker or unplug the range before servicing
• Remove oven racks; support the element while removing its mounting screws
• Gently pull the element forward and disconnect the two wires; prevent wires from slipping behind the oven liner
• Make firm, clean terminal connections; avoid bending the element, reinstall screws, then test the Broil cycle

The Oven Sensor Assembly is an OEM part for GE ovens. This part monitors the oven's internal temperature, ensuring it matches the set temperature on the oven's controls. By accurately measuring the heat inside the oven, the sensor assembly communicates with the oven's control system to adjust the temperature accordingly.

Over time, the oven sensor can become faulty due to wear or damage, leading to inaccurate temperature readings. This can manifest as unevenly cooked food, longer cooking times, or an oven that fails to reach the desired temperature setting.

Symptoms of a bad Oven Sensor Assembly include:

• The oven temperature is inconsistent with the setting
• Food is not cooking evenly or as expected
• The oven fails to heat to the set temperature
• Error codes appearing on the oven display related to temperature regulation

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
