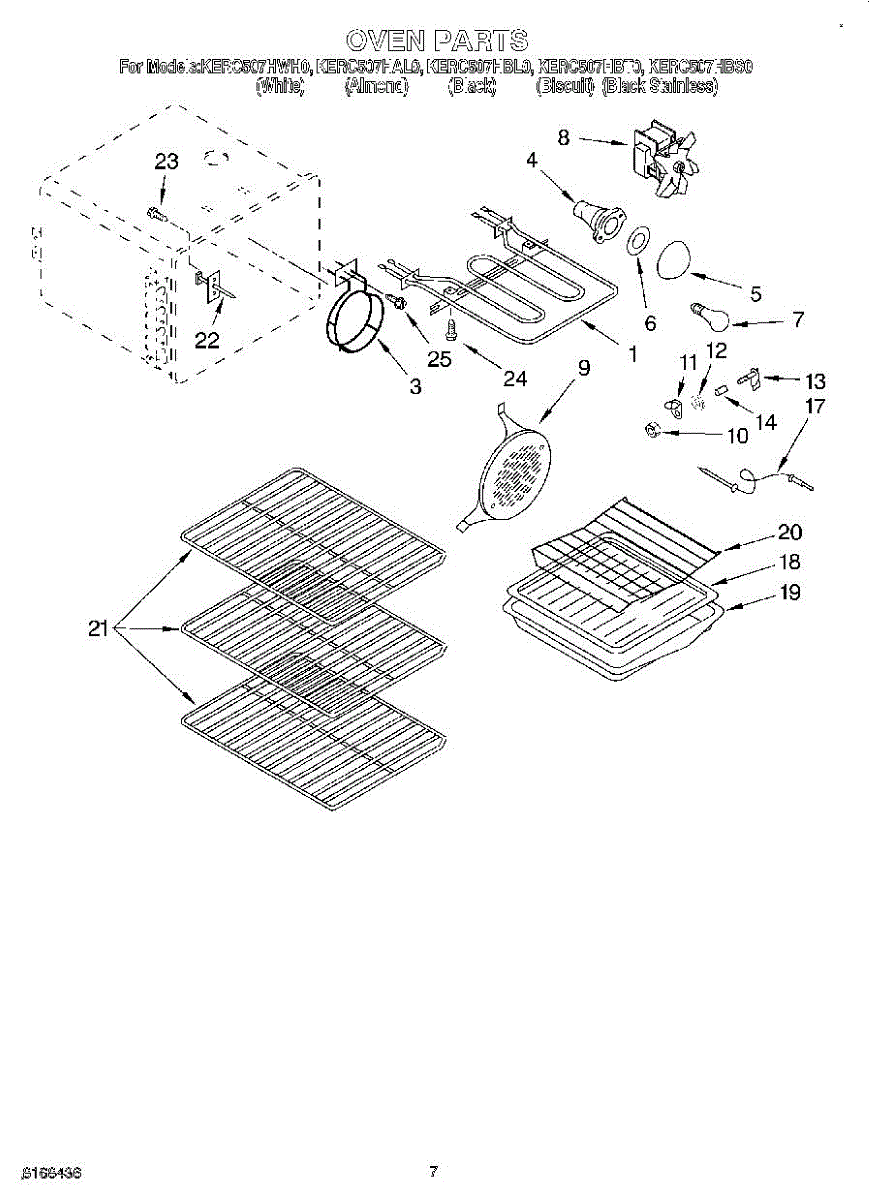

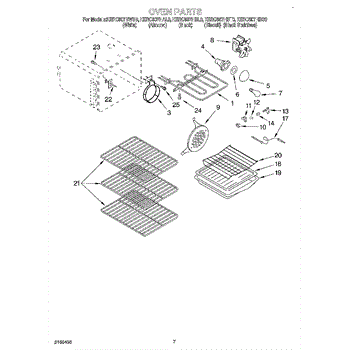

Parts for Kitchenaid KERC507HAL0: 05 - Oven Parts

This is a circular convection heating element located behind the rear panel of the oven cavity. It works in conjunction with the convection fan to heat and circulate air evenly throughout the oven for consistent baking and roasting results. Replace this element if your oven fails to heat properly in convection mode, heats unevenly, or if the element shows visible damage such as cracks or burn spots.

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

Color: clear. Measures about 3 inches in diameter.

Seals the light lens to the oven cavity, blocking heat, steam, and grease from the bulb housing. Replace if cracked, brittle, or missing. Confirm fit.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Convection fan motor.

Meat temperature probe.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Size: 6 inches long. Includes ceramic wire connectors.

Size: 8 x 3/8 inch.

Size: 10-16 x 1 1/2 inch.

Size: 8-32 x 3/8 inch.
