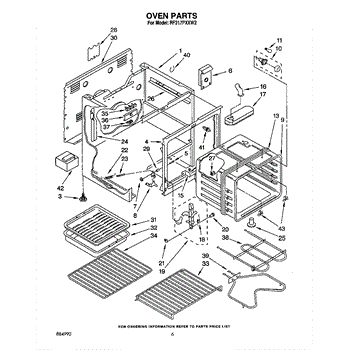

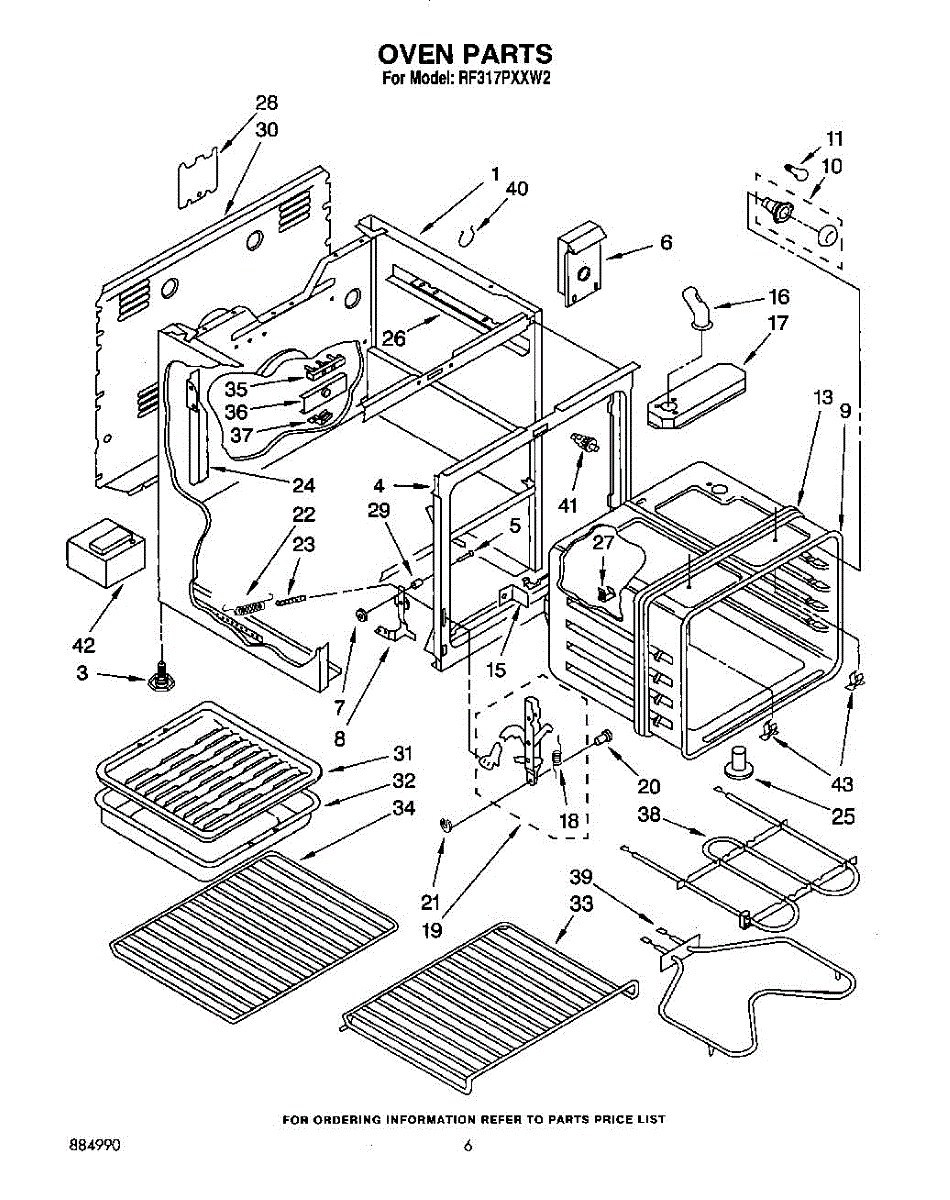

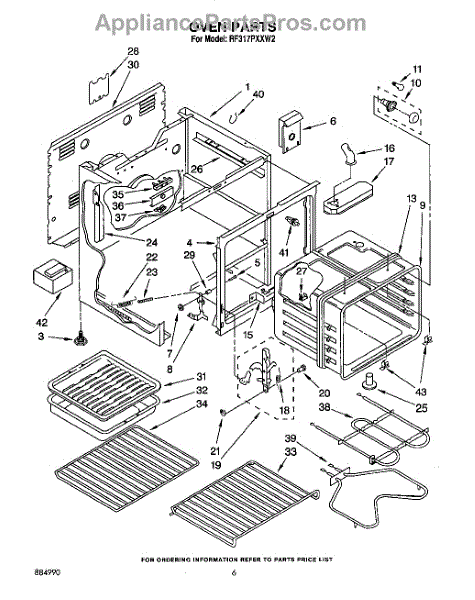

Parts for Whirlpool RF317PXXN2: 05 - Oven Parts

Specs: 10-16 x 1/2 inch.

Adjustable leveling leg installs on the front or rear corners of your range. Replace if broken, cracked, or worn to stabilize and level your appliance.

Burner won't light or has no gas flow? This top burner valve controls gas to individual burners. Moderate DIY repair with basic tools needed.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

Replacement mounting screw for securing panels, brackets, and components to your appliance chassis. Needed when original screws are stripped or missing.

Light socket assembly houses your oven bulb and provides electrical connections to illuminate the interior. Replace when bulb won't stay secure or light fails.

Hinge pin that connects the door hinge to your range cabinet. Replace if worn, bent, or missing to restore smooth door movement and proper alignment.

This retaining ring secures a component in its groove on a shaft or housing, keeping parts aligned and in place during operation. Replace a bent, stretched, or missing ring to restore a tight hold and reduce movement or noise.

• Secures a component by seating in a groove on a shaft or inside a bore
• Maintains correct axial position so parts don't slide off during use
• Helps reduce wobble, vibration, or rattling caused by loose assemblies
• Typical symptoms: part won't stay seated, excess play or movement, scraping/rattling noises, or a visibly deformed ring

• Disconnect power; shut off water or gas if applicable. Wear eye protection and gloves
• Note ring orientation; use appropriate snap-ring/circlip pliers or picks—avoid overstretching
• Clean the groove and seat the ring fully; secure fit
• Replace any damaged spacers, washers, or seals found during service

Anchor spring for oven doors. Maintains tension on door hinges to keep the door stable and balanced. Replace if spring is broken, fatigued, or missing.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Secures the thermostat sensor bulb in place on your range. Replace if broken or corroded to restore accurate temperature control. Verify fit by model.

This terminal block access cover protects the appliance's electrical connection area, helping keep wires shielded and reducing the risk of accidental contact. It restores the factory appearance and helps maintain safe operation. What it does:

• Shields the terminal block and wiring from dust, debris, and accidental contact
• Helps prevent shorting or arcing at the power connection area
• Restores a finished look after service or replacement of wiring components
• Supports safe access control by covering live terminals when installed

• Disconnect power at the breaker or unplug the appliance before servicing.
• Remove or loosen the mounting fasteners for the old cover, then position and secure the replacement cover.
• Verify the cover fits flush and does not pinch wiring; ensure all connections are tight before restoring power.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Replacement broiler pan set for ovens. Includes pan and insert to catch drippings during broiling. Order if your original is missing, warped, or damaged.

Color: chrome. Measures about 22 inches wide by 16 inches deep.

Size: #9-15 x 1 inch long. Hex head.

Replacement hex nut for dryer terminal blocks and electrical connections. Secures terminal components. Needed when original is stripped, missing, or damaged.

If your range has a strong burning smell or won't power on, the terminal block may be heat-damaged. This insulated connector restores safe power flow.

Ground wire clip for ranges and ovens. Secures grounding wire to chassis. Replace if clip is broken, bent, or missing to ensure proper electrical ground.

Insulation panel for ovens and ranges. Installs between outer cabinet and cooking chamber. Replace if cracked, deteriorated, or missing for safety.

Size: 10-32 x 1/2 inch.

Fix an oven that won't broil or brown food properly. This broil element restores top heat for searing. Easy DIY repair, typically done in 30 minutes.

Oven not heating or slow to preheat? The bake element is likely burned out. This bottom heating coil replacement is a simple DIY fix in minutes.

Light switch for door.

Size: 10-16 x 1 1/2 inch.

Secures your range to the wall or floor to prevent tipping when the oven door is opened. Replace if missing, broken, or during new installation.
