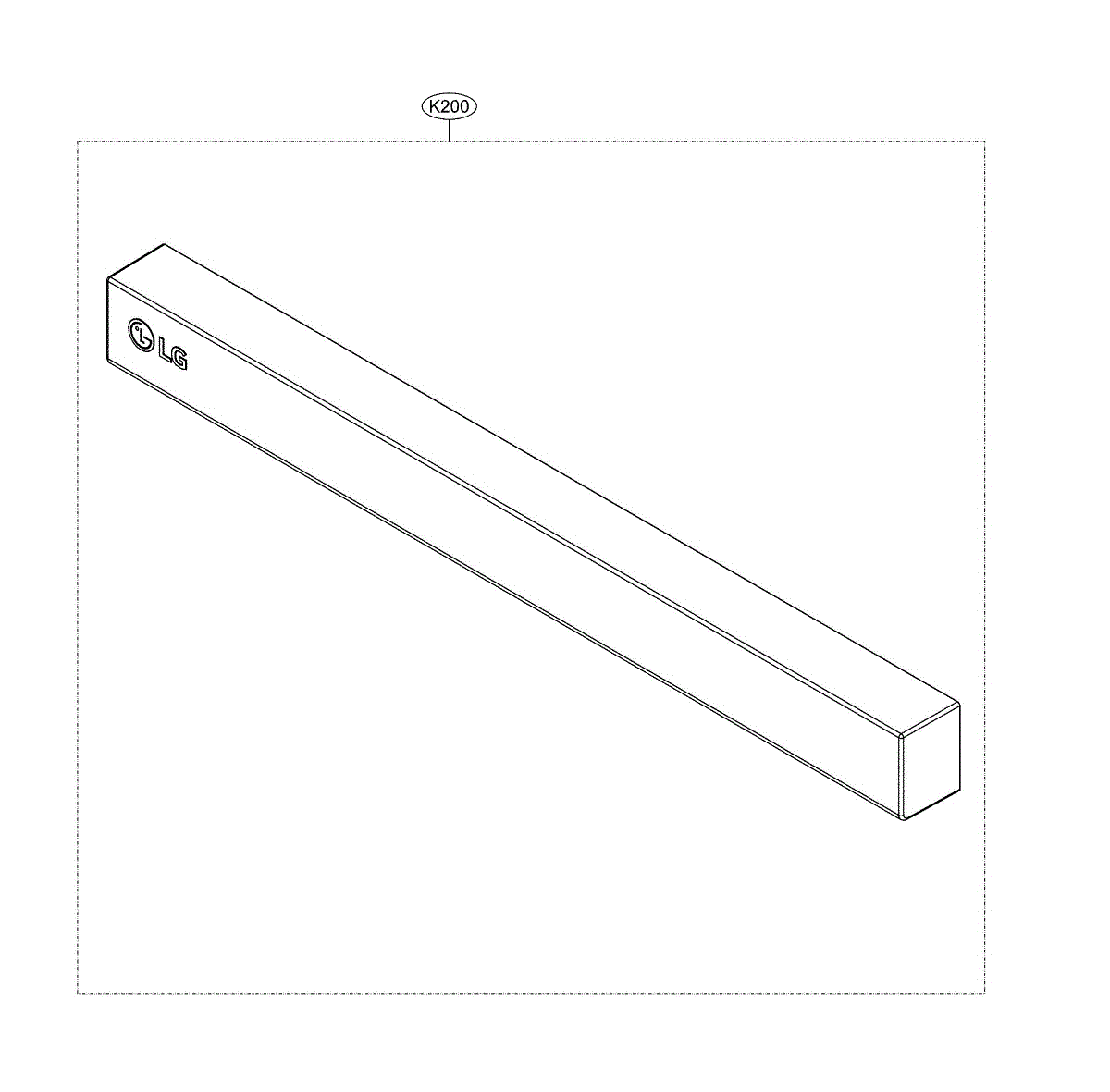

Parts for Lg LDF5545WW: Panel Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This lower frame is the factory replacement trim piece that mounts to the base of the appliance door/cabinet, restoring proper fit and finished appearance. It helps protect the lower edge and keeps the door aligned. What it does:

• Replaces a damaged, cracked or bent lower cabinet/door frame to restore proper sealing and appearance.
• Supports the bottom edge of the door or cabinet opening to help maintain alignment and smooth operation.
• Prevents debris and moisture from collecting under the door trim.
• Helps eliminate rattling or loose trim caused by broken or worn lower frame pieces.

• One lower frame

• Basic removal of the door or front panel may be required; retain screws and fasteners for reassembly.
• Handle panels and sharp edges with care; wear gloves to protect hands.
• Disconnect power (and water if applicable) to the appliance before beginning any disassembly.

Detergent and rinse aid dispenser

Secures dishwasher to countertop or cabinet to prevent tipping. Includes mounting brackets for stable installation. Replace if broken, missing, or worn.

This sump assembly sits at the base of the dishwasher and includes the drain pump, turbidity sensor, and diverter motor. It serves as the main water collection and circulation hub, directing water through the wash and drain cycles. Replace this assembly if the dishwasher is not draining properly, has poor wash performance, or displays error codes related to the drain pump or water sensor.

Small sleeve bushing that supports pivoting or rotating joints in your dishwasher. Replace when worn, cracked, or causing excess friction between moving parts.

Door won't stay open or slams shut? This dishwasher door hinge spring provides counterbalancing tension for smooth opening and closing operation.

The Dishwasher Door Cable Connector Assembly is an OEM replacement part for LG dishwasher. The cable connector assembly works with the door cable to properly guide and support the door as it moves through the full range of opening and closing motions.

Causes of a bad door cable connector can include wear and tear over time resulting in cracks, loose connections, or broken or damaged connectors that no longer securely attach the cable.

Symptoms of a bad door cable connector include:

• The door not properly aligning when closed
• Difficulty opening or closing the door smoothly
• Noisy operation or rattling sounds from the door area
• The door not latching securely in place

This OEM LG part is also compatible with select Sears/Kenmore brand models.

This is a small roller that guides the door cable on the left side of the dishwasher. It helps control the tension and movement of the door cable, allowing the dishwasher door to open and close smoothly and stay in position when lowered. Replace this roller if the door drops open too quickly, feels unbalanced, or if you hear grinding or scraping noises when opening or closing the door.

This is a small roller wheel that attaches to the bottom of a dishwasher rack, allowing it to glide smoothly in and out of the dishwasher tub. Over time these rollers can crack, wear down, or fall off. Replace this roller if your dish rack feels wobbly, tilts to one side, gets stuck, or no longer rolls in and out easily.

This sensor assembly monitors conditions inside the dishwasher during the wash cycle, such as water level or water turbidity, and sends signals to the control board to adjust cycle timing and water usage. It helps the dishwasher determine when dishes are clean. Replace this part if the dishwasher runs excessively long cycles, does not fill properly, or displays sensor-related error codes.

Check valve that prevents water backflow in the appliance's supply line, helping restore proper water flow to the ice maker or dispenser. Replaces a failed valve to address leaking, slow fills, or no-fill conditions. What it does:

• Stops reverse flow in the water line so water only moves toward the dispenser or ice maker
• Helps prevent water leaks and cross-contamination of the supply line
• Common symptom fixes: intermittent or no water to ice maker/dispenser, weak fills, or water pooling
• Fits inline with existing water tubing and works with the appliance's fill system

• Shut off water supply and unplug the appliance before replacing the valve
• Confirm tubing size and orientation before installation; install with correct flow direction
• Tighten fittings to prevent leaks but avoid overtightening plastic fittings

The Diverter Motor Assembly is an OEM part for LG dishwashers. It is a critical component used to control the direction of water flow within the dishwasher, ensuring that water is properly diverted between the different spray arms during various wash cycles.

Symptoms of a failing Diverter Motor Assembly include:

• Inadequate cleaning of dishes, with some areas remaining dirty
• Unusual noises, like humming or clicking, indicating the diverter motor is struggling to operate
• Error codes displayed on the dishwasher that relate to water distribution problems
• Water not reaching all spray arms

Causes of a bad diverter motor can include wear and tear from regular use, electrical issues such as faulty wiring or motor failure, and mechanical obstructions or debris that prevent the diverter from moving smoothly.

This OEM LG part is also compatible with Sears/Kenmore models.

The Micro Switch is an OEM part for LG dishwashers. It plays a crucial role in detecting when the door is securely closed prior to starting a cycle. This important safety feature prevents accidental exposure to hot water, detergent, and chemicals.

Causes of a bad micro switch include degradation from years of repeated use, debris interfering with mechanisms, or damage from attempts to force or slam the dishwasher door closed.

Symptoms of a bad micro switch include:

• Cycles failing to start despite a closed door
• Hot water or steam visible escaping when running
• The dishwasher not detecting the closed door position
• Error codes displayed related to door position sensors

This OEM LG part is also compatible with Sears/Kenmore. Replacing only when truly faulty helps ensure safe and reliable dishwasher function.


Dishes not getting clean or water not spraying? The pump casing assembly houses the circulation pump and directs water flow during wash and rinse cycles.

The Lower Cover Assembly is an OEM part for LG dishwashers. Made of sturdy steel, this lower cover adds structure and protection along the bottom of the appliance.

Causes can involve general wear from years of use and repeated washing cycles. Exposure to moisture also contributes to degrading metal over time.

Symptoms of a bad lower cover include:

• Rust, dents or other damage compromising integrity
• Exposed wires or sharp edges posing a safety hazard
• Drafts or debris entry through openings in the cover
• Loose or misaligned panel affecting performance

This OEM LG part is also compatible with some Kenmore models.

This guide assembly is the sliding rail that supports and aligns the freezer drawer. When worn or damaged, it can cause sticking, sagging, or poor sealing; replacing it restores smooth operation and proper drawer closure.

• Supports the freezer drawer and lets it glide smoothly in and out
• Keeps the drawer square and aligned with the front panel
• Helps the drawer close fully to maintain a proper seal
• Common symptoms: drawer hard to open/close, crooked or sagging drawer, grinding/squeaking, frost from incomplete closure, visible rail damage

• Disconnect power before servicing; empty the freezer drawer
• Pull the drawer out, remove the front panel and basket as needed
• Remove mounting screws and the old guide; reuse existing hardware if applicable
• Install the new guide, then verify both sides move evenly and the drawer seals properly

This inlet hose directs the incoming water supply into the appliance so it can fill and operate properly. Replacing a damaged or worn inlet hose restores a secure water connection and helps prevent leaks and fill issues. What it does:

• Channels household water from the supply to the appliance's fill system.
• Ensures a watertight connection at the water inlet to reduce leak risk.
• Restores normal fill behavior when a cracked, split, or clogged hose causes slow fill or no fill.
• Works with standard inlet fittings and clamps used on compatible appliances.

• One inlet hose.

• Turn off the water supply and unplug or disconnect power before servicing.
• Use the correct fittings and clamps; hand-start threads to avoid cross-threading, then snug with a wrench—do not overtighten.
• Inspect hose ends and inlet seal for damage; replace clamps or seals if needed.
• After installation, restore water and power, run a short fill cycle and check thoroughly for leaks.

A small snap-on trim cap used to cover and protect exposed fasteners or openings, restoring the appliance's finished appearance and helping keep debris out of the cavity. What it does

• Covers and conceals exposed screw heads or shaft ends for a clean look
• Helps prevent dust and lint from entering small openings
• Restores damaged or missing finish trim on the appliance
• Fits as a simple cosmetic/protective replacement — commonly used where a snap-fit cap is required

What's included

• One cap cover

Install notes

• Snap into place over the exposed fastener or opening; no special tools usually required
• Disconnect power or follow appliance safety procedures if working near electrical components
• Replace only with the matching part number to ensure proper fit

This drain pump assembly removes used water from the dishwasher tub during the drain cycle, pushing it out through the drain hose. It includes the pump motor and housing. Replace this assembly if the dishwasher is not draining, water remains pooled at the bottom after a cycle, or you hear unusual humming or grinding noises during the drain phase.

Fixes poor cleaning and spotty dishes caused by weak water spray. This dishwasher spray nozzle assembly restores proper water distribution. Moderate DIY.

This rubber gasket seals the fill funnel area inside the dishwasher, preventing water from leaking during the fill cycle. It sits between the fill funnel and the tub or dispenser housing to create a watertight seal. Replace this gasket if you notice water leaking beneath or around the dishwasher during operation, or if the old gasket appears cracked, warped, or deteriorated.

Fix poor cleaning or weak spray with a new dishwasher spray arm manifold. Distributes water to all spray arms for complete dish coverage. DIY repair.

Captures food particles and debris to maintain proper water flow. Replace when clogged or damaged to restore filtering performance. Confirm fit with your model.

This coarse filter sits in the bottom of the dishwasher sump area and catches larger food particles and debris during the wash cycle, preventing them from clogging the drain pump or recirculating onto clean dishes. It works alongside the fine filter to keep wash water clean. Replace this filter if it is torn, warped, or clogged beyond cleaning, which can cause poor cleaning performance, standing water, or drainage issues.

This case assembly is the outer housing that holds and protects the appliance's control components and switches, restoring a finished appearance and keeping electronics secure. It's a direct-replacement style part for visible control areas. What it does:

• Provides a protective enclosure for control boards, switches and user interface components
• Restores a secure, stable mounting point for buttons, levers and display elements
• Helps prevent dust, moisture and debris from reaching internal electronics
• Can resolve loose or damaged control bezel issues and improve appliance appearance

• Handle carefully to avoid scratching the visible surfaces and damaging tabs or mounting points
• Power off and unplug the appliance before starting work to reduce risk of shock
• Retain and reuse any clips, screws or gaskets from the original part unless replacements are supplied

This safety switch assembly replaces a failed door/interlock switch to restore the appliance's ability to detect and respond to door position, helping ensure cycles only run when the door is closed. Fits as a direct replacement for the original switch assembly. What it does:

• Detects door/lid position and prevents operation when the door is open
• Helps stop the motor or heating function if the door is opened mid-cycle
• Commonly replaces units that show no power to controls or won't start with the door closed
• Can address intermittent operation or machines that behave as if the door is open

• Disconnect power before servicing to avoid shock or injury
• Replacement requires access to the door/lid area; basic hand tools needed
• Verify proper wiring orientation and secure connectors before reassembly

Replace your dishwasher's door liner assembly if it's cracked, warped, or damaged. This inner door panel covers components and provides insulation.

This is a leveling leg adjuster assembly used to level and stabilize a dishwasher within the cabinet opening. The adjustable legs allow you to raise or lower each corner to ensure the unit sits flat and drains properly. Replace if the existing legs are stripped, broken, or no longer hold the dishwasher at the correct height, causing it to rock, vibrate, or not align with the countertop.

Inner door liner assembly for dishwashers. Replaces the plastic panel inside the door when cracked, warped, or damaged. Includes mounting structure.

This Door Seal is an OEM part for LG dishwashers. It plays a crucial role in preventing water leaks by creating a watertight seal around the dishwasher door.

Over time, door seals can degrade due to constant exposure to water, detergents, and varying temperatures. This can lead to a compromised seal, increasing the risk of leaks during operation.

Symptoms of a failing door seal in a dishwasher include:

• Water leaking from around the dishwasher door.
• Visible signs of wear, cracks, or damage to the seal.
• The door not closing as tightly or securely as it used to.
• Dampness or water marks on the floor near the dishwasher after use.
• An increase in noise during operation, potentially due to water escaping the seal.

This OEM LG part is also compatible with some Sears/Kenmore models.


This is a protective cover that fits over the electrical terminal block or wiring connections on a dishwasher. It shields the wiring and electrical connections from moisture and accidental contact, ensuring safe operation. Replace this cover if it is cracked, broken, or missing, as exposed electrical connections pose a safety hazard.

Supports and guides moving components inside your dishwasher. Replace if your rail is cracked, broken, bent, or missing to restore smooth operation.

Holds utensils and small items upright in your dishwasher's lower rack. Replace if the basket is cracked, broken, or missing prongs that no longer secure items.

The Blower Motor Casing Assembly is an OEM part for LG dishwashers. This part houses the blower motor which generates airflow through the wash arms and drying vent. The casing is precision-engineered to fit securely within the dishwasher's structure.

Causes of a bad blower motor casing assembly can include cracked or warped plastic from repeated heating and cooling cycles. The seals around the motor connection points may also deteriorate over time.

Symptoms include:

• Incomplete or overly long drying cycle times
• Water pooling in the bottom of the dishwasher after cycles
• Sloshing or excess moisture noise heard coming from inside
• Irregular or strange smells emanating from within the unit

This LG part is also compatible with some Kenmore models.

This locker lock is the replacement latch mechanism that secures the appliance door during operation, restoring proper door closure and helping the unit run safely and reliably. Use when a door won't stay closed or the machine won't start. What it does:

• Replaces a worn or broken door latch to restore secure door closure
• Helps ensure the appliance detects a closed door and can start cycles
• Commonly used when the door is loose, won't latch, or causes door-sensor errors
• Fits into the door strike area and engages the cabinet catch for a firm hold

• Locker lock (single replacement latch)

• Disconnect power and water supply before servicing to avoid shock or injury
• Remove the outer door panel or access cover as needed to reach the latch area
• Verify alignment of the latch and striker when reinstalling to ensure proper engagement

This door latch holder secures the microwave oven's door lock assembly so the door closes and latches reliably. Replacing a worn or broken holder restores proper door engagement and helps the unit start and operate safely. What it does:

• Secures the door lock/latch assembly to the oven frame so the door closes and stays latched
• Commonly replaced when the door feels loose, won't stay closed, or the oven doesn't start
• Works with the lock components to maintain proper door alignment and switch activation
• Helps prevent intermittent operation caused by a misaligned or damaged latch mount

• Basic hand tools required; access typically through the front control/door area—refer to model service instructions
• Power off and unplug the appliance before attempting any repair; disconnect power at the breaker if hardwired
• Handle door and latch components gently to avoid harming the door glass, switches, or wiring

Stopper roller guides and cushions dishwasher panels for smooth, quiet operation. Replace if door binds, rubs, or moves unevenly. Confirm fit with your model.

Wire harness for dishwasher control panel and electronic components. Replaces damaged, frayed, or corroded wiring harness. Essential for restoring connections.

The Cover Assembly is an OEM component specifically designed for LG dishwashers. This assembly consists of the outer tub cover and inner mounted components that protect internal mechanisms.

Causes of a bad cover assembly can include cracks, dents, or other physical damage from regular loading and unloading of dishes. Harsh or abrasive cleaners can degrade protective surfaces over time as well.

Symptoms of a bad cover assembly include:

• Water leaks inside or outside the dishwasher
• Loose, unstable, or damaged outer tub cover
• Detached or broken mounting clips for inner components

This OEM LG part is also compatible with Sears/Kenmore dishwashers. Replacing the entire cover assembly restores integrity to protect sensitive inside parts. Proper maintenance extends the lifespan of exterior components.


This is a rubber gasket that seals the door vent area of the dishwasher, preventing steam and water from leaking out during the wash and dry cycles. It fits around the vent opening on the inner door panel. Replace this gasket if you notice water dripping from the door vent area, steam escaping where it shouldn't, or visible cracking and deterioration of the old seal.

This blower cover is the outer housing piece that directs airflow from the blower assembly and protects the fan motor and internal components. It helps maintain proper airflow path and reduces contact with moving parts. What it does:

• Directs and channels airflow from the blower to the unit's vents for efficient circulation
• Protects the blower wheel and motor from debris and accidental contact
• Helps reduce rattling and vibration when the cover is intact and properly seated
• May cause decreased airflow or unusual noise if cracked, warped, or missing

• Disconnect power to the appliance before performing any service
• Typically installed with a few screws or clips after removing the front grill or access panel
• Handle plastic tabs gently to avoid breakage; align clips before tightening fasteners

The Drain Hose Assy is an OEM component specifically designed for LG dishwashers. This hose works with the drain pump to effectively drain wash water from the dishwasher tub after each cycle.

The drain hose assy is responsible for efficiently draining wash water during and after the dishwashing cycle. It allows used water to be drained properly, keeping the dishwasher tub and components clean and dry between cycles.

Symptoms of a bad drain hose assy include:

• Incomplete draining of wash water after cycles
• Water remaining or pooling in the bottom tub
• Leaks or puddling near the drain pump or hose area
• Loud noises or vibrations from the drain pump

This OEM LG part is also compatible with select Sears/Kenmore.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Creates a watertight seal around the dishwasher tub opening. Replace if you notice leaks, excess noise, or poor wash performance. Confirm fit with your model.

This hose connector links two components in the appliance's water path to create a flexible, leak-resistant connection. Replacing a worn or cracked connector helps stop leaks and restore proper water flow and performance.

• Joins fittings or assemblies within the internal water system
• Maintains a watertight seal under normal operating pressure
• Helps resolve leaks, pooling, or related error codes/performance issues
• Common failure signs: visible cracks, swelling, brittleness, or a loose fit at the connection points

• Disconnect power and shut off the water supply before servicing
• Note hose routing and orientation; take a photo for reference
• Transfer and correctly position any clamps; tighten securely without over-tightening
• After installation, run a test and inspect all joints for leaks

This is a thermistor assembly that monitors the water temperature inside the dishwasher during wash and rinse cycles. It sends temperature readings to the control board so the machine can heat water to the correct level. Replace this sensor if dishes come out poorly cleaned, the cycle runs too long, or the dishwasher displays a temperature-related error code.

The Drain Hose Assembly is an OEM component specifically designed for LG dishwashers. It safely directs wash water and waste from the dishwasher to a drain source such as the garbage disposal or vent pipe after each wash cycle.

Causes of failure typically include wear and tear over multiple years of daily use carrying hot, soapy water. Hoses can become weakened from kinking, impact damage or deterioration of plastics from chemical exposure.

Symptoms of a bad drain hose include:

• Puddles or water leakage from the dishwasher
• Inability to fully drain all wash water after cycles
• Damp containers inside from standing water issues

This OEM LG part is also compatible with select Sears/Kenmore dishwashers.

Lower rack assembly for dishwashers. Holds dishes, utensils, and cookware during wash cycles. Replace if cracked, broken, or wheels are worn or missing.

Door hinge for dishwashers. Connects door to main frame for smooth opening and closing. Replace if hinge is cracked, bent, or loose causing door misalignment.

This is the lower dish rack assembly that slides in and out of the dishwasher on rollers and holds plates, bowls, and cookware during the wash cycle. It includes the rack frame and tine rows designed to keep items separated for thorough cleaning. Replace this assembly if the rack has broken or bent tines, corroded coating that leaves rust marks on dishes, or damaged rollers that prevent smooth sliding.

Replace a cracked or broken dishwasher door hinge. This connector piece allows the door to swing open and closed smoothly during loading and unloading.

Replacement roller for dishwasher lower rack. Installs on the dishrack axle to enable smooth gliding. Replace if cracked, broken, or missing.

This supporter hinge secures and supports a refrigerator/freezer door at the hinge point to keep the door aligned and operating smoothly. Replaces a worn or broken hinge to reduce sagging and uneven door closure. What it does:

• Provides structural support where the door meets the cabinet to maintain proper door alignment
• Helps the door open and close smoothly by stabilizing the hinge assembly
• Commonly used when door sags, binds, or does not seal properly
• Works with the cabinet hinge assembly to prevent excess wear on door seals and gaskets

• 1 supporter hinge

• Unplug the appliance or disconnect power before starting any repair
• Support the door while removing/installing the hinge to prevent dropping or damage
• Retain and reuse any original screws if undamaged, or replace with OEM-specified fasteners

Fix a sagging or misaligned dishwasher door with this hinge support bracket. Restores proper door closure and prevents leaks. Easy 15-minute repair.

This small plastic clip secures the tine rows to the pivot points on the dishwasher rack, allowing the tines to fold down or lock into the upright position. It snaps onto the rack rail and holds individual tine rows in place. Replace this clip if your rack tines are loose, won't stay upright, or have fallen off during a wash cycle.

Secures tine rows to dishwasher rack assembly. Replace if clip is cracked, broken, or missing, causing tines to become loose and unable to hold dishes properly.

This is a right-side rack adjuster mechanism that allows you to raise or lower the upper dish rack in your dishwasher. It connects to the side rail and enables height adjustment to accommodate larger items on the lower rack. Replace this part if the upper rack won't stay in position, slides unevenly, or the height adjustment mechanism is broken or stuck.

This is a left-side dishrack adjuster assembly that allows the upper rack in a dishwasher to be raised or lowered to accommodate different dish sizes. It includes the adjuster mechanism and handle that attach to the side rail of the upper rack. Replace this part if the upper rack tilts, won't stay in position, or if the adjuster handle is broken or difficult to operate.

The Tine Row Holder is an OEM part for LG dishwashers. It is a molded plastic bracket located inside the dishwasher that firmly holds the horizontal tine rows of the upper spray arm assembly in place. Subject to vibrations during the wash cycle, the tine row holder must securely grip this assembly.

Symptoms of a bad tine row holder include:

• Loosened or detached upper spray arm that causes insufficient washing
• Rattling noises from loose components inside the tub
• Potential leaks if the plastic material cracks fully over time

Causes of failure can include cracking of the holder plastic from solvent exposure and mineral buildup over thousands of wash cycles. Replace with this OEM LG part to ensure balanced water distribution to all areas of dishes. It is also compatible with Sears/Kenmore dishwasher models.

This is an electronic noise filter assembly that mounts on the dishwasher's power supply line. It suppresses electromagnetic interference generated by the dishwasher's motor and electronic controls, preventing it from affecting other appliances or electronics on the same circuit. Replace this part if the dishwasher trips breakers, fails to power on, or if you notice electrical interference with nearby devices when the dishwasher is running.

Incudes latch and safety switches.

Replace your dishwasher door gasket to stop leaks and restore a watertight seal. Install when water escapes during cycles. Confirm fit with your model.

This outer door frame restores the appliance's front trim for proper fit and finished appearance. It replaces damaged or worn trim to help the door close evenly and maintain a clean look. What it does

• Replaces the outer door frame trim to restore correct alignment and sealing.
• Secures the door assembly and helps prevent gaps that can cause drafts or heat loss.
• Eliminates cosmetic damage like cracks, dents, or warped trim for improved appearance.
• Can reduce rattling or noisy operation caused by a loose or broken frame.

• Disconnect power to the appliance before starting any repair.
• Remove the door or access panels per the service manual to reach mounting screws—keep track of fasteners.
• Handle trim and any attached glass carefully to avoid breakage or injury.

This wire rack provides a sturdy shelf surface for holding cookware or items inside the appliance, restoring proper storage and airflow. It replaces worn, bent, or missing racks so shelves sit level and cooking or storage functions return to normal. What it does

• Provides a stable shelf surface for cookware, bakeware, or stored items
• Replaces racks that are bent, rusted, or no longer supporting weight
• Restores correct spacing and airflow where the rack is used
• Helps stop items from sliding or tipping due to damaged shelving

• One wire rack

• Turn off and unplug the appliance before installing to avoid injury
• Remove any contents and existing damaged rack before installing the replacement
• Slide the rack into the track or support brackets until it sits securely and level
• If edges are sharp or mounting clips are damaged, replace clips or handle with care

This is a row of adjustable tines that attaches to the lower dish rack in the dishwasher, providing upright support for plates, bowls, and cookware. The tines can typically be folded down to accommodate larger items. Replace this part if the tines are bent, broken, or have lost their vinyl coating, which can cause rust spots on dishes.

This is a replaceable tine row that attaches to the dishwasher dish rack, providing adjustable support to hold plates, bowls, and other items in place during the wash cycle. The tines help keep dishes separated for thorough cleaning and proper water circulation. Replace this part if the tines are broken, bent, or missing, causing dishes to shift or fall during operation.

Replacement wire rack for your dishwasher. Provides secure support for dishes and cookware. Install when original rack is cracked, bent, or missing.

This water guide directs and supports water flow inside the refrigerator to the dispenser or ice-making path, helping ensure consistent delivery and reducing misdirected leaks. It's a small plastic channel used where tubing or water needs routing. What it does

• Guides and stabilizes the water flow path between the supply tubing and dispenser or ice-maker components
• Helps prevent water from spraying or pooling by keeping the line aligned
• Can stop intermittent leaks caused by misrouted tubing or broken guide clips
• Reduces vibration-related noise by supporting tubing in place

• One water guide

• Disconnect power and turn off the water supply before installing
• Replace only with the exact replacement part; inspect adjacent tubing and seals while open
• Handle the guide gently to avoid cracking the plastic; use basic hand tools only

Dishes not getting clean or water not spraying properly? This dishwasher nozzle assembly sprays water during wash cycles. Moderately easy DIY repair.

Support bracket that secures internal components to the dishwasher chassis. Replace if bracket is cracked, broken, or missing to restore proper alignment.

This is the main electronic control board assembly for a dishwasher. It manages the wash cycles, water fill, drainage, and other key functions by sending signals to the various components. Replace this board if the dishwasher fails to start, stops mid-cycle, displays error codes, or if buttons on the control panel become unresponsive.

The Dishwasher Inlet Valve is an OEM part for LG dishwashers. This valve controls the flow of water into the dishwasher, opening to allow water in at the start of the wash cycle and closing to prevent any further water entry once the desired level is reached. It ensures that the dishwasher receives the correct amount of water for optimal cleaning performance.

Causes of a bad inlet valve can include mineral deposits or debris clogging the valve, electrical issues, or general wear and tear from prolonged use. A malfunctioning valve can lead to improper water levels and potential flooding.

Symptoms of a bad dishwasher inlet valve include:

• The dishwasher not filling with water
• Water entering the dishwasher even when it is turned off
• Incomplete or prolonged wash cycles
• Leaks or puddles of water under the dishwasher

This OEM LG part is also compatible with Sears/Kenmore models.

Guides dishwasher rack smoothly along its track. Replace if racks stick, wobble, or derail during loading. Confirm fit with your model number.

A replacement damper assembly that controls airflow between compartments to help the refrigerator maintain proper temperatures. Restores the air pathway so the fresh food and freezer sections cool more consistently. What it does:

• Regulates airflow between freezer and fresh-food compartments for balanced cooling
• Stops or reduces abnormal clicking or air-flap noises when the damper motor is stuck
• Re-establishes proper airflow after a damaged or broken damper prevents opening/closing

• Disconnect power before beginning work to avoid electrical shock
• Handle surrounding trim and shelves carefully; some panels may need removal to access the damper
• Verify fit and orientation against the original part; do not force the new assembly into place

This PCB assembly is the appliance's main control board that manages cycle commands, sensor signals and user inputs to keep the appliance operating correctly. Replacing a faulty board restores control and communication functions. What it does:

• Receives inputs from the control panel and sends commands to motors, valves and heaters
• Monitors sensor signals and timing functions to coordinate cycles
• Stops operation or causes errors if the board fails or loses power
• Common symptom link: unresponsive controls, error codes, or appliance that won't start

• One PCB assembly (control board)

• Disconnect power before starting and verify power is removed to avoid shock
• Handle the board carefully and avoid touching components or connectors; observe electrostatic discharge (ESD) precautions
• Inspect connectors and wiring for damage and ensure secure connections during reassembly

Wire harness for dishwashers. Connects electrical components inside the unit. Replace if wires are frayed, damaged, or connections are loose or broken.

Fix a dishwasher that won't start, stops mid-cycle, or has no power. This main control board manages all wash functions. Moderate DIY repair.

This electronic control board manages all dishwasher functions including cycle selection, water temperature, and pump operations. It coordinates wash cycles and monitors sensors to ensure proper cleaning performance. Replace this board if your dishwasher won't start, cycles don't complete properly, or error codes appear on the display.

Cabinet base for dishwasher. Provides structural foundation and support for the unit. Replace if cracked, damaged, or warped to restore stability.

Replaces a cracked, broken, or worn dishwasher door handle. Restores secure grip and smooth opening. Direct fit cosmetic replacement part.

This is an adjustable leveling leg that threads into the base of the dishwasher to support the unit and allow height adjustment. Proper leveling ensures the door seals correctly and water drains efficiently. Replace this leg if it is broken, stripped, or missing, which can cause the dishwasher to rock, leak, or not close properly.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
