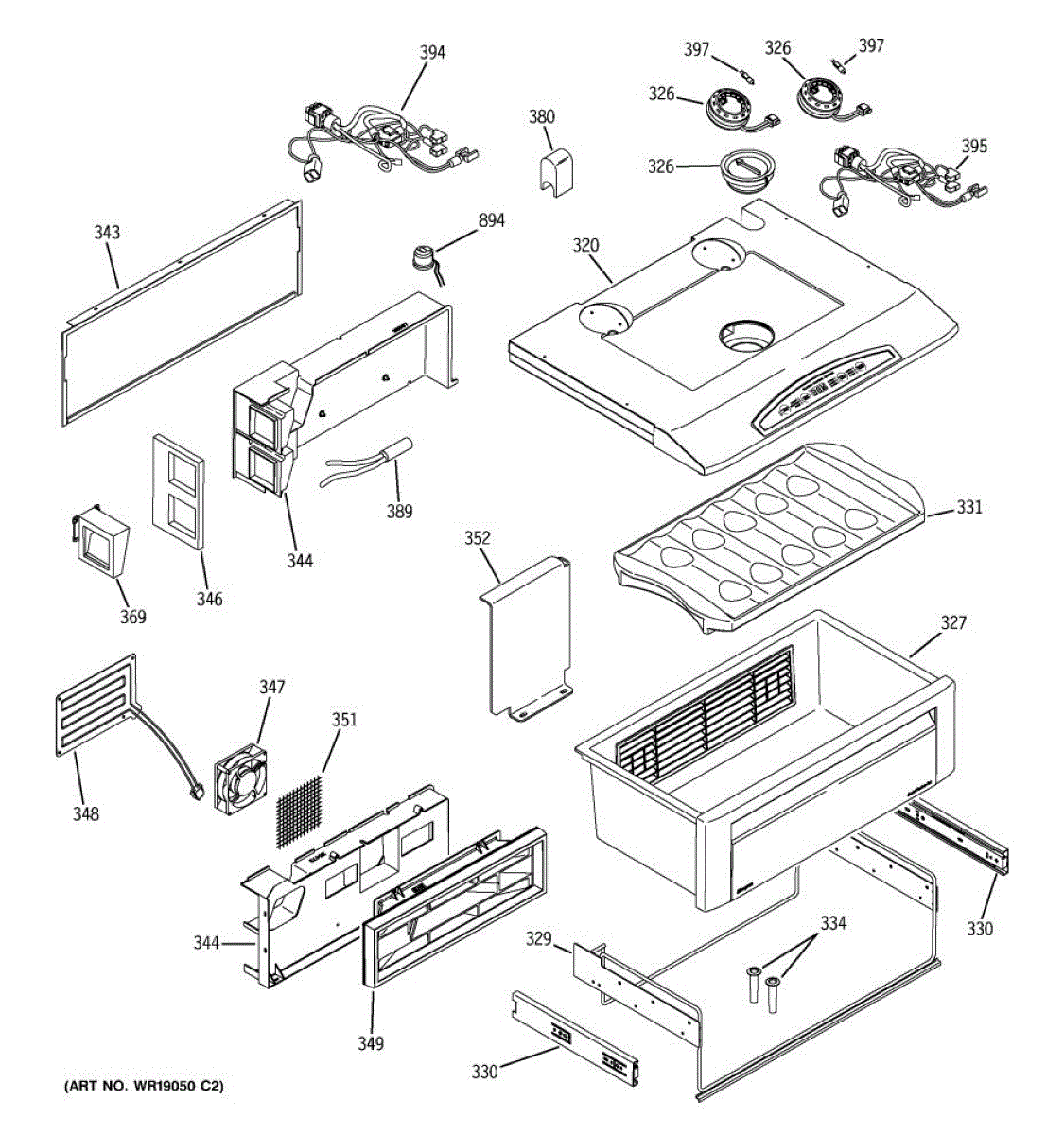

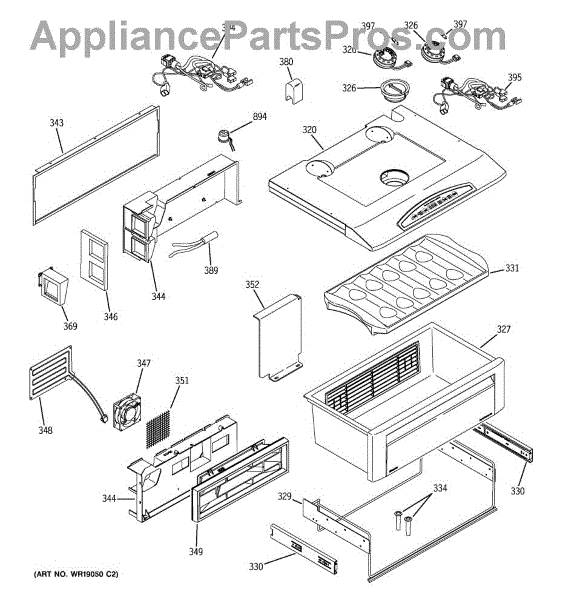

Parts for Ge ZISS480DMC: 09 - Quick Chill Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This 48-inch mullion assembly replaces the vertical center trim on compatible refrigerators to restore fit, finish, and sealing where the fresh-food and freezer doors meet. It helps close visible gaps and keeps the door joint tidy. What it does

• Covers the refrigerator door seam and provides a finished trim between compartments
• Helps maintain a consistent door seal at the center joint to reduce airflow and cold-loss risks
• Replaces cracked, warped, or dented mullion trim that creates visible gaps or misalignment
• Restores proper mounting surface for door gaskets and trim clips when damaged

• Disconnect power before starting and follow for removal steps
• Removal may require removing door trim, clips, or screws—handle plastic clips gently to avoid breakage
• Inspect adjoining gaskets and mounting surfaces and replace any damaged fasteners for best fit
• If the part includes wiring or a heater strip, do not force connectors; match connector types exactly

This QC halogen lamp assembly provides the oven or range interior light so you can check cooking progress without opening the door. It replaces a worn or burnt-out halogen lamp to restore interior illumination. What it does:

• Replaces a failed halogen oven/range interior lamp to restore lighting
• Helps you see food clearly through the oven window for safer, easier monitoring
• Fits into the existing lamp housing and connects to the factory lamp socket
• Common symptom: no interior light or intermittent lighting when the oven light is turned on

• Disconnect power to the appliance before replacing the lamp to avoid electric shock
• Allow the old lamp and interior surfaces to cool completely before handling
• Handle the new bulb by the base; avoid touching the glass with bare hands to prevent oil contamination and premature failure

This drawer slide assembly supports and guides your refrigerator's drawer so it opens and closes smoothly. Replace a cracked or worn slide to restore proper alignment and stop sticking, dragging, or dropped drawers.

• Supports the drawer and provides smooth sliding action
• Maintains alignment to prevent binding or popping off the track
• Replaces cracked, warped, or seized slide components
• Typical symptoms: drawer hard to open/close, crooked, or falls off

• Disconnect power before servicing
• Empty and remove the affected drawer and any obstructing shelves for access
• Remove fasteners securing the old slide; transfer any reusable brackets/clips from the original if applicable
• Align and secure the new slide, then verify the drawer engages both tracks and glides freely

This vent tube routes air or drain flow inside the refrigerator, helping maintain proper circulation and drainage in affected compartments. It replaces a worn, cracked, or clogged vent tube to restore normal airflow or drainage. What it does:

• Directs airflow or condensation safely through internal channels to prevent pooling or reduced circulation
• Helps clear minor blockages that can cause uneven cooling or water buildup
• Restores the intended airflow path after damage, cracks, or deformation
• Compatible with the refrigerator's existing mounting points and hose connections when the correct OEM part is used

• Disconnect power (and water supply if applicable) before servicing the appliance
• Remove the appropriate access panels to reach the vent tube; keep track of clips and fasteners
• Inspect surrounding seals and channels; replace or clean as needed to ensure proper function

Replacement air handler assembly that circulates cooled air through the appliance to maintain consistent airflow and temperature distribution. Designed as a direct-replacement air distribution housing to restore proper cooling performance. What it does:

• Directs and circulates cooled air from the evaporator to the cabinet for even temperatures.
• Restores airflow when the original air handler is cracked, damaged, or obstructed.
• Helps reduce hot spots and inconsistent cooling caused by a failing air distribution housing.
• Stops or reduces abnormal air-path noise caused by damaged ducting or loose components.

• Disconnect power to the appliance before starting any work.
• Basic hand tools needed; remove interior panels to access the evaporator/air distribution area.
• Handle edges and evaporator components carefully to avoid damage or cuts.

This QC seal damper is the refrigerator air damper that helps control and seal airflow between compartments to keep temperatures stable and reduce energy loss. Replacing a worn damper restores proper airflow regulation. What it does:

• Regulates cold air flow from the freezer to the fresh-food section to help maintain set temperatures.
• Seals the transfer opening to prevent unwanted air exchange and reduce temperature swings.
• A faulty or stuck damper can cause uneven temperatures, excessive frost/ice, or poor cooling in the refrigerator compartment.
• Dampers can produce rattling or buzzing noises when damaged or obstructed.

• Always disconnect power to the appliance before servicing.
• Access may require removing interior shelves, drawers, or a panel; handle inner liners and gaskets carefully.
• Inspect surrounding seals and mounting points; ensure the damper is oriented correctly and moves freely before reassembling.
• After installation, restore power and verify proper operation and temperature stabilization.

This fan and pre-wired harness assembly drives airflow to the Quick Chill/CustomCool drawer so foods and beverages chill faster and hold the set temperature. Replace a noisy, non-running, or intermittent fan to restore proper drawer cooling.

• Circulates cold air into the Quick Chill/CustomCool/deli drawer for targeted cooling
• Helps correct no-chill or slow-chill performance in the drawer
• Addresses symptoms like no airflow, intermittent operation, or grinding/buzzing noises from the drawer area
• Replaces a failed fan motor or damaged wiring harness in this assembly

• Disconnect power before servicing; remove the drawer and covers to access the assembly
• Note wire routing and connector locations; transfer any original mounting hardware as needed
• Seat connectors fully and route harness away from moving parts to avoid pinching
• Restore power and verify the fan runs and airflow is present to the drawer

This thaw heater is the evaporator defrost heating element that melts frost during the refrigerator's defrost cycle. Replacing a failed heater helps restore normal defrosting and reduce frost buildup that can restrict cooling. What it does:

• Heats the evaporator coil during the defrost cycle to melt accumulated ice
• Prevents excessive frost buildup that can block airflow and reduce cooling efficiency
• Common symptoms of a failing heater: heavy frost or ice on the evaporator/back wall, reduced cooling, or long compressor run times
• Works as part of the appliance's defrost system alongside the defrost thermostat and control

• Disconnect power to the appliance before starting any repair
• Access typically requires removing interior panels and the evaporator cover; handle the evaporator and wiring carefully
• Inspect associated defrost components (thermostat, timer/control) if problems persist; replace only parts confirmed faulty

This diffuser case assembly directs cooled air from the evaporator into the refrigerator compartment to help maintain even temperature and airflow. It replaces a cracked, broken or missing diffuser housing to restore proper air distribution. What it does:

• Channels chilled air into the fresh-food compartment for more consistent cooling
• Protects internal ducting and supports the diffuser flap/door
• Helps reduce local hot spots or inconsistent temperatures caused by damaged housing
• Fits into the factory mounting location and works with the existing duct components

• Disconnect power to the appliance before starting any repair
• Accessible from inside the fresh-food compartment; remove shelves/controls as needed for access
• Align tabs and press into place until clips fully engage; do not force or bend plastic parts
• If other diffuser components (flap, seals) are damaged, inspect and replace as needed for full function

This air damper assembly regulates the flow of cold air from the freezer into the refrigerator compartment to keep temperatures even. Replace a stuck or broken damper to restore proper cooling and prevent warm spots or food freezing.

• Controls and meters airflow from the freezer to the fresh food section
• Opens and closes in response to temperature control signals to maintain set temperatures
• Helps balance cooling across shelves and drawers for consistent performance
• Failure symptoms include: refrigerator too warm, items freezing in the fresh food section, temperature swings, or clicking/buzzing from the damper area

• Disconnect power before servicing; remove food and shelves to access the damper area
• Remove the damper cover/grille; take out mounting screws or clips and withdraw the assembly
• Position the new assembly squarely in the air channel; reconnect any harness and reinstall covers
• Restore power and allow the refrigerator to stabilize before final temperature checks

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This halogen light bulb restores bright, reliable illumination inside your appliance, making it easier to check food and read controls. Replace a burned-out or broken lamp to bring back safe, convenient visibility while cooking.

• Provides bright lighting for the appliance cavity or work area
• Direct replacement for a failed, flickering, or shattered bulb
• Helps you monitor cooking progress without opening the door
• Typical symptoms: light won't turn on, intermittent flicker, blackened or broken glass

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Allow the light area and lens to cool completely
• Handle halogen bulbs with a clean cloth or gloves; avoid touching the glass
• Install per your appliance's instructions and ensure the bulb is fully seated and any cover is secured

This thermostat light is the small indicator lamp that illuminates the control area so you can see thermostat settings and status. It provides a clear visual signal when the control is powered. What it does:

• Lights the thermostat/control panel area for visibility
• Indicates when the control or circuit is energized
• Commonly replaces a burned-out or dim lamp
• Helps diagnose a non-illuminated control (lamp failure vs. power issue)

• Disconnect power to the appliance before inspecting or replacing the lamp
• Remove the control panel or housing per the appliance service instructions to access the lamp
• Handle the lamp and connector carefully to avoid damage; do not force wiring
• If the control remains unlit after replacement, test for power to the control
