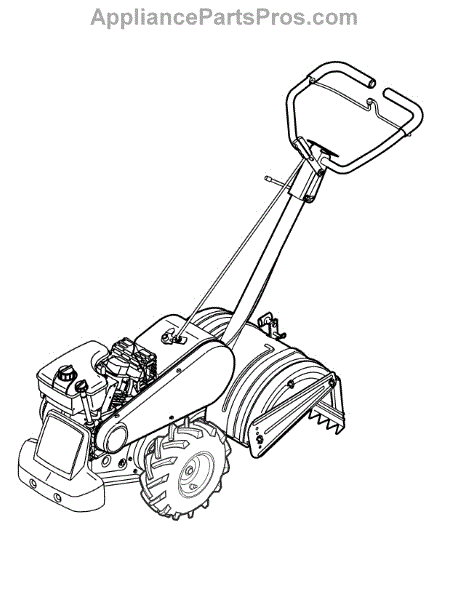

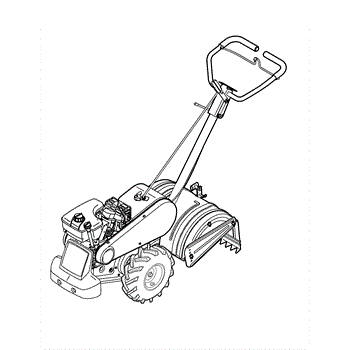

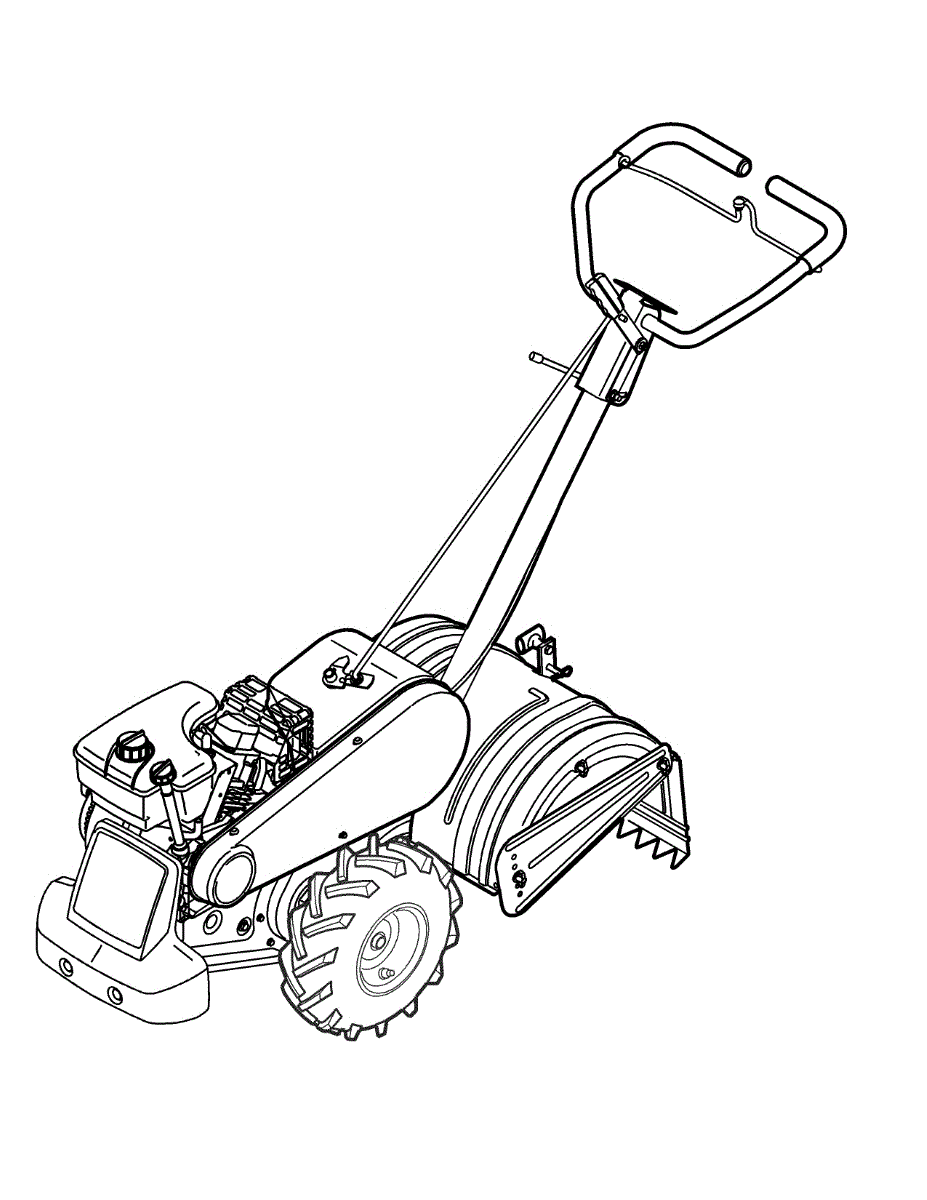

Parts for Remington 21AB45M8783 / 2012: .Quick Reference 21Ab45m Parts

This replacement part is a clutch cable for lawnmowers. The clutch cable is the cord that allows the mower to switch the gear settings of the engine. If the mower is no longer switching gears properly or is not cutting as efficiently, the clutch cable might need to be replaced. Luckily, this is a relatively simple process.To replace the clutch cable, turn the ignition switch off. Lift the mower hood and disconnect the spark plug wire. Pull off the clutch lever handle and remove the air duct mounting screws and pull off the air duct. After that, remove the fuel tank out of the way. Remove the clutch lever assembly mounting screws. Pull the lever through the dash opening to release the clutch lever assembly from the dash. After that, access the cable connection. Once accessed, release the tension spring from the pin. Remove the washer and release the cable from the pin. Release the cable retainer locking tabs and remove the cable from the support bracket. Then replace it with the new clutch cable.This genuine OEM part is sold individually and is compatible with MTD brand lawnmowers.

This is a small engine spark plug positioned in the engine cylinder head. It supplies the spark that will ignite the air-fuel mixture to enable an engine to produce power. This particular spark plug is designed with superior corrosion resistance and dependable performance. Small but mighty, this component allows for increased conductivity and heat control. If the spark plug is damaged or in poor condition, many problems may arise in equipment, including sudden stop while running, overheating, and excessive gas consumption. Replace the spark plug by disconnecting the spark plug wire first, then use a socket driver or wrench to remove the spark plug. Install the new spark plug by turning it by hand initially to avoid cross-threading. If it doesn't twist anymore, use a deep socket wrench or socket driver to tighten the plug until snug. The spark plug can also be used to tune up outdoor power equipment or improve a small engine. This part is recommended to be replaced once per season. This part works with lawn mowers, snowblowers, tillers, leaf blowers, log splitters, wood chippers, and others with small engines. It is compatible with brands such as Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, and MasterCut. This is a genuine OEM part directly from the manufacturer and is sold individually.

This part is a replacement foam handle grip for lawn mowers and tillers. It is a piece of foam that fits over the metal handle of the lawn mower or tiller. The foam handle grip provides cushioning for the person operating the equipment. Using a lawn mower or tiller with a worn or missing foam handle grip can cause hand discomfort, blistering, fatigue, and more. The foam grip may wear out, crack, or tear over time or with heavy use. The foam handle grip may also degrade through exposure to extreme weather conditions, such as heat, rain, wind, and cold. A visual inspection can help determine whether it is time to replace the foam handle grip. If the foam handle grip is worn, cracking, or torn, it should be replaced. To replace the foam handle grip, take apart the handle of the lawn mower or tiller. Then, remove the old grip. Finally, lubricate the handle or the inside of the new grip. This will make it easier to get the new grip onto the handle. Once the new grip is in place, reassemble the handle of the lawn mower or tiller. This foam handle grip is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with lawn mowers and tillers made by Craftsman, Cub Cadet, Ryobi, Yard Machines, MTD, Huskee, Yard-Man, and MasterCut.

A tiller can ease pre-planting preparation difficulties such as breaking up compact soil manually. Available in front-tine or rear-tine, this versatile machine's main component is the tines. This part is responsible for loosening the soil. It consists of four rotating metal blades in a unique curved shape in opposing directions. The standard layout of tines is that two blades are curved towards the tiller while the other two are pointing away. This blade configuration prevents soil build-up and is more efficient at digging. Even one damaged blade could drastically reduce the efficiency of a tiller. Several tines may be needed depending on the severity of the tiller tine damage. We carry brand-new tiller parts manufactured by MTD. This genuine OEM part is an all-metal replacement designed for tillers from MTD, Yard-Man, Cub Cadet, Ryobi, and Yard Machines. A wrench is the only tool needed to install this replacement successfully. The required bolts are not included in this purchase. The articulating tine is sold individually.

This replacement part is a throttle knob. This part is a genuine replacement part made by MTD. This part is typically found in lawn mowers and assists the user in controlling the throttle of the machine properly. The throttle then adjusts the settings inside the engine so that the user is able to control the speed and power of the appliance. A new throttle knob might be needed if the current one is damaged or missing in any way. It is possible that over time this part might become worn down with normal wear and tear and need to be replaced. This part is made of durable plastic and should be fairly simple to replace. This throttle knob is sold individually and is sourced directly from the manufacturer. This part is also a genuine OEM replacement part to ensure proper fit and long-lasting use.

This is a genuine replacement wheel assembly for several tillers. The wheels on a tiller allow the machine to move forward and backward. They roll as the tiller breaks up the soil, and help the operator to travel across the ground. Sometimes, wheels lose their seal or become damaged, which causes the tire to lose pressure and flatten. If the pressure in each tire differs, it will cause the tiller to pull to one side while operating. This makes it very difficult to control and till in a straight line. In this case, the tire may need replacing. Replacement is simple and fast and doesn't require any tools. Remove the pin in the center of the wheel, lift the front of the tiller, and remove the tire from the axle. Slide the new tire onto the axle, line up the holes and install the pin. This can be done in a matter of minutes.This genuine OEM replacement tiller wheel assembly is sold as an individual part and is shipped directly from the manufacturer. This part is compatible with several tillers made by MTD, Yard Man, Troy-Bilt, Cub Cadet, and Husky.

This is a V-belt made for use with several tillers made by various manufacturers. It is the component responsible for rotating the tiller tines in the tiller, and it is the primary belt used in the equipment. Each belt is made of durable rubber but can break, wear out, or stretch out over time. If these things occur, the V-belt will need to be replaced to ensure the tiller continues to do its job.As the tiller is used more often, it becomes more likely that the V-belt will need to be replaced. Mechanical failures and other issues can sometimes cause the V-belt to wear out quicker than usual. If the V-belt has become overly worn, it can cause the tiller to perform poorly since the belt might slide off of the pulley. If the belt breaks entirely, the tiller will no longer run. Before replacing the belt, remove the spark plug wire and drain the fuel.This is a genuine OEM replacement V-belt that is directly sourced from the manufacturer. It is made for use with tillers manufactured by Yard-Man, MTD, Yard Machines, Craftsman, Ryobi, Huskee, MasterCut, and Cub Cadet.

The purpose of the fuel nipple in a small engine is to clean the fuel before it reaches the carburetor. If the fuel is dirty, it could cause issues with the carburetor and other parts of the engine. If the engine misfires, has a fuel odor, leaks, or has problems with dirty fuel getting into the carburetor, it may be time to replace the fuel nipple. It is an easy replacement, but be sure to work in a well-ventilated area. Drain the fuel tank and disconnect the spark plug before beginning this repair. This OEM fuel nipple is a genuine part right from the manufacturer. This fuel nipple can work well for snowblowers, snow throwers, chippers, tillers, and log splitters. It is compatible with a range of models from brands like Craftsman, Yard Machines, Yard-Man, MTD, and Troy-Bilt.

This replacement part air cleaner is an OEM part for use in small engines used in outdoor equipment, such as tillers and dethatchers. The air cleaner is responsible for ensuring that clean air is brought into the engine to provide optimal performance. It is a good idea to inspect the air cleaner assembly regularly to ensure that there is no damage or cracks that could allow dirt and debris to get into the engine. If there are any issues, get a replacement before operating the engine again. This will ensure that there is no additional dirt getting into the engine. The genuine OEM air cleaner is a quality item that comes from the manufacturer. It is sold individually. It can work with tillers and other machines from top brands like MTD, Craftsman, and Yard Machines.
