Parts for Bosch SHE3ARF2UC/22: Rack Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Replacement tube for Bosch appliances that routes water or drainage between components, helping restore correct flow, reduce pooling and leaks, and maintain normal appliance performance. What it does:

• Channels water between valves, pump and drain to enable normal water movement.
• Replaces cracked, split or blocked tubing that can cause leaks or standing water.
• Helps restore proper drainage and prevent water from pooling inside or under the appliance.

• Always disconnect power and shut off the water supply before servicing the appliance.
• Inspect and replace any damaged clamps, seals or fittings when installing the tube.
• Route the tube exactly as the original to avoid kinks; secure with the factory clamps or equivalent.

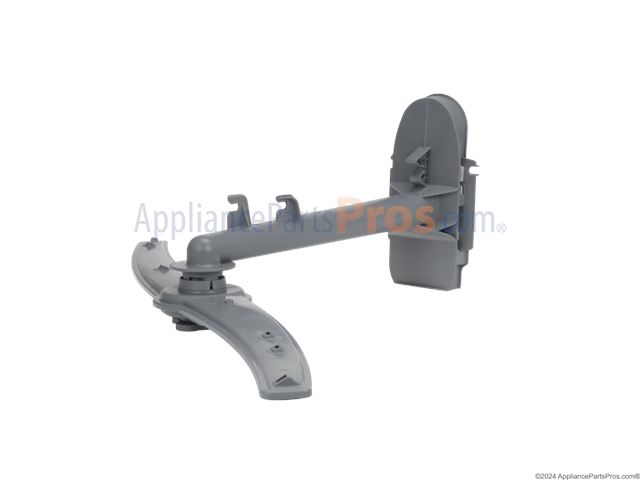

The Middle Spray Arm is an OEM replacement part for Bosch dishwashers. It provides optimal cleaning coverage to the interior sides and racks of the dishwasher tub.

Causes of a faulty spray arm can include normal wear from consistent rotational forces over time. Mineral buildup may also gradually impact arm function.

Symptoms include:

• Reduced or spotty washing performance on interior sides
• Accumulation of detergent residue or stuck-on soils
• Loosened or damaged mounting attachments

This OEM arm is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

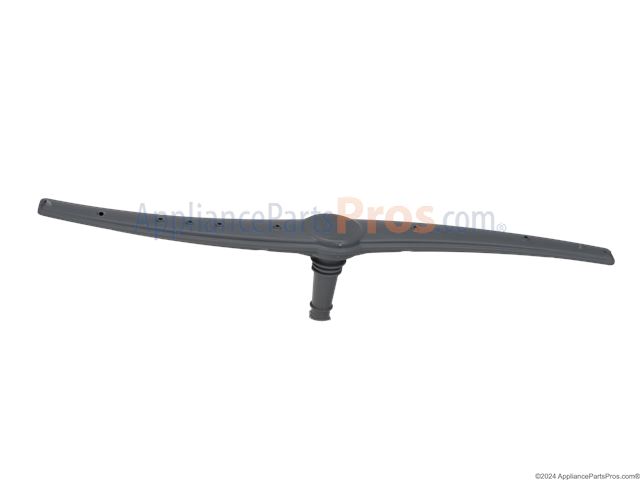

The Spray Arm is an OEM replacement part for Bosch dishwashers. Stationed inside the wash cabinet, it evenly distributes water and cleaning chemicals across dishes. The spray arm utilizes multiple horizontal and vertical jets to reach all surfaces of every load.

Causes of a faulty spray arm typically involve clogged or misdirected nozzles after extended use. Mineral deposits may disrupt water pressure or restrict openings in the rotating assembly.

Symptoms of a bad spray arm include:

• Incomplete cleaning requiring pre-rinsing of dishes
• standing water or pooling detergent inside the washer
• Dried or stuck-on residue remaining in hard-to-reach areas
• Dishes coming out still soiled despite cleaning attempts

Replacing your spray arm restores thorough coverage and superior wash performance. This genuine Bosch part ensures all dish surfaces receive optimum cleaning from every angle. Compatible with Thermador, Gaggenau, and select Kenmore models.

The Cover is an OEM part for Bosch dishwashers. It provides a protective barrier that shields internal components from damage and extends the life of the appliance.

The cover is exposed to heat, humidity, and debris during each wash cycle. Over time and repeated use, these conditions can cause cracks, warping or breakdown of the protective plastic material.

Causes of a bad cover include normal wear and tear, accidental dents or punctures, and exposure to excess heat or chemicals.

Symptoms of a cover needing replacement include:

• Visible cracks or holes that compromise the barrier
• Loose or sagging fit that allows internals to be exposed
• Warping or melting of the protective plastic shield

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This fine filter sits in the dishwasher's sump filter system. It screens out small food particles so wash water stays cleaner, helping prevent debris from recirculating onto dishes and protecting internal wash components for consistent cleaning performance. What it does:

• Traps fine debris before it recirculates through the spray system
• Helps maintain water clarity for more consistent cleaning results
• Worn, torn, or warped mesh can lead to gritty residue, particles on dishes, or odors
• Replace if the filter is damaged, missing, or will not lock in place

• 1 fine filter

• Power off the dishwasher, open the door, and remove the lower rack
• Turn the filter assembly counterclockwise to unlock and lift it out
• Separate the fine filter and install the new one
• Reinstall and lock the assembly clockwise until fully seated; do not force

The Micro Pump Filter is an OEM part for Bosch dishwashers, designed to capture and prevent debris from entering the pump and circulating system of the dishwasher. This crucial component ensures that water remains clean throughout the wash cycle, protecting the dishwasher's internal components from damage due to particles and food residue.

Causes of damage to the micro pump filter often involve the accumulation of debris and food particles over time, which can lead to clogging or physical damage.

Symptoms of a bad Micro Pump Filter include:

• Poor cleaning performance, with particles left on dishes after a wash cycle
• Unusual noises coming from the dishwasher
• Water not draining properly

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Lower Dishrack Wheel is an OEM replacement part for Bosch dishwashers. These wheels are essential components that allow for smooth and effortless movement of the lower dishrack or basket in and out of the dishwasher tub.

Symptoms of needing to replace the lower dishrack wheels include:

• Difficulty in sliding the dishrack in or out
• Excessive noise or grinding sounds when moving the rack
• Visible damage, cracks, or worn-out wheels

Causes of faulty lower dishrack wheels can include normal wear and tear over time, exposure to debris or foreign objects that can cause damage, or issues with the track or rail system on which the wheels operate.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwasher models.

The Handle is an OEM part for Bosch dishwashers. It provides the surface for securely grasping and maneuvering the dishwasher door during opening and closing.

Causes of a bad handle can include wear and tear from ongoing grasping motions. Repeated lifting and adjusting of the door places stress on handle components over time.

Symptoms of a bad handle include:

• Looseness, wobbling or detachment from the door assembly
• Sharp edges, cracks or splits compromising a firm grip
• Reduced ability to precisely guide the door into position

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Adjustable Tine Row is an OEM part for Bosch dishwashers. It is designed to hold and secure dishes, allowing for optimal placement and cleaning efficiency. The adjustable feature allows users to customize the spacing of the tines to accommodate various dish sizes and shapes.

Over time, the adjustable tine row can become damaged or worn out due to repeated use or excessive force when adjusting the tines. This can lead to difficulties in securing dishes properly and may impact the overall performance of the dishwasher.

Symptoms of a bad adjustable tine row include:

• Tines that are bent or broken
• Difficulty in adjusting the tine positions
• Dishes not staying in place during the wash cycle

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Tine Row Holder is an OEM replacement part for Bosch dishwashers. Located inside the upper basket, it securely holds a row of retractable spray arm tines in place.

Causes of a faulty tine row holder can include cracks or breaks in the plastic from repeated folding and unfolding of the tines over time.

Symptoms of a bad tine row holder include:

• Tines detaching from the spray arm assembly and getting loose inside the tub
• Inability to properly angle or position spray coverage where needed
• Reduced washing power on certain sections of loaded dishes

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Crockery Basket is an OEM part for Bosch dishwashers. Specially designed for effective cleanability, it provides adjustable compartments to neatly organize and separate plates, bowls and cutlery during washes.

Causes of a failing basket can include warping or damage sustained over prolonged use, rendering organizational slots misshapen or unable to properly contain cookware.

Symptoms of a deficient basket include:

• Dishes sliding during rotation and impacting wash effectiveness
• Pots and pans interfering with spray arm movements
• Breakage due to uncontrolled shifting during machine cycles

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Reel is the rotating spool that winds or guides a cord, cable, or belt inside the appliance. It maintains smooth motion and proper tension so the connected mechanism operates reliably without binding, slippage, or jams.

• Guides or winds a cord, cable, or belt on a central hub
• Maintains alignment and tension for smooth, consistent operation
• Helps prevent snagging, overwind, or uneven take-up
• Wear or damage can cause noise, binding, loss of tension, or failure to retract/advance

• Disconnect power and any utilities before servicing the appliance
• Access the assembly per your service manual; note routing and orientation with photos
• If spring-loaded, release and set tension carefully to avoid injury
• Transfer any clips, fasteners, or connections from the original part and verify smooth operation before reassembly

The Tine Row Holder is an OEM part for Bosch dishwashers. It is designed to securely hold the tines in place within the dishwasher rack, allowing for optimal organization and stability of dishes during the wash cycle.

You should replace this tine row holder if it becomes damaged or fails to secure the tines properly. Causes of a bad tine row holder can include breakage due to heavy loads, wear and tear from frequent use, or damage from accidental impacts.

Symptoms of a bad tine row holder include:

• Tines that do not stay upright or move out of place
• Difficulty arranging dishes securely in the rack
• Unstable or loose tines during the wash cycle
• Unusual noise from the dishwasher rack area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Insert is an OEM part for Bosch dishwashers. It is a multi-functional component located inside the dishwasher tub that assists in loading, washing, and drying dishes.

Causes of a bad insert can include wear and tear of moving parts over time, mineral buildup that impairs movement, or damage to shelves or tines that prevent proper function.

Symptoms of a bad insert include:

• Dishes not getting fully clean after cycles
• Difficulty loading dishes due to jammed or stuck parts
• Missing or damaged shelves, tines, or arms

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

The Tine Row Holder is an OEM part for Bosch dishwashers. It is designed to hold and secure the tines in place within the dishwasher rack, allowing you to organize dishes efficiently for optimal cleaning. This holder ensures that the tines remain upright and stable, providing proper spacing for dishes and preventing them from shifting during the wash cycle.

Causes of a bad tine row holder can include regular wear and tear from frequent use, damage from heavy or improperly loaded dishes, or brittleness from prolonged exposure to high temperatures and detergent. These issues can lead to the tine row holder breaking or failing to secure the tines properly.

Symptoms of a bad tine row holder include:

• Tines falling over or becoming loose
• Difficulty organizing dishes in the dishwasher rack
• Visible cracks or damage to the holder

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This dishwasher cup shelf mounts to the upper rack to hold cups, mugs, stemware, and small items securely. Replace a broken or missing shelf to keep items upright and organized throughout the wash cycle.

• Provides a platform on the upper rack for cups, mugs, stemware, and small items
• Helps keep items upright and reduces movement during wash and rinse
• Restores proper loading when the original shelf is cracked, loose, or missing
• Common signs: broken mounting tabs, shelf won't stay in place, cups tipping over

• Unload the upper rack; removing the rack can make access easier
• Align the shelf's mounting tabs with the rack wires and snap firmly into place
• Confirm the shelf moves freely and does not interfere with the spray arm
• Test with a light load to ensure secure placement before full use

The Silverware Basket is an OEM component for Bosch dishwashers. Located within the lower rack, it provides a handy holder for washing utensils together during cycles.

Causes of a faulty basket typically involve natural wear of plastic handle and base parts. Mineral scale buildup left unaddressed between cleanings jeopardizes smooth component movement as well.

Symptoms of a damaged or defective Silverware Basket include:

• Difficulty or inability to smoothly roll the basket out
• Detached sections no longer securely containing cutlery
• Noticeable cracks developing within the plastic casing
• Rough surfaces impeding smooth operation

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Tine Row Holder is an OEM component specifically designed for select Bosch dishwashers. Located inside the tub basin, it secures the tine row assembly in place to direct spray patterns.

Symptoms of a bad tine row holder include:

• Improper spray distribution inside the tub
• Loosening of the tine rows from their intended position
• Visible cracks or damage to the holder's mounting points

Causes of failure may be normal wear over time or accidental impacts that compromise integrity. Mineral buildup could also affect its securing function.

This replacement holder is also compatible with Gaggenau and Thermador dishwashers.
