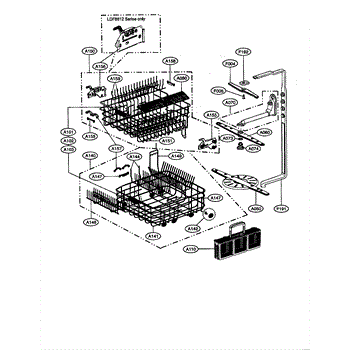

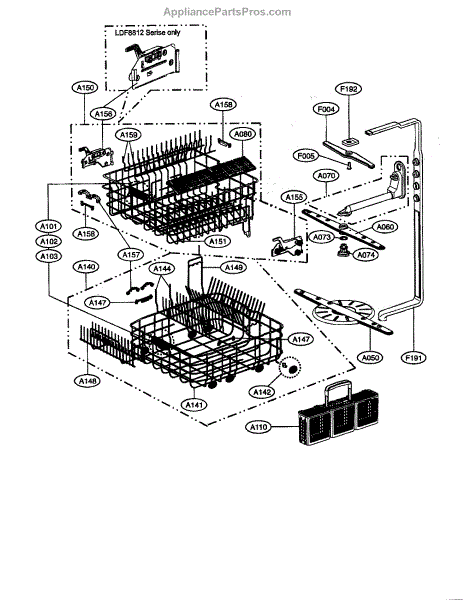

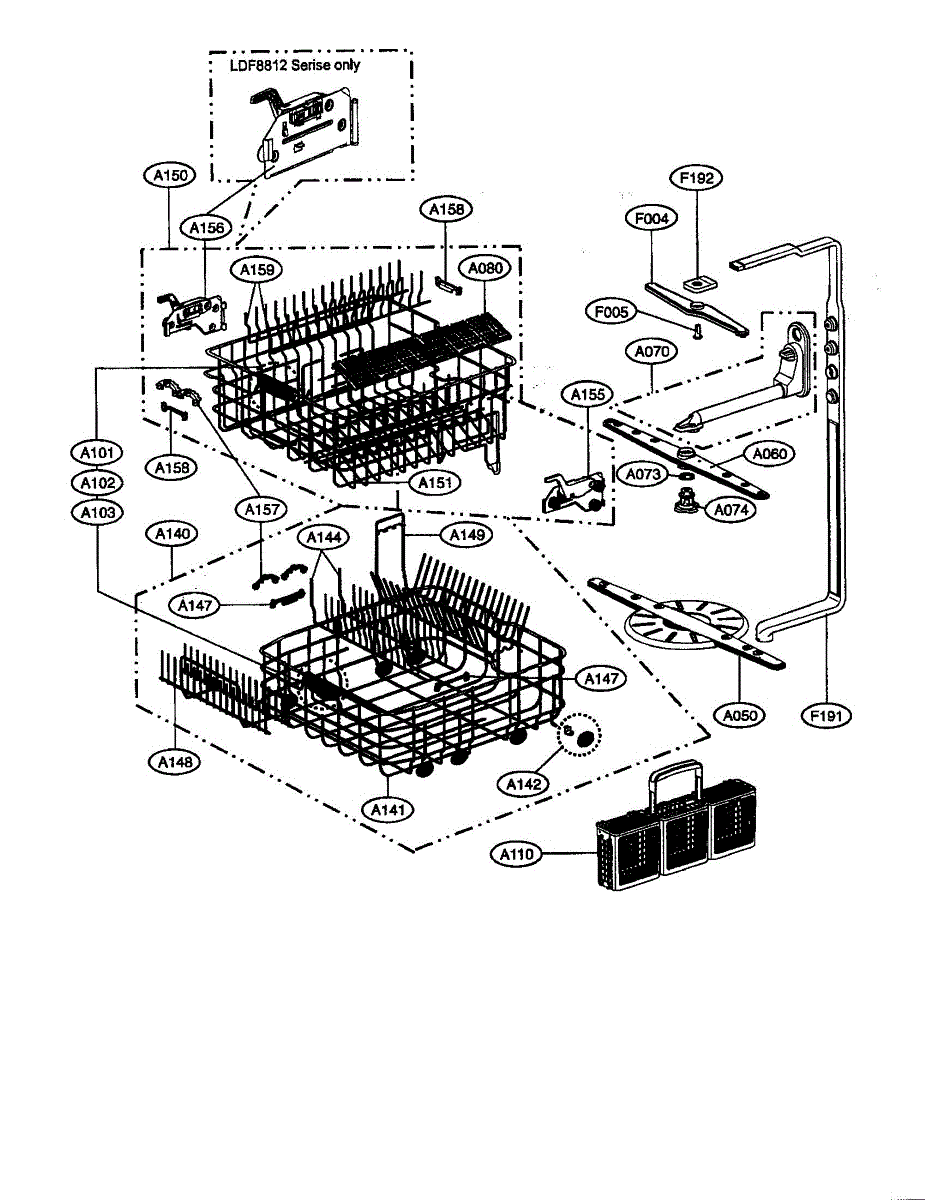

Parts for Lg LDF8812ST: Rack Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Pump Gasket is an OEM part for LG dishwashers. It is designed to create a watertight seal between the pump and the tub, preventing water leaks during the dishwasher's wash and drain cycles. This gasket plays a crucial role in ensuring that water flows correctly through the pump without escaping, thereby maintaining the efficiency and performance of the dishwasher.

Causes of a bad pump gasket can include regular wear and tear from frequent use, exposure to high temperatures and harsh detergents, and damage from debris or foreign objects that might enter the pump area. These factors can lead to the gasket becoming brittle, cracked, or worn out, compromising its sealing ability.

Symptoms of a bad pump gasket include:

• Water leaking from the bottom of the dishwasher
• Dampness or puddles around the dishwasher during or after use
• Unusual noises or vibrations coming from the pump area

This OEM LG part is also compatible with Sears/Kenmore dishwashers.

The Upper Spray Arm is an OEM part for LG dishwashers. This part is located at the top of the dishwasher tub, responsible for spraying water and detergent onto the upper rack of dishes during the wash cycle.

Causes of a bad Upper Spray Arm can include mineral buildup or debris clogging the spray holes, physical damage from impact or foreign objects, or wear and tear over time.

Symptoms of a faulty Upper Spray Arm include:

• Incomplete or ineffective washing of dishes on the upper rack
• Water not spraying evenly or not spraying at all from the upper arm
• Clogged or blocked spray holes
• Loud noises or grinding sounds during the wash cycle

This OEM LG part is also compatible with some Kenmore models.

The Upper Spray Arm Pivot Shaft is an OEM part for LG dishwashers. This part allows the upper spray arm to rotate and distribute water evenly throughout the upper rack during the washing cycle.

Causes of a bad part can include wear and tear over time, damage from foreign objects, or improper installation or alignment.

Symptoms of a bad Upper Spray Arm Pivot Shaft include:

• The upper spray arm not rotating or spinning
• Poor water coverage and cleaning performance in the upper rack
• Loud grinding or squeaking noises coming from the upper rack area

This OEM LG part is also compatible with some Kenmore models.

The Outer Door Seal is an OEM replacement part for LG dishwasher doors. Situated around the door opening, it creates a tight seal when closed to contain moisture, heat, and germs within the wash chamber. Proper door sealing is essential for sanitization, drying performance, and protection of surrounding cabinetry.

Causes can be deterioration of sealing material over extended use, cracks or deformities allowing passage of water and air, or damage from closing force on the rigid door.

Symptoms of a bad seal include:

• Visible leaks and water damage around the door interior and exterior
• Door failing to seal fully shut
• Musty odors escaping from uncontained air inside

This OEM LG part is also compatible with some Sears/Kenmore dishwashers.

This thermistor holder secures the temperature sensor in place inside the dishwasher, ensuring accurate water temperature readings for proper wash and dry performance.

• Holds the thermistor securely in the sump/tub area
• Helps the control accurately monitor wash water temperature
• A loose or missing holder can cause temperature-related wash issues
• Common symptoms include temperature errors or poor cleaning/drying when the sensor isn't properly positioned

• Disconnect power and turn off water supply before servicing
• Access the sensor location from the tub/sump area; note original orientation
• Transfer the thermistor into the new holder and snap the holder into place
• Inspect the sensor wiring and seals while reassembling

This blower cover mounts over the dishwasher's drying fan/vent opening to shield the blower and direct air into the tub. Replacing a damaged or missing cover helps maintain proper airflow and supports consistent drying performance.

• Protects the blower assembly from splashes and debris
• Channels air into the tub during the dry cycle
• Helps maintain the vent seal to limit moisture escape
• Common signs it's needed: poor drying results, rattling near the vent, visible cracks/warping, or moisture around the vent area

• Disconnect power and turn off water supply before servicing
• Access from inside the tub; remove racks if needed
• Note screw locations and any seal orientation; seat the cover evenly and tighten screws snugly without overtightening
• Run a short cycle to check airflow and inspect for leaks

This hinge bracket secures the appliance door to the cabinet and provides a stable pivot point for smooth opening and closing. Replaces a worn or broken bracket to restore proper door alignment and sealing. What it does:

• Supports and locates the door hinge so the door pivots correctly.
• Restores proper door alignment and helps the door close and latch securely.
• Stops sagging, uneven gaps, or scraping caused by a damaged bracket.
• Works as the mounting point for hinge pin hardware.

• One hinge bracket

• Disconnect power (and water supply if applicable) before starting any repair.
• Support the door during removal to prevent it from dropping; two-person lift may be required for heavier doors.
• Retain or reuse original hinge pins, screws, and shims unless replacements are specified.

This lower spray arm (nozzle assembly) mounts at the bottom of the tub and spins to deliver pressurized wash water across dishes. Replacing a cracked or clogged arm restores even spray coverage and helps resolve poor cleaning results.

• Distributes wash water from the pump across the lower rack area
• Rotates to provide even spray coverage and rinsing
• Replaces warped, cracked, or clogged arms that reduce cleaning or cause noise
• Common symptoms: dishes not getting clean, spray arm not turning, visible damage or blockages

• Disconnect power at the breaker; open the door and remove the lower rack
• Release the old arm from the center hub (turn/unsnap retainer) and lift off
• Clear debris from the hub and filter area; seat the new arm fully and verify free rotation
• Restore power and run a short cycle to proper spray action

The Water Supply Tube is an OEM part for LG dishwashers, designed to channel water effectively to various parts of the dishwasher during operation. This component allows the unit to fill, rinse, and clean dishes efficiently. The water supply tube is strategically positioned to distribute water to the spray arms, ensuring a thorough and even cleaning cycle by reaching all dishes, regardless of their placement in the racks.

Causes of these issues can range from physical damage due to impact or mishandling, clogs from mineral deposits or debris in the water, to general wear and tear over time.

Symptoms of a malfunctioning Water Supply Tube include:

• Inadequate water flow to the spray arms
• Leakage or dripping water from the tube
• Unusual noises during the water filling phase

This OEM LG part is also compatible with some Kenmore models.

This small hardware washer sits under a specified screw or bolt to distribute clamping force and protect mating surfaces. Replace a missing, bent, or corroded washer to restore secure fastening and proper alignment of the affected assembly.

• Distributes load under a fastener head or nut for secure clamping
• Helps prevent loosening and protects surfaces during tightening
• Provides correct spacing/alignment where a washer is specified
• Replace when the original washer is missing, bent, cracked, or corroded

• Disconnect power and shut off water before servicing the appliance
• Refer to your model's parts diagram/service manual to locate and quantity
• Install in the original position/orientation under the correct fastener
• Tighten per manufacturer guidance; do not overtighten

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Silverware Basket is an OEM part for LG dishwashers. As an integrated rack in the lower dish rack assembly, it neatly holds cutlery like forks and knives during wash cycles. Proper installation in accordance with manufacturer instructions is important for function.

Causes of issues could include cracks developing in plastic holdings clips over time. Improper loading may also cause breaks or wear.

Symptoms of a problematic basket may include:

• Items mixing with other dishes outside containment area
• Difficulty removing or replacing basket securely
• Basket rattling or shifting oddly inside lower rack

This is an LG OEM part that is also compatible with some Kenmore models.

The Lower Dishrack Roller is an OEM part for LG dishwashers. This roller assists in the smooth movement and positioning of the lower dishrack during operation. It plays a key supportive role in organizing and accommodating dishes of various sizes and shapes.

Causes of a bad roller can include wear and tear from repeated use, damage from excess weight or impact, or accumulation of debris that hinders movement.

Symptoms of a bad lower dishrack roller include:

• The lower dishrack not sitting securely or sliding out of place.
• Difficulty opening or closing the lower basket.
• Excessive noise or vibration coming from the lower dishrack area.
• Dishes or silverware falling through gaps in the lower rack.

This LG part is also compatible with some Kenmore models.

This replacement rack restores sturdy, organized loading inside your dishwasher. It helps keep dishes, glassware, and cookware securely positioned so they wash effectively without tipping, shifting, or being scratched by damaged or rusty tines. What it does:

• Holds and organizes items during wash cycles for stable, consistent placement
• Maintains proper spacing for spray coverage and drainage
• Direct replacement for racks that are cracked, bent, rusted, or missing tines
• Common signs: visible rust or flaking, broken welds, unstable sections, items tipping or not staying put

• 1 rack

• Open the door, fully extend the rack, and remove rail end caps or stops as your model requires
• Slide the old rack out; transfer any reusable components (such as rollers, clips, or accessory shelves) to the new rack
• Slide the new rack onto the rails and reinstall the end caps/stops; verify smooth movement
• Wear cut-resistant gloves; disconnect power if working near internal components or rails

Color: gray. Measures about 1 inch high by 4 inches deep.

The Upper Rack Assembly is an OEM part for LG dishwashers. This part provides a durable and efficient space for washing glasses, cups, and smaller dishes. This assembly maximizes the cleaning capacity of your dishwasher, allowing for the organized placement of items to ensure they are thoroughly cleaned and dried.

Causes for issues with the upper rack assembly often involve prolonged exposure to water and detergent, leading to rust or corrosion, physical damage from loading or unloading, or wear and tear from regular use.

Symptoms of a malfunctioning Upper Rack Assembly include:

• Difficulty sliding the rack in or out
• Rust or corrosion that can lead to stains on dishes
• Broken or missing tines affecting the rack's ability to hold dishes securely

This OEM LG part is also compatible with some Kenmore models.

Color: blue. It measures about 3 inches wide by 1 inch high.

This holder is a small mounting bracket used inside the dishwasher to secure its mating component so it stays aligned and stable during operation. Replacing a cracked or missing holder restores proper support and prevents looseness or rattling.

• Secures an associated interior component in position on the tub, rack, or related assembly
• Maintains alignment to help the component operate smoothly
• Helps prevent vibration, rattling, or parts coming loose during cycles
• Common signs of failure: visible cracks, missing clip, or the attached part won't stay put

• Disconnect power and water supply before servicing; wear cut-resistant gloves
• Open the door and remove any rack or cover needed to access the holder
• Note the original orientation; transfer any reusable screws or clips
• After reassembly, run a short test cycle to verify proper operation

This water guide directs water through the dispenser/ice path so water flows where it should, helping prevent leaks and misdirected dispensing. It's a small molded channel designed to route cold water inside the refrigerator. What it does:

• Guides and channels water from the supply toward the dispenser or ice-making area
• Helps prevent water from dripping into areas it shouldn't and causing puddles
• Supports consistent dispensing by keeping the water path aligned
• Commonly replaced when cracked, warped, or when water is leaking or pooling

• One water guide piece as shown

• Disconnect power and shut off the water supply before replacing
• Remove any interior shelves or panels as needed to access the guide
• Handle carefully to avoid damaging mounting tabs or adjacent seals
• Secure all clips; test dispenser and check for leaks after installation

This nozzle guide positions and supports the dishwasher spray nozzle on the rack, helping it align with the rear feed port for reliable water flow to the spray arm and consistent cleaning performance.

• Aligns the rack nozzle with the dishwasher's water feed port
• Stabilizes the nozzle to help ensure steady spray delivery
• If worn or broken, you may notice poor cleaning on the affected rack
• Can also cause intermittent spray or drips at the rear nozzle connection and difficulty engaging the rack nozzle

• Disconnect power and turn off the water supply before servicing
• Pull the rack forward, remove rack end caps/stops, and lift the rack out
• Release the old guide from the nozzle assembly; install the new guide and verify smooth movement and proper alignment with the feed port
• Reinstall the rack, restore power/water, and run a short test to check spray and for leaks

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
