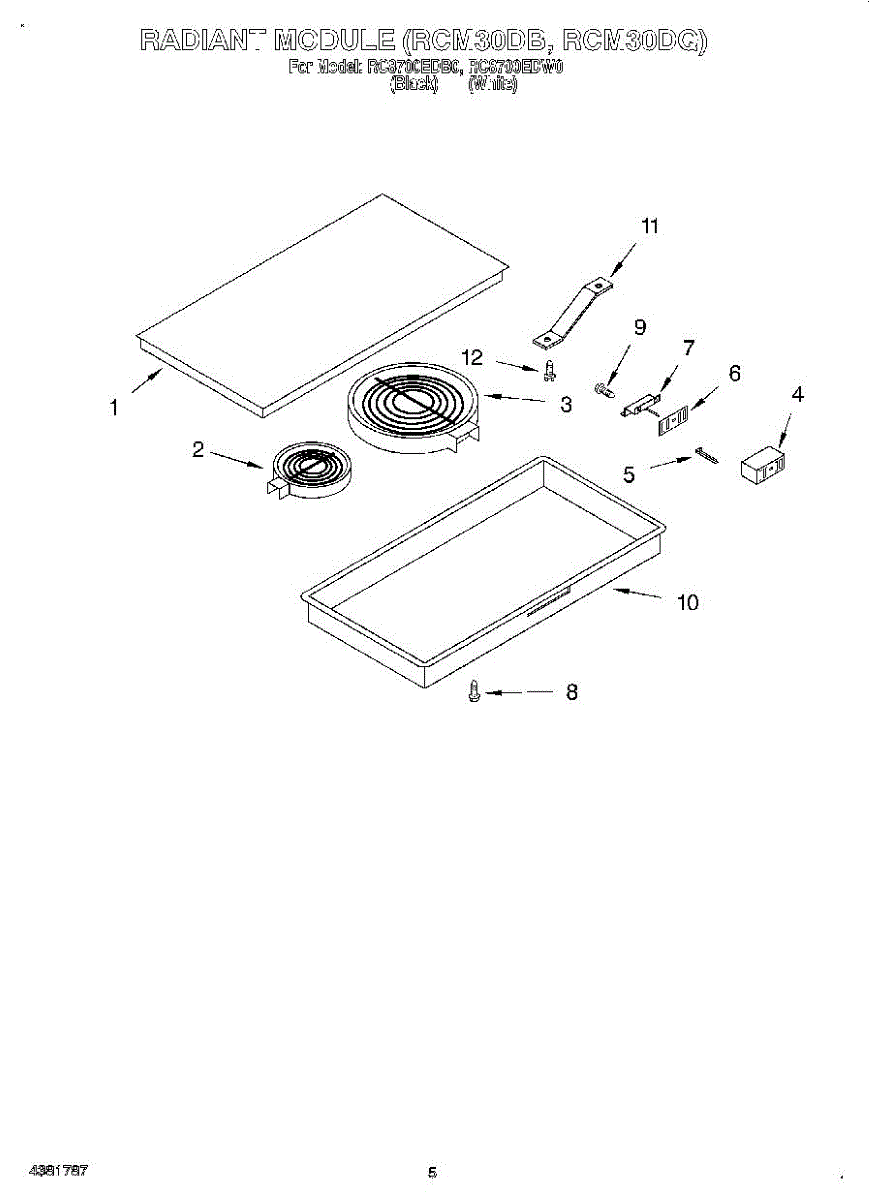

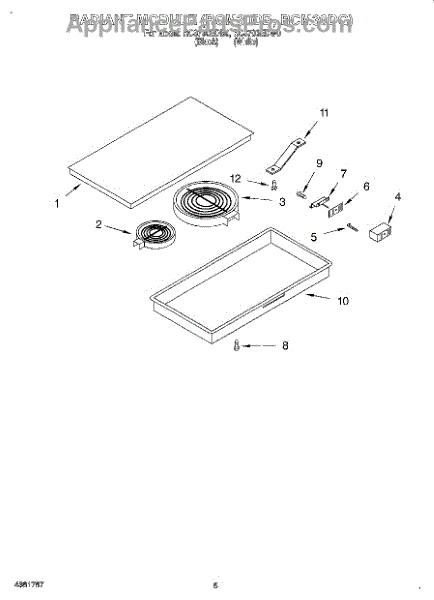

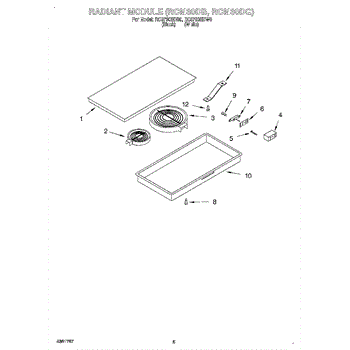

Parts for Whirlpool RC8700EDB0: 05 - Radiant Module (Rcm30db, Rcm30dq) Parts

This is the top glass only. If you want the complete module order 4378982.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

This surface heating element restores reliable heat to an electric range or cooktop's top burner. Replace a failed or damaged element to bring back even, responsive heating for everyday cooking. What it does:

• Supplies heat to the selected surface burner when the control is turned on
• Can correct no-heat, weak or intermittent heat, or overheating due to internal failure
• Replaces elements with visible damage such as breaks, burn marks, or hot spots
• Helps restore consistent temperature control across the cooking zone

• 1 surface heating element

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Access the element per your model; note wire locations and any brackets before removal
• Transfer wires and any retaining hardware to the new element in the same positions
• Avoid stressing the element or insulation; ensure it sits level and clear of glass/trim before reassembly

This terminal block provides an insulated, secure junction for incoming power or harness leads inside the appliance. Replacing a cracked, loose, or heat-damaged block restores a safe, reliable connection and helps prevent arcing or intermittent power.

• Creates a fixed, insulated junction between external supply wires and internal appliance wiring
• Maintains tight screw-lug connections to minimize resistance and heat buildup
• Helps ensure steady power delivery to controls, motors, and heaters
• Common indicators of failure: melted/discolored block, burning odor, visible arcing, loose or stripped terminals, intermittent or no power

• Disconnect power at the breaker and verify zero voltage before servicing
• Photograph/label wire positions; transfer one lead at a time to the new block
• Tighten terminal screws firmly; do not overtighten into the insulator
• Inspect wire ends/ring terminals and strain relief; replace any heat-damaged components per the service information

This contact spade is a push-on electrical terminal used to connect an appliance wire lead to a component's blade. Replacing a worn or heat-damaged connector restores a secure fit and consistent power flow.

• Creates a reliable electrical connection between a wire lead and a flat spade terminal on a component
• Helps prevent arcing, heat build-up, and intermittent power caused by loose or burned terminals
• Common symptoms include: component won't power or heat, intermittent operation, visible discoloration or melting at the connector
• Direct replacement for a damaged or fatigued push-on terminal

• Disconnect power to the appliance before servicing
• Match the size/orientation to the original terminal and replace any discolored or heat-damaged wiring/insulation
• Use an appropriate crimp tool to attach the terminal to the wire lead; ensure a firm crimp
• Push fully onto the mating blade for a tight, secure connection

This plastic terminal block insulator protects the dryer's power terminal area by covering exposed connections and helping prevent accidental shorts or arcing. Replaces a cracked or melted insulator to restore basic electrical protection at the terminal block. What it does:

• Covers and insulates the terminal block to reduce risk of electrical shorts and arcing
• Keeps wiring routed and separated at the power connection point
• Helps prevent damage from heat or contact that can lead to melting or sparking
• Commonly replaced when the original insulator is cracked, burned, or deformed

• Always disconnect power (unplug or shut off house circuit) before servicing electrical components.
• Inspect terminal block and wiring for heat damage; replace damaged wires or terminals as needed.
• Ensure terminals are cool and dry before reinstalling the insulator; seat it fully over the block for proper protection.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold
