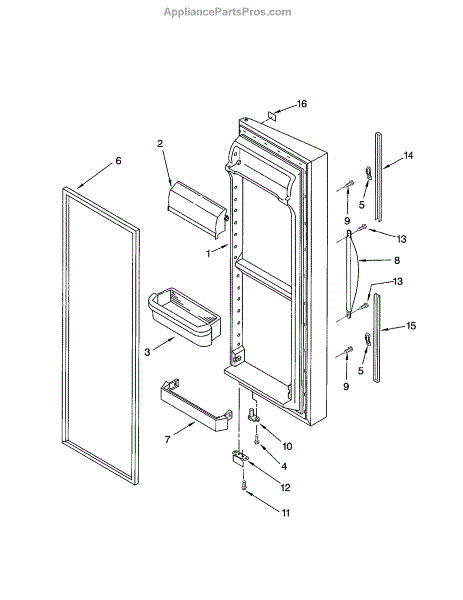

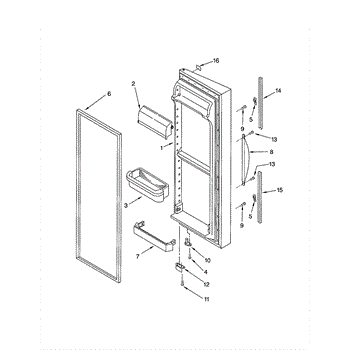

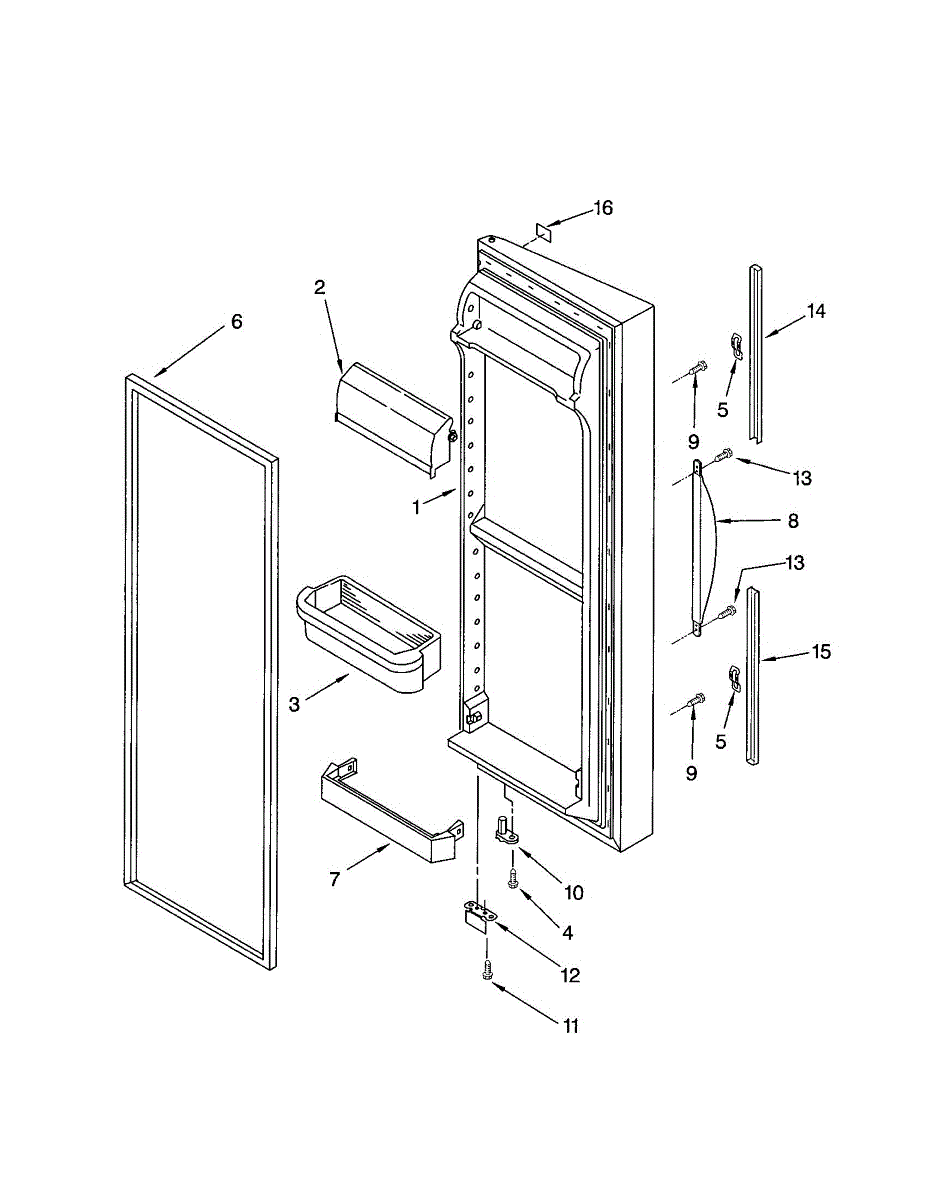

Parts for Kenmore 106.52603100 (10652603100, 106 52603100): Refrigerator Door Parts

The Compartment Door is an OEM component for Whirlpool and Kenmore built-in refrigerator models. It provides access to organized storage in the fridge's fresh food compartment. The compartment door measures approximately 15” long by 6” wide.

As a high-use access point, the door endures constant opening/closing stresses. Over extended periods, normal wear gradually reduces the quality and integrity of its cushioned sealed closure.

Symptoms include:

• Difficulty fully closing/latching the compartment door
• Loud squeaking or sticking during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Bin is an OEM part for Whirlpool refrigerators, designed to provide convenient and accessible storage for a variety of items within the refrigerator door. Made from durable plastic, it is designed to withstand the typical wear and tear of daily refrigerator use, providing a stable and easy-to-clean space for storing condiments, beverages, and other frequently accessed items.

The reason for replacing a Door Bin usually involves physical damage from accidents or overloading, as well as the natural aging process of plastic, which can lead to brittleness and cracking.

Symptoms for a replacement Door Bin include:

• Cracks or breaks in the bin that prevent it from holding items securely
• Warping or damage that affects the bin's ability to fit properly in the door
• Discoloration or aesthetic damage that detracts from the refrigerator's overall appearance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures panels, brackets, and internal components in Whirlpool-built appliances. Use it to replace missing or stripped hardware to restore a snug fit, reduce rattling, and maintain proper alignment. What it does:

• Fastens components to the appliance cabinet or frame
• Helps maintain alignment and proper clearances
• Reduces vibration-related noises from loose or missing hardware
• Common replacement when a screw is lost, corroded, or threads are damaged

• 1 screw

• Disconnect power before service; for gas appliances, also shut off gas supply
• Start threading by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly without overtightening to prevent stripping
• Inspect and replace any worn clip/nut or damaged threads

This is a replacement door trim clip. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a broken or defective door trim clip in various refrigerator models. This clip fixes to the outer side of the refrigerator door panel to provide a means by which to connect the door trim to the door. Always ensure the appropriate safety precautions are adhered to when attempting to fix any appliances. Proper tools may be required to replace this part. Make sure that the refrigerator is entirely disconnected from water and power before starting any repair work. For more accurate information on how and where to install this door trim clip, the appropriate owner's manual and included diagrams should be referred to.As an authentic replacement part, this door trim clip is suitable for use on several different models of refrigerators manufactured by Whirlpool, Maytag, KitchenAid, Amana, and other Whirlpool brands. This is a genuine part made of high-quality, durable, non-corrosive metal and is sold individually.

This small mounting clip secures the appliance trim so panels stay aligned and snug. It helps keep door or console trim from shifting, rattling or separating from the cabinet for a cleaner appearance and fit. What it does:

• Anchors trim pieces to the cabinet or door frame to maintain proper alignment
• Prevents trim from moving, vibrating, or producing rattling noises
• Restores a tight seam or gap caused by a broken or missing clip
• Works with original trim pieces—use when trim no longer holds securely

• Disconnect power to the appliance before removing trim or working near electrical components
• Remove the affected trim piece carefully to access the clip; a trim tool or flat screwdriver may help gently pry panels
• Align the clip and press or snap the trim back into place until it seats securely

The Refrigerator Door Gasket (Beige) is an OEM replacement part specifically designed for Whirlpool-brand refrigerators. The gasket is responsible for preventing warm air and moisture from entering the refrigerator when doors close. The gasket measures approximately 19 ¼” wide x 62" tall.

Causes of a gasket issue can include cracking and degradation due to repeated compression over many years of use. Sections may lose elasticity and no longer seal tightly.

Symptoms of a bad gasket include:

• High energy costs as the system works to maintain proper cooling
• Warm, humid interior environment allowing food decay
• Visible air leaks around gasket edges when doors are shut

This part is also compatible with Maytag, KitchenAid, Jenn-Air, and other brands.

The Refrigerator Door Gasket (BLK) is an OEM part for Whirlpool refrigerators. This black gasket is designed to create a tight seal around the refrigerator door, preventing warm air from entering and cool air from escaping. The gasket is black in color and measures approximately 19 ¼” wide by 62" tall.

Causes of a bad door gasket can include wear and tear from regular use, damage from cleaning chemicals or sharp objects, or warping due to temperature fluctuations. Over time, the gasket may lose its flexibility and sealing ability.

Symptoms of a bad door gasket include:

• The refrigerator door not closing properly
• Visible cracks or tears in the gasket
• Condensation or frost buildup around the door seal
• Increased energy bills due to the refrigerator working harder to maintain temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf is an OEM part for Whirlpool refrigerators. It provides additional storage space within the refrigerator door, allowing for the organization of smaller items like condiments, jars, and bottles.

Causes of a bad door shelf can include frequent loading and unloading, which can lead to wear and tear over time. Excessive weight or improper handling can cause the shelf to crack or break, making it unable to securely hold items.

Symptoms of a bad door shelf include:

• Cracks or breaks in the shelf
• The shelf not sitting securely in its designated slot
• Items falling or tipping over due to instability
• Difficulty in sliding or removing the shelf for cleaning

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Bisque

This handle is graphite. For white order WP2206934W and for black order WP2206934B.

This handle is white. For black order WP2206934B and for Graphite order WP2206934J.

This handle is Black. For white order WP2206934W and for graphite order WP2206934J.

The Door Upper Closure Cam is an OEM part for Whirlpool refrigerators. It is designed to provide proper closure and alignment for the refrigerator door. The upper closure cam is located on the top hinge of the refrigerator door and works in conjunction with the lower closure cam to ensure a tight seal and prevent air leaks.

Causes of a bad upper closure cam can include regular use, accidental damage, or excessive force applied to the door.

Symptoms of a bad upper closure cam include:

• Difficulty in closing or opening the refrigerator door.
• The door not staying securely closed.
• Uneven gaps or misalignment between the door and the refrigerator cabinet.
• Excessive noise or squeaking when operating the door.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels, brackets, and components. Using the correct size restores a snug fit to reduce vibration, prevent loosening, and keep assemblies properly aligned during operation. What it does:

• Fastens sheet metal and component brackets in designated locations
• Replaces missing, stripped, or corroded hardware
• Helps eliminate rattling and vibration from loose panels
• Maintains proper alignment of covers and assemblies

• 1 screw

• Disconnect electrical power; shut off water or gas supplies if applicable
• Match length/thread to the original; replace one fastener at a time to preserve alignment
• Start by hand to avoid cross-threading; use the correct driver size
• Snug firmly but do not overtighten to prevent stripping

This white top trim replaces a damaged or discolored upper trim piece to restore a clean factory look and help keep adjoining components properly seated. Built to match the original fit for smooth, secure installation.

• Finishes and protects the exposed upper edge of the assembly or panel
• Helps hold adjacent panels/covers in place for proper alignment
• Restores appearance when the original trim is cracked, warped, or yellowed
• Common symptoms: loose or missing trim, visible cracks, gaps, or rattling

• Disconnect power before servicing
• Remove any screws or release tabs; retain existing hardware for reuse
• Align the new trim with tabs/slots and press or fasten into place without over-flexing
• Adjacent parts fit and move correctly after installation

This is the top trim piece for the dispenser/control area. It finishes the upper edge, restoring a clean look and helping secure adjacent cosmetic parts.

• Covers and finishes the top edge of the dispenser/control panel
• Helps hold adjoining trim in proper alignment
• Common failure signs: cracked, loose, missing, or discolored top trim
• Cosmetic part; does not affect cooling performance but improves appearance and fit

• Disconnect power before beginning any disassembly
• Use care to release locking tabs to avoid damaging surrounding trim
• Support adjacent trim/panel pieces during removal and reinstallation
• Verify full seating of tabs and screws for a flush, even fit

This is the top trim piece for the dispenser/control area. It finishes the upper edge, restoring a clean look and helping secure adjacent cosmetic parts.

• Covers and finishes the top edge of the dispenser/control panel
• Helps hold adjoining trim in proper alignment
• Common failure signs: cracked, loose, missing, or discolored top trim
• Cosmetic part; does not affect cooling performance but improves appearance and fit

• Disconnect power before beginning any disassembly
• Use care to release locking tabs to avoid damaging surrounding trim
• Support adjacent trim/panel pieces during removal and reinstallation
• Verify full seating of tabs and screws for a flush, even fit

This black bottom trim finishes the lower front edge of select refrigerators, hiding gaps and protecting edges for a clean, factory look. Replacing a damaged or missing trim restores appearance and helps panels fit and align properly.

• Covers and protects the lower front edge while providing a finished appearance
• Helps keep adjacent panels aligned and secure
• Replaces cracked, scuffed, loose, or missing trim pieces
• Can reduce rattles or visible gaps along the bottom edge

• Disconnect power before servicing
• Open the door(s) to access the trim; remove any screws or release locking tabs/clips from the old piece
• Align the new trim and snap or fasten into place; ensure all clips engage evenly
• Avoid overtightening fasteners to prevent damage to plastic

This black bottom trim finishes the lower front edge of select refrigerators, hiding gaps and protecting edges for a clean, factory look. Replacing a damaged or missing trim restores appearance and helps panels fit and align properly.

• Covers and protects the lower front edge while providing a finished appearance
• Helps keep adjacent panels aligned and secure
• Replaces cracked, scuffed, loose, or missing trim pieces
• Can reduce rattles or visible gaps along the bottom edge

• Disconnect power before servicing
• Open the door(s) to access the trim; remove any screws or release locking tabs/clips from the old piece
• Align the new trim and snap or fasten into place; ensure all clips engage evenly
• Avoid overtightening fasteners to prevent damage to plastic

Epoxy repair kit - aluminum tubing.

Size: 1/2 inch.

Size: 5/8 inch.

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Size: 3/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 1/4 lb.

Sealer for refrigerant line insulation.

This OEM grease is a purpose-made appliance lubricant that reduces friction and protects moving parts for smoother operation and longer component life. Use where specified by the manufacturer for bearings, slides, or motor shafts. What it does:

• Lubricates gears, bearings, rollers and shafts to reduce wear and noise
• Helps prevent binding, seizing, and grinding on moving components
• Protects metal parts from corrosion where grease is specified
• Keeps parts moving smoothly under normal operating temperatures

• Disconnect power before servicing any appliance; follow manufacturer service instructions
• Apply sparingly to clean, dry surfaces; avoid over-greasing which can attract debris
• Wear gloves and wipe excess grease from surrounding areas to prevent staining

Color: White. Size: 13 oz. Spray paint primer. can.

This clip kit secures small panels, wiring harnesses, or trim on compatible Whirlpool appliances to prevent rattling and keep components in their intended position. It restores proper fit and helps reduce noise from loose parts. What it does:

• Holds wiring harnesses and cables in place to prevent chafing or contact with moving parts
• Secures panels, trim, or hoses so assemblies stay aligned and quiet
• Reduces rattling, buzzing, or vibration caused by loose components
• Keeps parts positioned during normal use and transport

• Disconnect power (unplug or shut off breaker) before starting any repair
• Use basic hand tools; avoid forcing clips into place to prevent breakage
• Replace any damaged clips with the exact kit to ensure proper fit
• Re-check that fastened parts are secure and that there are no pinched wires before restoring power

Color: Biscuit. Size: 13 oz. can. Enamel spray paint.

This aerosol spray paint restores the graphite finish on appliance surfaces for quick, low-effort cosmetic touch-ups. Use it to cover small chips, scratches and scuffs so the exterior looks uniform again. What it does:

• Matches graphite appliance finishes for spot repairs and touch-ups
• Covers visible chips, scratches and minor surface scuffs
• Restores a uniform appearance on painted metal appliance surfaces
• Helps protect exposed metal from surface corrosion after repair

• Clean and dry the surface; remove grease, dirt and loose paint before spraying
• Shake can well and test spray on a scrap piece or inconspicuous area first
• Apply in light, even coats from a recommended distance; allow coats to dry between passes
• Use in a well-ventilated area, keep away from heat/open flames, and follow all safety and disposal instructions on the can

This ice container assembly holds and channels cubed ice from the ice maker to the dispenser area, keeping ice contained and ready for use. It replaces a cracked, warped or missing ice bin to restore normal ice storage. What it does

• Collects and stores ice produced by the ice maker to prevent spills and buildup in the cabinet
• Guides ice toward the dispenser/auger area for consistent delivery
• Prevents ice from jamming or falling into other refrigerator compartments
• Helps maintain proper ice flow when the original bin is damaged or warped

• One ice container assembly

• Disconnect power to the refrigerator before removing or installing the ice container
• Remove existing ice and empty the freezer area to avoid spills during replacement
• Align the bin with the guides and slide into place until it seats securely; do not force
• If ice delivery issues persist after installation, check the ice maker/auger and dispenser components

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Bottle with brush. Color: Biscuit paint. It's point-six fluid ounces.

Bottle with brush. Color: Black. Size: 0.6 fl.oz.

This flexible, narrow brush reaches under and behind the cabinet to sweep dust and lint from condenser coils and vents. Cleaning built-up debris helps restore airflow and support proper cooling performance.

• Sweeps dust, lint, and pet hair from condenser coils and ventilation areas
• Flexible reach helps access coils beneath or behind the appliance
• Aids proper heat dissipation by clearing airflow paths
• Helpful when coils are visibly dirty, cooling seems weak, or the unit runs longer than usual

• Unplug or disconnect power before cleaning
• Remove the toe grille or rear access panel if needed to access coils
• Brush gently along the coil fins; avoid bending fins or damaging tubing
• Vacuum or wipe up loosened debris before replacing any panels and restoring power

The Alumilastic Cement is an OEM part for Whirlpool appliances, typically used in refrigerators and freezers. It serves as a thermal mastic compound, designed to provide a secure and heat-conductive bond between various components, such as evaporator coils and the interior walls of the appliance.

Causes of a bad alumilastic cement can include drying out, cracking, or losing its adhesive properties over time. This can occur due to age, exposure to temperature fluctuations, or improper application. When the cement fails, it can lead to poor thermal conductivity and decreased cooling efficiency.

Symptoms of a bad alumilastic cement include:

• Reduced cooling performance
• Unusual noises from the cooling system
• Components becoming loose or detaching
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc
