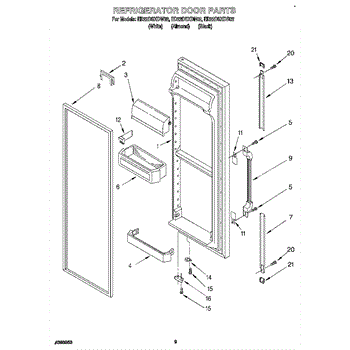

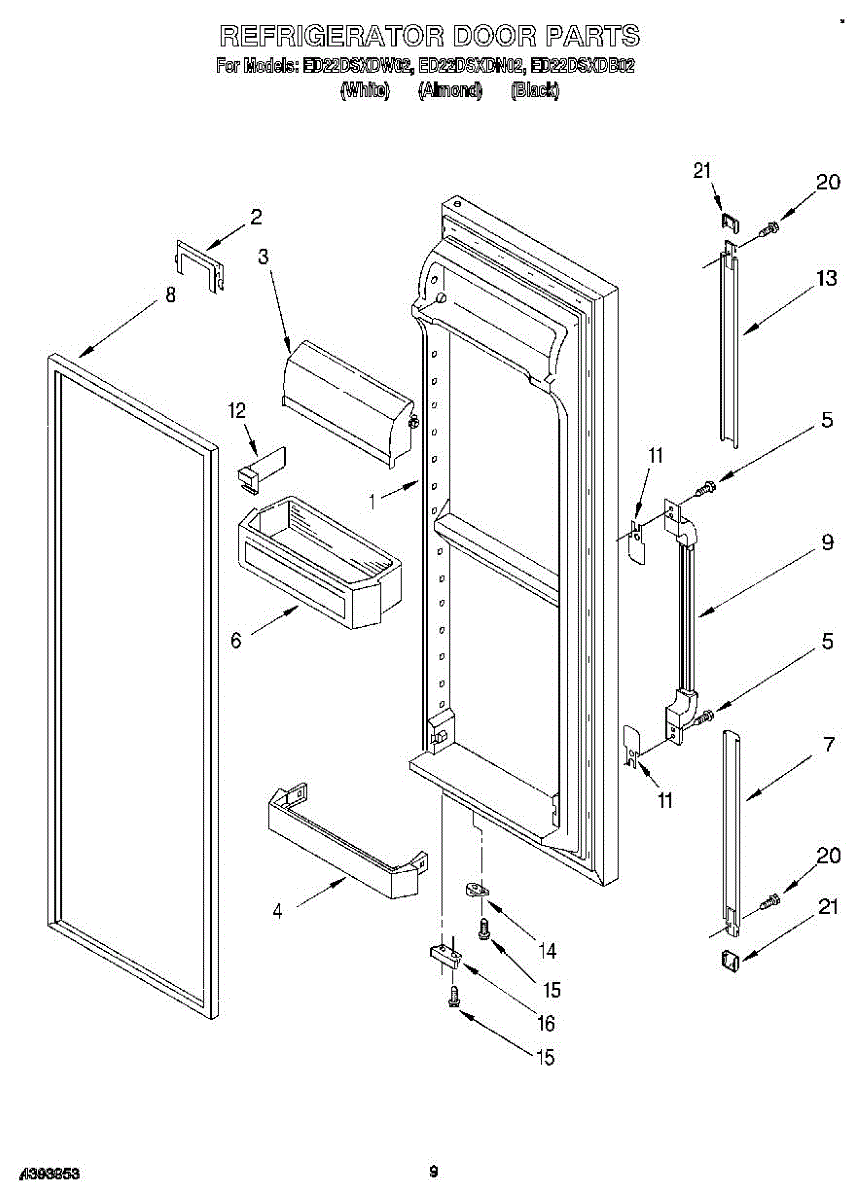

Parts for Whirlpool ED22DSXDB02: 07 - Refrigerator Door Parts

The Compartment Door is an OEM component for Whirlpool and Kenmore built-in refrigerator models. It provides access to organized storage in the fridge's fresh food compartment. The compartment door measures approximately 15” long by 6” wide.

As a high-use access point, the door endures constant opening/closing stresses. Over extended periods, normal wear gradually reduces the quality and integrity of its cushioned sealed closure.

Symptoms include:

• Difficulty fully closing/latching the compartment door
• Loud squeaking or sticking during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Shelf is an OEM part for Whirlpool refrigerators. It provides additional storage space within the refrigerator door, allowing for the organization of smaller items like condiments, jars, and bottles.

Causes of a bad door shelf can include frequent loading and unloading, which can lead to wear and tear over time. Excessive weight or improper handling can cause the shelf to crack or break, making it unable to securely hold items.

Symptoms of a bad door shelf include:

• Cracks or breaks in the shelf
• The shelf not sitting securely in its designated slot
• Items falling or tipping over due to instability
• Difficulty in sliding or removing the shelf for cleaning

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory fastener secures appliance components and panels, helping keep assemblies properly aligned and tight. Replace worn, stripped, or missing hardware to eliminate looseness and vibration and maintain safe, reliable operation.

• Fastens brackets, panels, trim, and internal assemblies to the cabinet/frame
• Helps maintain alignment of doors, consoles, or covers
• Restores a tight fit to reduce rattling, vibration, or shifting
• Common symptoms: missing screw, stripped head/threads, loose panel or handle, recurring vibration/noise

• Disconnect power (and shut off gas/water if applicable) before servicing
• Match thread and length to the original fastener for proper fit
• Start threading by hand to avoid cross-threading; use the correct driver
• Do not overtighten into plastic or thin sheet metal

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators, designed to provide storage capacity and organization within the fridge. This bin attaches to the inside of the refrigerator door, offering a convenient place to store jars, bottles, and other condiments.

Symptoms of a bad Door Shelf Bin include:

• Cracks or breaks in the bin
• The bin detaching from the door
• Difficulty in sliding the bin in or out
• Noticeable sagging when loaded

Causes of these issues often stem from overloading the bin with too much weight, accidental damage from items being pushed in too forcefully, or simply the natural wear and tear that occurs over time.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This gasket forms a seal around the perimeter of the refrigerator door, ensuring that cold air stays inside and warm air stays out. It helps maintain the refrigerator's efficiency by preventing air leaks, which can lead to temperature fluctuations and increased energy consumption.

Causes of a bad gasket can include regular wear and tear, frequent opening and closing of the door, or exposure to extreme temperatures.

Symptoms of a bad refrigerator door gasket include:

• Warm spots inside the refrigerator
• Excessive frost buildup
• Increased energy consumption
• The door not sealing properly or appearing misaligned

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Door Gasket is an OEM replacement part for Whirlpool refrigerators. This black gasket ccreates a seal around the door perimeter, helping maintain proper cooling and humidity levels inside the fridge.

Causes of a bad door gasket can include cracks, compression set, or decomposition of the sealing material over repeated use and exposure. Age and general wear also contribute to deterioration.

Symptoms of a bad door gasket include:

• Cool air leaking noticeably around the door seal
• The door not closing flush or tightly against the cabinet
• Fogging or frost developing inside near the door
• Warm spots felt along the gasket perimeter

This OEM Whirlpool part is compatible with other brands including Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and some Kenmore refrigerators.

This part has been discontinued and is no longer available.

The Door Closer Kit is an OEM part for Whirlpool refrigerators. This kit contains essential components for smooth refrigerator door closing: door cams and screws ensure gentle closure, proper seal, and prevent cool air leakage.

Parts in a door closer kit can wear out over time from frequent use, causing issues like improper closing, the need for extra force to shut, or failed sealing, affecting the refrigerator's cooling.

Symptoms of a bad Door Closer Kit include:

• The refrigerator door feels loose or wobbles when opened or closed
• The door does not close fully on its own or requires extra force to close
• You notice an increase in the refrigerator’s energy consumption due to cool air leaking
• Condensation or frost buildup near the door seal area due to improper sealing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
