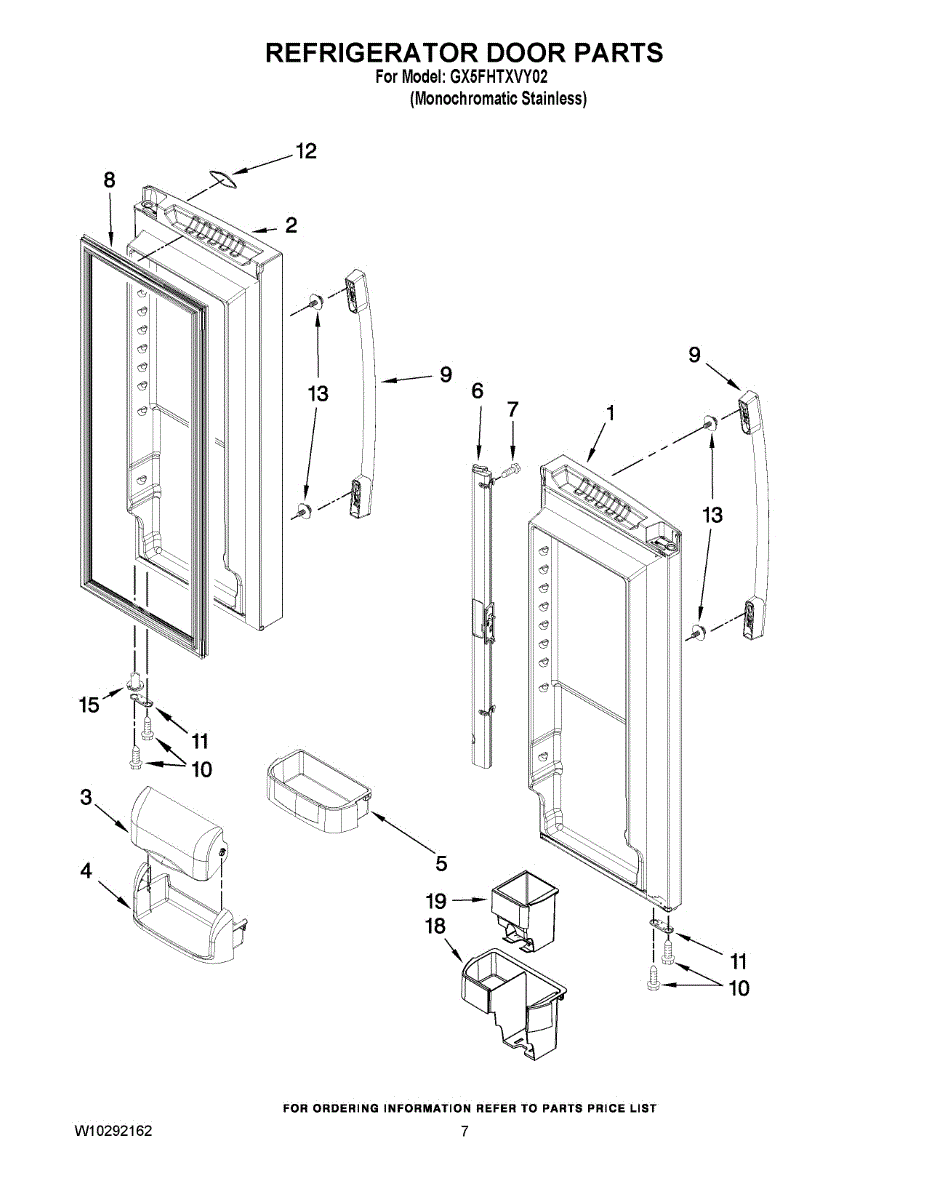

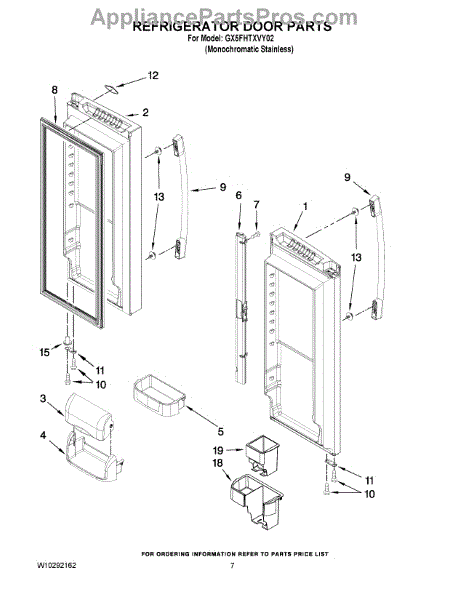

Parts for Whirlpool GX5FHTXVY02: 05 - Refrigerator Door Parts

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators. It is a specialized storage compartment designed to fit the refrigerator door, providing convenient and organized storage space for smaller items such as condiments, jars, or bottles. The bin measures approximately 15 inches wide, 3 inches high, and 6 inches deep.

Causes of a damaged or unusable door shelf bin can include physical impact, cracks or breaks due to excessive weight or pressure, or general wear and tear over time.

Symptoms of a door shelf bin that needs replacement include:

• Cracked or broken shelves, making it difficult to store items securely
• Warping or misshaping, preventing a proper fit in the door compartment
• Missing or loose components, resulting in items falling out or shifting during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. This bin is designed to fit into the door of the refrigerator, providing additional storage space for items such as bottles, condiments, and small containers. This door bin measures about 15 inches wide by 3 inches high by 8 inches deep.

Symptoms of a failing Door Shelf Bin include:

• Cracks or breaks in the plastic, which can cause items to fall out
• The bin not fitting securely into the door slots
• Sagging or bending of the bin, especially when loaded with heavier items
• Difficulty in removing or replacing the bin due to damage or warping

Causes of a bad door shelf bin can include regular wear and tear from frequent use, overloading with heavy items that exceed the bin’s weight capacity, or exposure to temperature fluctuations that can cause the plastic to become brittle and break.

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

The Flapper Door with Mullion Heater is an OEM part for Whirlpool refrigerators. This part helps seal the gap between the refrigerator and freezer doors, preventing warm air from entering and cold air from escaping.

Causes of a bad flapper door with mullion heater can include wear and tear over time, electrical issues affecting the heater, physical damage from repeated opening and closing of the doors, or warping due to temperature fluctuations.

Symptoms of a bad flapper door with mullion heater include:

• Condensation or frost buildup around the door seal
• Increased energy consumption due to temperature inefficiency
• The refrigerator door not closing properly
• Visible damage or wear to the flapper door or heater

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Grey for Right Hand Door

The Refrigerator Door Gasket is an OEM replacement part for Whirlpool refrigerators. It creates an seal between the refrigerator doors and the body, helping to maintain proper temperatures inside. The gasket is a soft, pliable material designed to tightlen without allowing air or warm moisture to infiltrate the refrigerator. Measures approximately 39 by 16 inches

Causes of a bad door gasket include cracking, splitting, or compression from repeated opening and closing of the door over time. Deterioration leads to diminished sealing and temperature control performance.

Symptoms of a bad door gasket are:

• Difficulty keeping items cool or frozen
• Frost or moisture buildup between the door and refrigerator body
• Higher energy costs from the refrigerator working overtime
• Food odors transferring between compartments

This OEM Whirlpool gasket is also compatible with Maytag, Jenn-Air, Amana, Norge, Gibson, Kelvinator, and some Kenmore models.

Restore a secure, comfortable grip with this black replacement handle. It refreshes the look of your appliance and makes opening the door or drawer feel smooth and confident again when the original handle is cracked, loose, or missing.

• Provides a sturdy handhold to open and close the appliance door or drawer
• Common symptoms: cracked or broken handle, looseness, wobble, or missing handle
• Helps resolve difficulty opening the door due to a damaged or unstable grip
• Color-matched black finish to maintain a consistent appearance

• Disconnect power to the appliance before servicing
• Access the handle's mounting screws from the inner side of the door/drawer; some models require removing inner trim
• Support any glass/inner panel while removing and reinstalling the handle
• Reuse existing hardware where applicable; tighten screws evenly and check operation

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This door stop limits the door's travel to its intended range, helping prevent overextension that can stress hinges or damage adjacent cabinetry. Replacing a worn or broken stop restores smooth, controlled door operation.

• Limits door opening/closing travel to protect hinges and alignment
• Helps maintain proper seal and fit by preventing overextension
• Replaces cracked, worn, or missing stop that allows excess movement
• Typical symptoms include door opening too far, a hard "clunk" at full travel, or visible damage to the stop

• Disconnect power; also shut off the water supply
• Support the door while servicing the hinge/stop to avoid strain
• Note the original orientation and transfer/secure fasteners firmly
• Open/close the door slowly to ensure smooth movement and proper stop action

Color: For white, black and bisque models.

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Can Dispenser Sleeve is an OEM part for Whirlpool refrigerators. It is designed to hold and organize cans within the refrigerator door, making it easy to store and access beverages efficiently.

Causes of a bad can dispenser sleeve can include wear and tear over time, physical damage from overloading or mishandling, or cracks and breaks due to frequent use.

Symptoms of a bad can dispenser sleeve include:

• Difficulty in securely holding cans
• Cracks or visible damage to the sleeve
• Cans falling out or not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: This is the can dispenser sleeve. For the can dispenser bucket use part number WPW10169346.

This is a can dispenser bucket. For the can dispenser sleeve use part number WP13005401SP.
