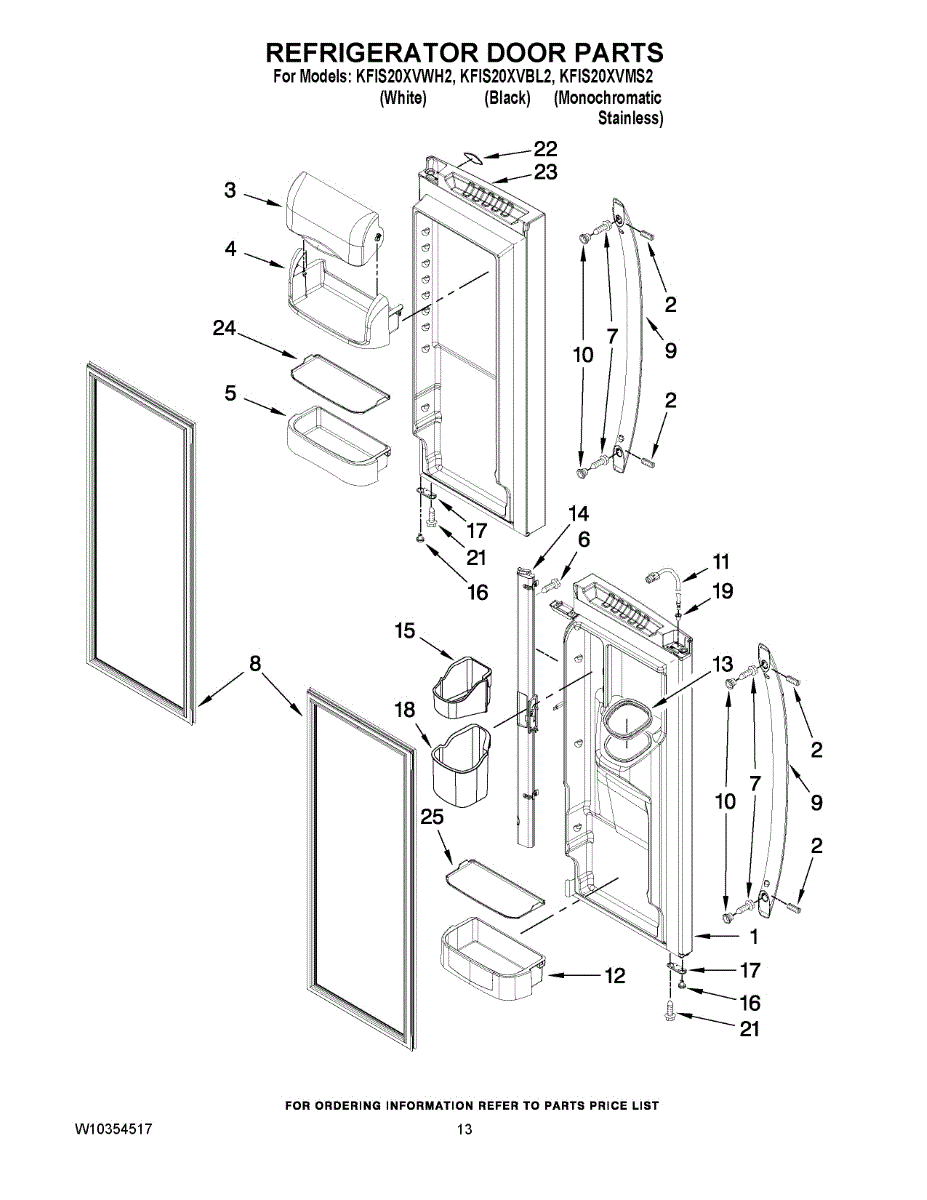

Parts for Kitchenaid KFIS20XVMS2: 07 - Refrigerator Door Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This headless, cup-point set screw secures a component to a shaft or hub inside your appliance. The 1/4-28 x 3/8 in size bites into the mating surface to prevent slipping, helping keep collars, pulleys, or knobs aligned and stable.

• Locks a hub, collar, or pulley to a shaft to prevent movement
• Helps maintain alignment and reduce wobble or vibration
• Replaces missing, stripped, or damaged set screws
• Common signs include components slipping on a shaft, rattling noises, or recurring loosening

• Disconnect power before servicing
• Clean threads and align with any flat on the shaft before tightening
• Start threads by hand to avoid cross-threading; tighten securely without overtightening
• Recheck tightness after a brief test run

Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

The Bin-Cntlvr (Cantilever Bin) is an OEM part for Whirlpool refrigerators. This bin attaches to the refrigerator door and provides additional storage space for items like bottles, condiments, and other small containers. The cantilever design allows for easy adjustment and customization of shelf space within the refrigerator door.

Causes of a bad cantilever bin can include overloading the bin with heavy items, accidental impacts, or wear and tear from regular use.

Symptoms of a bad cantilever bin include:

• The bin not staying in place on the door
• Cracks or visible damage to the bin
• Difficulty adjusting or removing the bin
• Items falling out of the bin due to instability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Color: Black

The Door Gasket is an OEM replacement part for Whirlpool side-by-side refrigerators. This black gasket provides a critical moisture and air seal around the refrigerator and freezer door openings.

Causes of failure may involve cracking or degradation from mechanical stresses or chemical exposure over years of use. Temperature fluctuations can also damage sealing integrity.

Symptoms of a defective door gasket include:

• Excessive frost or moisture buildup inside refrigerator sections
• Higher energy bills from inefficient sealing and cooling loss
• Warm air infiltration impacting optimum storage conditions

This gasket it compatible with additional brands like KitchenAid and Roper.

Color: White

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This gasket forms a seal around the refrigerator door, ensuring that the cool air stays inside and the warm air stays out. It plays a critical role in maintaining the efficiency and performance of the refrigerator by preventing energy loss.

Over time, door gaskets can wear out, become brittle, or develop cracks and tears. Causes of a bad door gasket include regular wear and tear, exposure to extreme temperatures, or improper cleaning methods that degrade the material.

Symptoms of a bad door gasket include:

• Warm spots inside the refrigerator
• Excess condensation or frost buildup
• The door not sealing properly
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Gasket is an OEM part for Whirlpool refrigerators. It forms a tight seal around the refrigerator door, preventing warm air from entering and cold air from escaping, thus maintaining the optimal internal temperature.

Over time, the door gasket can wear out or become damaged, leading to leaks that compromise the refrigerator's efficiency. Causes of a bad door gasket include normal wear and tear, frequent door openings, exposure to extreme temperatures, or physical damage such as cuts or tears.

Symptoms of a bad door gasket include:

• Condensation or frost buildup inside the refrigerator
• Increased energy consumption
• Warm spots inside the refrigerator
• The door not closing properly or sealing tightly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This black replacement handle restores a solid, comfortable grip for opening and closing your appliance's door or drawer. Replace a cracked or loose handle to improve safety and refresh the look of the unit.

• Provides the handhold needed to open and close the door or drawer
• Direct replacement for cracked, broken, or wobbly handles
• Helps resolve difficulty opening caused by a missing or damaged handle
• Restores a clean, factory look

• Disconnect power before servicing
• Access the handle's mounting screws from the inside of the door/drawer; remove screws, swap the handle, and reinstall
• Support the door/drawer while loosening/tightening fasteners
• Do not overtighten; verify smooth operation after installation

The Threaded Handle Anchor is an OEM part for Whirlpool refrigerators. This component is essential for securely attaching the refrigerator door handle to the door, ensuring that it remains firmly in place during regular use. The anchor fits into the door and provides a threaded connection point for the handle screws, offering stability and ease of use.

Common causes of a bad threaded handle anchor include wear and tear from frequent use, cross-threading during installation, or physical damage from excessive force or impact.

Symptoms of a bad threaded handle anchor include:

• The refrigerator door handle feeling loose or unstable
• Difficulty securing the handle to the door
• The handle detaching from the door
• Visible damage or stripping on the anchor threads

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door waterline is the replacement tube that routes potable water through the refrigerator door to the dispenser/ice system, restoring reliable water flow and preventing door-area leaks. What it does

• Carries water from the refrigerator cabinet to the dispenser/ice door assembly.
• Replaces cracked, kinked, or clogged tubing that can reduce dispenser flow or stop water delivery.
• Stops leaks that originate inside or at the door hinge area when the original line is damaged.
• Restores proper water supply to ice makers and chilled water dispensers that draw through the door.

• Disconnect power and shut off the water supply before starting replacement.
• Inspect and, if needed, replace any associated quick-connect fittings or O-rings to ensure a watertight seal.
• Avoid sharp bends or kinks when routing the new tube through the door hinge area.
• After installation, turn the water back on and check all connections carefully for leaks.

The Door Bin is an OEM replacement part for Whirlpool refrigerators. Mounted on the refrigerator doors, bins conveniently organize stored items.

Causes of replacement consist of excess weight occasionally placed in bins can bow or warp tray structures over extended use as well.

Symptoms involve:

• Bins that no longer securely anchor or drift loose within doors
• Warped configurations insufficiently containing particular items
• Scratches or defects that harbor bacteria on surrounding surfaces

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Ice Chute Seal is an OEM part for Whirlpool refrigerators, specifically designed to maintain the efficiency and functionality of the ice dispenser system. This crucial component creates a tight seal around the ice chute, preventing cold air from escaping the freezer compartment and blocking warm air from entering.

Causes of a bad ice chute seal can include regular wear and tear, exposure to temperature fluctuations, and repeated opening and closing of the ice chute. A compromised seal can lead to air leaks, causing ice to melt or form frost around the dispenser area.

Symptoms of a bad Ice Chute Seal include:

• Frost or ice buildup around the ice chute area.
• Increased energy consumption as the refrigerator works harder to maintain its internal temperature.
• Moisture or water leakage around the dispenser, indicating air leaks.
• Difficulty dispensing ice, possibly due to frost or ice blockages.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A vertical mullion assembly that restores the finished trim along the refrigerator door edge and covers the gap between doors for a clean appearance. Replaces cracked, broken, or loose mullion trim to improve fit and finish. What it does:

• Covers the vertical gap between refrigerator doors and provides a finished interior edge
• Hides and protects any wiring or fasteners routed along the door edge
• Restores proper door trim when the original mullion is cracked, split, or loose
• Helps reduce visible moisture or frost build-up along the door seam caused by damaged trim

• Disconnect power to the appliance before starting any repair to avoid injury
• Typically installs with a few fasteners or snaps into place; keep mounting screws from the original part if reusing
• Handle trim pieces carefully to avoid cracking; use non-marring tools to pry if needed

This door mullion is the vertical flipper rail that mounts to a refrigerator French door. It swings closed to cover the center gap, helping complete the door seal and reduce warm air leaks and condensation between the doors.

• Provides the pivoting center rail that mates with the opposite door to complete the seal
• Replace if cracked, broken, warped, or if the flipper won't fold or spring closed
• Common symptoms: door won't close smoothly, visible gap/light between doors, moisture or frost along the center seam
• Helps restore a proper air seal for consistent cooling performance

• Disconnect power and clear door bins before servicing
• Open the door; release the upper and lower retainers and lift the old mullion off its hinge points
• Position the new mullion, secure the retainers, and verify it pivots and seals correctly
• Check door alignment and gasket contact along the center seam

This refrigerator door flipper mullion is the folding center rail that bridges the gap between the doors. It helps complete the door seal and reduces condensation along the center for better temperature retention.

• Bridges the gap between doors to complete the center seal and improve efficiency
• Folds out of the way when a door opens; flips into place as the doors close
• Helps limit moisture/sweating at the middle of the refrigerator
• Replaces a cracked, loose, or broken mullion that causes air leaks, doors popping open, or poor sealing

• Disconnect power before servicing; remove door bins for access
• Remove mounting screws; lift off the assembly and disconnect the harness if equipped
• Transfer any end caps/brackets; ensure spring orientation and proper wire routing during reassembly
• After installation, verify smooth flipping action and a continuous gasket seal down the center

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Door Closure is an OEM part for Whirlpool refrigerators. It is a critical component responsible for ensuring the proper sealing and closure of the refrigerator door, maintaining the desired temperature and preventing air leaks.

A faulty or worn door closure can lead to issues such as inadequate cooling, increased energy consumption, and potential food spoilage. Causes of a bad door closure may include normal wear and tear over time, physical damage from impact or mishandling, or compatibility issues with the specific refrigerator model.

Symptoms of a faulty Door Closure include:

• Air leaks around the door seal, causing cooling inefficiency
• Difficulty in opening or closing the refrigerator door
• The door not sealing tightly or feeling loose when closed
• Visible cracks, breaks, or damage to the door closure mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This door stop limits the door's travel to its intended range, helping prevent overextension that can stress hinges or damage adjacent cabinetry. Replacing a worn or broken stop restores smooth, controlled door operation.

• Limits door opening/closing travel to protect hinges and alignment
• Helps maintain proper seal and fit by preventing overextension
• Replaces cracked, worn, or missing stop that allows excess movement
• Typical symptoms include door opening too far, a hard "clunk" at full travel, or visible damage to the stop

• Disconnect power; also shut off the water supply
• Support the door while servicing the hinge/stop to avoid strain
• Note the original orientation and transfer/secure fasteners firmly
• Open/close the door slowly to ensure smooth movement and proper stop action

This left door bushing supports a refrigerator/freezer door hinge for smooth, stable operation and helps prevent wear and noise. It restores proper door movement and alignment when the original bushing is worn or damaged. What it does:

• Guides and cushions the door hinge to reduce friction and wear
• Helps stop door binding, sticking, or misalignment
• Reduces squeaks and rattles from a loose or worn hinge area
• Maintains consistent door pivot for reliable opening and closing

• Disconnect power to the appliance before attempting any repair.
• Access may require removing the door or hinge trim; follow manufacturer instructions.
• Inspect hinge and surrounding parts for wear; replace any damaged hardware for best results.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Color: White

Color: Black

Color: Stainless

This mat cushions and protects the appliance base to reduce vibration and help contain small drips or leaks during operation. It's a simple, durable replacement that restores the original fit and helps keep the floor and appliance stable. What it does:

• Dampens movement and vibration to reduce noise and shifting during cycles
• Helps catch minor drips or condensed water beneath the unit
• Restores original cushioning where a worn or missing mat allowed extra movement
• Simple passive part—no electrical or mechanical connections

• One replacement mat as shown

• Place mat under appliance base on a clean, level surface; verify orientation per base shape
• For safety, disconnect power (and water if applicable) before moving the appliance
• Use caution when sliding the appliance to avoid floor damage; get a second person for heavy units
• If ongoing vibration or leaks persist, inspect mounts, leveling legs, and seals for additional repair

This replacement mat is a simple protective liner that helps keep the appliance base area clean and cushions the surface beneath the unit. It preserves finishes and helps contain minor spills and debris for easier cleanup. What it does:

• Provides a washable surface that catches drips, crumbs, and loose debris
• Helps protect cabinet or floor finishes from spills and scuffs
• Reduces direct contact between appliance base and underlying surface
• Can make cleanup faster by containing messes in one removable piece

• Remove old mat and clean the area before installing the new mat
• Position the mat flat and centered under the appliance or in the designated compartment
• Do not place the mat over vents, heating elements, or controls
• Lift or slide gently to avoid shifting the mat; follow all appliance safety and disconnect procedures before servicing
