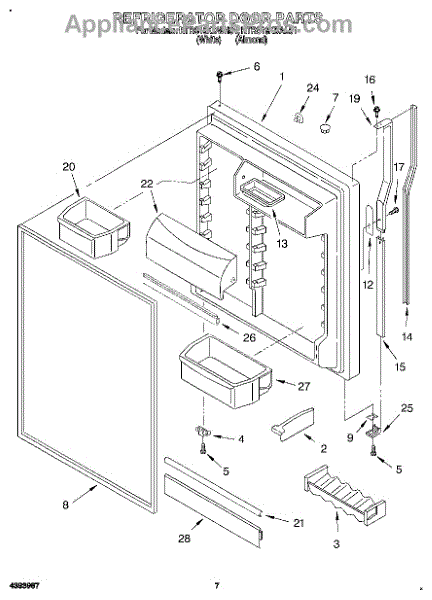

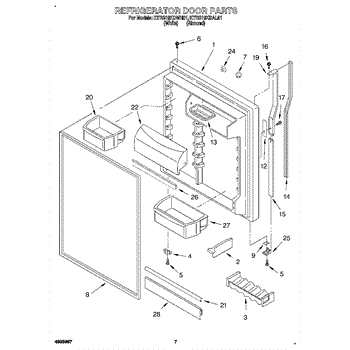

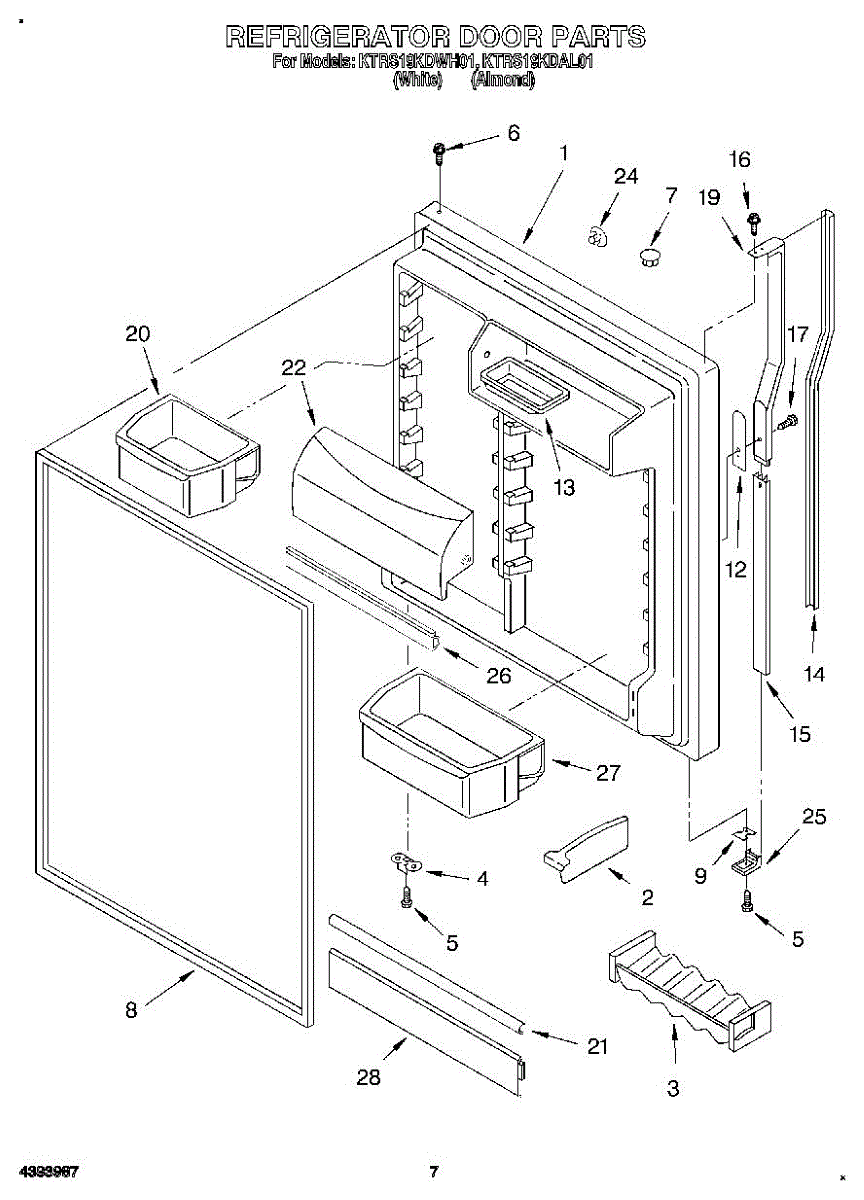

Parts for Kitchenaid KTRS19KDAL01: 04 - Refrigerator Door Parts

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and other components in your appliance so they stay tight and properly aligned. Use it to replace missing, stripped, or rusted hardware and eliminate looseness, rattles, or gaps.

• Fastens parts to the cabinet/frame to maintain structural integrity
• Helps keep panels and assemblies aligned to reduce vibration and noise
• Replaces missing, damaged, or corroded screws during service
• Common fix for loose panels or components that no longer hold securely

• Disconnect power and shut off water or gas before servicing
• Match length and thread to the original screw for proper fit
• Hand-start threads to avoid cross-threading; tighten only until snug—do not overtighten
• Tighten them evenly to ensure proper alignment

This replacement screw secures panels, brackets, or trim within your appliance. Replacing a worn, stripped, or missing screw restores a tight, rattle-free fit so components stay aligned and operate as intended. What it does:

• Fastens components at the original factory locations specified for this part
• Replaces missing, damaged, or stripped screws to restore holding power
• Helps reduce vibration and rattling from loose parts
• Maintains proper alignment of panels, covers, brackets, and trim

• Disconnect power (and gas, if applicable) before servicing
• Match to the original screw and install in the same location and orientation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver or nut-driver; transfer any washers or spacers from the original hardware if present

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Fresh food door gasket is an OEM component for Whirlpool refrigerators. As the main door seal, this rubber gasket works to prevent air and moisture exchange between the refrigerator interior and exterior. It plays a crucial role in maintaining optimal freshness levels.

Causes of a bad fresh food door gasket include cracks, tears, or compressed sections that no longer form an airtight seal. Prolonged use of 10+ years can cause rubber to break down. Entering/closing the door carelessly could damage the gasket over time as well.

Symptoms of a bad fresh food door gasket include:

• Frozen items thawing in the fridge shelves
• Increased moisture inside causing ice/fog buildup
• Higher electricity bills from inefficient cooling
• Warm air entering when opening the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This sheet-metal screw secures appliance panels, brackets, and components to the cabinet. Replacing a missing or stripped fastener restores a tight, rattle-free fit and helps keep assemblies aligned for reliable operation.

• Fastens sheet-metal parts to the chassis or support brackets
• Replaces stripped, corroded, or lost screws to restore proper hold
• Helps reduce vibration and noise from loose panels
• Maintains alignment of covers, ducts, or trim

• Disconnect power to the appliance; shut off water or gas if applicable.
• Match this screw to the original location and length.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• If the original hole is damaged, repair or replace the mounting point before installing.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Door Shelf Retainer Bar is an OEM replacement part for Whirlpool refrigerators. It secures interior door shelves securely in place during operation.

Causes of a faulty retainer bar include stress cracks or fractures from repeated door opening/closing over time.

Symptoms of a bad retainer bar include:

• Shelves detaching from the refrigerator door
• Items falling or spilling due to unstable shelves
• Exposed sharp edges posing a safety hazard

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White.

The Door Shelf Retainer Bar is an OEM replacement part for Whirlpool refrigerators. It secures interior door shelves securely in place during operation.

Causes of a faulty retainer bar include stress cracks or fractures from repeated door opening/closing over time.

Symptoms of a bad retainer bar include:

• Shelves detaching from the refrigerator door
• Items falling or spilling due to unstable shelves
• Exposed sharp edges posing a safety hazard

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
