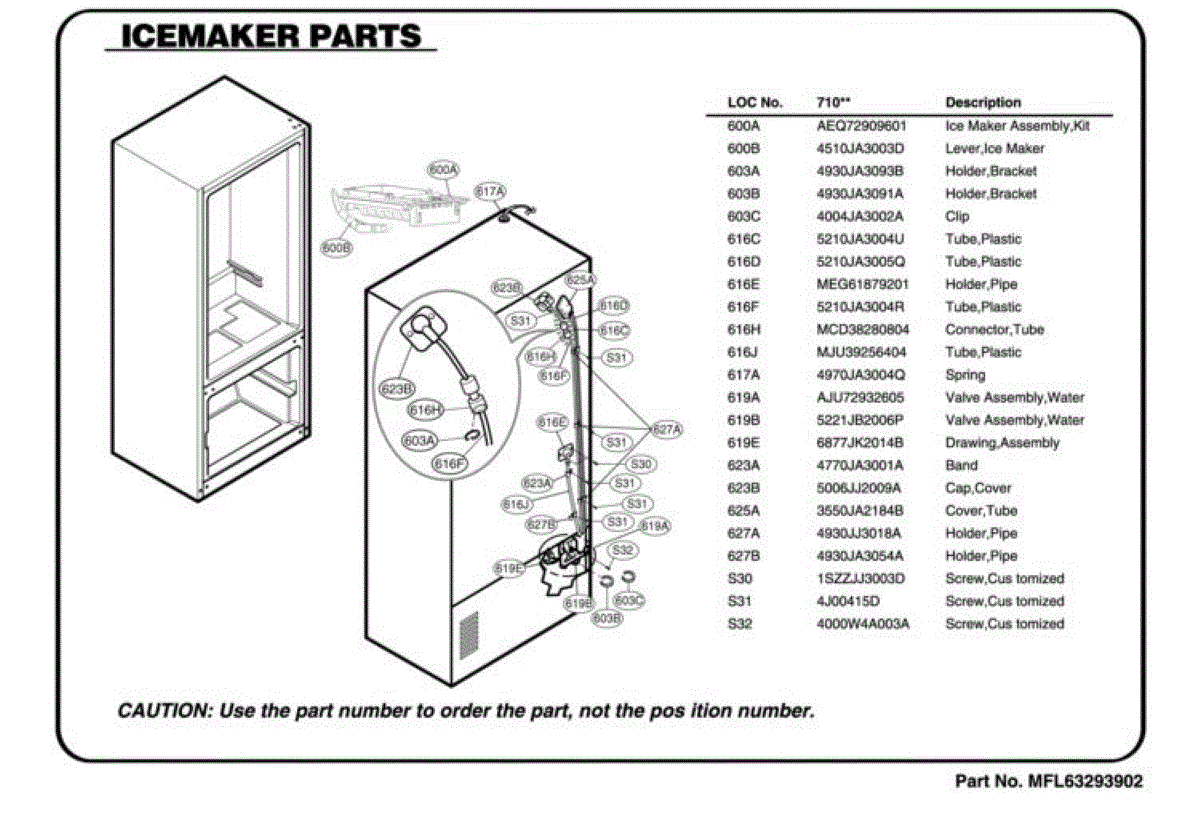

Parts for Lg 71013: Refrigerator Exploded View 1 Parts

Secures bracket assemblies inside your refrigerator to keep components aligned and reduce vibration. Replace if cracked, bent, or missing.

This replacement screw fastens appliance panels and components to maintain proper alignment and quiet operation. Use it to replace missing or worn screws that cause loose trim, rattling, or parts that won't stay secured. What it does:

• Secures panels, brackets, or trim to restore proper fit and reduce vibration noise
• Replaces missing or stripped screws that cause loose or wobbly components
• Helps maintain electrical and mechanical connections by keeping parts properly seated
• Small, discrete fastener commonly used in interior and exterior appliance assemblies

• Screw

• Disconnect power before accessing interior components to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Keep track of removed fasteners and replace like-for-like for proper fit

Plastic trim cap that snaps over exposed fasteners and mounting posts on your refrigerator. Replace if cracked, broken, missing, or discolored.

Secures internal components to prevent rattling and shifting. Replace if bracket is damaged, broken, or parts have become loose. Verify fit with model number.

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

Replacement screw for securing panels, brackets, and internal components. Restores tight fit and proper alignment when original hardware is stripped or missing.

Ice maker overflowing or not stopping? This shut-off arm lever controls ice production by sensing bin levels. Simple plug-and-play repair.

The Water Tube Connector is an OEM part for LG refrigerators. It is specifically designed to securely connect the water supply tubes in the refrigerator. The connector ensures a proper seal, preventing leaks and ensuring a consistent water supply to your refrigerator.

Causes of a bad water tube connector can include wear and tear over time, exposure to water pressure, or damage due to accidental impact or mishandling. These factors can result in leaks, water flow disruptions, or a loose connection, leading to issues with water dispensing or ice making.

Symptoms of a bad water tube connector may include:

• Water leaks at the connection point
• Reduced or intermittent water flow
• Complete water flow blockage

This OEM LG part can also be used on Kenmore/Sears appliances.

Secures and routes the water tube along the cabinet or door. Replace if cracked, broken, or missing to prevent kinks and keep tubing properly positioned.

Secures water supply line connections in your refrigerator. Replace if leaking, loose, or damaged to restore proper ice and water dispenser function.

Secures water tubing to prevent leaks and disconnections in your refrigerator's water line system. Replace if clip is broken, missing, or tubing moves freely. Confirm fit with your model number.

This is a polyethylene (PE) plastic tube with a 1/4" outer diameter used to carry water within the refrigerator, typically connecting the water inlet valve to the ice maker or water dispenser. It provides a flexible, food-safe pathway for water flow. Replace this tubing if you notice leaks, cracks, kinks, or reduced water flow to the ice maker or dispenser.

Ice maker stopped producing ice or cycles too slowly? This complete ice maker assembly replaces a faulty unit. DIY-friendly installation in 10-15 minutes.

The Water Line is an OEM part for LG refrigerators, designed to supply water to the ice maker and water dispenser. Made from durable materials to withstand water pressure and prevent leaks, this water line is essential for access to clean, filtered water at all times. Note: color of the water tube may be different from original. Tube is 5/16" diameter

Symptoms of a bad Water Line include:

• Leaking of water at the connection points or along the tubing.
• A noticeable decrease in water flow to the dispenser or ice maker.
• A bad taste or odor of the water and ice

Causes of failure can range from physical damage, such as kinks or punctures, to wear and tear over time leading to brittleness or weakening of the material. These issues can compromise the integrity of the water supply, affecting both the quality and safety of the water and ice provided by your refrigerator.

This OEM LG part can also be used on Kenmore/Sears appliances.
