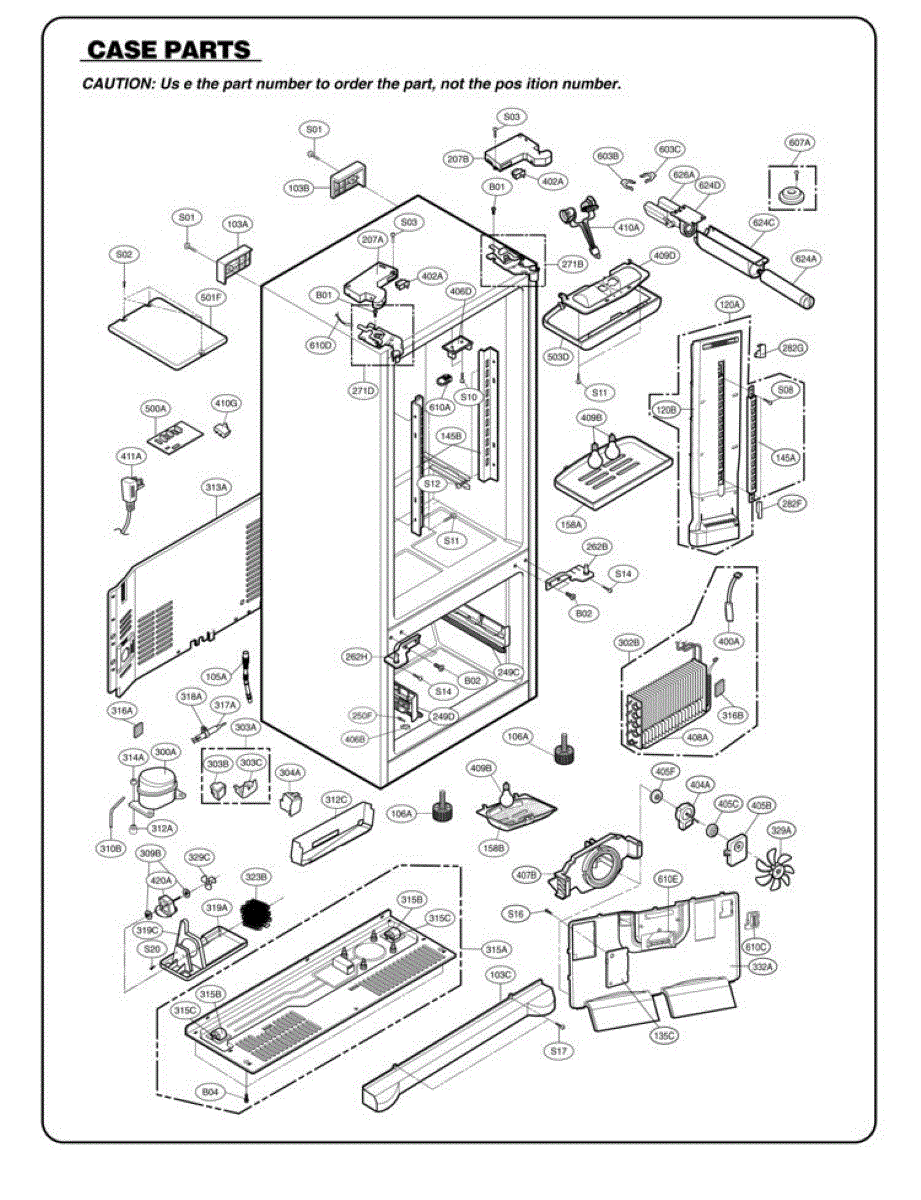

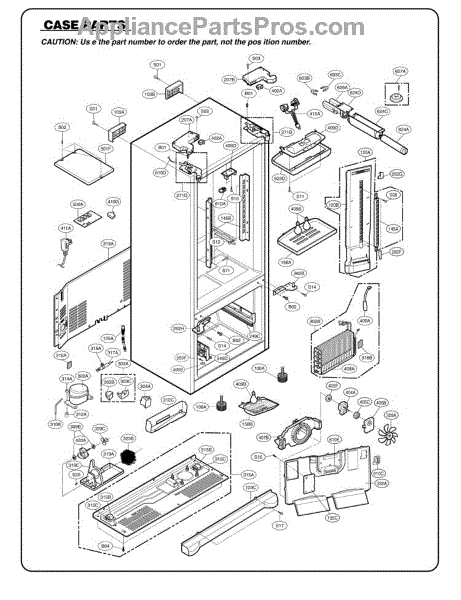

Parts for Lg 71013: Case Parts

Replacement mounting bolt for refrigerator components and assemblies. Needed when original fastener is missing, stripped, or damaged during service work.

Plastic cap that covers and seals the air duct in your refrigerator. Replace if cracked, broken, or missing to maintain proper airflow and appearance.

Refrigerator door bin holder rail secures bins to the door liner. Replace if cracked, broken, or missing to restore proper door storage functionality.

Protective cover for the PTC relay in your side-by-side refrigerator. Replace this cap if it's cracked, broken, or missing to protect the relay component.

Supports the center door on bottom-mount refrigerators. Replace if your hinge is cracked, worn, or broken to restore proper door alignment.

Protective cover assembly that shields the printed circuit board (PCB) in your refrigerator. Replace if cracked, broken, or missing to protect electronics.

Replace your refrigerator's fan grille cover if cracked, broken, or missing. This protective panel installs over the evaporator fan compartment.

Directs airflow between internal compartments in your refrigerator. Replace if cracked, broken, or missing to restore proper ventilation pathways.

The water filter cover 3550JD1128E attaches over the water filter and protects the water filter and head.

Refrigerator shelf holder rail that supports and guides removable shelves. Replace if cracked, broken, or worn to restore proper shelf positioning.

Wire harness assembly for bottom-mount refrigerators. Connects electrical components throughout the unit. Replace if wires are frayed, damaged, or corroded.

Secures panels, brackets, and internal components in your refrigerator. Replace this mounting screw if the original is missing, stripped, or damaged.

This noise damper reduces vibration and rattling sounds from refrigerant lines in your refrigerator. It cushions the copper tubing against the cabinet to prevent metal-on-metal contact that creates annoying noises. Install this damper if your refrigerator makes clicking, rattling, or vibrating sounds, especially when the compressor cycles on and off.

Replacement mounting bracket that secures internal components to the cabinet frame. Needed when original is cracked, bent, or broken, causing loose parts.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This is a rear end cap designed to attach to the refrigerator door handle, giving it a finished look and helping hold the handle securely in place. It snaps onto the end of the handle assembly. Replace this part if it is cracked, broken, or missing, which can make the handle feel wobbly or unstable during use.

Replacement mounting screw for refrigerators. Secures panels, shelves, or components inside your fridge. Order if original is stripped, missing, or lost.

This is a factory-style screw used to secure components and panels on compatible LG appliances. It restores proper fit and reduces movement where a missing or stripped screw causes parts to sit loose. What it does:

• Fastens panels, brackets, or trim to appliance chassis to restore secure attachment
• Stops rattling or vibration caused by loose or missing fasteners
• Helps maintain proper alignment of removable parts for safe operation
• Serves as a direct replacement when the original screw is lost or damaged

• Screw

• Use the matching screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent damage to threads or plastic parts
• Replace only with the specified OEM screw to ensure fit and function
• Disconnect power to the appliance before accessing internal components when applicable

Replacement mounting screw for refrigerator panels, trim, and components. Secures loose or missing fasteners to reduce vibration and keep parts in place.

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

Leveling leg for refrigerators. Installs at bottom corner to elevate and stabilize the appliance. Replace if broken, compressed, or no longer secure.

Fixes refrigerator not cooling or freezer not freezing. Complete compressor assembly includes relay and overload. Advanced repair requires technical skill.

Secures panels, brackets, and trim components inside your refrigerator. Replace this fastener if it's stripped, lost, or damaged to restore alignment.

This is a small retainer clip that secures the compressor in place at the base of the refrigerator. It helps prevent the compressor from shifting or vibrating excessively during operation. Replace this clip if your refrigerator produces unusual rattling or vibrating noises from the back, or if the compressor appears loose or has shifted from its mounting position.

Lower cover assembly protects the refrigerator's lower cabinet area from debris. Replace if cracked, broken, or missing to restore appearance.

Rattling or loose parts in your refrigerator? This retaining pin secures moving components and keeps them aligned for smooth, quiet operation.

Fix unresponsive refrigerator buttons with this momentary push-button switch. Restores reliable console control when buttons stop working. Simple repair.

Secures and guides your refrigerator door for smooth opening and closing. Replace if door sags, rubs, or won't seal properly. Confirm fit by model number.

This is a compressor start relay assembly that mounts onto the compressor and helps it start up properly. It provides the initial electrical boost needed to get the compressor running and then disengages once the compressor reaches operating speed. Replace this part if the refrigerator is not cooling, the compressor clicks on and off repeatedly, or you hear a buzzing sound coming from the back of the unit.

Replacement screw for securing panels, brackets, and internal components. Restores tight fit and proper alignment when original hardware is stripped or missing.

Mounts behind the interior light to direct and spread illumination. Replace if cracked, melted, warped, or missing to restore bright, even lighting.

Door hinge screws secure the refrigerator door hinges to the cabinet frame, allowing proper door operation and alignment. Replace when doors sag, don't close properly, or screws are loose, stripped, or missing causing door misalignment.

Vibration-isolating grommet that mounts between the compressor and chassis. Replace if cracked, worn, or missing to restore proper cushioning.

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

Fix frost buildup and uneven cooling in your refrigerator with this evaporator defrost heater. Melts ice from coils during defrost cycles. Moderate repair.

Fix a refrigerator not cooling properly with this compressor sealing pipe. Essential sealed system component for restoring proper refrigeration.

Right side upper hinge.

This is the condenser fan motor assembly located near the compressor at the back or bottom of the refrigerator. It draws air across the condenser coils to dissipate heat and keep the refrigeration system running efficiently. Replace this motor if the refrigerator is running warm, the compressor is overheating, or you no longer hear the fan running when the compressor is on.

Fix refrigerator not cooling properly or running constantly with a new drier assembly. Removes moisture from refrigerant. Requires EPA-certified technician.

Protects refrigerator light bulbs and sockets from moisture and impacts. Replace if cracked, melted from bulbs staying on, or discolored. Confirm fit.

The Refrigerator Light Lens is an OEM part for LG refrigerators. It serves as a protective cover for the interior lighting system, shielding the light bulbs or LEDs from dust, moisture, and accidental impacts. The lens measures about 14 inches wide by 5-1/2 inches deep.

Symptoms of a faulty light lens:

• Dim or flickering interior lights
• Light leaks or scattered light distribution
• Cracked, broken, or missing light lens
• Water or moisture buildup inside the light housing

Causes of a bad light lens can include physical damage from impact, exposure to extreme temperatures or moisture, or general wear and tear over time.

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

Plastic drain tube that channels defrost water from evaporator coils to drain pan. Replace if cracked, melted, broken, or causing water leaks in freezer.

Secures water supply line connections in your refrigerator. Replace if leaking, loose, or damaged to restore proper ice and water dispenser function.

Secures water tubing to prevent leaks and disconnections in your refrigerator's water line system. Replace if clip is broken, missing, or tubing moves freely. Confirm fit with your model number.

This run capacitor provides the continuous electrical boost needed to keep the refrigerator's compressor motor running efficiently. It stores and releases energy to maintain the proper phase and voltage for the compressor during normal operation. Replace this capacitor if the compressor struggles to start, hums without running, shuts off intermittently, or if the refrigerator stops cooling altogether.

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This is a rubber or elastomer damper that supports and isolates the evaporator fan motor inside the refrigerator. It absorbs vibration from the motor to reduce noise during normal operation. Replace this part if you hear excessive buzzing, rattling, or vibration coming from the freezer section, which often indicates the damper has hardened or deteriorated.

Freezer icing up or not defrosting? The defrost sensor monitors temperature during defrost cycles. DIY-friendly repair with basic tools in 30 minutes.

Reduces contaminants and odors from your refrigerator's water and ice supply. Replace every 6 months for optimal performance. Verify fit by model number.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

The Fan Motor is an OEM part for LG refrigerators. It is essential for circulating air throughout the refrigerator and freezer compartments, ensuring that the temperature is evenly distributed and maintained at the set levels. This motor powers the fan that helps to cool the evaporator coils and dissipate heat, which is vital for the appliance's cooling efficiency.

Symptoms of a failing Fan Motor include:

• The refrigerator not cooling adequately
• Unusual noises coming from the refrigerator, such as humming or buzzing
• Ice buildup in the freezer compartment due to poor air circulation
• The refrigerator cycling on and off more frequently

Causes of a bad fan motor can include wear and tear over time, obstructions in the fan blades, or electrical issues such as faulty wiring or a malfunctioning capacitor.

This OEM LG part is also compatible with Sears/Kenmore.

Plastic cover that protects the temperature sensor in your refrigerator. Replace if cracked, broken, or missing to properly shield the sensor component.

Interior light won't turn on when door opens? This refrigerator door switch signals when the door opens or closes. DIY-friendly repair, takes about 5 minutes.
