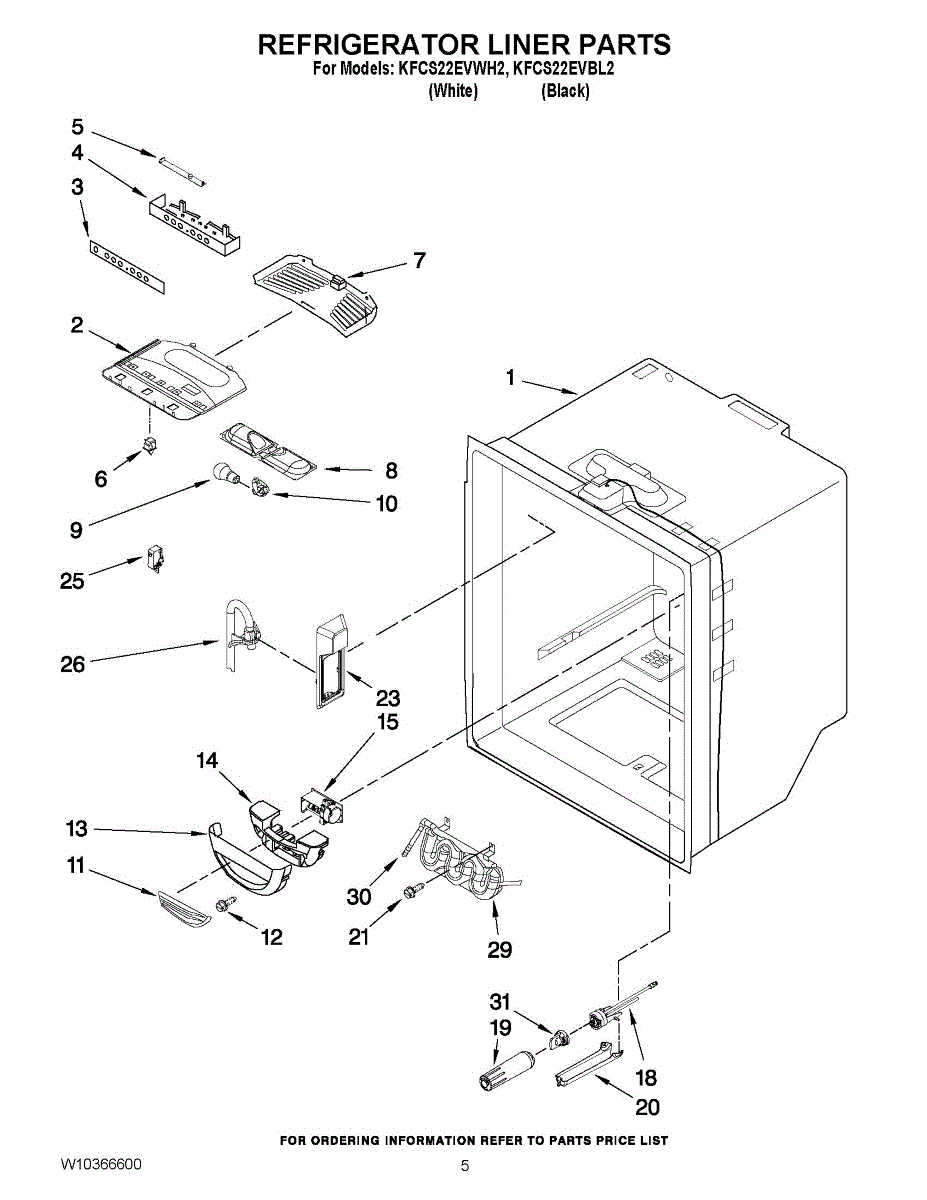

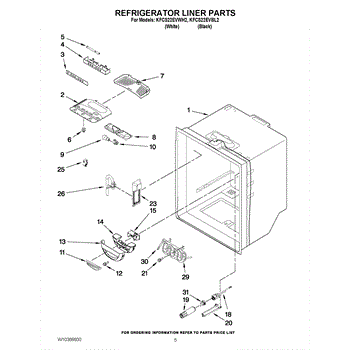

Parts for Kitchenaid KFCS22EVBL2: 03 - Refrigerator Liner Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This housing is the replacement outer tub housing that supports and secures the washer tub and related drive components for proper alignment and operation. Restores stable drum mounting and reduces abnormal motion. What it does:

• Supports the washer's tub/drum assembly so the drum spins smoothly and stays aligned
• Provides a mounting surface for suspension and drive components to reduce vibration and noise
• Helps prevent rubbing or scraping by keeping internal components correctly positioned
• Commonly replaced when the tub feels loose, spins unevenly, or makes unusual noises

• One housing

• Disconnect power to the appliance before beginning any repair
• Handle with care to avoid damaging seals, sensors, or surrounding trim pieces
• Verify correct orientation and torque for fasteners; follow OEM service manual steps

This user interface control board manages the oven's front-panel display and touch controls so you can select functions, set temperatures and start cycles. Replacing a failed UI board restores normal control and display feedback. What it does:

• Receives and processes inputs from the touchpad or buttons so selections start the correct cycles
• Drives the front-panel display and indicator lights for cycle status and settings
• Communicates commands to the main control to trigger heating and timing operations
• Fault symptom coverage: blank or unresponsive display, unresponsive touchpad/buttons, or incorrect front-panel behavior

• One user interface control board

• Disconnect power at the breaker before starting any repair to prevent shock
• Handle the board by edges and avoid touching components; observe anti-static precautions
• Verify connectors are fully seated but do not force; match connector shapes and pin counts

The Door Switch Assembly is an OEM replacement part for Whirlpool refrigerators. It is responsible for turning the light on when you open the refrigerator door and turning it off when the door is closed. It ensures that the light functions properly, allowing you to easily locate and retrieve items from your refrigerator.

Symptoms of a faulty door light switch include:

• Interior light not turning on when the door is opened
• Interior light staying on even when the door is closed

A bad door light switch can occur due to regular use, wear and tear, or accidental damage. If you notice issues such as the interior light not turning on or off when you open or close the door, it may be time to replace the door light switch.

This Whirlpool replacement part is also compatible with Sears/Kenmore models.


This replacement cover restores a finished look and protects underlying components on your appliance. Replacing a cracked or missing cover helps keep out debris and moisture while maintaining proper function and appearance. What it does:

• Shields internal parts from dust, splashes, and accidental contact
• Helps maintain intended airflow/water routing depending on location
• Secures the opening or mechanism for a snug, rattle-free fit
• Typical symptoms: cracked, warped, loose, or missing cover; exposed components; new rattling or vibration noises

• Disconnect power; shut off water supply before servicing
• Note orientation and any clips/gaskets before removal; transfer reusable hardware
• Reinstall with original screws/clips; do not overtighten to avoid cracking
• Restore power and test; check for proper fit and any leaks or vibration

This replacement housing is the outer cabinet component that supports and protects internal appliance parts, restoring proper alignment and preventing debris intrusion. It's a direct-fit service piece when the original housing is cracked, bent, or damaged. What it does:

• Replaces a damaged or cracked outer housing to restore structural support
• Protects internal components from dirt, moisture, and impact
• Reduces vibration and rattling caused by warped or broken housing
• Helps maintain correct alignment of internal assemblies for reliable operation

• One replacement housing

• Disconnect power (and water if applicable) before starting any repair
• Handle edges carefully — use gloves to protect against sharp metal or plastic
• Follow OEM instructions for removal and reassembly; fasteners and trim may be required

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This damper cover insert fits the refrigerator's air damper/diffuser. It helps guide and seal airflow from the freezer to the fresh food section, supporting stable temperatures and reducing drafts when the original insert is cracked or missing.

• Seats inside the damper cover to shape and restrict airflow between freezer and refrigerator compartments
• Helps seal the vent opening to limit air leaks
• Supports proper temperature balance and airflow distribution in the fresh food section
• Typical symptoms include a broken/missing insert, air drafts at the vent, rattling from the cover, or inconsistent cooling

• Disconnect power to the refrigerator before servicing
• Remove shelves as needed and access the damper cover in the fresh food compartment
• Release and remove the damaged insert; snap the new insert into the cover with correct orientation and a secure fit
• Handle nearby foam seals and the damper door carefully to avoid damage

This base damper cove is the plastic cover that protects and supports the refrigerator damper assembly, keeping airflow components secure and helping maintain proper internal airflow. Replacing a damaged cove prevents loose parts and air leaks. What it does:

• Protects the damper assembly and related components from debris and damage
• Helps maintain proper airflow routing between compartments
• Reduces rattling or vibration from a loose or broken damper cover
• Can prevent cold-air leaks that contribute to uneven cooling

• One base damper cove

• Disconnect power to the appliance before beginning any service
• Remove the kickplate or access panel to reach the damper area as required
• Handle plastic pieces gently to avoid cracking; use proper fasteners if provided

This insulation panel helps reduce heat transfer in the refrigerator cabinet so the appliance holds cold temperatures more efficiently and reduces frost buildup. It's a direct-fit replacement for the factory cabinet insulation. What it does:

• Slows thermal transfer between the cabinet and ambient air to help maintain interior temperatures
• Helps reduce frost buildup on evaporator and interior surfaces
• Improves cooling efficiency by minimizing cold-air loss
• Quietly adds a layer of thermal and acoustic insulation behind the liner

• Disconnect power and remove food before starting any repair
• Access requires removing the interior liner or trim
• Handle gently and wear gloves; insulation can tear or shed fibers
• Follow OEM instructions for adhesive or fastener placement and secure fit

The Damper Control Assembly is an OEM part for Whirlpool refrigerators. It regulates the airflow between the refrigerator and freezer compartments, maintaining optimal temperatures and ensuring efficient cooling. This assembly helps control the amount of cold air that enters the refrigerator section from the freezer.

Causes of a bad damper control assembly can include wear and tear over time, damage from temperature fluctuations, or malfunctioning electronic components.

Symptoms of a bad damper control assembly include:

• Inconsistent temperatures in the refrigerator
• Freezer being too cold while the refrigerator is too warm
• Frost buildup in the refrigerator compartment
• Unusual noises coming from the damper area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool Refrigerator Water Filter Head is an OEM part for Whirlpool refrigerators. It serves as the connection point for the water filter, allowing clean, filtered water to flow to your refrigerator's dispenser and ice maker. This part ensures that your refrigerator delivers fresh and safe drinking water.

Causes of a bad water filter head can include wear and tear over time, mineral buildup from hard water, or damage due to improper installation or mishandling.

Symptoms of a bad water filter head include:

• Water leaks around the filter area
• Decreased water flow from the dispenser
• Ice maker not producing ice
• The filter not locking into place correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Water Filter Cover is an OEM part for Whirlpool refrigerators. This cover encases and protects the water filter, ensuring it remains secure and clean while also blending seamlessly with the refrigerator's interior design.

You should replace the water filter cover if it becomes damaged or fails to secure the filter properly. Common causes of a bad water filter cover include physical damage from accidental impact, wear and tear from regular use, or warping due to temperature fluctuations.

Symptoms of a bad water filter cover include:

• Cracks or visible damage to the cover
• Difficulty securing the water filter
• The cover not fitting properly or coming loose
• Leaks around the water filter area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This replacement cover shields and finishes a designated area of your appliance, protecting internal components from dust, moisture, and accidental contact. Replace a cracked or missing cover to maintain proper operation and a clean, finished look.

• Protects internal parts from debris and moisture intrusion
• Restores intended airflow/containment and component protection
• Helps reduce rattles or vibration from loose or broken trim
• Common signs it's needed: cracks, broken tabs, loose fit, or exposed components

• Disconnect power; also shut off water supply
• Retain and reuse original screws/clips unless your model specifies otherwise
• Align tabs and mounting holes carefully to avoid stress on plastic
• Do not overtighten fasteners; snug by hand to prevent cracking

This limit switch is a temperature safety device that opens the circuit if heat rises too high. Replacing a weak or failed switch restores proper overheat protection and can resolve nuisance shutdowns or no-heat conditions due to an open safety. What it does:

• Monitors temperature at its mounting location
• Opens the electrical circuit at a preset over-temperature to stop heating or operation
• Helps protect internal components and wiring from heat damage
• Common symptoms include: won't heat, shuts off during use, or no power after an overheat event

• 1 limit switch

• Disconnect power (and gas, if applicable) before servicing
• Access the switch, note wire positions, and transfer wires one at a time
• Mount the switch flat and firmly against the original sensing surface or bracket
• After replacement, check for root causes of overheating (blocked airflow, failed fan, dirty filters, shorted element)

The Water Line Union is an OEM part for Whirlpool refrigerators. It connects sections of the water line, ensuring a secure and leak-proof connection that facilitates the proper flow of water to the ice maker and water dispenser.

Causes of a bad water line union can include wear and tear from prolonged use, exposure to fluctuating temperatures, or physical damage from handling.

Symptoms of a bad water line union include:

• Leaks or water pooling around the refrigerator
• Reduced water flow to the dispenser or ice maker
• Water line disconnections
• Visible cracks or damage on the union

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Cartridge Bypass is an OEM part for Whirlpool refrigerators. It is designed to replace the water filter cartridge when filtration is not desired or necessary. This allows the refrigerator to bypass the filter and provide unfiltered water to the dispenser and ice maker.

Common causes of failure include wear and tear, improper installation, or physical damage from mishandling.

Symptoms of a bad Cartridge Bypass include:

• Water leakage around the filter area
• Reduced water flow or no water flow from the dispenser
• Ice maker not producing ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wire harness connects the refrigerator's control board to sensors and components, restoring electrical communication for normal operation. It replaces a damaged or burnt harness to help resolve control errors and intermittent power to fridge systems. What it does

• Transfers signals and power between the main control board and subsystems like sensors, lights, and fans
• Commonly used to correct intermittent operation, error codes related to control communication, or visible wiring damage
• Helps restore consistent electrical connections when pins or wires are frayed, melted, or corroded
• Designed to match OEM connector layouts so plugs seat securely and maintain correct wiring order

• One replacement wire harness (single assembly as shown)

• Disconnect power to the appliance before beginning any repair to avoid shock or damage
• Verify connector orientation and seating; match wire colors and pin positions during replacement
• Handle connectors by the housings, not the wires; use proper tools to release locking tabs if needed
