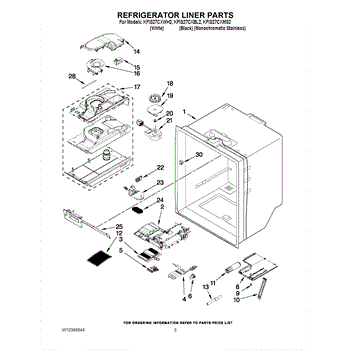

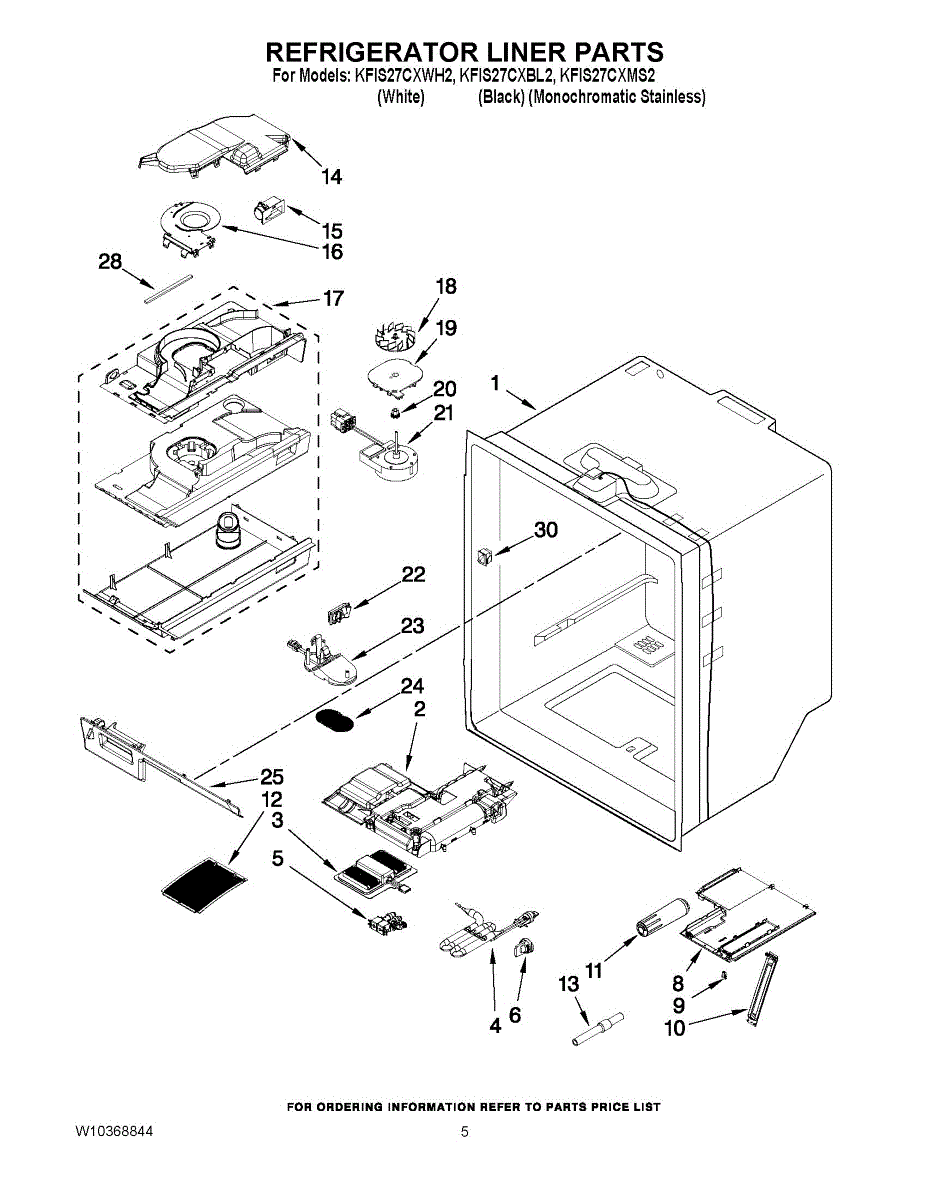

Parts for Kitchenaid KFIS27CXMS2: 03 - Refrigerator Liner Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This electronic control board is the appliance's central command module, managing power and timing to motors, valves, heaters, and sensors. Replacing a failed board restores consistent operation and responsive controls when the original becomes intermittent or unresponsive.

• Directs and times appliance operations based on user selections and sensor feedback
• Switches power to loads via relays/triacs to run motors, valves, heaters, and fans
• Monitors inputs and stores fault data; may trigger error codes or indicator lights
• Typical failure signs: won't start or run, dead/blank display, unresponsive controls, stops mid-cycle, random beeping/error codes

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Use ESD protection and handle the board by its edges to avoid static damage
• Photograph wiring and transfer connectors one at a time; ensure all locks are fully seated
• Follow the model's tech sheet/service manual for any required setup, diagnostics, or calibration after installation

This water tank reservoir replaces the fridge's internal reservoir that stores and supplies water for the dispenser/ice system. Restores proper water delivery and helps prevent leaks from a cracked or damaged tank. What it does:

• Holds and delivers water to the dispenser and ice-making system.
• Stops or reduces leaks when the original reservoir is cracked or damaged.
• Helps restore normal water flow when the reservoir has developed internal damage or failure.
• Can improve dispenser reliability when the original reservoir is malfunctioning.

• Disconnect power and shut off the water supply before beginning service.
• Wear gloves and handle the reservoir carefully to avoid damage; inspect and reuse or replace any gaskets or clamps as needed.
• Follow factory disassembly steps for accessing the reservoir; some panels or components may need removal.
• After installation, restore water and power, check for leaks, and run the dispenser briefly to purge air.

This dual water inlet valve controls the refrigerator's incoming water supply, directing flow to the ice maker and/or dispenser as needed. Replacing a worn or clogged valve restores proper filling, reliable shutoff, and consistent water/ice performance.

• Regulates water from the household supply into the refrigerator
• Opens/closes electronically to feed the ice maker and/or water dispenser
• Helps prevent continual dripping or overfilling by sealing when closed
• Common symptoms: no water from dispenser, no ice production, slow flow, or leaking at the valve area
• May also address humming/energized valve with no fill due to internal blockage

• Unplug refrigerator and shut off the water supply before starting
• Place a towel or pan to catch residual water when disconnecting lines
• Label/transfer tubing and wire connectors to the matching ports on the new valve
• After installation, restore power/water, check for leaks, and purge air by dispensing water

The Cartridge Bypass is an OEM part for Whirlpool refrigerators. It is designed to replace the water filter cartridge when filtration is not desired or necessary. This allows the refrigerator to bypass the filter and provide unfiltered water to the dispenser and ice maker.

Common causes of failure include wear and tear, improper installation, or physical damage from mishandling.

Symptoms of a bad Cartridge Bypass include:

• Water leakage around the filter area
• Reduced water flow or no water flow from the dispenser
• Ice maker not producing ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small, spring-action push latch mounts in trim or liner to secure a flip-down compartment door or cover. Replacing a worn latch restores a positive close and smooth push-to-open operation to the affected door or panel.

• Provides the push-to-latch/push-to-release catch for a small door or cover
• Helps prevent nuisance pop-opens and rattling
• Common symptoms: door/cover won't stay shut, latch feels loose, cracked or missing latch
• Restores proper engagement and closing feel

• Disconnect power to the appliance before starting
• Open the compartment; depress retaining tabs or gently pry the old latch straight out
• Match orientation and snap the new latch fully into the opening
• Test operation: close to latch, press to release

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This electronic damper control assembly operates the oven vent/damper to regulate airflow and exhaust during cooking, helping maintain proper oven temperature and venting. Replaces a failed damper actuator so the vent opens and closes as intended. What it does:

• Moves the oven vent/damper to control exhaust flow during bake and cool-down cycles
• Helps maintain consistent oven temperature by opening or closing the vent
• Stops or reduces vent-related symptoms like a stuck-open or stuck-closed vent
• Resolves issues such as unusual vent noises or improper venting during/after use

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the oven control panel or rear access panel; keep track of fasteners
• Handle carefully to avoid damaging the actuator gear or electrical connector

This blower wheel moves air through the appliance's ventilation system so clothes dry evenly and components stay cool. It restores proper airflow to improve drying performance and reduce overheating risk. What it does:

• Spins to circulate air through the drum and exhaust vent for efficient drying
• Replaces a damaged or broken wheel that can cause reduced airflow and long dry times
• Stops abnormal noises from a cracked or out-of-balance impeller
• Helps prevent overheating caused by restricted or insufficient airflow

• Disconnect power (and gas, if applicable) before beginning any repair
• Inspect the mounting shaft, housing, and fasteners; replace any damaged hardware
• Ensure correct wheel orientation and secure fit to avoid vibration or rubbing

This grommet isolates the refrigerator's fan motor from its mounting bracket to reduce vibration and noise while keeping the motor secure. Replacing worn or missing grommets helps stop rattles and prevents the fan blade from rubbing.

• Cushions the fan motor to maintain proper alignment and clearance
• Absorbs vibration to help reduce humming, buzzing, or rattling sounds
• Helps keep the motor stable so the blade doesn't contact the shroud
• Common signs of failure include excess vibration, noise, or a loose fan motor

• Disconnect power to the refrigerator before servicing
• Access the fan motor area (rear of unit or inside the freezer, depending on model) and support the motor
• Remove mounting hardware and seat the new grommet fully in the bracket/mount
• The fan blade spins freely with even clearance before reassembling and restoring power

Note: The Fan Motor with Harness also includes the Defrost Thermostat and Thermistor.

The Evaporator Fan Motor is an OEM part for Whirlpool refrigerators. This motor is responsible for circulating cold air throughout the refrigerator and freezer compartments, ensuring uniform temperature and efficient cooling. It helps maintain the desired temperature by moving air across the evaporator coils and distributing it evenly.

Causes of a bad evaporator fan motor can include electrical failures, worn-out bearings, or damage due to ice buildup. Regular wear and tear from continuous operation can also lead to motor failure over time.

Symptoms of a bad Evaporator Fan Motor include:

• The refrigerator or freezer not cooling properly
• Unusual noises coming from the fan area
• Frost buildup in the freezer compartment
• The fan not running when the refrigerator is on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electronic control module replaces the washer/dryer console's main control and restores cycle selection and electronic features. It manages appliance functions so settings respond correctly and cycles run as commanded. What it does:

• Controls cycle selection, timing and electronic user interface commands
• Interprets sensor inputs to start, advance or end cycles
• Restores normal electronic operation when failed module causes non-responsive controls
• Common symptom: appliance won't start, won't accept settings, or cycles stop unexpectedly

• One electronic control module

• Disconnect power (unplug or shut off breaker) before starting work
• Avoid static discharge; handle the board by its edges and wear anti-static protection if available
• Verify replacement part number matches the original module before installing

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
