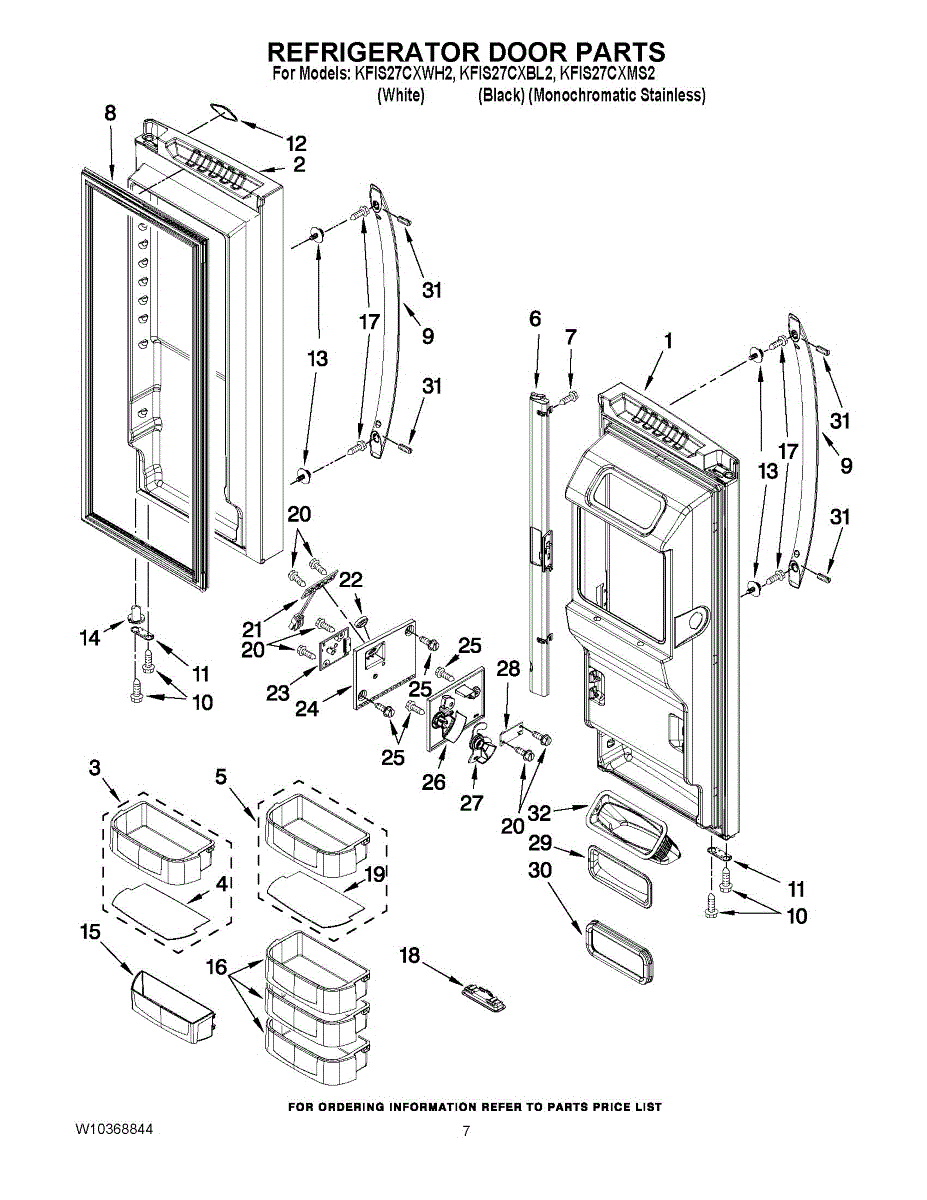

Parts for Kitchenaid KFIS27CXMS2: 04 - Refrigerator Door Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This vertical mullion assembly is the interior trim piece that finishes and seals the refrigerator door edge, helping direct airflow and improve the door seal. It replaces worn or cracked mullion trim to restore fit and appearance. What it does:

• Provides the finished vertical trim on the refrigerator door edge and helps maintain an even door seal
• Channels cold air and helps reduce drafts that can cause temperature fluctuations
• Hides and protects the door edge and mounting hardware from wear and damage
• Restores proper door alignment where a damaged mullion causes poor sealing or visible gaps

• Disconnect power to the appliance before beginning any repair
• Remove door trim/panels per manufacturer instructions to access mullion; keep fasteners organized
• Align the mullion and engage all clips/tabs before re-securing screws or trim pieces
• If the door gasket or mounting clips are damaged, inspect and replace as needed for a complete seal

The Mullion Rail is an OEM part for Bosch refrigerators. This part maintains an effective seal on the refrigerator door, helping to keep cold air inside and ensuring energy efficiency. The mullion rail folds when the door is opened and extends to create a tight seal when the door is closed, preventing air leakage and maintaining consistent internal temperatures.

Causes of a bad Mullion Rail can include wear and tear from frequent use, mechanical damage from forceful handling of the refrigerator door, or degradation of the rubber seals that can compromise its effectiveness.

Symptoms of a failing Mullion Rail include:

• Difficulty in closing the refrigerator door fully.
• Noticeable gaps or looseness around the door seal area.
• Increased condensation or frost buildup near the door edges.
• Escaping cold air from the refrigerator, leading to increased energy usage.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Restore a tight, even seal between your refrigerator's doors. This vertical mullion assembly flips into place to cover the center gap, helping maintain proper temperatures and reduce condensation.

• Bridges the gap between doors to create a continuous sealing surface
• Helps keep cold air in and warm air out for consistent cooling
• Aids proper door alignment and smooth closing
• Common symptoms of a failed mullion: broken or wobbly flipper, doors not closing fully or popping open, moisture/icing at the center, warming in the fresh food section

• Disconnect power before servicing and open the doors
• With the door open, release the retaining screws or tabs and lift the old mullion off the upper and lower pivots
• Position the new assembly on the pivots, secure it, and verify the flipper moves freely and seals evenly against the opposite door
• Restore power and recheck door operation and gasket contact along the full height

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Color: Black

The Door Gasket is an OEM replacement part for Whirlpool side-by-side refrigerators. This black gasket provides a critical moisture and air seal around the refrigerator and freezer door openings.

Causes of failure may involve cracking or degradation from mechanical stresses or chemical exposure over years of use. Temperature fluctuations can also damage sealing integrity.

Symptoms of a defective door gasket include:

• Excessive frost or moisture buildup inside refrigerator sections
• Higher energy bills from inefficient sealing and cooling loss
• Warm air infiltration impacting optimum storage conditions

This gasket it compatible with additional brands like KitchenAid and Roper.

Color: White

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This gasket forms a seal around the refrigerator door, ensuring that the cool air stays inside and the warm air stays out. It plays a critical role in maintaining the efficiency and performance of the refrigerator by preventing energy loss.

Over time, door gaskets can wear out, become brittle, or develop cracks and tears. Causes of a bad door gasket include regular wear and tear, exposure to extreme temperatures, or improper cleaning methods that degrade the material.

Symptoms of a bad door gasket include:

• Warm spots inside the refrigerator
• Excess condensation or frost buildup
• The door not sealing properly
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Gasket is an OEM part for Whirlpool refrigerators. It forms a tight seal around the refrigerator door, preventing warm air from entering and cold air from escaping, thus maintaining the optimal internal temperature.

Over time, the door gasket can wear out or become damaged, leading to leaks that compromise the refrigerator's efficiency. Causes of a bad door gasket include normal wear and tear, frequent door openings, exposure to extreme temperatures, or physical damage such as cuts or tears.

Symptoms of a bad door gasket include:

• Condensation or frost buildup inside the refrigerator
• Increased energy consumption
• Warm spots inside the refrigerator
• The door not closing properly or sealing tightly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This black replacement handle restores a solid, comfortable grip for opening and closing your appliance's door or drawer. Replace a cracked or loose handle to improve safety and refresh the look of the unit.

• Provides the handhold needed to open and close the door or drawer
• Direct replacement for cracked, broken, or wobbly handles
• Helps resolve difficulty opening caused by a missing or damaged handle
• Restores a clean, factory look

• Disconnect power before servicing
• Access the handle's mounting screws from the inside of the door/drawer; remove screws, swap the handle, and reinstall
• Support the door/drawer while loosening/tightening fasteners
• Do not overtighten; verify smooth operation after installation

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This door stop limits the door's travel to its intended range, helping prevent overextension that can stress hinges or damage adjacent cabinetry. Replacing a worn or broken stop restores smooth, controlled door operation.

• Limits door opening/closing travel to protect hinges and alignment
• Helps maintain proper seal and fit by preventing overextension
• Replaces cracked, worn, or missing stop that allows excess movement
• Typical symptoms include door opening too far, a hard "clunk" at full travel, or visible damage to the stop

• Disconnect power; also shut off the water supply
• Support the door while servicing the hinge/stop to avoid strain
• Note the original orientation and transfer/secure fasteners firmly
• Open/close the door slowly to ensure smooth movement and proper stop action

Color: White

Color: Black

Color: Stainless

The Threaded Handle Anchor is an OEM part for Whirlpool refrigerators. This component is essential for securely attaching the refrigerator door handle to the door, ensuring that it remains firmly in place during regular use. The anchor fits into the door and provides a threaded connection point for the handle screws, offering stability and ease of use.

Common causes of a bad threaded handle anchor include wear and tear from frequent use, cross-threading during installation, or physical damage from excessive force or impact.

Symptoms of a bad threaded handle anchor include:

• The refrigerator door handle feeling loose or unstable
• Difficulty securing the handle to the door
• The handle detaching from the door
• Visible damage or stripping on the anchor threads

This OEM part is also compatible with some Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Door Closure is an OEM part for Whirlpool refrigerators. It is a critical component responsible for ensuring the proper sealing and closure of the refrigerator door, maintaining the desired temperature and preventing air leaks.

A faulty or worn door closure can lead to issues such as inadequate cooling, increased energy consumption, and potential food spoilage. Causes of a bad door closure may include normal wear and tear over time, physical damage from impact or mishandling, or compatibility issues with the specific refrigerator model.

Symptoms of a faulty Door Closure include:

• Air leaks around the door seal, causing cooling inefficiency
• Difficulty in opening or closing the refrigerator door
• The door not sealing tightly or feeling loose when closed
• Visible cracks, breaks, or damage to the door closure mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Door Closer is an OEM part for Whirlpool refrigerators. This component ensures that the refrigerator door closes smoothly and securely, maintaining the seal that keeps cold air inside and warm air out. The door closer helps to prevent the door from remaining ajar, which can lead to increased energy consumption and reduced cooling efficiency.

Causes of a bad door closer can include regular wear and tear, physical damage from repeated use, or misalignment. A malfunctioning door closer can result in the refrigerator door not closing properly, leading to cooling issues and higher energy bills.

Symptoms of a bad door closer include:

• The refrigerator door not closing or sealing properly
• The door not staying closed
• Warm air entering the refrigerator, causing the interior temperature to rise
• Increased energy consumption due to the door not sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

6 - 19 x .250

This LED ice maker light assembly replaces the small lamp that illuminates the ice bin so you can see ice when accessing the dispenser or ice compartment. It restores interior illumination and improves visibility. What it does

• Provides focused LED illumination for the ice bin or ice dispenser area.
• Replaces a burnt-out or flickering lamp to restore steady, bright light.
• Helps identify ice levels and clean/maintain the ice compartment more easily.
• Fits into the factory light housing and connects to the refrigerator's lighting circuit.

• One LED ice maker light assembly.

• Disconnect power to the appliance before beginning work to avoid electrical shock.
• Typical access requires opening the freezer/ice compartment and removing the light cover or trim.
• Handle the assembly carefully; avoid contact with LED lens to prevent damage.

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. This board manages the ice maker’s production by monitoring the ice level in the ice bin, ensuring that ice is made when needed and halting production when the bin is full.

Causes of a bad ice level control board can include electrical issues such as power surges, wear and tear over time, or damage from moisture or debris.

Symptoms of a bad ice level control board include:

• The ice maker not producing ice
• Continuous ice production even when the bin is full
• Error codes related to the ice maker
• Irregular or inconsistent ice production

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This headless, cup-point set screw secures a component to a shaft or hub inside your appliance. The 1/4-28 x 3/8 in size bites into the mating surface to prevent slipping, helping keep collars, pulleys, or knobs aligned and stable.

• Locks a hub, collar, or pulley to a shaft to prevent movement
• Helps maintain alignment and reduce wobble or vibration
• Replaces missing, stripped, or damaged set screws
• Common signs include components slipping on a shaft, rattling noises, or recurring loosening

• Disconnect power before servicing
• Clean threads and align with any flat on the shaft before tightening
• Start threads by hand to avoid cross-threading; tighten securely without overtightening
• Recheck tightness after a brief test run
