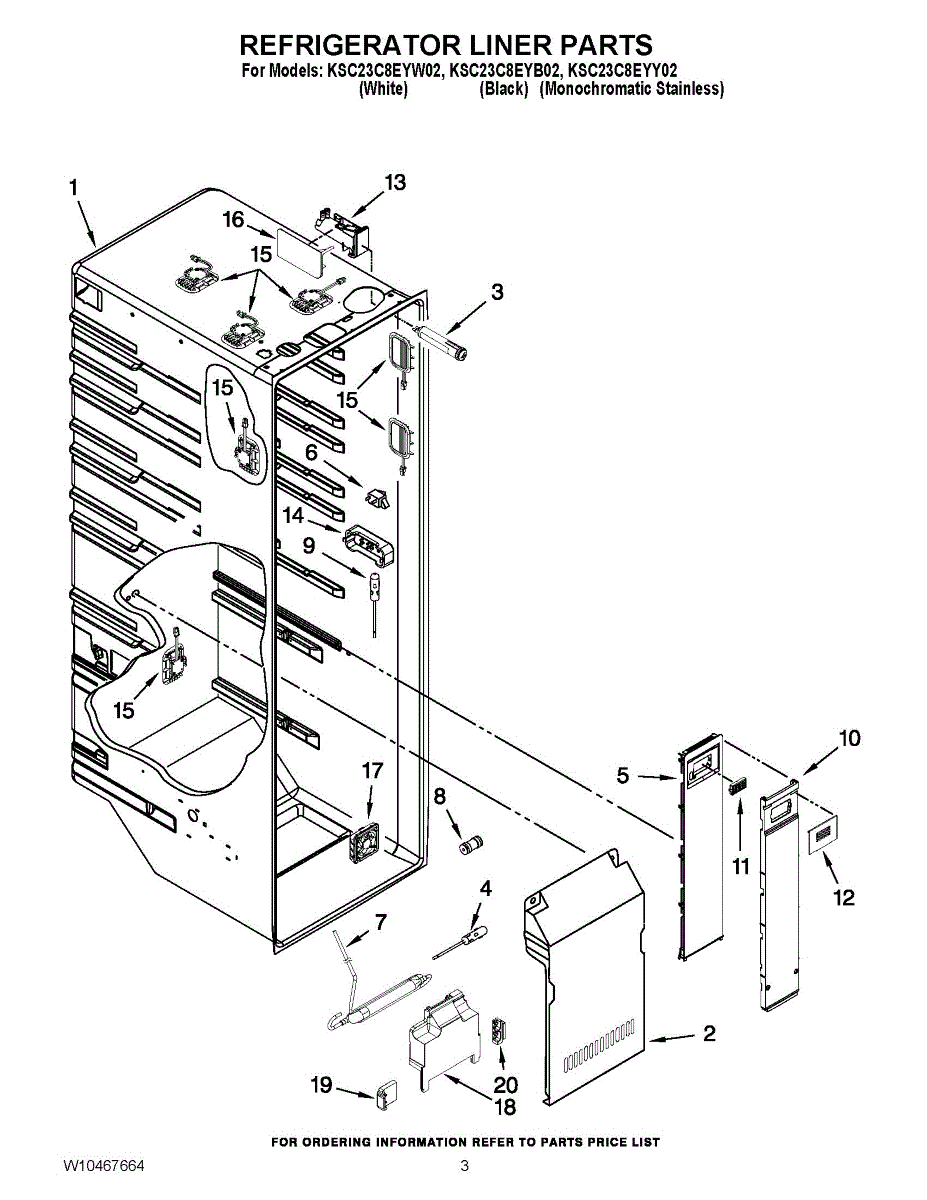

Parts for Kitchenaid KSC23C8EYB02: 02 - Refrigerator Liner Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

The Refrigerator Temperature Sensor is an OEM replacement part for Whirlpool refrigerators. It is a crucial component responsible for accurately monitoring and regulating the temperature inside the refrigerator and freezer compartments.

Symptoms of a faulty temperature sensor include:

• Inconsistent or fluctuating temperatures in the refrigerator or freezer
• The refrigerator running continuously or not cooling properly
• Error codes or indicators related to temperature control issues

Causes of a bad temperature sensor can include normal wear and tear over time, electrical malfunctions, sensor failure, or damage from moisture or condensation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This reservoir is the molded water tank that stores and directs water inside the appliance, ensuring steady supply to the dispenser and ice-making system. Replaces a cracked, leaking, or damaged tank to restore proper water delivery. What it does:

• Holds and routes water used by the dispenser and ice system
• Prevents leaks when intact; cracks or damage can cause visible water under or around the appliance
• Replacing a failed reservoir can stop intermittent dispenser flow or slow ice production caused by leaks or loss of pressure
• Works with factory fittings and tubing to maintain correct water path and alignment

• 1 reservoir

• Disconnect power and shut off the water supply before starting work
• Handle the plastic tank carefully to avoid cracking fittings or mounting tabs
• Inspect and replace any damaged gaskets, clips, or tubing when installing
• After installation, reconnect water, check for leaks, and run the dispenser/ice cycle to verify proper operation

This water filter housing assembly holds and seals the refrigerator's water filter while routing water to the dispenser and ice maker. Replace a cracked or worn housing to fix leaks and restore proper flow and filtration performance.

• Secures the water filter and provides a watertight seal
• Channels water to the dispenser and ice maker
• Common fix for leaks around the filter area
• Helps resolve little or no water from the dispenser
• Can restore ice production when flow is restricted by a failed housing

• Unplug the refrigerator and shut off the household water supply
• Dispense water to relieve line pressure; place a towel to catch residual water
• Remove the filter, detach mounting screws, and transfer water lines/hardware to the new housing; mount securely
• Restore water and power, then check for leaks and flush the system

The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This evaporator fan motor assembly circulates cold air across the evaporator coils to maintain even refrigerator/freezer temperatures. Replaces a worn or noisy fan to restore proper airflow and cooling performance. What it does:

• Moves air across the evaporator coils to help the appliance cool efficiently
• Helps reduce frost buildup by maintaining steady airflow over coils
• Commonly replaced for symptoms like loud fan noise, weak airflow, or uneven cooling
• Designed as a motor with attached scroll-style fan (impeller) for direct fit operation

• Disconnect power to the appliance before beginning any service to avoid electrical shock
• Handle the fan blades carefully to avoid bending or damage that can cause vibration
• Some installations require removing interior panels or the evaporator cover; keep track of screws and clips
• If the connector or mounting hardware appears damaged, replace with OEM-equivalent parts for safe operation

The Support is an OEM replacement part for Whirlpool refrigerators. It is designed to provide stability and support to the fan motor, ensuring proper operation and circulation of air within the refrigerator.

A bad fan motor support can occur due to wear and tear, cracks, or damage to its components. If you notice symptoms such as noisy operation, improper cooling, or the fan motor not spinning correctly, it may be time to replace the fan motor support.

Symptoms of a bad fan motor support include:

• Noisy operation
• Improper cooling
• Fan motor not spinning correctly

Restore your refrigerator by replacing the faulty or damaged fan motor support with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Support Bracket is an OEM part for Whirlpool refrigerators. It is an integral structural component that provides support for internal refrigerator shelves and bins.

Causes of a bad support bracket can include cracks or fractures from long-term use and vibration, broken mounting points no longer firmly attaching it to the wall, or deformation preventing shelves from sitting correctly.

Symptoms of a bad support bracket include:

• Sagging or collapsed refrigerator shelves
• Items falling off shelves or bins frequently
• Difficulty removing or replacing shelves smoothly

This part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
