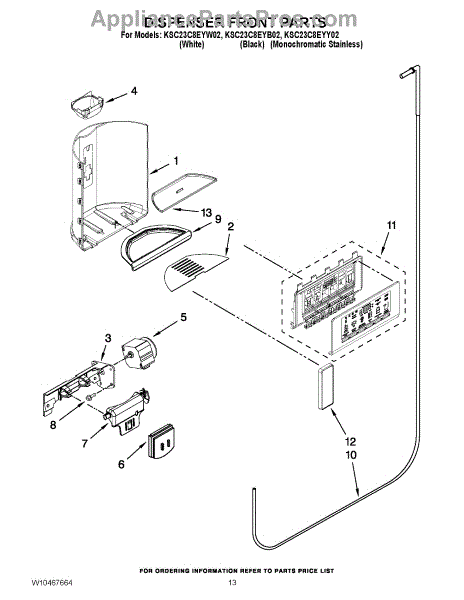

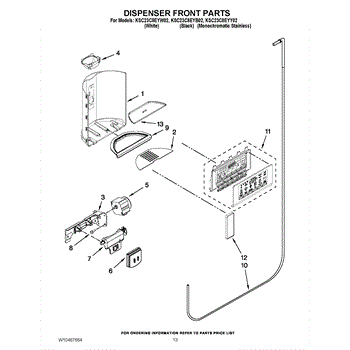

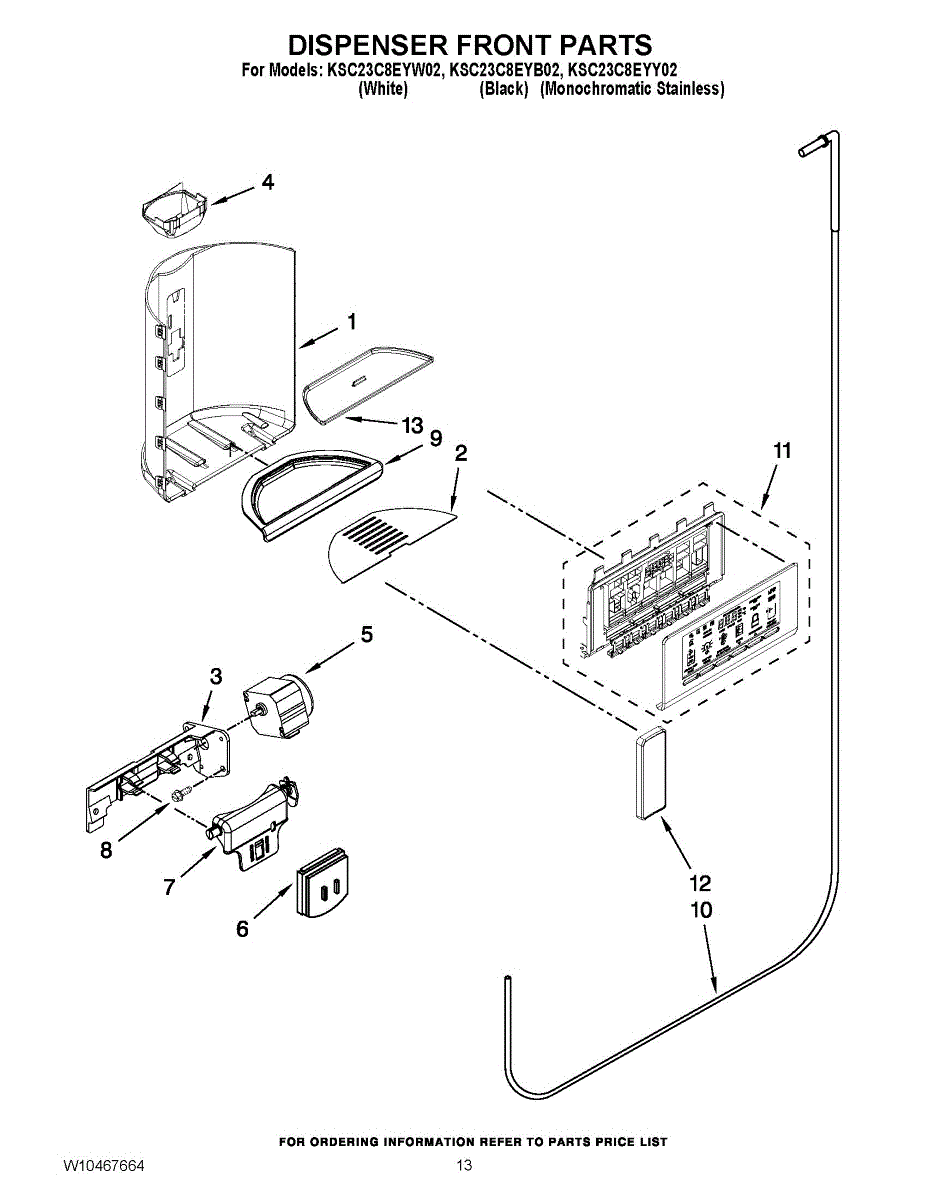

Parts for Kitchenaid KSC23C8EYB02: 08 - Dispenser Front Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This dispenser grille is the removable tray beneath your refrigerator's ice and water dispenser. It catches drips and small spills to help keep the area clean and protect the door finish and surrounding floor. What it does:

• Collects water and ice drips at the dispenser to reduce runoff and staining
• Provides a stable surface for cups while dispensing
• Restores appearance and function when the original grille is cracked, warped, stained, or missing
• Common symptoms: pooling water on the door, loose or ill-fitting tray, visible damage

• One dispenser grille

• Unplug the refrigerator and turn off the water supply before service
• Lift the old grille straight up/out from the dispenser recess; most models require no tools
• Clean the recess; align the tabs and press the new grille firmly into place
• Ensure the grille sits level and doesn't interfere with dispenser paddles

This ice door seals the dispenser chute between uses, keeping warm air and moisture out of the ice compartment. Replacing a worn flapper restores a tight seal, reduces frost and clumping, and improves dispenser performance.

• Opens for ice dispensing and closes to seal the chute between uses
• Helps maintain a barrier against warm air and humidity entering the ice compartment
• Reduces frost/condensation at the dispenser outlet
• Typical failure signs: frost or dripping at the dispenser, clumped or melting ice, or a flapper that won't close/seal

• Unplug the refrigerator before servicing
• Access is typically through the dispenser area; remove trim/control panel as directed for your model
• Note orientation; transfer any springs/pivots as designed and ensure the seal sits flat
• After installation, test dispense and confirm smooth motion and a snug seal

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

This ice door seals the dispenser chute between uses, keeping warm air and moisture out of the ice compartment. Replacing a worn flapper restores a tight seal, reduces frost and clumping, and improves dispenser performance.

• Opens for ice dispensing and closes to seal the chute between uses
• Helps maintain a barrier against warm air and humidity entering the ice compartment
• Reduces frost/condensation at the dispenser outlet
• Typical failure signs: frost or dripping at the dispenser, clumped or melting ice, or a flapper that won't close/seal

• Unplug the refrigerator before servicing
• Access is typically through the dispenser area; remove trim/control panel as directed for your model
• Note orientation; transfer any springs/pivots as designed and ensure the seal sits flat
• After installation, test dispense and confirm smooth motion and a snug seal

This ice door support bracket holds and stabilizes the freezer ice door so it opens and closes smoothly and keeps the ice compartment sealed. Replaces a worn or broken support to restore proper door alignment and operation. What it does:

• Supports the ice door assembly to prevent drooping or misalignment
• Helps ensure the ice door opens and closes smoothly for reliable dispensing
• Reduces rattling or noise from a loose or damaged door support
• Prevents gaps that can lead to frost buildup or ice spillage

• Disconnect power to the appliance before starting any repair
• Remove the ice bin or door panel per service instructions to access the support
• Use common hand tools; handle plastic parts gently to avoid cracking
• Secure all fasteners; test door movement after installation

Screw for control panel.

This dual water tube routes water along two separate paths inside the refrigerator, supplying components such as the dispenser and ice maker. Replacing a cracked, kinked, or clogged tube restores steady flow and helps prevent leaks. What it does:

• Carries pressurized water to two internal destinations
• Helps supply the dispenser and/or ice maker
• Replaces tubing that is cracked, brittle, kinked, or leaking
• Typical symptoms: leaks behind/under the fridge, slow/no dispenser flow, ice maker not filling or making small/hollow cubes

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel or container to catch residual water when disconnecting lines
• Note original routing and connection points; transfer any guides/clips as needed
• Fully seat tubing in quick-connect fittings, tug-test for engagement, restore water, and check for leaks

Color: Black

The Dispenser Actuator is an OEM part for Whirlpool refrigerators. It is responsible for controlling and actuating the dispensing of water and ice from the refrigerator door. The dispenser actuator contains electronic components that sense when a cup is placed in the dispenser area and signal the water and ice systems to operate.

Symptoms of a bad dispenser actuator include:

• Failure to dispense water or ice
• Water or ice dispensing continuously without a cup present
• Delayed or inconsistent response time when dispensing
• Electronic control issues such as blinking lights or error codes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Grey

This drip tray catches and channels defrost and condensation water to prevent pooling under the appliance. It restores proper water flow and helps protect floors from leaks when placed correctly under the evaporator area. What it does

• Collects defrost and condensation water from the evaporator area
• Directs water to the drain system or evaporation zone to prevent leaks
• Helps stop water pooling or dripping beneath the appliance
• Reduces risk of moisture-related odors and floor damage when functioning properly

• Disconnect power to the appliance before accessing internal parts
• Access from the freezer/refrigerator bottom or back panel per your model's service guide
• Slide or snap the tray into the mounting location; ensure proper alignment with drain channels
• Inspect surrounding seals and drain lines for clogs or damage while replacing the tray

This dispenser drip tray catches water and minor spills beneath the refrigerator's ice/water dispenser, helping keep the grille area dry and protecting the door from moisture damage or staining.

• Collects drips and splashes from the dispenser to prevent puddling on the door
• Helps reduce staining, mineral residue, and odors around the dispenser area
• Sits in the dispenser grille for easy removal and cleaning
• Common signs it's needed: cracked or warped tray, excessive water on the dispenser shelf, or a missing tray

• Unplug refrigerator or switch off power before servicing
• Lift out the old tray from the dispenser grille; clean area
• Seat the new tray flat and flush in the grille opening
• Verify proper fit and stability before restoring power
