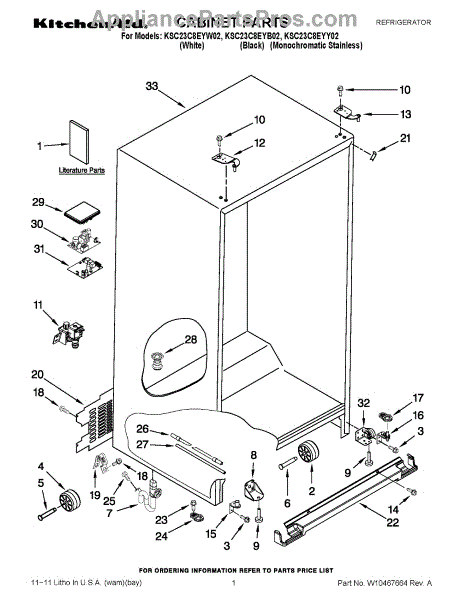

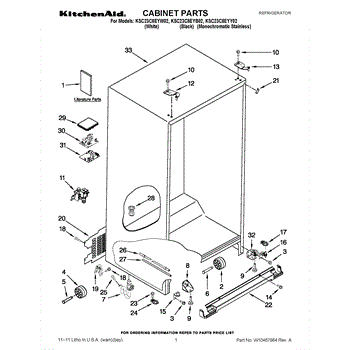

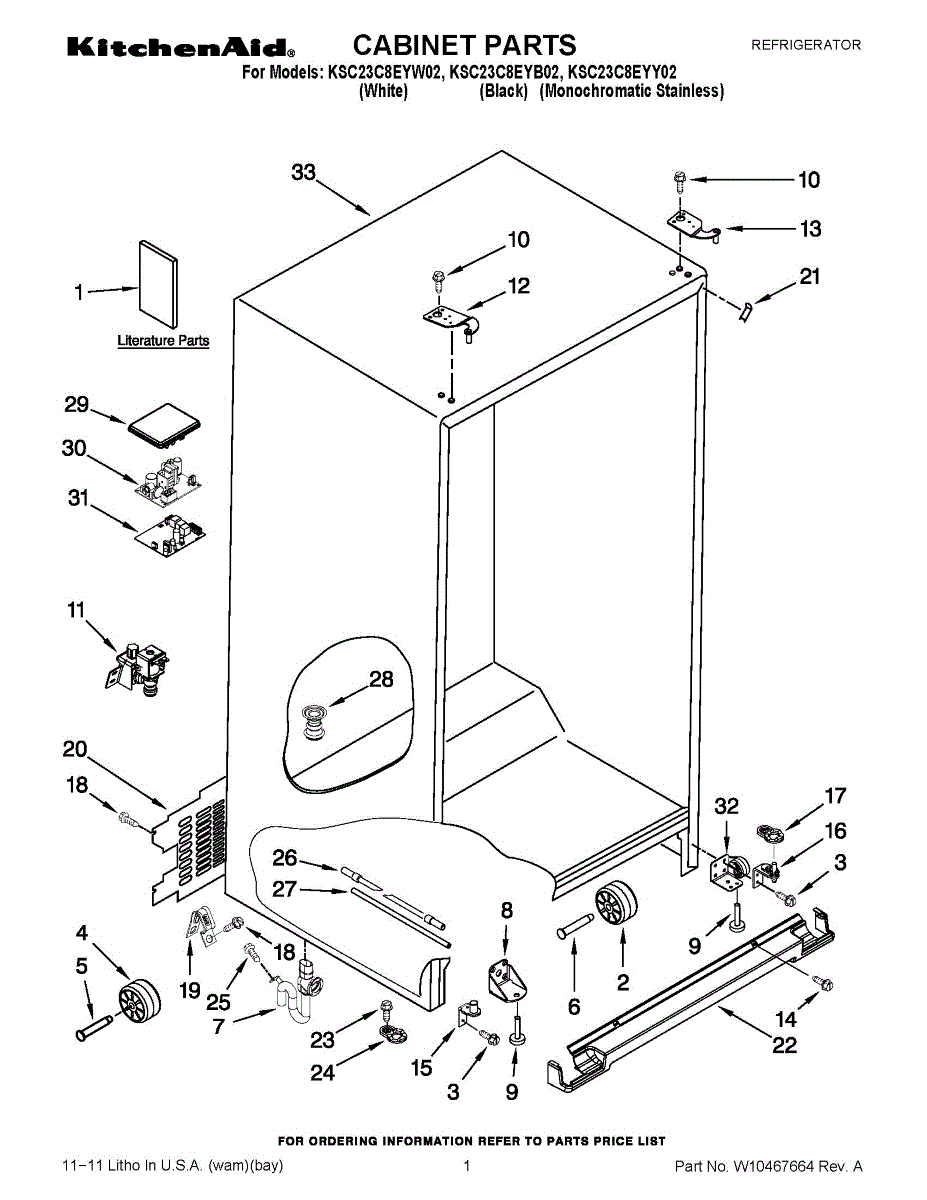

Parts for Kitchenaid KSC23C8EYB02: 01 - Cabinet Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 1/4-20 screw is a direct replacement fastener used to secure appliance panels, brackets, and assemblies. It restores proper fit and prevents rattling or loose components for safe, reliable operation. What it does:

• Fastens panels, mounting brackets, and components in place
• Replaces missing or stripped screws that cause loose or rattling parts
• Maintains alignment of assemblies to prevent wear and vibration
• Works wherever a 1/4-20 machine screw is specified by the manufacturer

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Use the correct-size driver or socket to avoid stripping the head
• Do not overtighten; snug until secure to avoid damaging threads or components
• If the original screw was rusted or seized, apply penetrating lubricant and use proper extraction tools

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

Replacement bracket that secures and supports internal components, restoring firm mounting and reducing rattling. Replaces a worn or damaged bracket to help keep appliance parts aligned for quieter, more reliable operation. What it does:

• Provides a stable mounting point to hold internal components in place
• Reduces rattling, vibration, and misalignment caused by a loose or damaged bracket
• Restores proper component spacing to help prevent contact and wear
• Works as a direct replacement for a failed bracket to return proper function

• Disconnect the appliance from power (and water, if applicable) before servicing
• Handle edges carefully; wear gloves to avoid cuts during removal/installation
• Reuse existing fasteners unless new hardware is specified; ensure bracket is securely tightened and component alignment is checked

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

This genuine replacement screw secures appliance panels and components where a 12-24 thread fastener is required, restoring proper fit and reducing rattles or loose parts. Easy swap to get panels tight again. What it does:

• Fastens panels, brackets, and internal components that use a 12-24 threaded screw
• Restores secure mounting when original screws are stripped, lost, or corroded
• Helps eliminate vibration-related noise from loose parts
• Works wherever a 12-24 x 1/2 in. screw is specified by the manufacturer

• One 12-24 x 1/2 in. screw

• Use the matching screwdriver or nut driver to avoid stripping the head
• Do not overtighten; stop when the part is snug and seated to prevent damage
• If replacing a stripped or damaged hole, inspect mating threads and repair as needed
• Disconnect power to the appliance before accessing internal components

This OEM Replacement Part is a single water inlet valve designed for use in Whirlpool refrigerators. Its key function is to supply water to the refrigerator's ice maker and water dispenser. When energized, this valve releases water from the supply line into the ice mold. If the water valve develops a crack, it will need replacement. The valve accommodates two different sizes of tubing: the smaller inlet measures 1/4", and the larger inlet measures 5/16".

By maintaining the integrity of this component, users can ensure the proper functioning of the refrigerator's ice maker and water dispenser. Always consult your appliance manual for accurate installation and replacement guidelines. This part is compatible
with select brands including Whirlpool, KitchenAid, Kenmore, and Maytag.

Color: White

Color: Black

Color: Grey

Color: White

The Door Hinge is an OEM part for Whirlpool refrigerators. It acts as the pivot point that allows the fresh food door to open and close smoothly. As a moving component subjected to frequent use, the hinge can become loose or misaligned over time.

Causes can be normal wear and tear, excessive force on the door, or improper alignment over repeated use. Installation of this genuine replacement restores reliable door function.

Symptoms of a bad hinge include:

• The door not closing or sealing properly
• Difficulty opening and closing the door
• Noises or squeaking coming from the hinge area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Hinge-Door is an OEM part for Whirlpool refrigerators. The refrigerator door hinge is a crucial component that allows the door to properly open and close while securely holding it in place. These hinges are responsible for smooth and reliable door operation through thousands of openings and closings.

Causes of a bad hinge can include wear and tear from prolonged use, stress from overloading the door, or accidental impact damage.

Symptoms of a bad hinge include:

• The door not closing properly or staying fully shut
• Difficulty or resistance when opening/closing the door
• The door sagging or wobbling excessively
• Noise or grinding sounds coming from the hinge area

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement 8-18 threaded screw used to secure panels and components on compatible Whirlpool appliances. It restores proper fastening where a missing or damaged screw causes loose parts or vibration. What it does

• Fastens panels, brackets, and small assemblies to the appliance frame
• Replaces stripped, corroded, or missing screws that cause rattling or loose components
• Helps maintain proper alignment of panels and controls for safer operation
• Suitable where an 8-18 threaded machine screw is specified by the manufacturer

• One replacement screw

• Disconnect power to the appliance before service to prevent shock or injury
• Use the correct driver to avoid stripping the screw head; do not force mismatched tools
• Tighten until snug — avoid over-tightening which can strip threads or crack plastic
• If replacing multiple fasteners, check mating threads and replace any damaged clips or anchors as needed

This replacement screw fastens panels, brackets, and internal components so they stay secure during operation. Replace worn, rusted, or missing screws to restore a solid fit and help reduce vibration, rattles, and misalignment.

• Secures appliance parts to maintain proper fit and alignment
• Helps reduce noise and vibration from loose panels or trim
• Replaces stripped, corroded, or missing fasteners
• Can resolve issues like rattling, gaps, or shifting components

• Disconnect power; turn off gas/water if applicable before servicing
• Match to the original screw and start threads by hand to avoid cross-threading
• Use the correct driver and tighten snugly; do not overtighten into plastic or thin sheet metal
• Replace additional worn fasteners in the same location if needed for even clamping

Color: Black. For biscuit order 98008169. For white order WP98008544.

Color: White

Color: Black

Color: Grey

This door hinge supports and pivots the appliance door so it opens smoothly and closes flush. Replacing a worn hinge helps restore proper alignment and sealing for consistent performance and safe operation. What it does:

• Provides the pivot point and support for the door
• Helps maintain door alignment and proper seal/latch engagement
• Controls opening/closing action (spring-tensioned on many models)
• Common symptoms: door won't close fully or pops open, door sags or rubs, drops too quickly, squeaks/binds when moving

• 1 door hinge

• Disconnect power (and shut off gas, if applicable). Allow the unit to cool before servicing.
• Support the door; hinges may be under spring tension—use hinge locks/pins as designed and keep hands clear of the mechanism.
• Remove mounting screws, transfer any screws/brackets from the old hinge, and seat the new hinge fully in the receiver.
• Replacing both sides together often ensures even alignment and proper closure. Verify door operation and seal after reassembly.

This door hinge supports and pivots the appliance door for smooth, aligned opening and closing. Replacing a worn hinge restores proper closing and helps the latch and door seal make consistent contact. What it does:

• Provides the pivot point and structural support for the door
• Maintains door alignment for correct latch engagement and seal contact
• Helps prevent binding, sagging, uneven movement, and squeaks
• Common fix for doors that won't close fully or feel loose/wobbly
• Replaces hinges that are bent, cracked, or show excessive play

• 1 door hinge

• Disconnect power (and shut off gas/water if applicable) before servicing
• Support the door to prevent strain; removal may be required to access the hinge
• Remove hinge cover/trim and mounting screws; transfer any hardware to the new hinge
• After installation, verify alignment and closure; adjust as needed for proper latch and seal contact

This door hinge restores smooth, controlled door movement and a secure close. Replacing a worn hinge helps the door align properly and engage the gasket or latch for reliable everyday operation.

• Supports and pivots the door on its side
• Provides tension for controlled opening and closing
• Helps keep the door fully closed and properly aligned with the cabinet
• Common signs of wear: door won't close completely, drops open too quickly, feels loose or misaligned, or creaks

• Disconnect power (and gas, if applicable) before servicing; allow the appliance to cool
• Remove or support the door before detaching the hinge; note orientation and side
• Use caution—the hinge is spring-loaded; release and re-engage tension slowly
• After installation, check door alignment, closing action, and seal/latch engagement

This door hinge supports and pivots the appliance door so it opens smoothly and closes flush. Replacing a worn hinge helps restore proper alignment and sealing for consistent performance and safe operation. What it does:

• Provides the pivot point and support for the door
• Helps maintain door alignment and proper seal/latch engagement
• Controls opening/closing action (spring-tensioned on many models)
• Common symptoms: door won't close fully or pops open, door sags or rubs, drops too quickly, squeaks/binds when moving

• 1 door hinge

• Disconnect power (and shut off gas, if applicable). Allow the unit to cool before servicing.
• Support the door; hinges may be under spring tension—use hinge locks/pins as designed and keep hands clear of the mechanism.
• Remove mounting screws, transfer any screws/brackets from the old hinge, and seat the new hinge fully in the receiver.
• Replacing both sides together often ensures even alignment and proper closure. Verify door operation and seal after reassembly.

This door hinge supports and pivots the appliance door for smooth, aligned opening and closing. Replacing a worn hinge restores proper closing and helps the latch and door seal make consistent contact. What it does:

• Provides the pivot point and structural support for the door
• Maintains door alignment for correct latch engagement and seal contact
• Helps prevent binding, sagging, uneven movement, and squeaks
• Common fix for doors that won't close fully or feel loose/wobbly
• Replaces hinges that are bent, cracked, or show excessive play

• 1 door hinge

• Disconnect power (and shut off gas/water if applicable) before servicing
• Support the door to prevent strain; removal may be required to access the hinge
• Remove hinge cover/trim and mounting screws; transfer any hardware to the new hinge
• After installation, verify alignment and closure; adjust as needed for proper latch and seal contact

This door hinge restores smooth, controlled door movement and a secure close. Replacing a worn hinge helps the door align properly and engage the gasket or latch for reliable everyday operation.

• Supports and pivots the door on its side
• Provides tension for controlled opening and closing
• Helps keep the door fully closed and properly aligned with the cabinet
• Common signs of wear: door won't close completely, drops open too quickly, feels loose or misaligned, or creaks

• Disconnect power (and gas, if applicable) before servicing; allow the appliance to cool
• Remove or support the door before detaching the hinge; note orientation and side
• Use caution—the hinge is spring-loaded; release and re-engage tension slowly
• After installation, check door alignment, closing action, and seal/latch engagement

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

The cover-unit protects the appliance's control console and provides a finished appearance. It shields buttons, knobs and internal control components from dust, moisture and incidental damage so controls stay usable and the cabinet looks complete. What it does:

• Covers and protects the control console and the underlying control assembly
• Helps prevent debris and moisture from reaching buttons, switches and electronic components
• Restores the appliance's finished look when the original cover is cracked, broken or missing
• Keeps controls stable and reduces the chance of accidental contact or damage

• Disconnect power before servicing to avoid shock or injury
• Remove any trim or console fasteners before replacing the cover
• Handle carefully to avoid scratching the finish; use proper fasteners and align tabs during reassembly
• If controls or wiring are exposed or damaged, inspect wiring and control components.

This base grill is the lower front trim piece that restores the look and airflow opening at the bottom of your refrigerator. It replaces a cracked, faded, or missing toe-kick panel to return a finished appearance. What it does:

• Covers and protects the refrigerator's lower front area while allowing required airflow beneath the cabinet.
• Replaces damaged, cracked, or broken grills and worn cosmetic trim.
• Secures to the cabinet with molded tabs or fasteners; helps keep debris out of the kickspace.
• Matches white finish for a clean, factory look.

• One white base grill (toe kick) as pictured.

• Usually fastens with snapped-in tabs or a few screws; align tabs and press until secure.
• No refrigerant handling required; shut off power only if recommended by your model's service instructions.
• Handle clips gently to avoid breakage; replace any damaged fasteners before final installation.

This is the lower front grille for select appliances. It finishes the base opening and helps channel airflow to the condenser area while protecting components from bumps and debris.

• Covers the lower front opening and provides a clean, finished look
• Helps direct cooling airflow to the condenser compartment
• Shields components from minor impacts and debris
• Common signs it needs replacement: cracked or missing grille, broken mounting tabs, grille won't stay attached, rattling from a loose or damaged panel

• Disconnect power before servicing; use proper PPE
• Remove existing fasteners or release tabs, then pull the old grille straight off
• Align the new grille and secure with the original screws/clips as configured
• Do not overtighten fasteners; ensure even engagement of all tabs

This base grille covers the lower front of the refrigerator in a midnight gray finish. It directs airflow to the condenser and protects internal components—restoring proper ventilation and a clean, finished look when the original is damaged or missing.

• Covers the toe-kick area and helps channel cooling air through the condenser compartment
• Protects coils and lower components from bumps and debris
• Restores the unit's finished appearance
• Common symptoms include a cracked or missing grille, loose/rattling panel, or broken mounting tabs

• Disconnect power before servicing; use gloves to protect hands from sharp edges
• Open the doors; remove any retaining screws or release the grille's clips, then pull the old grille forward
• Align the new grille with the mounting points and snap or screw into place
• Ensure vents are unobstructed and the grille is secure before restoring power

This cam-door is a direct-fit replacement part that helps the appliance door operate smoothly and latch securely for proper use. Restores correct door movement and helps prevent gaps or misalignment that stop the door from closing. What it does

• Guides and supports the door latch mechanism so the door opens and closes correctly
• Helps the latch engage fully to maintain a tight, secure door seal
• Worn or broken cams can cause the door to hang, fail to latch, or make scraping/catching noises
• Replacing a damaged cam often restores normal door alignment and operation

• Disconnect power (unplug or turn off circuit breaker) before starting any repair
• Access may require removing the door or inner panel
• Inspect surrounding latch components and replace any damaged parts for reliable operation

This cam door replaces the small plastic cam that guides and supports the appliance door mechanism, restoring proper door alignment and secure closing so the appliance can latch and operate reliably. What it does:

• Guides the door or door strike into the correct position during closing
• Helps the latch engage so the appliance recognizes the door as closed
• Replaces worn, cracked, or broken cams that cause misalignment or noisy operation
• Can stop symptoms such as a door that won't seat, rattles when closing, or prevents the appliance from starting

• One cam door (single replacement cam)

• Disconnect power (and water if applicable) before starting any repair
• Remove the door or access panel per your model's service instructions to reach the cam
• Verify cam orientation and engagement with the latch/strike before final assembly

This door closing cam mounts at the bottom of the refrigerator door and mates with the hinge cam to raise and lower the door as it swings, promoting smooth self-closing action and a reliable gasket seal.

• Provides lift-and-drop detent at the lower hinge to guide door movement
• Helps the door self-close in the final inches for a consistent seal
• Supports proper door alignment to reduce air leaks and temperature fluctuations
• Common symptoms: door won't self-close, pops/clicks at the hinge, sags or binds, poor seal or moisture around the door

• Disconnect power and remove items from the door to reduce weight
• Support the door; remove hinge cover and lower hinge/pin, then lift the door off carefully
• Replace the cam on the door/hinge as designed; inspect the mating cam and hinge pin and lightly lubricate
• Reinstall, level, and verify smooth closing and proper gasket contact

Replacement silverware basket with integral handle in dark gray. Holds forks, knives and spoons in the lower dishwasher rack to keep utensils upright for better cleaning and easier loading, removal and transport. What it does:

• Holds and separates flatware to reduce nesting and promote water flow during wash cycles.
• Integrated handle makes it easy to lift the basket in and out of the rack for loading or unloading.
• Keeps small items from falling through the rack and reduces rattling during operation.
• Replace the basket if it is cracked, broken, or if utensils no longer stay securely in place.

• Installs in the lower dishwasher rack by sliding or snapping into existing rack slots; typically requires no tools.
• Make sure the basket sits level and the handle moves freely before running the dishwasher.
• Inspect for cracks or sharp edges and replace if damaged to avoid utensil loss or interference with spray action.
• Disconnect power first; this part itself does not require electrical work.

This water inlet tube routes supply water from the inlet valve into the appliance's internal water path, restoring a secure flow path and helping prevent leaks, spray, or fill problems caused by cracked, brittle, or clogged tubing.

• Directs water from the inlet valve into the unit's water system/tub
• Replaces tubing that is cracked, kinked, brittle, or mineral-clogged
• Helps resolve leaks near the inlet connection or water dripping during/after fill
• Improves fill performance when the original tube is restricted or collapsing

• Disconnect power and shut off the water supply before servicing
• Place a towel or pan to catch residual water when lines are opened
• Note the tube's routing/orientation; transfer any fittings or clamps and avoid kinks
• Restore water and power, run a test fill, and inspect carefully for leaks

This water tube directs supply water where needed inside the appliance to restore reliable water flow and help prevent leaks. Use this replacement when the existing tube is cracked, split, or restricting water to the ice maker or dispenser. What it does:

• Routes water from the appliance supply line to internal components (ice maker, dispenser) for proper filling and operation.
• Replaces cracked, pinholed, or kinked tubing that can cause leaks or reduced water flow.
• Helps resolve intermittent or no-water symptoms at the dispenser or ice maker when caused by damaged tubing.
• Durable replacement to restore sealed connections and reduce drips at the tube fittings.

• Disconnect power and shut off the water supply before beginning any work.
• Drain residual water from lines and have towels/containers ready to catch spills.
• Ensure fittings and seals are seated properly; hand-start fasteners, then snug—do not overtighten.

This is a high-quality refrigerator power supply board. It's an internal component that is made to control the refrigerator functions. This part is made with small precision parts to help with timing defrost and cooling cycles. This part can be damaged or malfunction and stop operating correctly. This may prevent the refrigerator from running, cause strange sounds, or cause the refrigerator to run at the wrong temperature.If this part is damaged, it will need to be replaced. Before replacing the power supply board, make sure the refrigerator is unplugged from the wall. The process will require a flathead screwdriver and a nut driver. Use the tools to unthread the screws on the access cover. Depress the retaining tab to remove the inner cover and disconnect the wires. Press the tab to release the power supply board and snap in the new component. Make sure the wires are properly connected and reassemble.This genuine OEM replacement part is sold on an individual basis. It is directly acquired from the manufacturer and is designed to be compatible with refrigerators made by Kenmore, Whirlpool, Maytag, and KitchenAid.

Electronic control board that replaces the appliance's main control module to restore responsive controls and consistent operation. Manages user inputs, cycle timing and power to subsystems so the appliance runs as intended. What it does:

• Controls the appliance's user interface, timing and on/off signals for internal components
• Responds to touchpad/buttons and updates the display or status indicators
• Regulates cycle start/stop and sequencing for heating, motor, or valve functions
• Common symptoms: blank or flickering display, unresponsive buttons, failure to start or complete cycles, or control-related error messages

• Disconnect power before starting — electric shock risk; verify power is removed at the breaker
• Photograph and label all wiring and connectors before removal to ensure correct reinstallation
• Handle the board by its edges and avoid static discharge; do not touch exposed circuitry

Replacement bracket that secures and supports internal components, restoring firm mounting and reducing rattling. Replaces a worn or damaged bracket to help keep appliance parts aligned for quieter, more reliable operation. What it does:

• Provides a stable mounting point to hold internal components in place
• Reduces rattling, vibration, and misalignment caused by a loose or damaged bracket
• Restores proper component spacing to help prevent contact and wear
• Works as a direct replacement for a failed bracket to return proper function

• Disconnect the appliance from power (and water, if applicable) before servicing
• Handle edges carefully; wear gloves to avoid cuts during removal/installation
• Reuse existing fasteners unless new hardware is specified; ensure bracket is securely tightened and component alignment is checked
