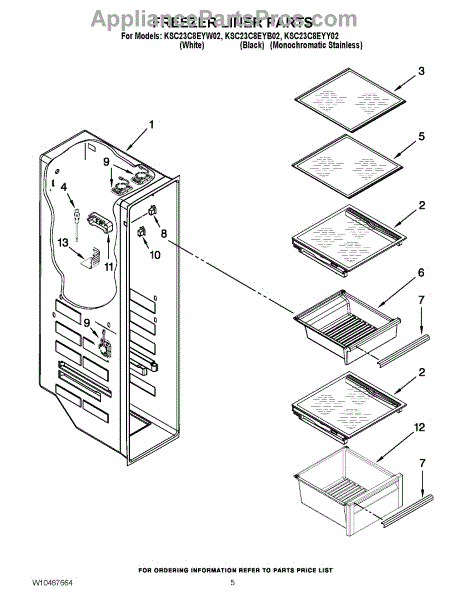

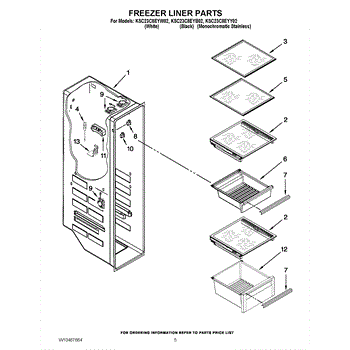

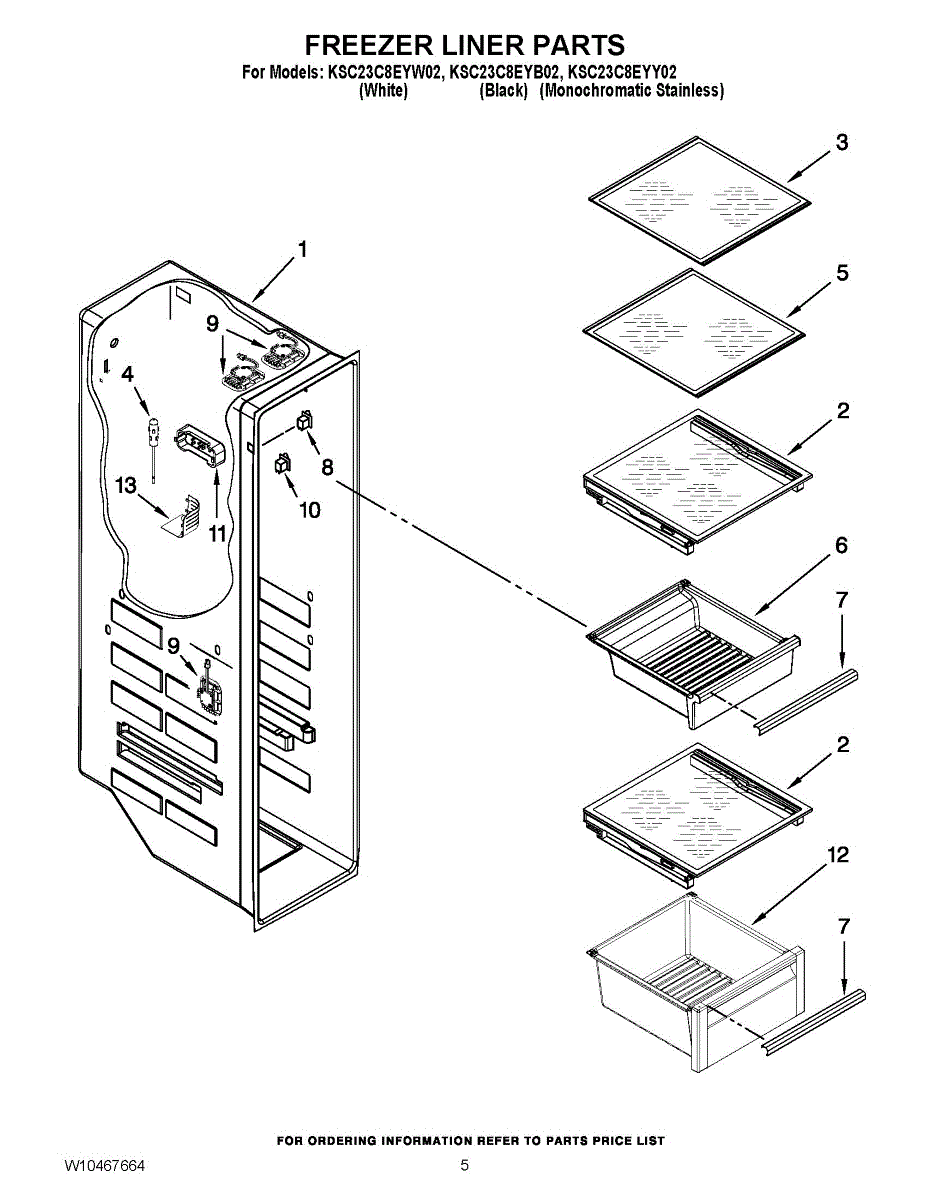

Parts for Kitchenaid KSC23C8EYB02: 04 - Freezer Liner Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This cover assembly replaces a worn or damaged pan cover to restore proper protection and fit for the appliance's base area. It helps keep internal components shielded from spills, debris and wear. What it does

• Replaces a damaged or missing pan cover to restore protective enclosure
• Helps prevent debris and moisture from contacting internal components
• Reduces rattles or vibration caused by a bent or loose cover
• Restores proper fit and alignment of the surrounding panels

• One cover assembly (pan) as shown

• Designed to mount with existing fasteners; inspect screws and clips and replace if worn
• Turn off power and/or unplug the appliance before starting work
• Handle edges carefully — sheet metal edges can be sharp

This refrigerator glass shelf sits over the crisper drawers to create a sturdy storage surface and support humidity-controlled bins below. Replacing a damaged shelf restores safe, level storage and helps maintain proper drawer function.

• Provides a flat surface for food storage above the crisper area
• Supports crisper drawers and helps them slide properly
• Replace if cracked, shattered, sagging, or missing
• Can help address spills leaking into drawers due to broken or missing glass

• Unplug the refrigerator and remove contents from the shelf area
• Carefully lift out the old glass; handle broken glass with cut-resistant gloves
• Clean the frame/trim before setting the new glass in place
• Ensure the glass is fully seated and level before reloading food

This replacement glass shelf provides a flat, easy-to-clean storage surface for your refrigerator, restoring reliable support for food and containers. It replaces a cracked, chipped, broken, or missing shelf to help keep items organized. What it does:

• Restores a level storage surface inside the refrigerator for plates, containers, and groceries
• Supports everyday food storage and helps contain spills on one shelf level
• Replaces cracked, chipped, broken, or missing glass shelves to improve safety and usability
• Fits into existing shelf tracks or supports

• Handle the glass carefully and wear cut-resistant gloves to avoid injury
• Slide or set the shelf into the refrigerator's existing supports or tracks without forcing; ensure it seats evenly
• Do not overload the shelf; distribute weight evenly and check that supports/clips are undamaged before use

This replacement freezer bin is a molded plastic drawer that restores organized frozen-food storage in the freezer compartment. It replaces cracked, warped or damaged bins so items slide in and out smoothly and stay contained. What it does:

• Provides a dedicated storage drawer for frozen foods and helps keep the freezer organized.
• Slides on freezer rails or guides to allow easy access to contents.
• Replaces bins that are cracked, chipped, cloudy or no longer hold items securely.
• Helps prevent spills and loose items from collecting on freezer shelves or the floor.

• Remove food from the bin and, for safety, unplug the appliance or shut off power to the unit before starting.
• Slide the old bin out, release any retaining tabs or stops, then set the new bin into the tracks and slide until it seats.
• Do not force the bin; if it does not engage smoothly, inspect rails, stops and retainers for damage and clean as needed.
• Wear gloves to protect hands from sharp edges during removal and installation.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Bin Safety Switch is an OEM replacement part for Whirlpool refrigerators, ensuring safe and efficient operation of the ice maker. Positioned to detect the ice bin, it activates the ice maker when the bin is in place and deactivates it when removed for cleaning or emptying.

Common causes for Ice Bin Safety Switch issues may include physical damage occurring during cleaning or routine use, electrical problems like short circuits, wear on the switch's contacts affecting functionality, and misalignment or incorrect installation of the ice bin causing inaccurate bin detection.

Symptoms of a malfunctioning Ice Bin Safety Switch include:

• The ice maker not producing ice
• The ice maker continuing to operate even without the ice bin in place
• Unusual behavior from the ice maker, such as starting and stopping erratically

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Crisper Drawer is an OEM part for Whirlpool refrigerators. It provides separated, humidity-controlled storage for fruits and vegetables in the refrigerator compartment.

Causes of a bad crisper drawer include cracks or breaks in the container structure, failing humidity regulation features like gaskets, or damaged slide rails that inhibit smooth operation.

Symptoms of a bad crisper drawer are:

• Inability to properly seal in moisture, causing fresh items to wilt or dry out
• Food spillage due to cracks or breaks

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models
