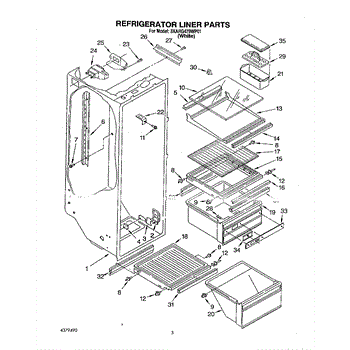

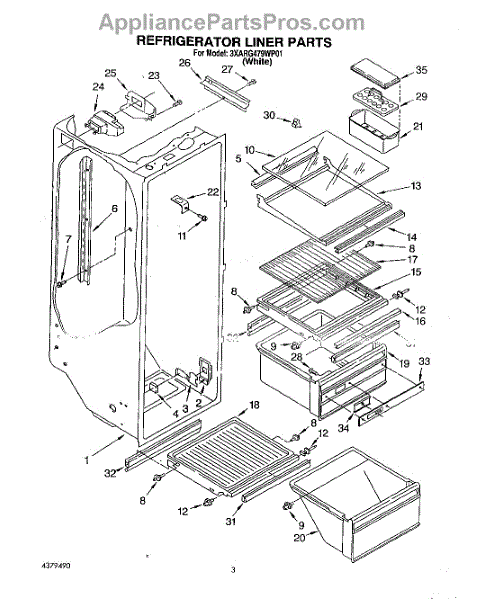

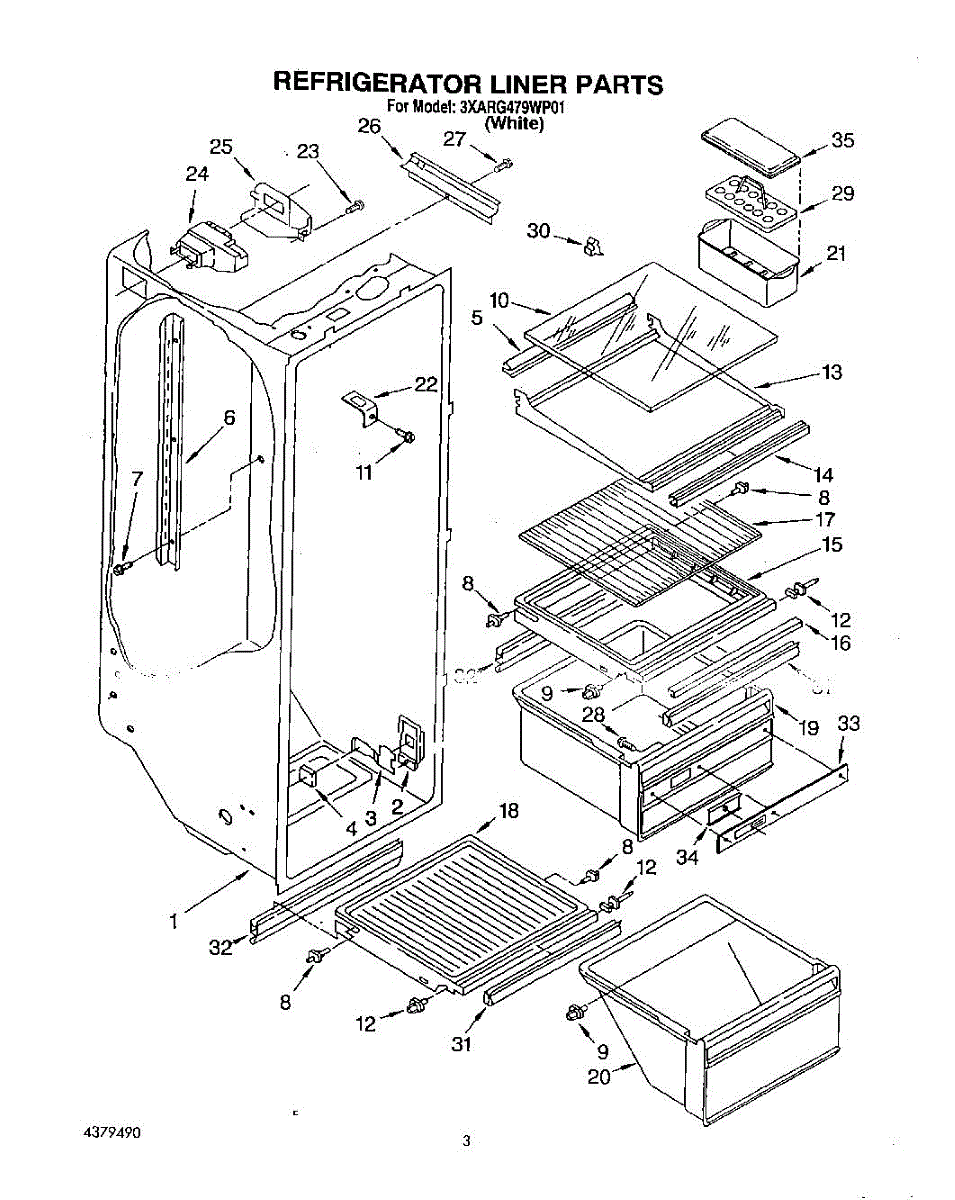

Parts for Whirlpool 3XARG479WP01: 02 - Refrigerator Liner Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Refrigerator Shelf Stud Kit is an OEM replacement part for Whirlpool French-door refrigerators. It includes mounting posts that secure adjustable shelves within the refrigerator compartment. It includes 1 push and turn and 1 screw-in.

Symptoms of faulty shelf studs include:

• Shelves detaching and crashing due to broken studs or mounts
• Reduced weight-bearing ability requiring replacement of shelves
• Damage presenting sharp edges risking food cuts or tears in packaging
• Indents, cracks, or damage along the stud base

Causes of a bad evaporator fan motor can include electrical issues, worn bearings due to continuous operation, or physical damage from ice buildup or foreign objects. A failing motor can lead to inadequate cooling and potential food spoilage.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Refrigerator shelf support stud.

The Refrigerator Shelf Stud Kit is an OEM replacement part for Whirlpool French-door refrigerators. It includes mounting posts that secure adjustable shelves within the refrigerator compartment. It includes 1 push and turn and 1 screw-in.

Symptoms of faulty shelf studs include:

• Shelves detaching and crashing due to broken studs or mounts
• Reduced weight-bearing ability requiring replacement of shelves
• Damage presenting sharp edges risking food cuts or tears in packaging
• Indents, cracks, or damage along the stud base

Causes of a bad evaporator fan motor can include electrical issues, worn bearings due to continuous operation, or physical damage from ice buildup or foreign objects. A failing motor can lead to inadequate cooling and potential food spoilage.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Shelf Frame is an OEM replacement part for Whirlpool refrigerators. It is an internal frame component that provides structure and support for refrigerator shelves. Measures about 17 inches wide by 17 inches deep.

Causes of a bad shelf frame can include damage like dents, bends or cracks that compromise strength. Repeated impact over the lifespan may weaken metal mounting rails.

Symptoms of a bad shelf frame include:

• Shelves that sag, bow or dislodge from their tracks
• Inability to optimally organize refrigerator interiors
• Potential spills if shelves are overloaded
• Restricted access until replacement restores functionality

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, and some Kenmore models.

Please note: Does not include glass. For the glass order WP1114687.

Color: clear. Measures about 16-3/4 X 14-1/2 inches.

This is the cover above the refrigerator's meat/deli pan. It supports items placed on the shelf while providing a lid for the drawer below, helping organize contents and maintain proper drawer temperature and humidity.

• Forms the shelf surface over the meat/deli drawer
• Helps the drawer below retain cooler, stable conditions
• Replaces a cracked, bowed, or missing cover that causes poor drawer function
• Common symptoms: shelf sagging, broken frame, drawer won't slide or close smoothly

• Unplug the refrigerator and remove food from the affected area
• Slide out the meat/deli drawer before lifting the old cover straight up and out
• Transfer any removable inserts or trim from the old cover if applicable
• Seat the new cover on the supports and reinstall the drawer

This part has been discontinued and is no longer available.

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

Size: 8 x 1/2 ab.

The Air Diffuser Assembly is an OEM part for Whirlpool refrigerators. It regulates the airflow between the refrigerator and freezer compartments, ensuring the proper distribution of cold air to maintain the desired temperatures in both sections.

Common causes of a faulty air diffuser assembly include wear and tear from regular use, damage from ice buildup, or mechanical failure of the moving parts within the diffuser.

Symptoms of a bad air diffuser assembly include:

• Uneven temperatures between the refrigerator and freezer compartments
• Frost buildup in the freezer or refrigerator
• The refrigerator compartment being too warm or too cold
• Unusual noises coming from the air diffuser area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This air diffuser cover directs and protects airflow within the appliance, restoring proper air distribution and sealing the diffuser opening. It replaces a cracked, missing, or worn cover to help maintain consistent performance. What it does:

• Covers and protects the air diffuser/vent opening from debris and damage
• Directs airflow for consistent circulation where required by the appliance
• Helps reduce air leaks that can cause uneven temperature or performance
• Replaces damaged or missing covers that may rattle or allow debris entry

• One air diffuser cover

• Disconnect power to the appliance before beginning service
• Remove any retaining screws or clips and carefully snap or slide the old cover out
• Install the replacement by aligning tabs or screw holes and securing per the OEM fit

This egg carrier is a molded tray that holds and secures eggs inside the refrigerator so they stay organized and protected from rolling or breaking. It restores safe, tidy egg storage and fits the factory shelf location. What it does

• Holds and stabilizes eggs on the refrigerator shelf to reduce rolling and breakage.
• Replaces cracked, warped, or missing egg trays that allow eggs to shift or rattle.
• Restores the original storage configuration for proper fit and clearance.
• Simple, low-profile design keeps eggs accessible while maximizing shelf space.

• Disconnect power or open fridge and work in a well-lit, dry area; handle eggs and shelves carefully.
• Remove existing tray by lifting or sliding per shelf design; align new carrier with shelf supports and seat fully.
• No special tools required for most installations; inspect shelf area for damage before installing.

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position
