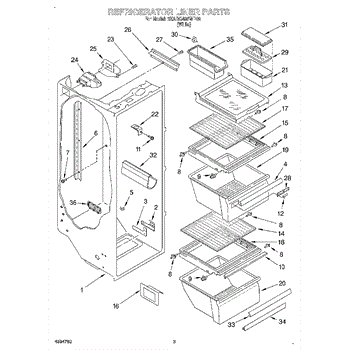

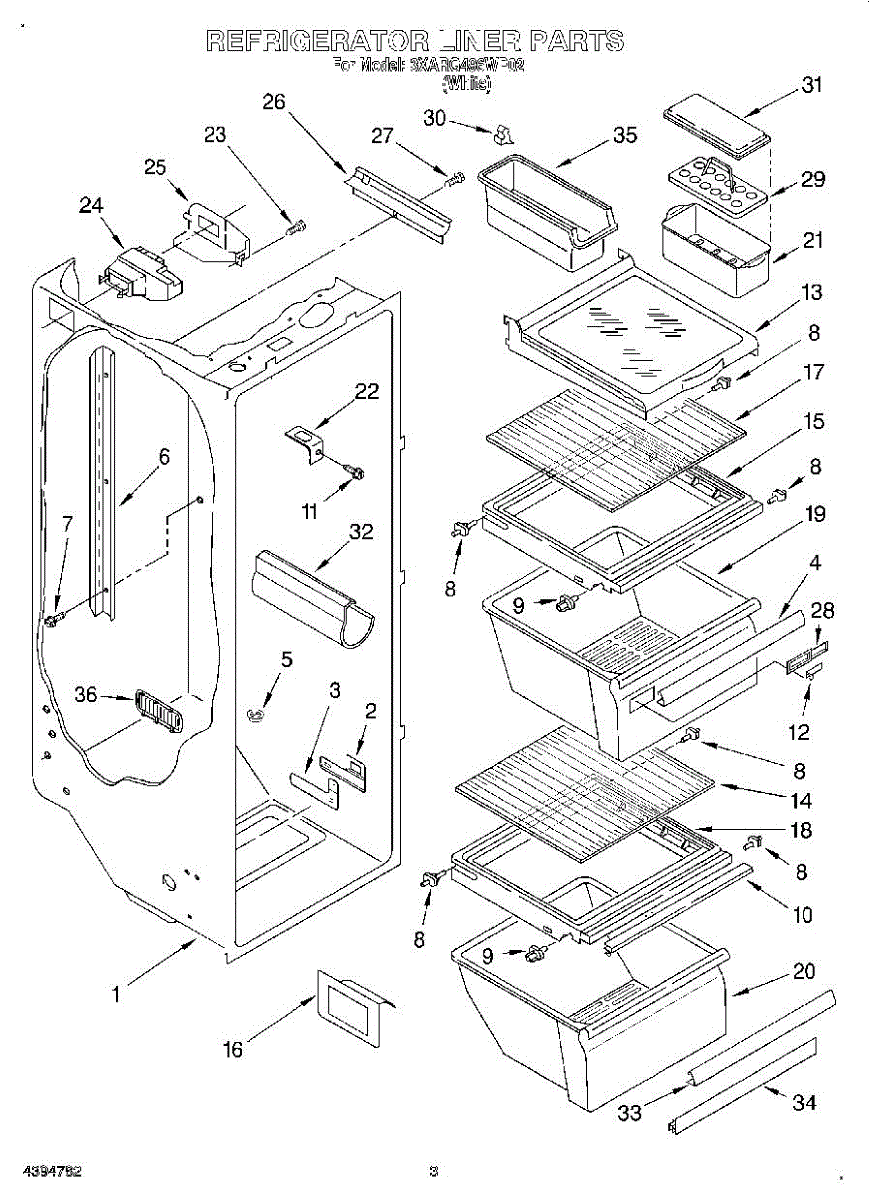

Parts for Whirlpool 3XARG496WP02: 02 - Refrigerator Liner Parts

This meat pan trim is the front handle piece for your refrigerator's deli/meat drawer. It restores a secure grip and clean, finished look so the drawer opens smoothly and stays attached to the pan.

• Attaches to the front edge of the meat/deli pan and serves as the drawer handle and trim
• Helps keep the pan properly seated for smooth in-and-out operation
• Replaces cracked, broken, loose, or missing trim/handle
• Can resolve issues like a hard-to-open drawer or a pan that won't stay in place

• Disconnect power; remove the meat pan and place it on a protected surface
• Remove the damaged trim and clean the pan's mating surfaces
• Align the new trim with the pan lip; press or slide it on until fully seated
• Reinstall the drawer and verify smooth operation before restoring power

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Refrigerator Shelf Stud Kit is an OEM replacement part for Whirlpool French-door refrigerators. It includes mounting posts that secure adjustable shelves within the refrigerator compartment. It includes 1 push and turn and 1 screw-in.

Symptoms of faulty shelf studs include:

• Shelves detaching and crashing due to broken studs or mounts
• Reduced weight-bearing ability requiring replacement of shelves
• Damage presenting sharp edges risking food cuts or tears in packaging
• Indents, cracks, or damage along the stud base

Causes of a bad evaporator fan motor can include electrical issues, worn bearings due to continuous operation, or physical damage from ice buildup or foreign objects. A failing motor can lead to inadequate cooling and potential food spoilage.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Shelf stud

This humidity control slide mounts in the crisper cover and moves the vent door to adjust airflow in the drawer. Replace a broken or missing slide to restore smooth adjustment and help manage moisture for better produce storage.

• Controls the crisper vent to increase or decrease humidity
• Provides the user-facing lever for Low/High humidity settings
• Helps reduce excess condensation, sogginess, or drying in the drawer
• Common symptoms: slide cracked or missing, hard to move, won't stay in position, humidity setting has no effect

• Unplug the refrigerator before servicing
• Remove the crisper drawer and lift off the cover/shelf as needed
• Release the old slide from its retainers (a small flat-blade screwdriver may help) and note the linkage to the vent
• Snap in the new slide, confirm smooth travel end to end, then reassemble

The Glass Shelf is an OEM part for Whirlpool refrigerators. It provides a sturdy and transparent surface within the refrigerator for storing food items, allowing for easy organization and visibility. The glass measures about 16.5 by 13 inches.

Common causes of a bad glass shelf include cracks or breaks due to heavy loads or accidental impacts, as well as edge chipping from repeated use.

Symptoms of a bad glass shelf include:

• Cracks or shattered glass
• Chipped or broken edges
• Unstable or wobbly placement within the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Glass Crisper Cover is an OEM part for Whirlpool refrigerators. It serves as the cover for the crisper drawers, providing a sturdy surface for storing items while helping to maintain the humidity levels inside the drawers to keep fruits and vegetables fresh. Measuring approximately 15 1/4" by 18", it ensures the drawer slides in and out smoothly.

Causes of a bad glass crisper cover can include accidental impacts that cause cracks or shattering, stress from heavy loads placed on top of the cover, or general wear and tear over time. Exposure to extreme temperatures or mishandling during cleaning can also lead to damage.

Symptoms of a bad glass crisper cover include:

• Cracks or breaks in the frame
• The cover not fitting securely over the crisper drawers
• Difficulty sliding the crisper drawers in and out
• Food items falling through due to gaps or damage

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This air deflector directs chilled air inside the refrigerator's fresh-food compartment to maintain even cooling and proper circulation. It replaces a damaged or missing deflector so cold air reaches interior shelves and drawers. What it does:

• Guides refrigerated air from the evaporator outlet into the fresh-food section for more even temperatures
• Helps prevent warm spots and uneven cooling on shelves and in drawers
• Restores correct airflow after cracking, warping, or breakage
• Can reduce frost buildup caused by improper air direction

• One air deflector

• Disconnect power to the appliance before beginning any work
• Remove interior shelves or drawers as needed for access
• This part typically snaps into place; align tabs and press until secured
• Handle gently to avoid cracking; verify fit and airflow after installation

The Glass Shelf is an OEM part for Whirlpool refrigerators. It provides a sturdy and transparent surface within the refrigerator for storing food items, allowing for easy organization and visibility. The glass measures about 16.5 by 13 inches.

Common causes of a bad glass shelf include cracks or breaks due to heavy loads or accidental impacts, as well as edge chipping from repeated use.

Symptoms of a bad glass shelf include:

• Cracks or shattered glass
• Chipped or broken edges
• Unstable or wobbly placement within the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Glass Crisper Cover is an OEM part for Whirlpool refrigerators. It serves as the cover for the crisper drawers, providing a sturdy surface for storing items while helping to maintain the humidity levels inside the drawers to keep fruits and vegetables fresh. Measuring approximately 15 1/4" by 18", it ensures the drawer slides in and out smoothly.

Causes of a bad glass crisper cover can include accidental impacts that cause cracks or shattering, stress from heavy loads placed on top of the cover, or general wear and tear over time. Exposure to extreme temperatures or mishandling during cleaning can also lead to damage.

Symptoms of a bad glass crisper cover include:

• Cracks or breaks in the frame
• The cover not fitting securely over the crisper drawers
• Difficulty sliding the crisper drawers in and out
• Food items falling through due to gaps or damage

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Crisper Pan is an OEM part for Whirlpool refrigerators. It is designed to store fruits and vegetables at optimal humidity levels, helping to keep them fresh for longer periods. This drawer fits into the lower section of the refrigerator and is made from durable, clear plastic, allowing for easy visibility of its contents.

Over time, the pan can crack or break due to frequent use, overloading, or accidental impacts.

Symptoms of a bad Crisper Pan include:

• Cracks or breaks in the pan
• Difficulty sliding the pan in and out
• Reduced storage capacity
• Produce not staying fresh

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Meat Pan is an OEM part for Whirlpool refrigerators. This component provides a dedicated storage area within the refrigerator, designed to keep meats at an optimal temperature for freshness. The meat pan slides in and out for easy access and helps to organize and separate meat products from other items in the fridge. The pan measures approximately 14.96" long x 16.456" wide by 7.598" high

Common causes of a bad meat pan include damage from impact, wear and tear from frequent use, or warping due to temperature changes.

Symptoms of a bad meat pan include:

• Cracks or breaks in the pan
• Difficulty sliding the pan in and out
• The pan not fitting securely in its designated space
• Food not being kept at the correct temperature

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

Size: 8 x 1/2 ab.

The Air Diffuser Assembly is an OEM part for Whirlpool refrigerators. It regulates the airflow between the refrigerator and freezer compartments, ensuring the proper distribution of cold air to maintain the desired temperatures in both sections.

Common causes of a faulty air diffuser assembly include wear and tear from regular use, damage from ice buildup, or mechanical failure of the moving parts within the diffuser.

Symptoms of a bad air diffuser assembly include:

• Uneven temperatures between the refrigerator and freezer compartments
• Frost buildup in the freezer or refrigerator
• The refrigerator compartment being too warm or too cold
• Unusual noises coming from the air diffuser area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This air diffuser cover directs and protects airflow within the appliance, restoring proper air distribution and sealing the diffuser opening. It replaces a cracked, missing, or worn cover to help maintain consistent performance. What it does:

• Covers and protects the air diffuser/vent opening from debris and damage
• Directs airflow for consistent circulation where required by the appliance
• Helps reduce air leaks that can cause uneven temperature or performance
• Replaces damaged or missing covers that may rattle or allow debris entry

• One air diffuser cover

• Disconnect power to the appliance before beginning service
• Remove any retaining screws or clips and carefully snap or slide the old cover out
• Install the replacement by aligning tabs or screw holes and securing per the OEM fit

This humidity control body is the fixed housing for a refrigerator crisper vent. It mounts to the crisper cover or drawer and provides the track for the slider so you can open/close the vent and help manage drawer moisture. What it does:

• Serves as the stationary housing for the crisper's humidity control vent
• Guides and secures the humidity control slider so it moves smoothly
• Helps regulate airflow into the crisper to influence moisture levels
• Common signs of failure: broken/missing housing, loose slider, vent won't adjust or stays stuck

• One humidity control body

• Disconnect power and remove the crisper/bin or cover for access
• Note slider orientation and position before removal
• Transfer the slider to the new body and secure the body to existing mounting points
• Avoid overtightening to prevent cracking; verify smooth slider travel before reassembly

This egg carrier is a molded tray that holds and secures eggs inside the refrigerator so they stay organized and protected from rolling or breaking. It restores safe, tidy egg storage and fits the factory shelf location. What it does

• Holds and stabilizes eggs on the refrigerator shelf to reduce rolling and breakage.
• Replaces cracked, warped, or missing egg trays that allow eggs to shift or rattle.
• Restores the original storage configuration for proper fit and clearance.
• Simple, low-profile design keeps eggs accessible while maximizing shelf space.

• Disconnect power or open fridge and work in a well-lit, dry area; handle eggs and shelves carefully.
• Remove existing tray by lifting or sliding per shelf design; align new carrier with shelf supports and seat fully.
• No special tools required for most installations; inspect shelf area for damage before installing.

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

This replacement wine rack restores secure bottle storage inside the refrigerator, keeping bottles organized and helping prevent rolling or breakage. It replaces worn, cracked or missing wine racks so your fridge stores bottles safely. What it does:

• Holds and secures standard wine bottles on a dedicated shelf area to prevent rolling
• Replaces damaged, bent or missing racks that no longer support bottles safely
• Restores organized bottle storage and helps maximize usable shelf space
• Designed to fit into the fridge's existing support grooves or shelf frame

• Slides into existing support grooves or shelf frame; no special tools typically required
• Remove surrounding shelves or contents for safer, easier access before installing
• Handle edges carefully during installation to avoid damage or scratches

This meat pan trim is the front handle piece for your refrigerator's deli/meat drawer. It restores a secure grip and clean, finished look so the drawer opens smoothly and stays attached to the pan.

• Attaches to the front edge of the meat/deli pan and serves as the drawer handle and trim
• Helps keep the pan properly seated for smooth in-and-out operation
• Replaces cracked, broken, loose, or missing trim/handle
• Can resolve issues like a hard-to-open drawer or a pan that won't stay in place

• Disconnect power; remove the meat pan and place it on a protected surface
• Remove the damaged trim and clean the pan's mating surfaces
• Align the new trim with the pan lip; press or slide it on until fully seated
• Reinstall the drawer and verify smooth operation before restoring power

Ice cube/utility container.
