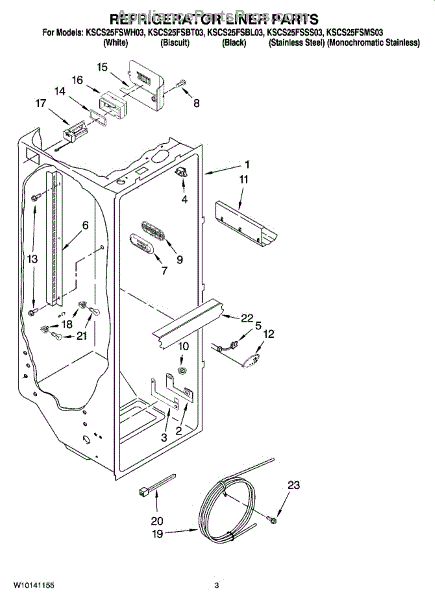

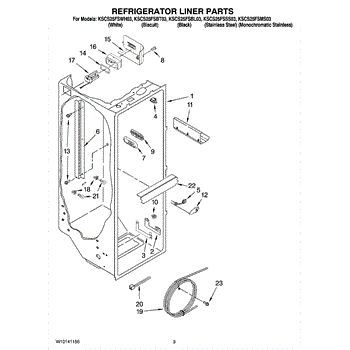

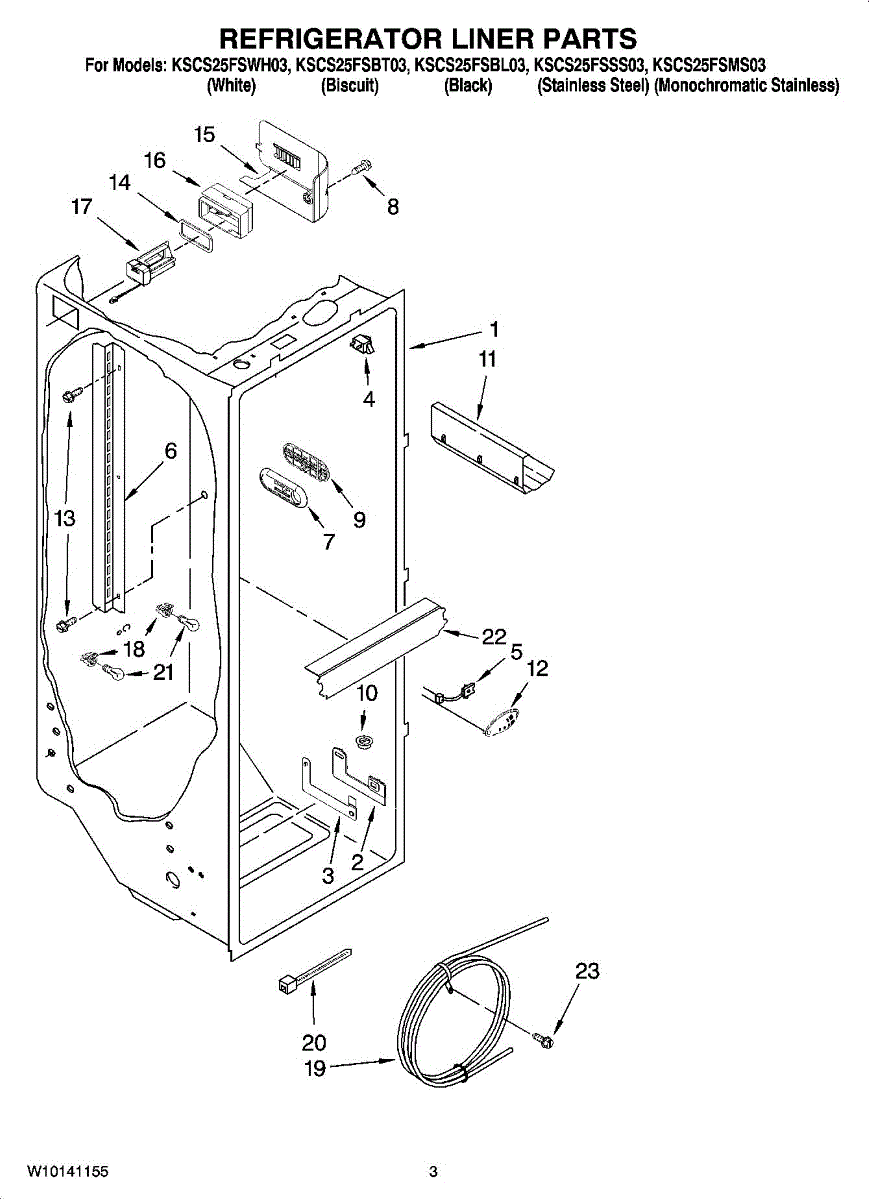

Parts for Kitchenaid KSCS25FSMS03: 02 - Refrigerator Liner Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Thermistor is an OEM replacement part for Whirlpool refrigerators. This temperature-sensitive sensor monitors conditions inside refrigerator and freezer compartments. It provides critical feedback to the electronic control module, regulating cool air temperature in both sections.

Symptoms of a faulty thermistor include:

• Fluctuating temperatures where sections become too warm or cold
• Frequent cycling of evaporator fans and cooling components
• Defrost issues or Er/Ed error codes shown on displays

Causes can involve regular exposure to changing interior environments over many years. Mineral deposits accumulating may lead to sensor surfaces becoming insulated. Physical stress from overloading could potentially crack the thermistor over time as well.

This OEM replacement part is compatible with some Kenmore Elite models too.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement wine rack restores secure bottle storage inside the refrigerator, keeping bottles organized and helping prevent rolling or breakage. It replaces worn, cracked or missing wine racks so your fridge stores bottles safely. What it does:

• Holds and secures standard wine bottles on a dedicated shelf area to prevent rolling
• Replaces damaged, bent or missing racks that no longer support bottles safely
• Restores organized bottle storage and helps maximize usable shelf space
• Designed to fit into the fridge's existing support grooves or shelf frame

• Slides into existing support grooves or shelf frame; no special tools typically required
• Remove surrounding shelves or contents for safer, easier access before installing
• Handle edges carefully during installation to avoid damage or scratches

A thermistor assembly that measures refrigerator temperature and sends that data to the control board so the appliance can regulate cooling. Replaces a failed sensor to help restore accurate temperature control. What it does:

• Senses internal temperature and converts it to a signal the control board uses to adjust cooling.
• Helps regulate compressor, evaporator, and defrost cycles when operating correctly.
• Common symptom: erratic or incorrect refrigerator/freezer temperatures.
• Common symptom: cooling failure, long run times, or temperature-related error codes.

• Disconnect power before accessing or replacing the thermistor to avoid shock.
• Handle the sensor element and wiring gently; avoid pinching or crimping the leads.
• Install in the same location and orientation shown in the OEM diagram for reliable readings.

Size: 8 x 1/2 ab.

This refrigerator air baffle is the internal vane that directs cold airflow from the freezer into the fresh food compartment. Replacing a broken or missing baffle helps restore even cooling and reduce random warm spots or items freezing near the vent.

• Directs and regulates airflow between freezer and refrigerator sections
• Helps maintain stable, even temperatures across shelves
• Diffuses direct cold air to minimize food freezing near the outlet
• Failure symptoms can include uneven cooling, weak airflow, cold spots, or rattling at the vent

• Disconnect power before service and wear cut-resistant gloves
• Access the interior vent/diffuser area; remove the cover or grille as needed
• Note the original baffle's orientation; seat the new baffle securely without obstructing the damper
• Reinstall covers, restore power, and allow temperatures to stabilize

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Reservoir Tubing is an OEM replacement part for Whirlpool refrigerators. It is a flexible plastic tubing that replaces the water reservoir and holds the water for the ice maker and dispenser.

Causes can include cracks from heat or cold exposure over time, punctures from sharp edges during installation, or deterioration of plastic tubing that impacts integrity.

Symptoms of bad water reservoir tubing include:

• Inaccurate or inconsistent ice production
• Leaks or water spills near the reservoir or ice maker
• Kinks or ruptures in the tubing that obstruct water flow
• Mineral buildup that clogs or restricts the line

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: As per manufacture this is no longer a tank. The tank style has been updated with coiled tubing.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.
