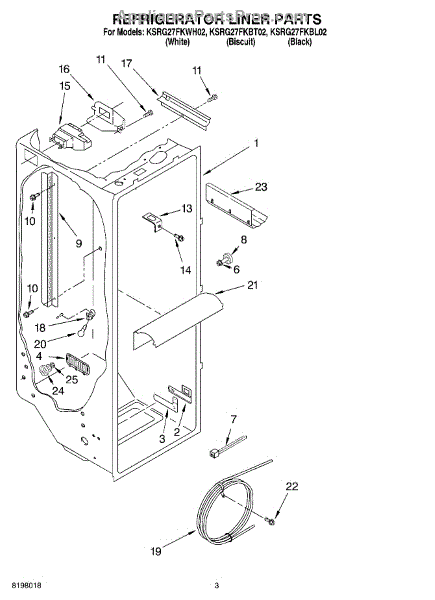

Parts for Kitchenaid KSRG27FKBT02: 02 - Refrigerator Liner Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This is a replacement #8-18 screw used to fasten components in compatible Whirlpool appliances. It restores worn or missing fasteners so panels and parts stay securely mounted and function safely. What it does

• Secures panels, brackets, and small appliance components to the frame or mounting points
• Restores proper fit where a stripped, missing, or corroded screw causes rattling or loose parts
• Provides the correct thread engagement to prevent backing out under normal use
• Small fastener intended for interior and light-duty exterior appliance applications

• One #8-18 screw

• Use the matching screwdriver or bit to avoid damaging the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic parts
• Replace any damaged mating clips or inserts for a secure repair
• Disconnect power and follow appliance safety instructions before accessing internal components

The Shelf Stud is an OEM part for Whirlpool refrigerators. It serves as a support peg that holds the refrigerator shelves in place, ensuring they remain stable and properly positioned.

Causes of a bad shelf stud can include wear and tear from regular use, accidental impact that causes the stud to break, or repeated removal and reinstallation of shelves leading to loosening or damage.

Symptoms of a bad shelf stud include:

• Shelves not staying securely in place
• Shelves tilting or collapsing
• Visible cracks or damage to the stud
• Difficulty in inserting or removing shelves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a rear stud with a screw. For the front stud with screw use part number W11223328. For studs with no screw use kit part number 4388538.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This air diffuser assembly directs blower airflow for correct air distribution in the appliance, helping restore proper airflow and reduce uneven drying or heating. Replace damaged or broken diffusers to improve performance and reduce lint buildup. What it does:

• Directs airflow from the blower into the appliance's duct/drum path for even circulation.
• Helps prevent hot spots and uneven drying by guiding air where it's needed.
• Can reduce excessive lint accumulation caused by cracked or warped diffusers.
• Replace when cracked, broken, loose, or when you notice poor airflow, long cycle times, or uneven drying/heating.

• Disconnect power before beginning any repair to avoid electrical shock.
• Access typically requires removing the appliance front panel or cabinet; follow the OEM service manual for disassembly steps.
• Inspect surrounding seals and mounting tabs; replace any damaged hardware to ensure a proper fit and seal.

This air diffuser cover directs and protects airflow within the appliance, restoring proper air distribution and sealing the diffuser opening. It replaces a cracked, missing, or worn cover to help maintain consistent performance. What it does:

• Covers and protects the air diffuser/vent opening from debris and damage
• Directs airflow for consistent circulation where required by the appliance
• Helps reduce air leaks that can cause uneven temperature or performance
• Replaces damaged or missing covers that may rattle or allow debris entry

• One air diffuser cover

• Disconnect power to the appliance before beginning service
• Remove any retaining screws or clips and carefully snap or slide the old cover out
• Install the replacement by aligning tabs or screw holes and securing per the OEM fit

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Reservoir is an OEM part for Whirlpool refrigerators. It stores and chills water before it is dispensed through the refrigerator's water dispenser. This component ensures that you have a steady supply of cold water available directly from your fridge.

Common causes of a bad water reservoir include cracks or leaks from regular use, exposure to extreme temperatures, or blockages from mineral deposits.

Symptoms of a bad water reservoir include:

• Water leaks inside the refrigerator
• The water dispenser not dispensing properly
• Unusual tastes or odors in the water
• Visible cracks or damage to the reservoir

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Color: clear. It measures about 18 inches wide by 4 inches high.

This replacement wine rack restores secure bottle storage inside the refrigerator, keeping bottles organized and helping prevent rolling or breakage. It replaces worn, cracked or missing wine racks so your fridge stores bottles safely. What it does:

• Holds and secures standard wine bottles on a dedicated shelf area to prevent rolling
• Replaces damaged, bent or missing racks that no longer support bottles safely
• Restores organized bottle storage and helps maximize usable shelf space
• Designed to fit into the fridge's existing support grooves or shelf frame

• Slides into existing support grooves or shelf frame; no special tools typically required
• Remove surrounding shelves or contents for safer, easier access before installing
• Handle edges carefully during installation to avoid damage or scratches

This shelf support stud anchors a refrigerator shelf to the cabinet liner so it stays level and secure. Replace a cracked or missing stud to restore proper support and prevent shelves from tilting, slipping, or dropping.

• Locks into the liner wall to provide a mounting point for the shelf frame or bracket
• Keeps the shelf aligned and at the correct height
• Common symptoms: broken/missing stud, shelf won't sit flat, shelf sags or falls on one side
• Helps prevent items from sliding due to an unstable shelf

• Disconnect power; remove the shelf and any items resting on it. Handle glass shelves carefully and consider wearing cut-resistant gloves.
• Remove the damaged stud (release the locking tab or twist out, depending on design).
• Insert the new stud into the existing hole until fully seated and locked.
• Reinstall the shelf and verify it sits level before reloading.

Pan-head screw used to secure panels, brackets and trim on Whirlpool appliances. Replacing a damaged or missing screw restores proper fastening to reduce vibration and keep assemblies aligned during operation. What it does:

• Secures panels, brackets and trim pieces to the appliance chassis.
• Stops loose panels from rattling, vibrating or shifting during use.
• Used when the original screw is stripped, corroded or missing.
• OEM replacement that restores the original fastening point.

• Unplug the appliance or shut off power before working on it.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten or force in plastic parts.
• If the original hole or threads are damaged, inspect the surrounding area before reuse.
