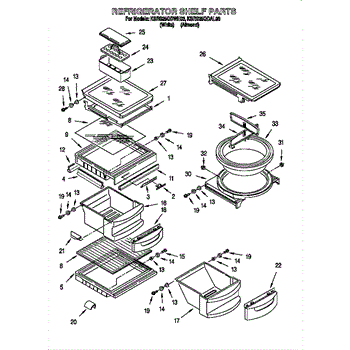

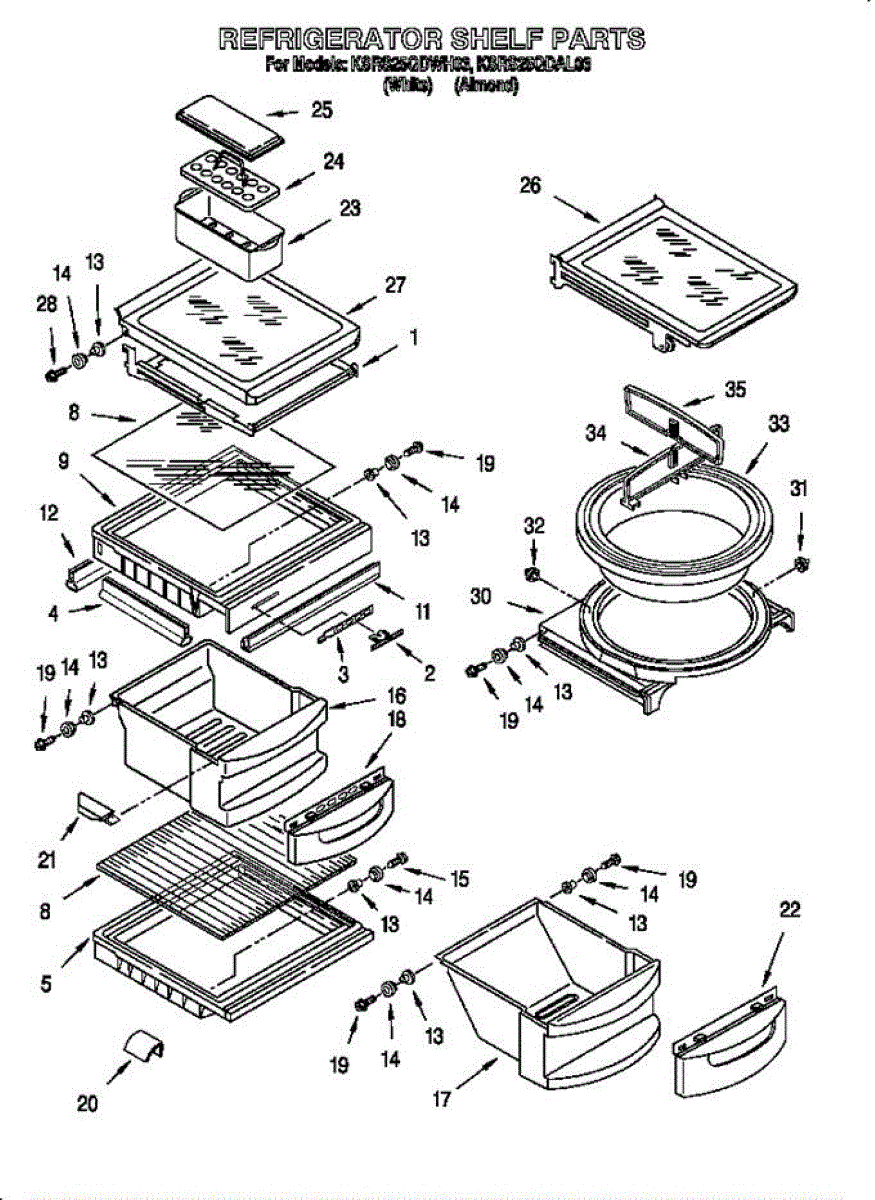

Parts for Kitchenaid SC8640EE: Refrigerator Shelf Parts

Color: White. Size: 17 inches X 15 inches. For frame approx 17 inches X 17 inches order 2161760. Includes the two front roller eyelets, rollers and screws. Does not include glass. For glass order WP2203038.

Color: clear. Measures about 16 inches wide by 14 inches deep.

Comes with two rollers and two eyelets

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

This refrigerator crisper drawer replaces a damaged or missing produce bin. It restores smooth-sliding, dedicated storage for fruits and vegetables to keep the crisper area organized and easy to use.

• Holds and organizes produce in the refrigerator's crisper compartment; slides on the side rails beneath the crisper cover
• Replace when cracked, warped, or missing
• Common symptoms: broken corners, drawer binds or falls off tracks, or produce can't be stored properly
• Restores proper fit and smooth operation of the crisper section

• Remove food, pull the old drawer out to the stop, lift slightly to clear the rails, and remove
• Align the new drawer on the rails and slide straight in until fully seated
• Let cold plastic warm to room temperature before installation; do not force into place
• If removing shelves or covers for access, handle glass carefully; unplug the appliance if you'll be working near electrical components

This is a replacement 10-16-1 screw used to fasten appliance panels and components. It restores a secure fit for loose or rattling parts so panels and assemblies stay properly aligned during use. What it does:

• Secures panels, brackets, or small appliance components in place
• Helps stop rattling, vibration noise, or loose-fitting parts
• Restores proper alignment for doors, access panels, or internal assemblies
• Matches OEM thread and length for correct fit when replacing worn or missing screws

• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw to ensure proper thread engagement before tightening
• Do not overtighten; snug the screw until the part is secure to avoid damage
• Disconnect power to the appliance before accessing internal components

This deflector directs airflow and protects nearby components from heat and debris, helping the appliance maintain consistent performance. It's a small but important trim/air-guide part that keeps internal airflow routed correctly. What it does:

• Guides and redirects airflow inside the appliance to improve circulation
• Shields adjacent components from heat, lint, or debris
• Helps maintain even temperatures and consistent operation
• A worn or damaged deflector can contribute to uneven heating, reduced efficiency, or abnormal airflow noises

• One deflector part

• Disconnect power (and gas if applicable) before servicing
• Use basic hand tools; handle edges carefully—parts may have sharp edges
• Verify correct placement against the service diagram; fasten securely but avoid overtightening

This is the left side cap. For right side use 2174259.

This is the right side cap. For left side use 2174258.

This is the oven meat pan window — a replacement inner glass that restores visibility into the oven cavity so you can check food without opening the door. It fits the meat pan/oven door assembly and helps maintain proper oven operation. What it does:

• Replaces cracked, broken or fogged inner oven door window to restore a clear view of cooking contents
• Helps contain heat and allow safe monitoring of roast or meat pans without opening the door
• Prevents loose glass fragments from falling into the oven cavity when damaged
• Matches OEM form and mounting points for correct fit with the meat pan/door assembly

• One oven door meat pan inner window

• Installation typically requires removing the oven door and/or inner door panel; follow the oven's service manual for the correct disassembly order
• Wear cut-resistant gloves and eye protection when handling glass to avoid injury
• Inspect door seals and mounting hardware during replacement; replace any damaged fasteners or gaskets as needed

Color: clear. It measures about 6 inches wide by 3-1/2 inches high by 15 inches deep.

This egg carrier is a molded tray that holds and secures eggs inside the refrigerator so they stay organized and protected from rolling or breaking. It restores safe, tidy egg storage and fits the factory shelf location. What it does

• Holds and stabilizes eggs on the refrigerator shelf to reduce rolling and breakage.
• Replaces cracked, warped, or missing egg trays that allow eggs to shift or rattle.
• Restores the original storage configuration for proper fit and clearance.
• Simple, low-profile design keeps eggs accessible while maximizing shelf space.

• Disconnect power or open fridge and work in a well-lit, dry area; handle eggs and shelves carefully.
• Remove existing tray by lifting or sliding per shelf design; align new carrier with shelf supports and seat fully.
• No special tools required for most installations; inspect shelf area for damage before installing.
