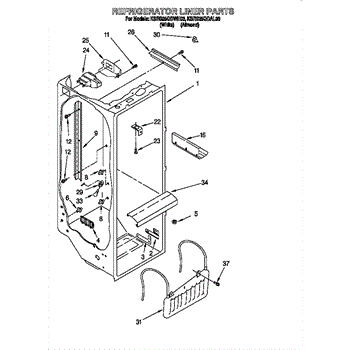

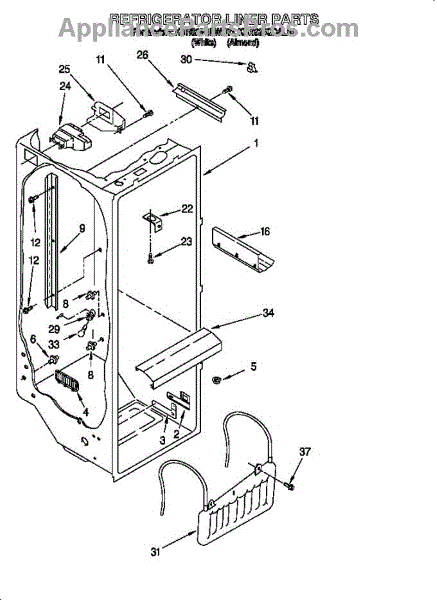

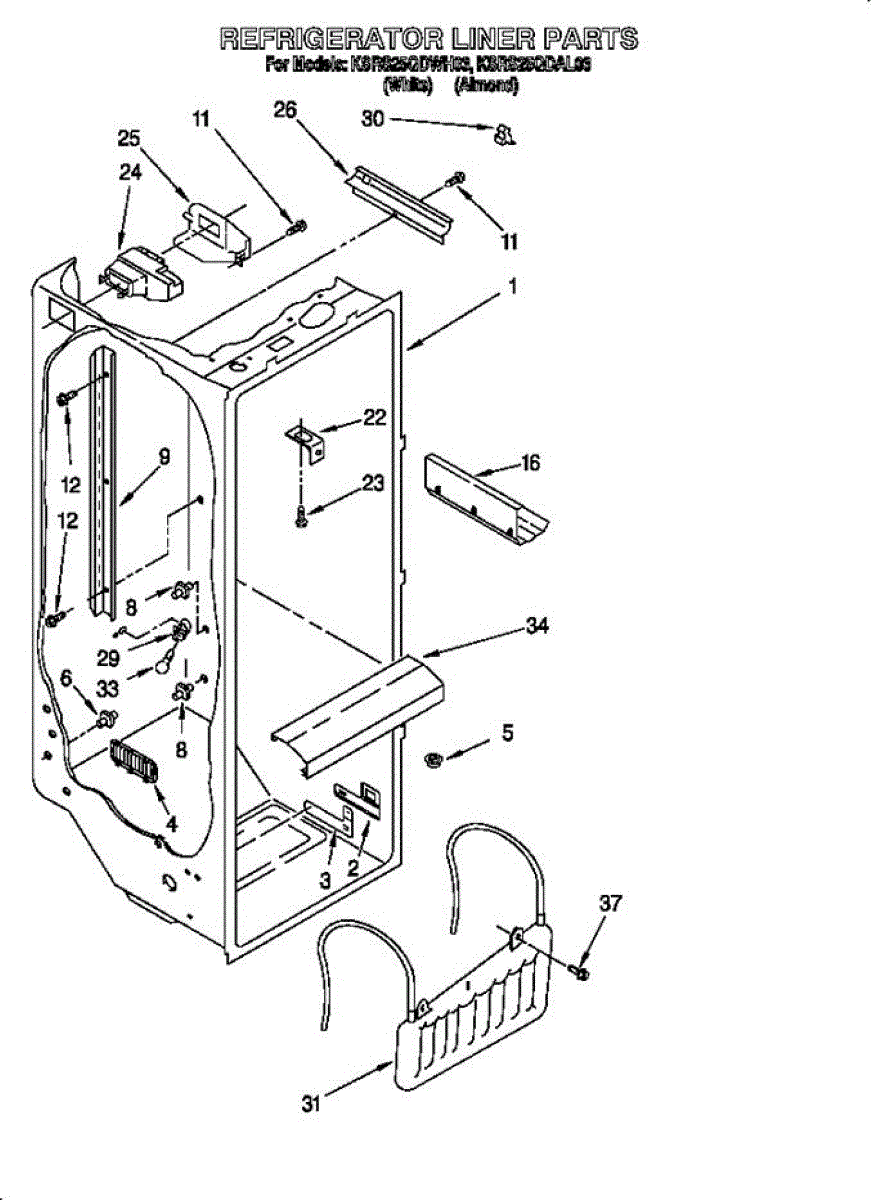

Parts for Kitchenaid SC8640EE: Refrigerator Liner Parts

Shelf stud

The Refrigerator Shelf Stud Kit is an OEM replacement part for Whirlpool French-door refrigerators. It includes mounting posts that secure adjustable shelves within the refrigerator compartment. It includes 1 push and turn and 1 screw-in.

Symptoms of faulty shelf studs include:

• Shelves detaching and crashing due to broken studs or mounts
• Reduced weight-bearing ability requiring replacement of shelves
• Damage presenting sharp edges risking food cuts or tears in packaging
• Indents, cracks, or damage along the stud base

Causes of a bad evaporator fan motor can include electrical issues, worn bearings due to continuous operation, or physical damage from ice buildup or foreign objects. A failing motor can lead to inadequate cooling and potential food spoilage.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement wine rack restores secure bottle storage inside the refrigerator, keeping bottles organized and helping prevent rolling or breakage. It replaces worn, cracked or missing wine racks so your fridge stores bottles safely. What it does:

• Holds and secures standard wine bottles on a dedicated shelf area to prevent rolling
• Replaces damaged, bent or missing racks that no longer support bottles safely
• Restores organized bottle storage and helps maximize usable shelf space
• Designed to fit into the fridge's existing support grooves or shelf frame

• Slides into existing support grooves or shelf frame; no special tools typically required
• Remove surrounding shelves or contents for safer, easier access before installing
• Handle edges carefully during installation to avoid damage or scratches

The air diffuser is the damper assembly that meters cold air from the freezer into the fresh food compartment. Replacing a sticking or broken diffuser restores proper airflow and helps keep refrigerator temperatures balanced and consistent.

• Regulates and directs airflow from the freezer to the refrigerator compartment
• Opens and closes to balance temperatures between sections
• Helps prevent warm spots or freezing near vents in the fresh food area
• Typical symptoms: refrigerator too warm, items freezing near vents, continuous or no airflow through the diffuser, or frost buildup around the diffuser opening

• Disconnect power before servicing
• Access from the fresh food section; remove shelves and the diffuser cover/grille to reach the assembly
• Transfer any reusable mounting hardware or seals from the original part
• Restore power and allow up to 24 hours for temperatures to stabilize; verify airflow through the diffuser

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

The Water Reservoir is an OEM part for Whirlpool refrigerators. It stores and chills water before it is dispensed through the refrigerator's water dispenser. This component ensures that you have a steady supply of cold water available directly from your fridge.

Common causes of a bad water reservoir include cracks or leaks from regular use, exposure to extreme temperatures, or blockages from mineral deposits.

Symptoms of a bad water reservoir include:

• Water leaks inside the refrigerator
• The water dispenser not dispensing properly
• Unusual tastes or odors in the water
• Visible cracks or damage to the reservoir

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.
