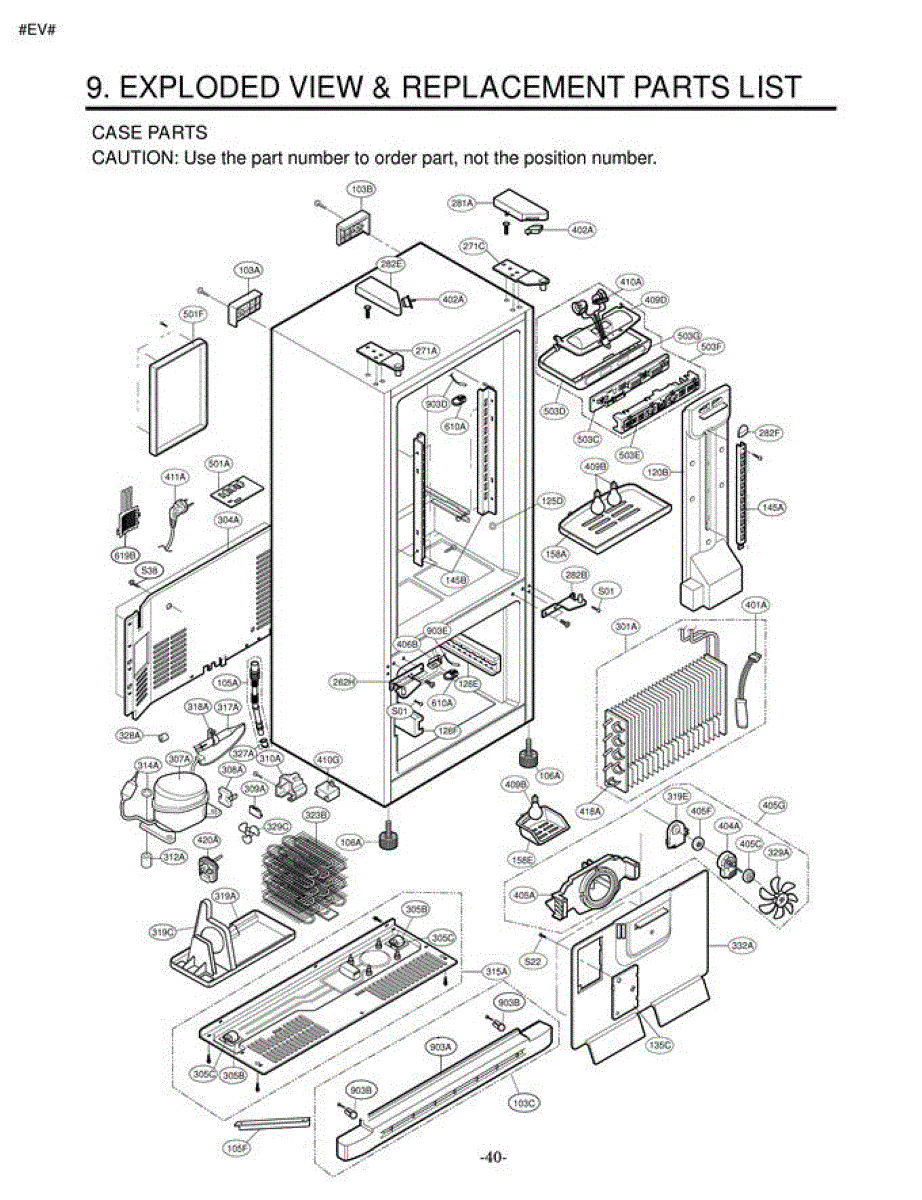

Parts for Lg LFC20740ST / ASTCLGY: Section 1 Parts

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This duct assembly routes dryer airflow through the appliance's venting system to help remove hot, moist air during cycles. It restores proper airflow routing so the dryer can vent efficiently and dry loads more reliably. What it does:

• Channels exhaust air from the blower to the external vent or internal ductwork
• Helps prevent moisture buildup and reduces drying times when functioning correctly
• Can reduce hot spots and minimize lint accumulation in the cabinet area
• May eliminate abnormal airflow noises caused by damaged or disconnected ducting

• One duct assembly

• Disconnect power (and gas if applicable) before servicing to avoid shock or fire hazard
• Inspect surrounding seals, clamps and mounting points; replace any damaged hardware for a secure fit
• Use basic hand tools; avoid sharp bends or kinks in the duct to maintain airflow

This holder rail secures and supports internal components in select LG appliances, restoring proper alignment and reducing movement or vibration. Replace a cracked, broken or worn rail to help stop rattling and improper component fit. What it does:

• Provides a stable mounting/support surface for internal parts that rely on the rail for alignment.
• Prevents shifting or vibration that can cause noise, wear, or misalignment.
• Install a new rail if the original is cracked, broken, warped or missing.
• Helps restore correct component positioning for reliable operation.

• Disconnect power and unplug the appliance before beginning any repair.
• Basic hand tools may be required; refer to the exploded parts list for disassembly steps.
• Inspect surrounding mounting points and fasteners; replace any damaged clips or screws.

This grille cover protects the appliance's cooling/ventilation fan and helps direct airflow where it's needed. It restores the cabinet finish and keeps debris away from the fan housing for more reliable operation. What it does:

• Shields the fan from loose debris and small objects that can cause damage
• Helps channel airflow for proper cooling/ventilation
• Prevents direct contact with fan blades for improved safety
• Reduces rattling or vibration caused by damaged or missing grille

• Disconnect power to the appliance before beginning any work
• Remove any trim or access panels as required to reach the fan area
• Secure with the factory fasteners; do not overtighten to avoid cracking
• Handle edges carefully; wear gloves if needed and test operation after reassembly

This lamp cover encloses and shields the light bulb while diffusing illumination inside the appliance. Replacing a cracked, discolored, or missing cover restores safe, even lighting and protects the bulb from accidental contact and debris.

• Covers and protects the light bulb; diffuses light for better visibility inside the compartment
• Helps prevent bulb damage from impact, moisture, and debris
• Common symptoms: cover is cracked, warped/melted, yellowed, loose, or missing; exposed bulb or harsh glare
• Sometimes called a light lens; may rattle or fall out when tabs or screws break

• Disconnect power to the appliance and allow the lamp area to cool completely
• Handle the lens carefully; align tabs/clips and seat fully before securing—do not overtighten
• Inspect and replace the bulb if damaged or heat-darkened

This center hinge assembly replaces the refrigerator door center hinge to restore proper door alignment and smooth operation. It supports the door weight and helps maintain correct sealing for reliable cooling performance. What it does:

• Supports the center of the door, keeping it aligned and preventing sagging
• Provides the pivot point for smooth opening and closing
• Helps maintain a consistent door seal to prevent cool-air loss
• Can eliminate shifting, squeaking, or uneven door gaps caused by a worn hinge

• 1 center hinge assembly

• Disconnect power and empty or support the door before removing the hinge
• Use appropriate tools and a second person to safely support the door during replacement
• Inspect adjoining hinges and mounting hardware; replace any damaged fasteners for best results

This center hinge assembly supports and pivots the middle door section to keep doors aligned and operating smoothly. Replace a worn or damaged center hinge to restore proper door movement and help maintain a tight seal. What it does:

• Provides the pivot point and structural support for the center door section to open and close smoothly
• Helps maintain door alignment to prevent rubbing, scraping, or uneven gaps
• Reduces door sag that can interfere with sealing and cooling efficiency
• Prevents binding or sticking during door operation

• One center hinge assembly

• Disconnect power to the appliance before starting any repair
• Doors are heavy—have a second person assist to support doors while removing or installing the hinge
• Remove any trim or covers to access hinge screws; align doors fully before tightening fasteners
• Use manufacturer-recommended torque; do not overtighten screws or force parts into place

This cover assembly replaces a damaged or worn control panel cover to restore the appliance's finished appearance and protect the control components. It fits over the front control area and provides a clean, secure surface for buttons and displays. What it does:

• Protects internal control components from dust, spills, and everyday wear
• Restores a cracked, faded, or broken control panel surface to a like-new look
• Helps keep buttons and display areas properly aligned and shielded
• Prevents debris from entering the control cavity and affecting operation

• One cover assembly as shown

• Disconnect power (unplug or switch off breaker) before starting any work
• Remove any trim or screws securing the existing control cover; keep fasteners for re-use if applicable
• Handle the cover carefully to avoid scratching or damaging the finish during installation
• Avoid touching circuit components and follow anti-static precautions

This is a replacement retaining pin used to secure small moving parts and assemblies in compatible LG appliances. It restores proper alignment and holds components in place so assemblies operate smoothly. What it does:

• Secures and locates components within an assembly to prevent shifting or disengagement
• Helps maintain proper alignment for moving parts that can cause noise or malfunction when loose
• Commonly used where a small, durable metal pin is needed to retain clips, levers, or linkages
• Simple, single-purpose part — replacement when the original is bent, worn, or missing

• One retaining pin

• Unplug the appliance or disconnect power before servicing
• Access the affected assembly per the appliance service instructions; small fasteners or clips may need removal
• Use pliers or appropriate hand tools to remove/install the pin; avoid forcing to prevent damage
• Keep track of orientation and any associated clips or washers during disassembly

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This overload protector is a safety device that helps prevent compressor damage by stopping electrical current during overheating or locked-rotor conditions. It's a direct-fit replacement that restores proper compressor protection and helps keep the appliance running safely. What it does:

• Protects the compressor by interrupting power if the motor overheats or experiences an electrical fault
• Common symptom: refrigerator runs but compressor won't start or only hums
• Common symptom: fridge cycles frequently or doesn't maintain temperature due to compressor protection tripping
• Works with the start device to help ensure reliable compressor startup

• Disconnect power before servicing; work only with the appliance unplugged
• Access typically requires removing the rear access panel to reach the compressor area
• Replace using the same mounting and terminal connections; ensure secure electrical connections

The Compressor Overload Protector is an OEM part for LG refrigerators. This critical component safeguards the compressor, which is the heart of the refrigeration system, from potential damage caused by excessive current draw or overheating.

Symptoms of a faulty compressor overload protector:

• Refrigerator not cooling properly or not running at all
• Compressor failing to start or repeatedly cycling on and off
• Buzzing or humming noises from the compressor area

Causes of a bad compressor overload protector can include electrical surges, wiring issues, or simply wear and tear over an extended period.

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This motor bracket is the OEM-style mounting bracket that secures the appliance motor to the cabinet, keeping the motor aligned and reducing vibration for reliable operation. It helps restore proper motor support and stable running. What it does:

• Provides a secure mounting point to hold the motor in correct position
• Maintains motor alignment to prevent belt slip and uneven wear
• Reduces vibration and noise caused by a loose or damaged motor mount
• Can resolve symptoms such as unusual motor noise, excessive vibration, or motor movement during operation

• Disconnect power (and gas if applicable) before starting any repair
• Basic hand tools are typically required; follow the appliance service manual for access steps
• Inspect surrounding components (mounting fasteners, motor and belts) and replace any damaged parts

The Defrost Sensor Assembly is an OEM part for LG refrigerators. It plays a critical role in the defrost system by monitoring the temperature of the evaporator coil to ensure that it remains at the optimal temperature to prevent frost buildup. The sensor sends signals to the control board, triggering the defrost cycle when necessary.

Over time, the defrost sensor assembly can fail due to wear and tear, electrical issues, or exposure to moisture and temperature fluctuations. When the defrost sensor malfunctions, it can cause improper defrost cycles, leading to excessive frost buildup, reduced cooling efficiency, or the refrigerator not defrosting at all.

Symptoms of a bad defrost sensor assembly include:

• Excessive frost buildup on the evaporator coils
• Refrigerator or freezer not maintaining the correct temperature
• Increased energy consumption
• Refrigerator not defrosting properly

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is responsible for detecting whether the refrigerator door is open or closed, allowing the appliance to control the interior light and, in some models, the cooling functions accordingly.

Causes of a bad door switch can include wear and tear from frequent use, electrical issues, or physical damage to the switch mechanism. A faulty door switch can lead to improper operation of the refrigerator's light or cooling system, affecting overall performance.

Symptoms of a bad door switch include:

• Interior light not turning on or off properly
• Refrigerator not cooling properly or running continuously
• Door alarm not functioning correctly
• Intermittent or unresponsive switch operation

This OEM LG part is also compatible with Sears/Kenmore.

This DC fan motor drives the refrigerator's fan to circulate air across the coils and through the cabinet. Replacing a weak or failed motor restores proper airflow for consistent temperatures and reliable cooling performance.

• Spins the fan blade to move air through the cabinet and across heat-exchange coils
• Helps maintain even, stable temperatures throughout the appliance
• Typical failure symptoms: fan not running or intermittent, unusual humming/squealing/rattling near the fan area, poor cooling or temperature fluctuations
• Can reduce hot spots by restoring proper air circulation

• Disconnect power before servicing; use cut-resistant gloves
• Access the motor behind the rear cover or interior panel (location varies by model)
• Note connector orientation; disconnect harness, mount the new motor, and securely route wiring
• Ensure the blade spins freely with no obstructions; restore power and verify fan operation

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This reflector lamp is the interior light housing that helps direct and diffuse the refrigerator/freezer bulb for brighter, more usable interior illumination. Replaces a cracked, discolored, or missing reflector to restore even light inside the compartment. What it does:

• Reflects and directs the interior lamp's light to improve visibility inside the compartment
• Covers and protects the light bulb and lamp socket from splashes and debris
• Helps reduce hot spots and uneven lighting caused by a damaged reflector
• Common symptom: interior light is dim, uneven, flickering, or reflector is cracked/discolored

• One reflector lamp housing

• Disconnect power to the appliance before starting any repair
• Typically secures with a few screws or snap tabs; use appropriate screwdriver and keep fasteners
• Handle carefully to avoid cracking the plastic; check the bulb and socket when replacing the reflector
• Test the light after reassembly and restore power only when the housing is properly installed

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

This condenser fan motor spins the cooling fan that draws air across the condenser coils and around the compressor. Replacing a weak or seized motor restores proper heat removal so the refrigerator can hold temperature and run more efficiently. What it does:

• Drives the condenser fan to move air through the rear condenser/compressor compartment
• Helps dissipate heat from the refrigerant and protects the compressor from overheating
• Supports stable internal temperatures and efficient cooling performance
• Common symptoms: fan not running, louder rattling/grinding at the back-bottom, hot cabinet sides, warmer-than-normal refrigerator temperatures

• Includes 1 cooling fan motor

• Disconnect power before servicing; pull the unit away from the wall for access
• Remove the rear lower access panel to reach the condenser fan area
• Note wiring and fan-blade orientation; transfer the blade and any mounting hardware from the old motor as needed
• The fan spins freely and airflow direction matches the original before reassembly

This Main PCB Power Control Board Assembly manages the appliance's electronic control and power distribution so cycles run as programmed and functions respond to user commands. Replacing a faulty board restores proper control operation. What it does:

• Regulates power to motors, valves, sensors and user interface circuitry
• Interprets control inputs and runs timed cycles and functions
• Helps prevent erratic behavior caused by failed board components
• Common symptom link: unit won't start, touchpad unresponsive, random resets or error codes indicating control faults

• Disconnect power before accessing electrical components to avoid shock
• Ground yourself and handle the PCB by edges to reduce static risk
• Inspect connectors and harnesses for damage; seat plugs fully during reassembly

This outer housing cover protects internal components and gives the appliance a finished appearance. It replaces a cracked, damaged, or missing panel to restore protection and reduce rattling. What it does

• Shields motors, controls, and wiring from dust and debris
• Prevents foreign objects from contacting internal parts
• Reduces vibration noise caused by loose or broken panels
• Restores the appliance's exterior fit and finish

• One outer housing cover

• Disconnect power to the appliance before starting any work
• Remove any trim, screws, or clips holding the old cover in place; keep fasteners for reassembly
• Handle the cover carefully to avoid scratching the finish or damaging mounting tabs
• Replace any broken clips or fasteners before finishing installation

This decorative control panel covers and protects the appliance's user controls while giving the console a finished appearance. It restores the look and button access so you can see and press the controls normally. What it does:

• Replaces a cracked, faded, or damaged decorative panel that surrounds the control buttons
• Restores proper button labeling and tactile surface for reliable user input
• Helps protect the underlying control board and switch assembly from spills and wear
• Reduces light bleed or obscured buttons from cosmetic damage

• Disconnect power before beginning any repair to avoid shock or damage
• Removal typically requires opening the console and removing fasteners; keep track of screws and clips
• Handle edges and buttons gently to avoid scratching or bending the panel
• Inspect connectors and underlying components while installing; do not force the panel into place

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

• Dimming or blank display lacking visibility
• Unresponsive touch controls with miscalibrated inputs
• Insecure mounting losing calibration on door
• Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

The Toe Grille Clip is an OEM part for LG refrigerators. This part secures the toe grille to the base of the refrigerator, ensuring it remains in place while providing easy access for cleaning and maintenance.

Causes of a bad Toe Grille Clip can include breakage due to accidental impacts during cleaning or general wear and tear over time.

Symptoms of a faulty Toe Grille Clip include:

• The toe grille coming loose or falling off
• Difficulty attaching or detaching the grille for routine maintenance
• Visible damage or deformation of the clip
• Unusual gaps between the grille and the refrigerator base

This OEM LG part is also compatible with some Kenmore models.

The Freezer Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature within the freezer compartment, sending readings to the refrigerator’s control board to maintain optimal temperature levels. It plays a crucial role in ensuring that the freezer operates efficiently and keeps food items properly frozen.

Over time, the temperature sensor can fail due to regular wear and tear, electrical issues, or exposure to extreme temperatures. A faulty sensor can lead to inaccurate temperature readings, affecting the freezer's performance.

Symptoms of a bad freezer temperature sensor include:

• Inconsistent freezer temperatures
• The freezer running continuously or not running at all
• Frost buildup in the freezer compartment
• The control board displaying error codes related to temperature

This OEM LG part is also compatible with Sears/Kenmore.
