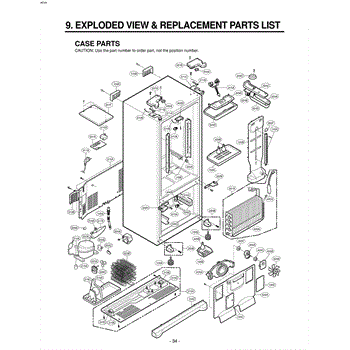

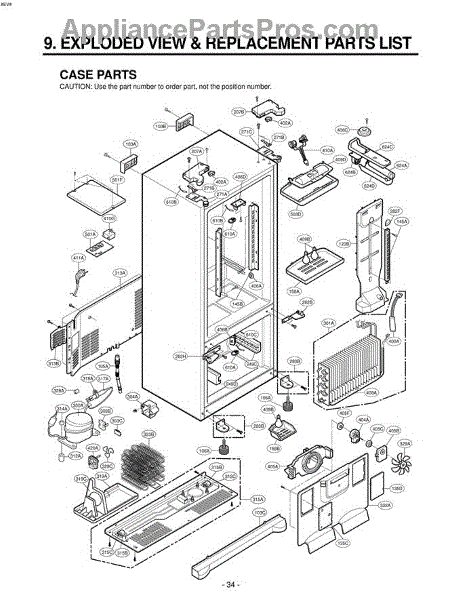

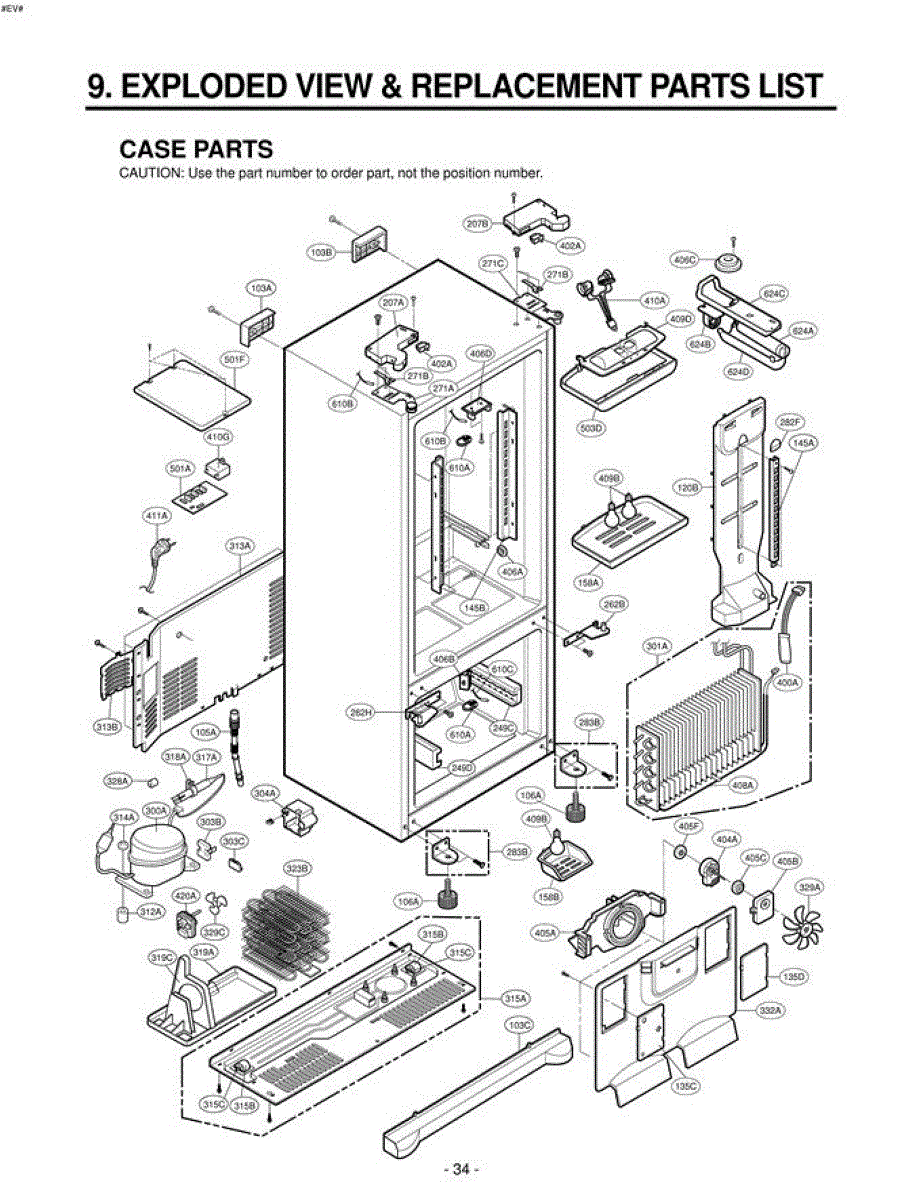

Parts for Lg LRFD25850TT / ATICLGA: Section 1 Parts

The Water Filter is an OEM part for LG refrigerators. It is a component that ensures the purity and quality of your drinking water and ice.

The water filter is designed to effectively reduce contaminants, impurities, and odors from your water supply, providing you with clean and refreshing drinking water. It employs advanced filtration technology to remove substances such as chlorine, sediment, and other potentially harmful particles.

Causes of a faulty water filter can include regular usage over time, expiration of its filtering capacity, or clogging due to sediment buildup. These factors can result in compromised water quality, decreased flow rate, or unpleasant taste and odor.

Symptoms of a bad water filter may include:

• Decreased water flow from the dispenser
• Water with an unusual taste or odor
• Visible discoloration or particles in the water

This OEM LG part can also be used on Kenmore/Sears appliances.

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

This grille cover protects the appliance's cooling/ventilation fan and helps direct airflow where it's needed. It restores the cabinet finish and keeps debris away from the fan housing for more reliable operation. What it does:

• Shields the fan from loose debris and small objects that can cause damage
• Helps channel airflow for proper cooling/ventilation
• Prevents direct contact with fan blades for improved safety
• Reduces rattling or vibration caused by damaged or missing grille

• Disconnect power to the appliance before beginning any work
• Remove any trim or access panels as required to reach the fan area
• Secure with the factory fasteners; do not overtighten to avoid cracking
• Handle edges carefully; wear gloves if needed and test operation after reassembly

The Refrigerator Light Lens is an OEM part for LG refrigerators. It serves as a protective cover for the interior lighting system, shielding the light bulbs or LEDs from dust, moisture, and accidental impacts. The lens measures about 14 inches wide by 5-1/2 inches deep.

Symptoms of a faulty light lens:

• Dim or flickering interior lights
• Light leaks or scattered light distribution
• Cracked, broken, or missing light lens
• Water or moisture buildup inside the light housing

Causes of a bad light lens can include physical damage from impact, exposure to extreme temperatures or moisture, or general wear and tear over time.

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

Replacement refrigerator door hinge that restores smooth pivoting and proper door alignment, helping the door open and close reliably and maintain an airtight seal to preserve cooling performance. What it does:

• Supports the refrigerator door and allows it to pivot smoothly.
• Replaces worn, bent, or damaged hinges that cause door sag or misalignment.
• Helps reduce noisy or grinding door operation when the hinge is failing.
• Promotes an even door seal to help maintain internal temperature consistency.

• Unplug the appliance and remove food from nearby shelves before starting work.
• Support the door while removing hinge fasteners to prevent dropping or damage.
• Reinstall using the original hardware; align the door and tighten fasteners securely but avoid overtightening.

The Compressor Overload Protector is an OEM part for LG refrigerators. This critical component safeguards the compressor, which is the heart of the refrigeration system, from potential damage caused by excessive current draw or overheating.

Symptoms of a faulty compressor overload protector:

• Refrigerator not cooling properly or not running at all
• Compressor failing to start or repeatedly cycling on and off
• Buzzing or humming noises from the compressor area

Causes of a bad compressor overload protector can include electrical surges, wiring issues, or simply wear and tear over an extended period.

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This PTC cover protects the refrigerator's PTC/compressor start device from dirt, moisture and accidental contact, helping the start device operate reliably. It's a simple replacement that restores the protective enclosure for the start assembly. What it does:

• Shields the PTC/compressor start relay and wiring from debris and moisture that can cause malfunctions
• Helps prevent accidental shorting or contact with terminals during operation or service
• Can resolve symptoms where the start device is exposed or the compressor area shows visible wear or damage
• Maintains correct positioning and protection of the start components for consistent compressor starting

• One PTC cover (protective enclosure) as shown

• Disconnect power to the appliance before starting any repair
• Replace only when the start device or cover is exposed and you can access compressor/start assembly safely
• Avoid bending or stressing terminals and wiring when removing or installing the cover

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This condenser fan assembly circulates air across the condenser coils and compressor to remove heat from the refrigeration system. Replacing a failing fan helps restore efficient cooling performance and protects the compressor from overheating. What it does:

• Draws air through the condenser coils to dissipate heat
• Supports proper system pressures and overall cooling efficiency
• Helps maintain stable temperatures in both compartments
• Common symptoms include the fan not running, loud noise from the rear, warm cabinet temperatures, or a very hot compressor area

• Pre-assembled fan motor with blade and mounting bracket

• Disconnect power before servicing; use gloves to protect against sharp edges
• Access the lower rear compartment and remove the back cover to reach the fan
• Note wire positions; move over any reusable grommets or screws and secure the assembly firmly
• The blade spins freely and is oriented to move air across the condenser; clean coils before restoring power

The Defrost Sensor Assembly is an OEM part for LG refrigerators. This integral component plays a key role in monitoring the temperature within the refrigerator's freezer section, particularly during the defrost cycle. It ensures that the defrost system activates and deactivates at appropriate temperatures to maintain efficient operation and prevent frost buildup.

Symptoms of a faulty defrost sensor assembly include:

• Excessive frost or ice accumulation in the freezer
• Refrigerator or freezer section experiencing temperature fluctuations
• Defrost cycle not running or running too frequently

Causes of defrost sensor failure often involve damage from moisture or ice, electrical faults, or degradation over time, which can lead to inaccurate temperature readings and improper defrost cycle regulation.

This OEM LG part is also compatible with Sears/Kenmore.

A momentary push-button switch that restores reliable button control on the appliance console. Replaces a worn or non-responsive push switch so the control board receives a clear input when the button is pressed. What it does:

• Sends a momentary electrical signal to the control board when pressed
• Replaces broken, stuck, or intermittently working push buttons
• Helps resolve symptoms like no response from the console, intermittent button function, or a physically damaged button
• Functions as the user input for single-press commands

• One momentary push switch

• Disconnect power before servicing to avoid shock or injury
• Access usually requires removing the control panel or console; use appropriate screwdrivers
• Note connector orientation and gently unplug wire harness—do not pull on wires

The Evaporator Fan Motor is an OEM part for LG refrigerators. It is located in the freezer compartment, near the evaporator coil. It works to circulate cold air throughout the refrigerator, ensuring efficient cooling and proper temperature distribution.

Causes of a faulty evaporator fan motor can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as insufficient cooling, improper temperature regulation, or unusual noises coming from the refrigerator.

Symptoms of a bad evaporator fan motor may include:

• Inadequate cooling performance in the refrigerator compartment
• Freezer section cooling properly while the refrigerator remains warm
• Unusual noises, such as grinding or rattling, coming from the appliance

This OEM LG part can also be used on Kenmore/Sears appliances.

The Evaporator Fan Motor is an OEM part for LG refrigerators. It is located in the freezer compartment, near the evaporator coil. It works to circulate cold air throughout the refrigerator, ensuring efficient cooling and proper temperature distribution.

Causes of a faulty evaporator fan motor can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as insufficient cooling, improper temperature regulation, or unusual noises coming from the refrigerator.

Symptoms of a bad evaporator fan motor may include:

• Inadequate cooling performance in the refrigerator compartment
• Freezer section cooling properly while the refrigerator remains warm
• Unusual noises, such as grinding or rattling, coming from the appliance

This OEM LG part can also be used on Kenmore/Sears appliances.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

This bracket holder assembly is a structural mount used to secure an internal component, keeping it properly positioned during operation. Replacing a cracked or loose bracket restores support and helps prevent vibration, rattling, and misalignment.

• Provides a fixed mounting point to hold the supported part in place
• Maintains alignment to reduce vibration, rubbing, or noise
• Helps prevent shifting that can lead to premature wear
• Common symptoms: broken tabs or cracks, loose/misaligned component, rattling noises, visible damage to the old bracket

• Disconnect power; shut off water or gas if applicable
• Note screw locations and orientation; take a photo before removal
• Transfer any reusable clips or hardware from the old bracket
• Tighten fasteners evenly and avoid over-tightening to prevent damage

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This refrigerator sheath heater melts frost from the evaporator so air can circulate freely and the unit can cool properly. Replacing a failed heater helps restore even temperatures and reduce frost buildup in the freezer.

• Warms the evaporator coil during defrost cycles to clear ice
• Helps prevent restricted airflow, warm spots, and long run times
• Common failure symptoms include heavy frost on the evaporator, poor cooling, ice buildup on the back panel, or frequent defrost errors
• May cause sizzling sounds or water under the evaporator area during normal operation after replacement

• Unplug the refrigerator before service; defrost any heavy ice to access parts safely
• Access typically from the rear of the freezer compartment behind the evaporator cover
• Handle heater leads and evaporator fins carefully to avoid damage
• Secure all connectors before reassembly

This lamp reflector mounts behind the refrigerator light to direct and spread illumination throughout the compartment. Replacing a cracked, melted, or missing reflector helps restore bright, even lighting so you can clearly see food and shelves. What it does

• Sits behind the interior lamp to reflect light forward into the compartment
• Helps maintain even, consistent illumination and reduces shadows
• Typical symptoms: dim or uneven lighting with a good bulb, yellowed/melted reflector, cracked or missing reflector
• Supports proper visibility around shelves and bins

• 1 lamp reflector

• Disconnect power before servicing to avoid electric shock
• Remove the light lens/cover and bulb to access the reflector
• Reuse existing screws or clips as applicable
• Do not overtighten fasteners; reinstall bulb and lens, restore power, and test

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

The Light Housing Cover is an OEM replacement part for LG refrigerators. It houses electrical components for refrigerator lighting and provides protection from spills and accidental impacts.

Causes of a damaged light housing can include normal wear and tear over time or impacts from moving décor items or bumping interior surfaces. Covers shield-sensitive components.

Symptoms of a failed housing include:

• Dim or flickering interior lights that do not illuminate properly
• Exposed wiring or electronics that pose a potential shock hazard
• Broken clips or screws that do not securely fasten the cover

This cover is also compatible with some Kenmore Side-by-Side models for versatile installations.

This temperature sensor (thermistor) detects internal appliance temperature and sends readings to the control board so the unit maintains proper cooling. Replacing a failing sensor restores accurate temperature monitoring and helps prevent spoilage. What it does:

• Measures internal temperature and provides a resistance-based signal to the control board
• Helps the control system regulate compressor and defrost cycles
• Commonly causes warm or fluctuating temperatures, prolonged cooling, or temperature-related error codes when failing
• Works as a direct-sensing temperature input — not a user control or switch

• One temperature sensor/thermistor (single part as shown)

• Unplug the appliance or switch off power at the breaker before servicing
• Handle the sensor and its thin leads carefully to avoid damage during removal and installation
• Route and secure wiring so it does not contact moving parts or sharp edges

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

This is a water filter intended for use with LG refrigerators. It is used in tandem with the water dispenser on the refrigerator door to purify drinking water. Replacing thee water filter every six months on average is recommended. It is necessary to swap out every year at a minimum, depending on how frequently it is used.Indications that the water filter needs to be switched include water with unusual odors or tastes. The components used to filter the water will stop working, allowing contaminants that could be dangerous to break off and enter the drinking water. Replacement of the LG water filter is simple. Remove the old filter and screw the new one into place in just a few seconds.This LG water filter is a genuine OEM replacement part. It is sold individually. The LG water filter comes sourced directly from the manufacturer and is made of high-quality, durable materials. The LG water filter is only compatible with LG brand refrigerators.
