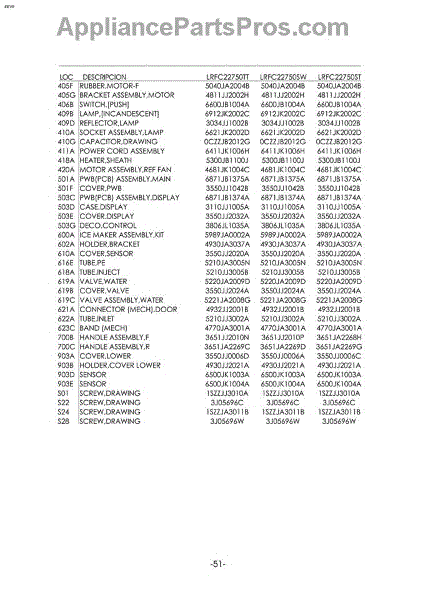

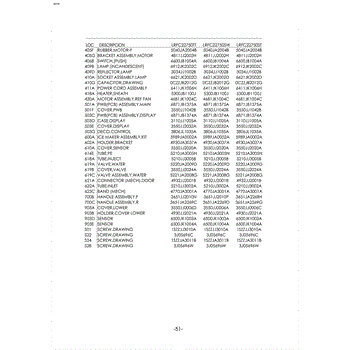

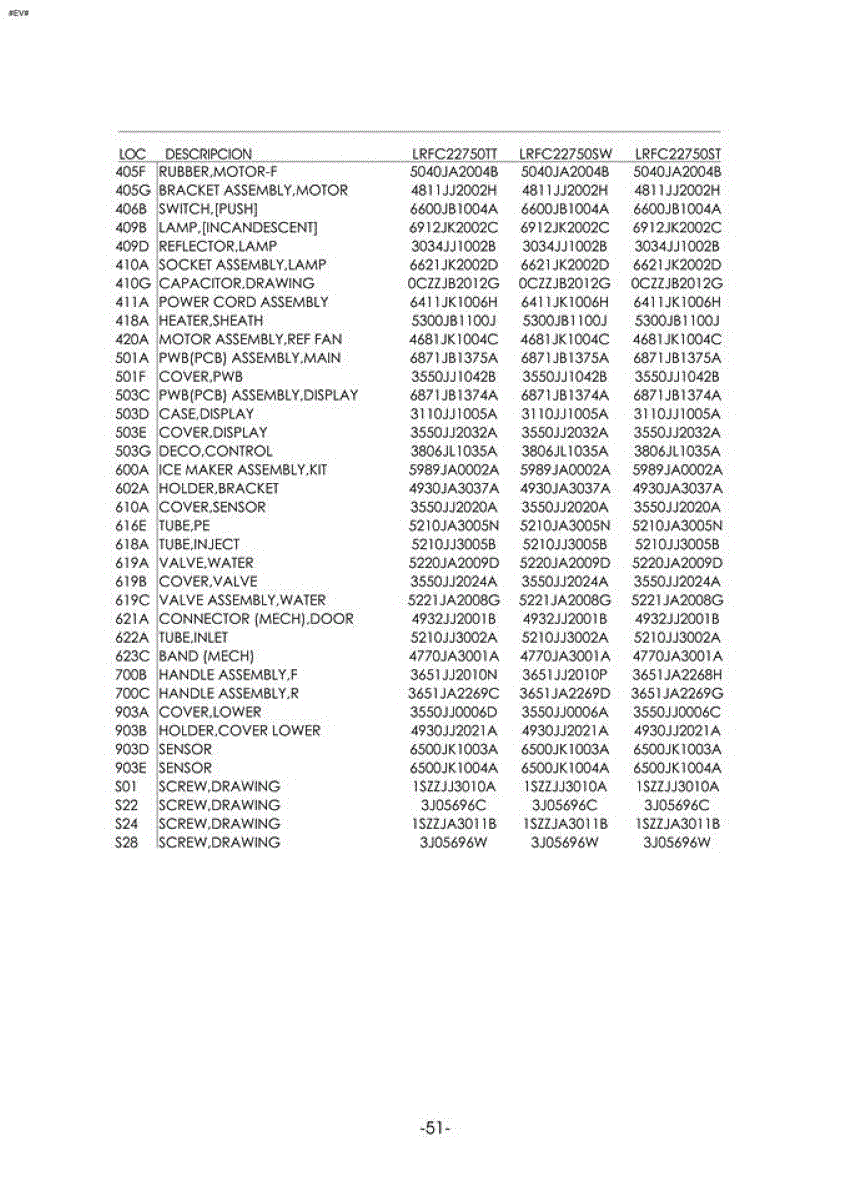

Parts for Lg LRFC22750TT / ATICLGY: Section 10 Parts

The Screw is an OEM part for LG refrigerators. This part secures the shelf brackets within the refrigerator compartment.

Causes of a bad Screw can range from physical damage or impact to general wear and tear over time.

Symptoms of a faulty Screw  include:

• Shelves feeling loose or unstable
• Shelves sagging or not sitting level
• Shelves falling out or collapsing when loaded with items

This OEM LG part is also compatible with some Kenmore models.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This reflector lamp is the interior light housing that helps direct and diffuse the refrigerator/freezer bulb for brighter, more usable interior illumination. Replaces a cracked, discolored, or missing reflector to restore even light inside the compartment. What it does:

• Reflects and directs the interior lamp's light to improve visibility inside the compartment
• Covers and protects the light bulb and lamp socket from splashes and debris
• Helps reduce hot spots and uneven lighting caused by a damaged reflector
• Common symptom: interior light is dim, uneven, flickering, or reflector is cracked/discolored

• One reflector lamp housing

• Disconnect power to the appliance before starting any repair
• Typically secures with a few screws or snap tabs; use appropriate screwdriver and keep fasteners
• Handle carefully to avoid cracking the plastic; check the bulb and socket when replacing the reflector
• Test the light after reassembly and restore power only when the housing is properly installed

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

This sheathed defrost heater mounts at the evaporator and melts frost during the automatic defrost cycle to restore airflow and stable temperatures. Replacing a failed heater helps prevent ice-clogged coils, warm spots, and noisy fan interference.

• Melts frost from the evaporator coil during the defrost cycle to maintain proper airflow
• Symptoms of failure: persistent ice on the back panel, weak cooling, or the evaporator fan striking ice
• A failed heater can cause long run times and temperature swings
• Replace if the element tests open/short or shows visible damage

• Disconnect power before service; allow components to warm to reduce risk of cracking brittle plastics
• Remove shelves and the evaporator cover; carefully defrost ice—do not chip or pry against the fins
• Transfer original clips/insulators if present; route wires as original and make firm electrical connections
• After reassembly, ensure the drain area is clear and the fan spins freely

This DC motor powers the appliance's cooling fan to move air across coils and through compartments. Replacing a weak or failed motor restores proper airflow for steadier temperatures and quieter, more efficient operation. What it does:

• Drives the fan that circulates air through the evaporator or across the condenser
• Helps maintain even cooling and prevent temperature swings
• Replaces a motor that won't start, runs intermittently, or makes grinding/squealing noises
• Can help address poor cooling, warm spots, or frost/ice buildup from lack of airflow

• 1 DC motor

• Disconnect power before servicing; wear cut-resistant gloves
• Access the fan area per service information (rear interior panel or machine compartment)
• Transfer the fan blade and any grommets/brackets/screws from the original motor if needed
• Seat the motor securely, route wires clear of the blade, and verify the fan spins freely before reassembly

Main control board assembly that manages power distribution and electronic controls for the appliance, helping restore normal operation. Replacing a failed board can fix unresponsive controls, random cycles, error codes, or machines that won't start. What it does:

• Routes power and control signals to motors, valves, heaters and user interface components to coordinate appliance functions.
• A failed board can cause the unit to be dead, have unresponsive or erratic controls, or start/stop mid-cycle.
• Use diagnostics to confirm the board is at fault before replacing; mechanical or sensor failures can produce similar symptoms.

• Disconnect power at the breaker or unplug the appliance before starting any work.
• Handle the board by the edges and use anti-static precautions to avoid damaging electronic components.
• Photograph or label each connector and wire before removal for accurate reassembly.

This is an LG primary control board display assembly for refrigerators. The main function of this component is to control the display screen on the front of the refrigerator and control its main roles.When the refrigerator's main display on the front of the appliance malfunctions and doesn't display properly, the main issue is most likely the PCB display assembly. This allows a user to control several other functions of the refrigerator, including temperature setting, defrost, and ice maker settings. These malfunctions can be remedied by installing a new PCB display assembly. Always unplug the appliance before making any repairs. Wear gloves if possible.This product is a genuine OEM part sourced directly from the manufacturer. The primary control board display assembly is only available as an individual component and does not include any other parts or the original appliance. This primary control board display assembly is designed for installation in LG refrigerators.

This is an LG primary control board display assembly for refrigerators. The main function of this component is to control the display screen on the front of the refrigerator and control its main roles.When the refrigerator's main display on the front of the appliance malfunctions and doesn't display properly, the main issue is most likely the PCB display assembly. This allows a user to control several other functions of the refrigerator, including temperature setting, defrost, and ice maker settings. These malfunctions can be remedied by installing a new PCB display assembly. Always unplug the appliance before making any repairs. Wear gloves if possible.This product is a genuine OEM part sourced directly from the manufacturer. The primary control board display assembly is only available as an individual component and does not include any other parts or the original appliance. This primary control board display assembly is designed for installation in LG refrigerators.

This display PCB is the main interface circuit board that controls the appliance's display and touch/keypad signals, restoring proper display readouts and user input response. Use it when the display is blank, unresponsive or shows erratic behavior. What it does:

• Controls and powers the front display, LEDs or LCD segments so status and settings are visible
• Processes button/touchpad inputs and relays commands to the main control board
• Replaces failed display electronics that cause no light, flicker, or incorrect information
• Helps resolve intermittent or non-responsive user interface behavior tied to the display module

• One display PCB assembly as shown

• Disconnect power at the breaker or unplug the appliance before servicing to avoid shock
• Handle the PCB by the edges and avoid touching components or connector pins
• Verify connectors are fully seated and routed clear of pinch points before powering up

The Icemaker Assembly is an OEM part for LG refrigerators. It is responsible for producing and storing ice within the freezer compartment.

You should replace the icemaker assembly if it becomes faulty. Causes of a bad icemaker assembly can include wear and tear from regular use, mineral buildup from hard water, or failures in the mechanical or electronic components. These issues can lead to inconsistent ice production or complete failure to produce ice.

Symptoms of a bad icemaker assembly include:

• The icemaker not producing ice
• Leaking water around the icemaker
• Ice cubes that are misshapen or smaller than usual
• Unusual noises coming from the icemaker

This OEM LG part is also compatible with Sears/Kenmore.

The Water Supply Tube (1/4" O.D.) is an OEM part for LG refrigerators. It transports water from the household water line to the refrigerator’s water dispenser and ice maker, ensuring a steady and reliable supply of water for these functions.

Causes of a bad water supply tube can include wear and tear over time, kinks or bends restricting water flow, or leaks due to cracks or punctures.

Symptoms of a bad Water Supply Tube include:

• Leaks or water pooling behind or under the refrigerator
• Reduced or no water flow to the dispenser or ice maker
• Visible cracks or kinks in the tube
• Ice maker not producing ice or dispensing water intermittently

This OEM LG part is also compatible with some Kenmore models.

This injection tube directs water to the refrigerator ice maker so the mold fills correctly and produces ice. It replaces a cracked or blocked tube to restore reliable water flow to the ice-making assembly. What it does:

• Channels water from the valve to the ice maker fill cup for proper ice production
• Helps prevent leaks caused by cracked or brittle tubing
• Commonly replaced when the ice maker won't fill, fills slowly, or leaks near the ice mold
• Works with the ice maker fill system; not a water valve or pump

• Disconnect power and shut off the water supply before starting work
• Inspect adjoining fittings and seals; replace worn grommets or clips as needed
• Handle carefully to avoid kinks or damage to the tube during installation

This replacement water inlet valve controls the flow of water to the refrigerator's dispenser and ice maker, restoring reliable water delivery and ice production. Designed to match OEM fit and function. What it does:

• Opens and closes to route water to the dispenser and ice maker when commanded
• Helps stop water flow when the dispenser is inactive to prevent leaks
• Commonly replaces failed valves that cause no water, weak dispensing, or continuous running
• Works as a direct-fit valve for compatible LG refrigerator units

• Disconnect power and shut off the water supply before starting work
• Handle connectors and tubing carefully; confirm tight, leak-free connections when reassembling
• Inspect and replace damaged inlet tubing or fittings as needed to prevent leaks

This replacement water inlet valve controls the flow of water to the refrigerator's dispenser and ice maker, restoring reliable water delivery and ice production. Designed to match OEM fit and function. What it does:

• Opens and closes to route water to the dispenser and ice maker when commanded
• Helps stop water flow when the dispenser is inactive to prevent leaks
• Commonly replaces failed valves that cause no water, weak dispensing, or continuous running
• Works as a direct-fit valve for compatible LG refrigerator units

• Disconnect power and shut off the water supply before starting work
• Handle connectors and tubing carefully; confirm tight, leak-free connections when reassembling
• Inspect and replace damaged inlet tubing or fittings as needed to prevent leaks

The Water Nozzle is an OEM replacement part for LG refrigerators. It is a component within the refrigerator's ice maker and water dispenser system. The water nozzle controls the flow of water into the ice making mold or water dispenser functions.

Symptoms of a bad water nozzle include:

• Slow filling or inability to fill the ice-making mold
• Inconsistent or weak water dispensing from the refrigerator's door
• Leaks or water drips around the ice maker or water dispenser area

Causes of a faulty water nozzle can be mineral deposits accumulating over time, wear and tear from heavy use, or damage due to impact or freezes.

This part is also compatible with many Kenmore side-by-side refrigerator models.

This mechanical mounting band secures a bracket assembly inside the appliance to keep components aligned and reduce vibration. It restores proper bracket positioning so moving parts run quietly and reliably. What it does:

• Holds a bracket or component assembly in place to maintain proper alignment
• Dampens movement and reduces vibration-related noise or rattling
• Prevents excess wear by keeping parts from shifting during operation
• Helps maintain correct clearances to avoid interference or rubbing

• Disconnect power before inspecting or replacing internal parts
• Remove only the fasteners necessary to access the bracket; keep track of hardware
• Secure all fasteners to the manufacturer's torque or snug specification
• Replace the band if bent, cracked, or missing to restore proper fit and function

A replacement access cover that protects internal components and restores the appliance's finished appearance. Installs quickly to shield wiring and assemblies and help reduce noise and wear from exposed openings. What it does:

• Shields internal components from debris and incidental contact
• Helps reduce rattling or vibration caused by damaged or missing panels
• Restores the appliance's finished look after impact or wear
• Used when the original cover is cracked, warped, or missing

• Always unplug the appliance (and shut off water if applicable) before servicing
• Keep original fasteners and follow vehicle/service manual guidance for removal and reinstallation
• Align the cover carefully and secure with the factory screws; do not overtighten

The Toe Grille Clip is an OEM part for LG refrigerators. This part secures the toe grille to the base of the refrigerator, ensuring it remains in place while providing easy access for cleaning and maintenance.

Causes of a bad Toe Grille Clip can include breakage due to accidental impacts during cleaning or general wear and tear over time.

Symptoms of a faulty Toe Grille Clip include:

• The toe grille coming loose or falling off
• Difficulty attaching or detaching the grille for routine maintenance
• Visible damage or deformation of the clip
• Unusual gaps between the grille and the refrigerator base

This OEM LG part is also compatible with some Kenmore models.

The Freezer Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature within the freezer compartment, sending readings to the refrigerator’s control board to maintain optimal temperature levels. It plays a crucial role in ensuring that the freezer operates efficiently and keeps food items properly frozen.

Over time, the temperature sensor can fail due to regular wear and tear, electrical issues, or exposure to extreme temperatures. A faulty sensor can lead to inaccurate temperature readings, affecting the freezer's performance.

Symptoms of a bad freezer temperature sensor include:

• Inconsistent freezer temperatures
• The freezer running continuously or not running at all
• Frost buildup in the freezer compartment
• The control board displaying error codes related to temperature

This OEM LG part is also compatible with Sears/Kenmore.
