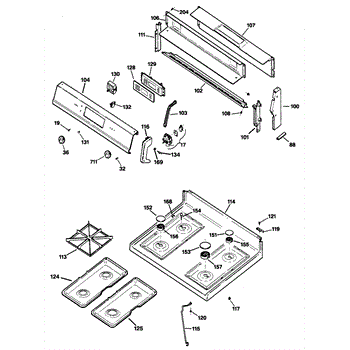

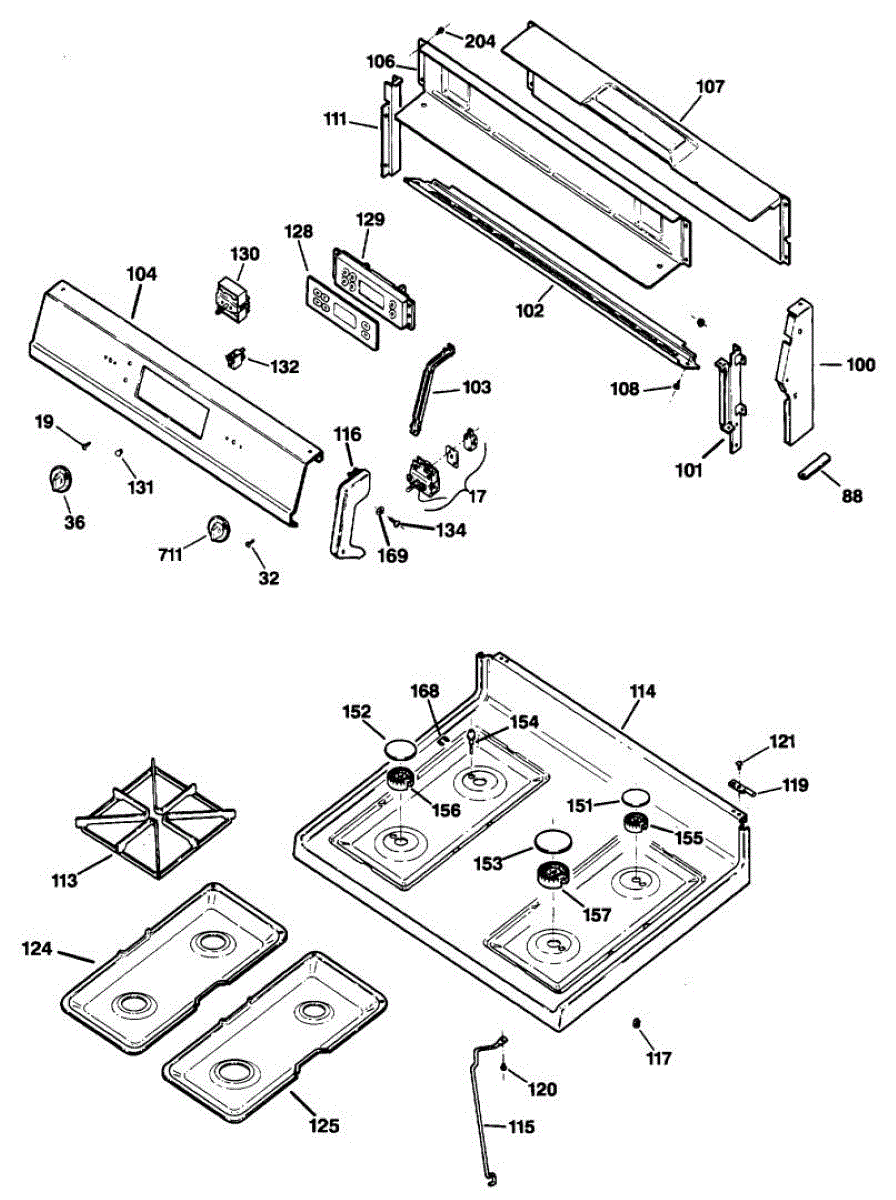

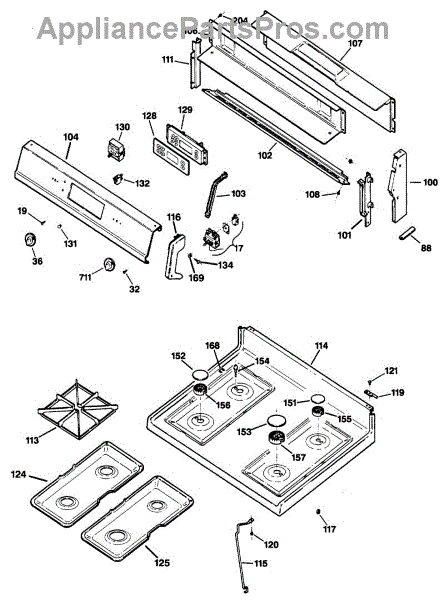

Parts for Ge JGBP30GEV2AD: 02 - Section2 Parts

Replacement mounting screw that secures the thermostat assembly to your range cabinet. Replace if stripped, missing, or damaged during repair work.

Replacement mounting screw for ranges. Secures panels, brackets, and internal components. Install if original screw is stripped, missing, or damaged.

Replace worn felt pad gasket to prevent heat loss and reduce noise in your range. Cushions components and ensures proper sealing. Confirm fit with model number.

Replace your range's control panel end cap if the original is cracked, broken, or missing. This trim piece installs on the right side of the panel.

Left end cap cover for ranges. Replaces worn, cracked, or missing outer trim piece. Restores finished appearance and protects internal components.

Right-hand end plate for electric ranges. Replaces cracked, bent, or corroded exterior panel. Restores proper support and alignment to side components.

Left side end plate for electric ranges. Replaces cracked, broken, or missing end panels that provide structural support and finished appearance.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Protective wire cover for range burner igniter wires. Replaces cracked, broken, or missing covers. Shields wiring from damage inside the range cabinet.

These cast iron or steel grates sit on top of gas range burners to support cookware during cooking. Replace when grates become cracked, warped, or have missing pieces that affect pot stability.

This metal bracket provides structural support for your range top, keeping it level and stable during cooking. It prevents sagging and maintains proper alignment of burners and cooking surfaces. Replace this part if your range top is sagging, uneven, or wobbles when pressure is applied.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

This oven control board and timer assembly manages cooking cycles, temperature regulation, and timing functions for precise baking and roasting results. It coordinates heating elements and monitors cooking progress according to your selected settings. Replace this component if your oven won't maintain temperature, timer functions don't work, or if the control panel displays error messages.

Covers the control panel lamp opening to diffuse light and protect from debris. Replace if broken, cracked, or missing to restore clear indicator visibility.

Fix burners that won't light or click continuously. This igniter electrode sparks to light gas burners. Easy 5-10 minute repair with a screwdriver.

This small metal clip secures the surface burner spark electrode to its bracket or burner base, holding the tip at the proper gap for reliable ignition. Replace a missing, bent, or corroded clip to help restore consistent sparking.

• Holds the surface burner spark electrode firmly in position near the burner head
• Maintains correct alignment and gap so the igniter can spark to the burner
• Can help with delayed ignition, intermittent sparking, or a burner that won't light
• Typical signs include a loose/wobbly electrode, visible damage, or a missing clip

What's included: 1 mounting clip Install notes:

• Disconnect power and shut off gas before servicing
• Lift the cooktop or remove burner components to access the electrode; note clip orientation
• Transfer the electrode into the new clip and seat the clip securely in its bracket or base
• Avoid stressing the electrode's ceramic insulator; verify the tip is aimed at the burner rim and test ignition

Clear washer for range assembly and mounting applications. Replaces worn, cracked, or missing washers in your range. Essential hardware component.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Package of 12
