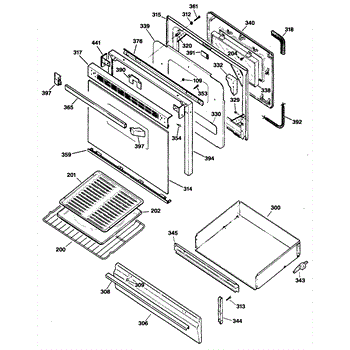

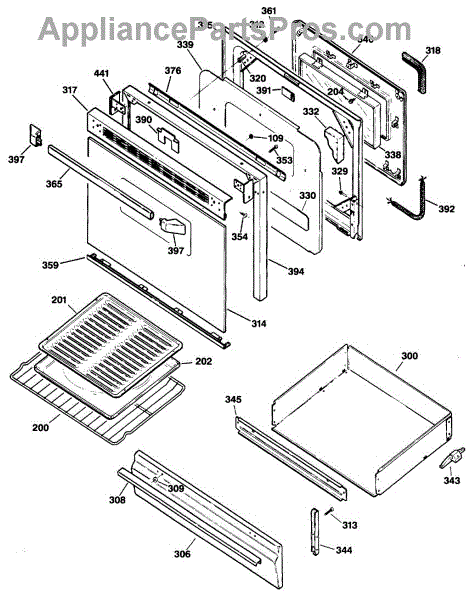

Parts for Ge JGBP30GEV2AD: 04 - Section4 Parts

Replacement oven rack for electric and gas ranges. Installs inside oven cavity. Needed when original rack is missing, damaged, or warped from use.

Slotted grid that rests over the broiler pan to support food during broiling. Replace if cracked, warped, worn, or missing to restore proper function.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Replacement drawer front panel for your range. Installs on the warming or storage drawer. Order a new panel if yours is cracked, chipped, or damaged.

Includes 12 washers.

Includes 12 washers.

Color: Black

Door liner weld assembly for electric ranges. Replaces cracked, damaged, or broken door liner frames. Structural component that secures inner door panel.

Seals the gap between oven door and body to retain heat during cooking. Replace if cracked, worn, or heat escapes. Verify fit with your model number.

Includes 12 screws.

Replacement drawer glide for range bottom drawer. Needed when glide is broken, cracked, or snapped, causing drawer to fall, scrape floor, or not slide.

Secures the lower storage drawer assembly to your range cabinet. Replace this stamped metal bracket if cracked, bent, or missing to restore alignment.

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

Black trim piece that installs at the bottom edge of your range oven door. Replace if cracked, rusted, broken, or missing to restore appearance.

Replacement oven door handle for ranges. Installs on the oven door exterior to provide a grip for opening and closing. Replace if cracked, broken, or worn.

Color: Black
Each package includes one end cap. For the white version, order part number WB7K5319.

The Handle End Cap is an OEM part for GE ranges. This part plays a role in capping the ends of the range handle, allowing a seamless and aesthetically pleasing finish while also preventing injuries by covering potentially sharp edges.

Causes of a bad handle end cap include physical impact, frequent cleaning that leads to wear, or degradation due to exposure to kitchen grease and heat.

Symptoms of a bad hand end cap:

• A loose or incomplete look of the range handle, affecting the overall design and functionality.
• Exposed sharp edges that could pose a safety risk to users.
• An unsecured handle, which may affect the ease of opening and closing the oven door.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Package of 12

Black decorative trim piece that frames the oven door on your range. Replace if cracked, chipped, faded, or missing to restore a clean, finished look.
