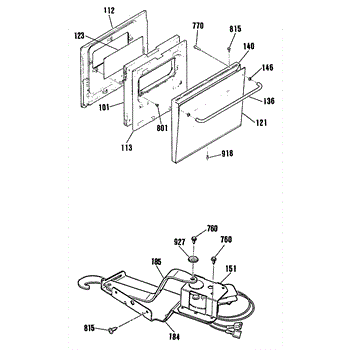

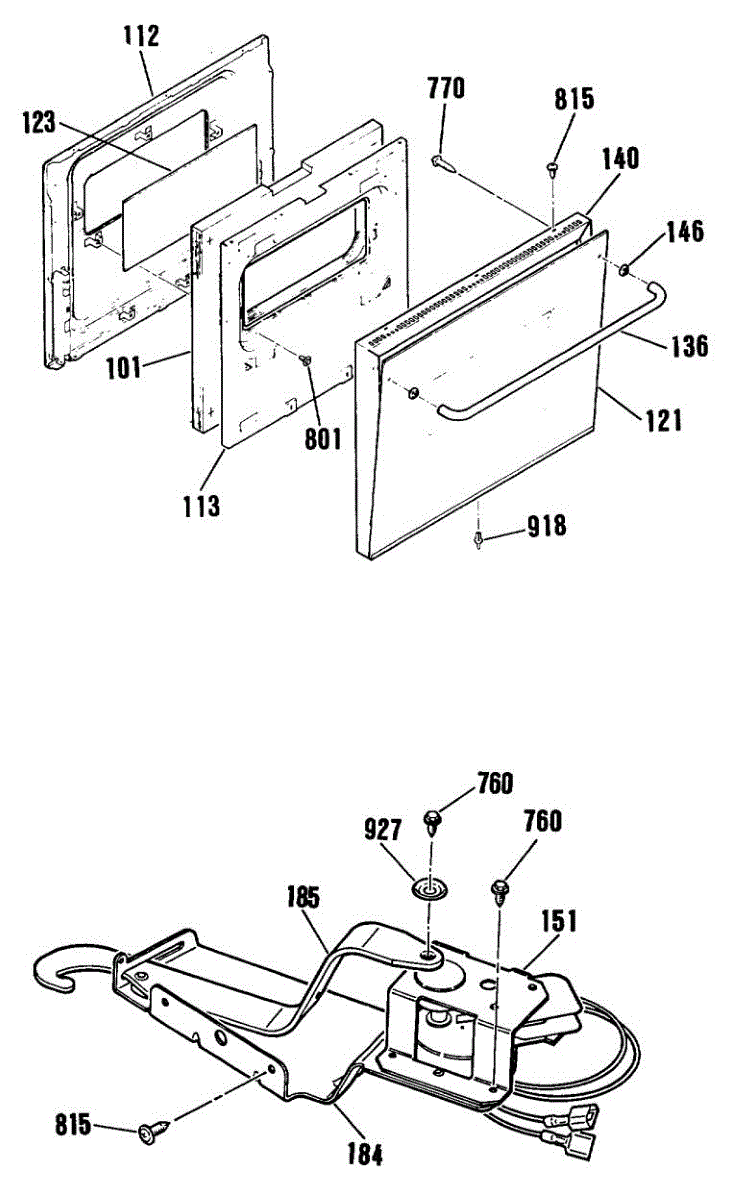

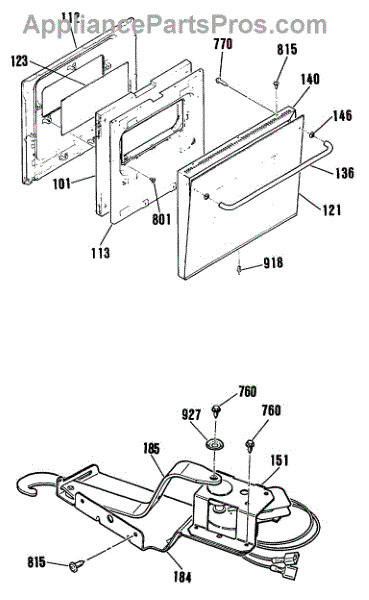

Parts for Ge JRP24GP2BG: 02 - Section2 Parts

Parts for Ge JRP24GP2BG: 02 - Section2 Parts

Location on Diagram
Part Description
Price & Availability
101
By: Ge
Part Number: WB35K5054

Replaces worn, damaged, or missing insulation inside your oven door. Installs between inner and outer door panels to maintain heat efficiency.

More
$26.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
112
By: Ge
Part Number: WB55K5023
$142.77

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
112
By: Ge
Part Number: WB55K5026
$103.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
113
By: Ge
Part Number: WB2K5159

Retainer cable for oven door insulation. Secures insulation in place along door panel. Replace if cable is broken, frayed, or missing from your oven door.

More
$35.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
121
By: Ge
Part Number: WB57K5060
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

121
Product photo
By: Ge
Part Number: WB34K5187
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

123
Product photo
By: Ge
Part Number: WB36X779

Center glass panel for oven door. Installs between inner and outer door panels. Replace if cracked, broken, or heat-damaged for safety and visibility.

More
$94.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
136
Product photo
By: Ge
Part Number: WB15K5023
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

140
By: Ge
Part Number: WB56K5041
$148.64

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
140
Product photo
By: Ge
Part Number: WB34K5187
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

146
By: Ge
Part Number: WB2K5151
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

151
Product photo
4.5 (4)
By: Ge
Part Number: WB49T10020

Oven door won't lock for self-clean cycle? This door latch assembly secures the door during cleaning and reports lock status. Moderate DIY repair.

More
$158.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
184
By: Ge
Part Number: WB34K5228

Oven door won't close or latch stuck after self-clean cycle? This door lock plate secures the latch mechanism. Common DIY fix for stuck oven doors.

More
$74.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
185
Product photo
By: Ge
Part Number: WB15K5016

Replaces the latch arm that engages your oven door lock mechanism during self-clean cycles. Order a new lock lever if yours is broken or worn.

More
$37.43

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
760
Product photo
4.7 (3)
By: Ge
Part Number: WB1X536

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

More
$18.25

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
770
Product photo
By: Ge
Part Number: WB1K5072

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order when original screw is missing, stripped, or lost.

More
$9.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
801
Product photo
5.0 (6)
By: Ge
Part Number: WB1M1

ST10-16 X 7/16"

More
$9.48

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
815
Product photo
By: Ge
Part Number: WB1X1176
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

918
Product photo
5.0 (1)
By: Ge
Part Number: WB1K5071

Plastic push-in rivet fastener secures trim and panels on electric ranges and ovens. Replace if broken, missing, or worn to prevent loose rattling parts.

More
$4.81

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
927
Product photo
By: Ge
Part Number: WB1X119D

Includes 12 washers.

More
$13.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
