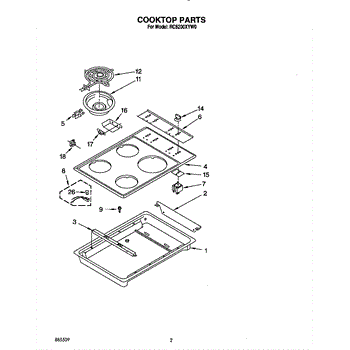

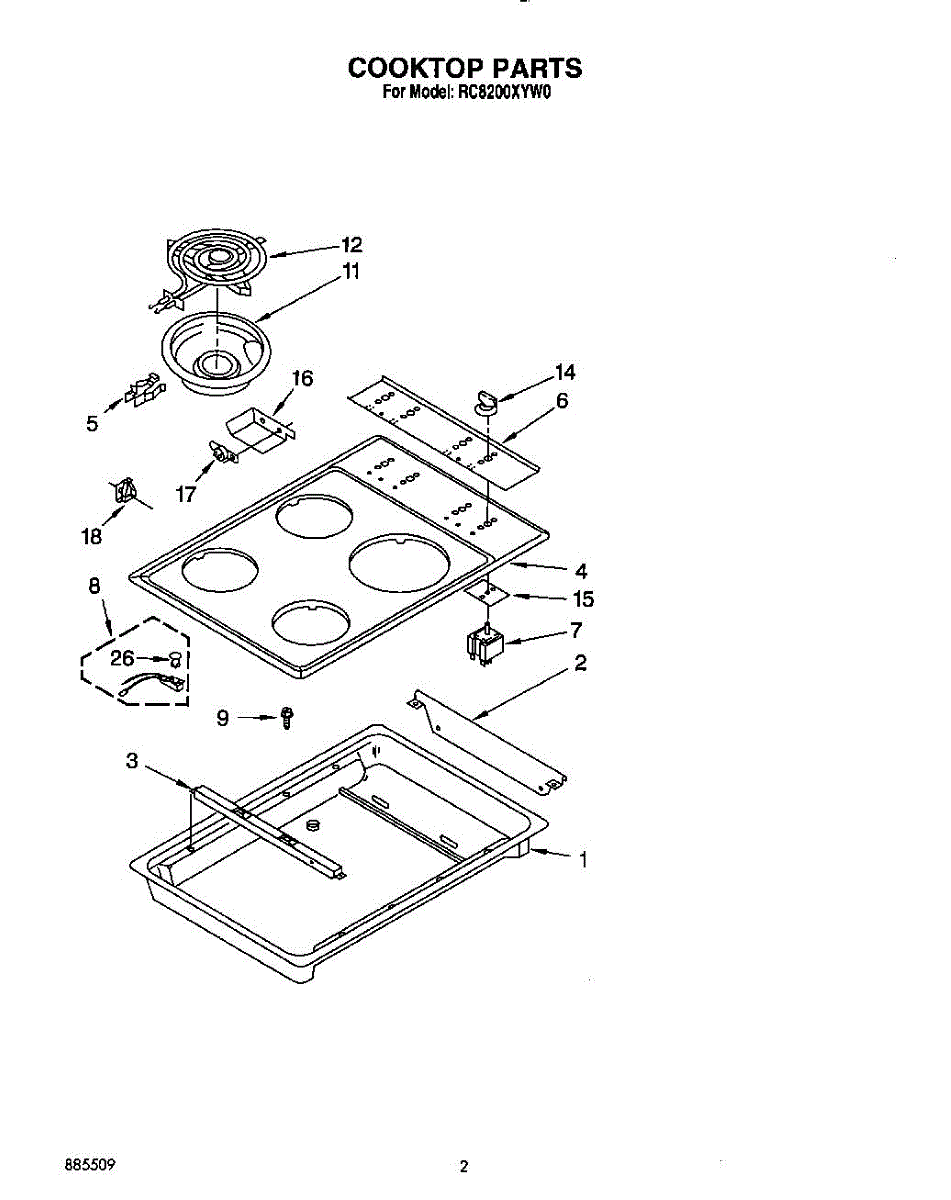

Parts for Whirlpool RC8200XYN0: 02 - Section Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Size: 6-32 x 9/32 inch.

Burner not heating? This receptacle kit restores electrical connection to cooktop elements. Most DIYers complete this repair in under 30 minutes.

Loose or missing dishwasher door latch? This latch knob screw secures the knob to its shaft, restoring firm operation. Quick 5-minute fix.

Burner won't heat or cycles incorrectly? This infinite switch controls temperature for your 8-inch range element. Direct-fit part, moderate difficulty.

Size: 10-32 x 1/2 inch.

Shallow metal pan that sits below burner elements to catch grease and food spills. Replace when cracked, rusted, discolored, or warped for easier cleanup.

Shallow metal drip pan installs below burner elements to catch grease and spills. Replace when discolored, rusted, warped, or damaged for a clean cooktop.

Burner won't heat or heats unevenly? This 6 inch surface element restores consistent cooking temperatures. Simple plug-in replacement takes minutes.

Surface element not heating or won't turn on? This 8-inch coil burner fits ranges and cooktops. Simple plug-in replacement takes under 5 minutes.

Seals and cushions the switch bracket mounting area on your cooktop. Replace if worn to prevent moisture and debris intrusion. Confirm fit with your model.

This metal clip secures and stabilizes surface burner components on gas cooktops. It prevents burner parts from shifting during cooking and ensures proper alignment for safe gas flow. Install this clip if burner grates move during cooking, flames appear uneven, or burner parts seem loose or misaligned.

This clear plastic cover protects the light bulb inside your dryer drum and diffuses the light evenly. Located on the dryer's interior wall, replace when cracked, yellowed, or missing, as this can expose the bulb to damage from clothing.
